Description
Included in this kit
This bundle includes a Kenwood DMX1038S 10.1 HD Capacitive Screen Media Receiver, Screen Adjustments include vertical and horizontal settings, 1-DIN Chassis, Wireless Car Play Ready, Wireless Android Auto Ready, Wireless Android Mirroring, HDMI Input, Bluetooth, and a Sirius XM SXV300v1 Connect Vehicle Tuner Kit for Satellite Radio.

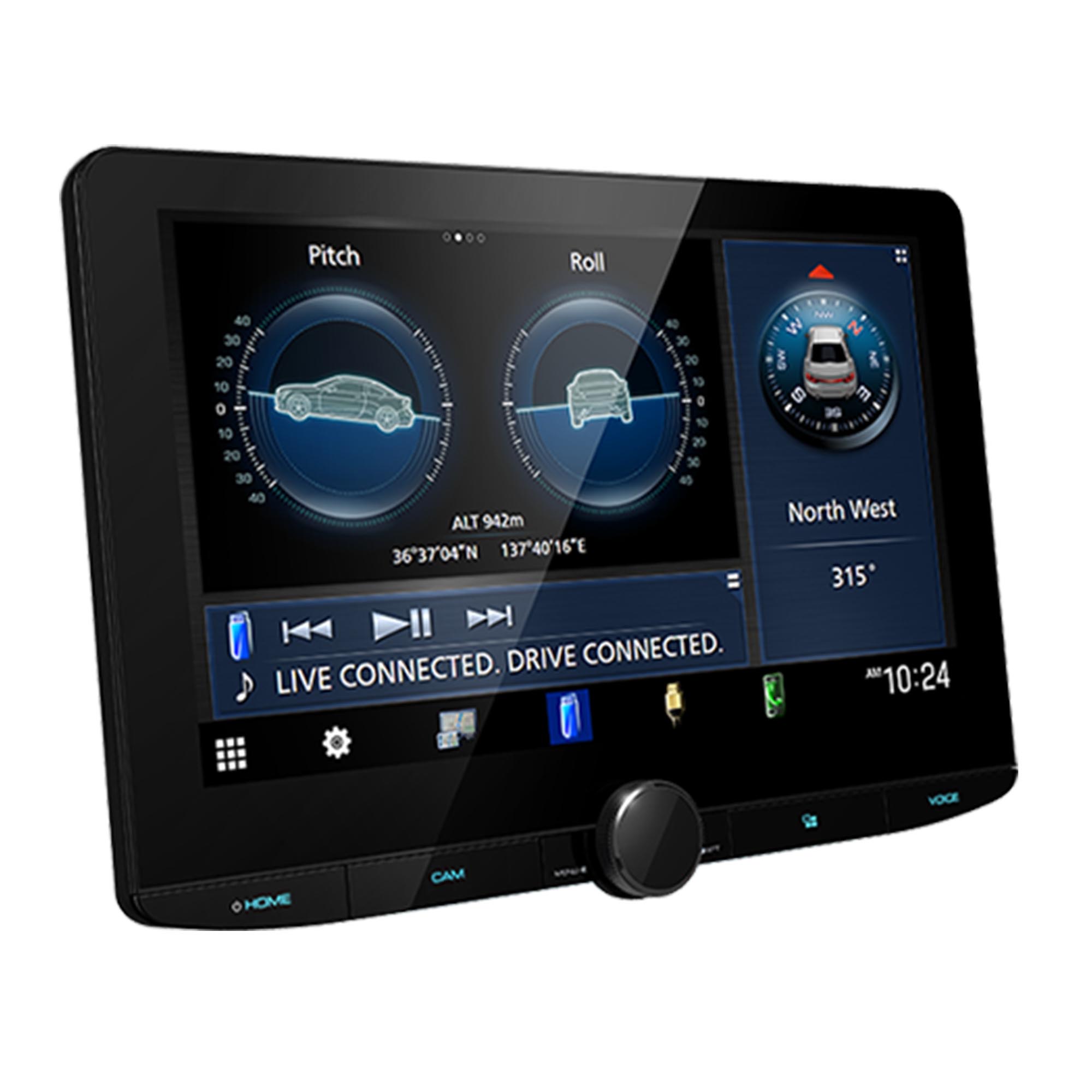

1x Kenwood DMX1038S 10.1 HD Capacitive Screen Media Receiver, Screen Adjustments include vertical and horizontal settings, 1-DIN Chassis, Wireless Car Play Ready, Wireless Android Auto Ready, Wireless Android Mirroring, HDMI Input, Bluetooth (DMX1038S)
General
Operating voltage: 12V DC Car Battery
Set Weight: 2.5Kg/ 5.6lb
Chassis Dimensions WxHxD: 178mm x 50mm x 158mm/ 7 x 2 x 6-1/4 inch
Weight: 1.3kg/ 2.9lb
Monitor Dimensions WxHxD: 262mm x 181mm x 52mm/ 10-5/16 x 7-1/8 x 2-1/16 inch
Weight: 1.1Kg/ 2.4lb
Monitor Section
Picture size: 10.1 inches(diagonal) wide
W x H: 223.7 x 125.8 (mm), 8-13/16 x 4-15/16 (inch)
Display system: LCD panel
Drive system: TFT active matrix system
Number of pixels: 2,764,800, 1280H x 720V x RGB
Effective pixels: 99.99%
Pixel arrangement: RGB striped arrangement
USB I/F Section
Connector Type: Type-C
USB Standard: USB2.0 High Speed
File System: FAT 16/32, exFAT, NTFS
Maximum Power Supply Current: DC5V=3.0A
Audio Decoder: MP3 / WMA / AAC / WAV / FLAC / Vorbis
Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / MKV
Bluetooth Section
Technology: Bluetooth Ver5.2
Frequency: 2.402 – 2.480 GHz
Maximum Communication range: Line of sight approx. 10m (32.8ft)
Audio Codec: SBC / AAC / LDAC
Digital FM
Frequency Range: 87.9MHz - 107.9MHz (Frequency step)(200kHz)
Frequency Response: 20Hz - 20kHz (±3.0 dB)
S/N: 80dB (STEREO)
Digital AM
Frequency Range: 530kHz - 1700kHz (Frequency step)(10kHz)
Frequency Response: 40Hz - 15kHz (±3.0 dB)
S/N: 80dB (STEREO)
FM
Frequency Range: 87.9MHz - 107.9MHz (Frequency step)(200kHz)
Usable sensitivity: 7.3dBf
S/N 30dB: 0.7μV/75Ω
Frequency response (±3.0dB): 30Hz - 15kHz
S/N(dB): 70dB (MONO)
Selectivity: Over 80dB (±400kHz)
Stereo separation: 45dB (1kHz)
AM
Frequency Range: 530kHz - 1700kHz (Frequency step) (10kHz)
Usable sensitivity: 30dBμ
Video
Color system of external video input: NTSC/PAL
External video input level (RCA jacks): 1 Vp-p / 75 Ohms
Video Input level (RCA jacks): 1 Vp-p / 75 Ohms
Audio
Maximum Power Output (Front&Rear): 50Wx4
Typical Power Output (Front&Rear): 29W x 4 (4Ω,1kHz,10%THD)
Output frequency band: 20 - 88,000Hz
Preout level (V): 5V / 10kOhms
Preout impedance (Ω): =< 300 Ohms
Speaker Impedance (Ω): 4-8 Ohms
1x Sirius XM SXV300v1 Connect Vehicle Tuner Kit for Satellite Radio (SXV300V1)
Sirius XM SXV300v1 Vehicle Tuner Kit for Satellite Radio
Connect, control and enjoy all the wonders of satellite radio on the sly. The compact SXV300 tuner is truly plug-and-play with compatible car stereos and installs easily and discreetly behind the dash for a fully integrated look.
• Connect, control and enjoy SiriusXM though the vehicle's in-dash audio system; no special translators or cable adapters are needed.
• Compact size hides discreetly behind the dash for a fully integrated look.
• Single interface cable connection to SiriusXM-Ready car stereo simplifies installation.
• Pause, Rewind and Replay up to 60 minutes of live Satellite Radio.*
• Automatically start songs from the beginning on your favorite channels with TuneStart™.*
• Use TuneMix™ to hear a mix of songs from your favorite channel.*
• Use TuneScan™ to preview songs that you have not yet heard on your favorite channels.*
• Keep up with the big plays for your favorite teams with SportsFlash™.*
• Keep Moving with the most current updates using Traffic & Weather Now™.*
• Get alerts when your favorite song, artist or team is playing.*
• Discover new music and tag for purchase with iTunes® radio tagging.*
• Compatible with all SiriusXM-Ready car stereo receivers from leading manufacturers. Look for the SiriusXM-Ready logo.
• Includes: SXV300 Tuner and Magnetic Mount Antenna.
