Description
Included in this kit
This bundle includes a Kenwood KMR-XM500 eXcelon Motorsports 3" Gauge Mount Receiver, 2.7" LCD screen with IP66 rating, Bluetooth 5.0, FM & Weatherband Tuner, USB, Backup Camera Input, a Kenwood XM302-4 Marine/Motorsports 4ch Amplifier with 50W x 4 @ 4ohms, 75W x 4 @ 2ohms, 600W Maximum Power, Conformal Coated Main PCB,, a Kenwood XM65BL 6.5" 2-Way Black Coaxial Speakers Marine/Powersports for 5-1/2" Diameter Mounting Hole, 21-Color Front & Back RGB Illumination, and a Kenwood XM65TBL Marine/Powersports Tower Speakers with Black Enclosures, 6.5" 2-Way Speaker, 21-Color Front & Back RGB Illumination, Cast Aluminum Mounting Clamp for 1-1/2" to 2" diameter round structure.
1x Kenwood KMR-XM500 eXcelon Motorsports 3" Gauge Mount Receiver, 2.7" LCD screen with IP66 rating, Bluetooth 5.0, FM & Weatherband Tuner, USB, Backup Camera Input (KMR-XM500)
Features:
3” Gauge-Style Mounting
2.7” LCD Display
AM/FM/Global Weather Band Tuner
Waterproof Rating of IP66
Wired Remote Ready (KCA-RC35MR, Sold Separately)
SiriusXM Ready®
Rear USB Port w/ 1.5A Charging
Variable Color Illumination
Bluetooth® Streaming
Rear View Camera Input
50 Watts x 4
3 Pre-Outs (5.0V)
Enhanced Durability
Water-proof & Dust-proof Front Panel
IP66 certified
*IPX4 for Chassis
Salt Spray-Proof
ASTM B117 salt spray (or salt fog) corrosion test simulates harsh conditions in a salt water environment to ensure the product does not corrode or fail in these harsh conditions.
UV Protection
The unit cover satisfied ASTM D4329 UV resistant test.
Vibration Resitant
3-axis multi-freqeuncy vibration tested to withstand damaging shocks.
Conformal Coating
Improved moisture resistance of the circuit boards to prevent corrosion.
Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.
Playable USB Files
Compatible with a broad range of audio file formats from FLAC and MP3, WMA and AAC.
Music Codec - Playable Up To:
FLAC - ～48kHz / ～24bit
MP3 - ～48kHz / ～384kbps
WMA - ～48kHz / ～320kbps
AAC - ～48kHz / ～320kbps
13-Band EQ
13-Band equalizer gives optimal tuning enhancements for the listener.
Independent Subwoofer Volume Control
allows you to easily adjust your subwoofer volume.
*The volume works when the SW RCA Output is connected to amplifier/Subwoofer.
All Weather System EXPANSION Ready
The KMR-XM500 has RCA outputs to expand the system to connect amplifiers to power additional speakers & subwoofer(s).
2.7" LCD Display
2.7" LCD display secures higher visibility under sunlight and daytime use.
Rear View Camera Input Support
KMR-XM500 is equipped with a rear view camera input. With an optional camera connected, you have increased safety while driving UTVs, boats, etc.
SiriusXM Radio Ready
Access additional music, sports and entertainment content on the go with SiriusXM Radio.
1x Kenwood XM302-4 Marine/Motorsports 4ch Amplifier with 50W x 4 @ 4ohms, 75W x 4 @ 2ohms, 600W Maximum Power, Conformal Coated Main PCB, (XM302-4)
Ready to outfit your Side-by-Side, Watercraft, Off-Road Vehicle, & More? The KENWOOD eXcelon Motorsports XM302-4 is a Class D 4-Channel Marine-Grade Power Amplifier. The inclusion of a conformal coated circuit board, a protective terminal cover, and stainless-steel mounting screws ensure this amplifier is ready for the elements.
Product Features & Highlights
• Class D 4-Channel Marine Power Amplifier
• 50W x 4 @ 4 ohms (RMS)
• 75W x 4 @ 2 ohms (RMS)
• 150W x 2 Bridged @ 4 ohms (RMS)
• Conformal Coated Circuit Board
• Protective Terminal Cover
• Stainless-Steel Mounting Screws
• Signal Sensing Turn-On
• Speaker Level Input w/Included Cable
• Power MOS-FET Switiching Power Supply
• Bass Boost 40Hz 0-18dB – B Ch.
• LP Crossover 50-200Hz 12dB – A&B Ch.
• HP Crossover 50-200Hz 12dB – A&B Ch.
• Dimensions: 8-3/8” x 2-1/16” x 5-7/8”
1x Kenwood XM65BL 6.5" 2-Way Black Coaxial Speakers Marine/Powersports for 5-1/2" Diameter Mounting Hole, 21-Color Front & Back RGB Illumination (XM65BL)
XM65BL blends reliable audio performance with customizable lighting, perfect for boats, ATVs, UTVs, or any powersport rig where visibility and style matter. With its durable enclosure, water resistance, and flexible mounting, it’s tailored for rugged and wet environments.
75W RMS Power Handling
6.5” PP Mica Cone
4 Ohm Impedance
65Hz-20kHz Frequency Response
87 dB/1W at 1m Sensitivity
Waterproof Rating of IPX6
RGB Lighting Controller Included
Adjustable Multi-Lighting through RF Remote Controller
21 Illumination Colors
21 Lighting Mode Patterns
8 Brightness Adjustments
7 Speed Adjustments
General Features
RMS Input Power: 75W
Woofer Size: 6.5" PP Mica Cone
Tweeter Size: 1" Silk Balanced Dome Tweeter
Nominal Impedance: 4ohms
Frequency Response: 65Hz – 20kHz
Sensitivity (dB/W at 1m): 87dB
Cutout Diameter: 5-15/32"/13.9mm
Mounting Depth: 2-15/16"/7.5mm

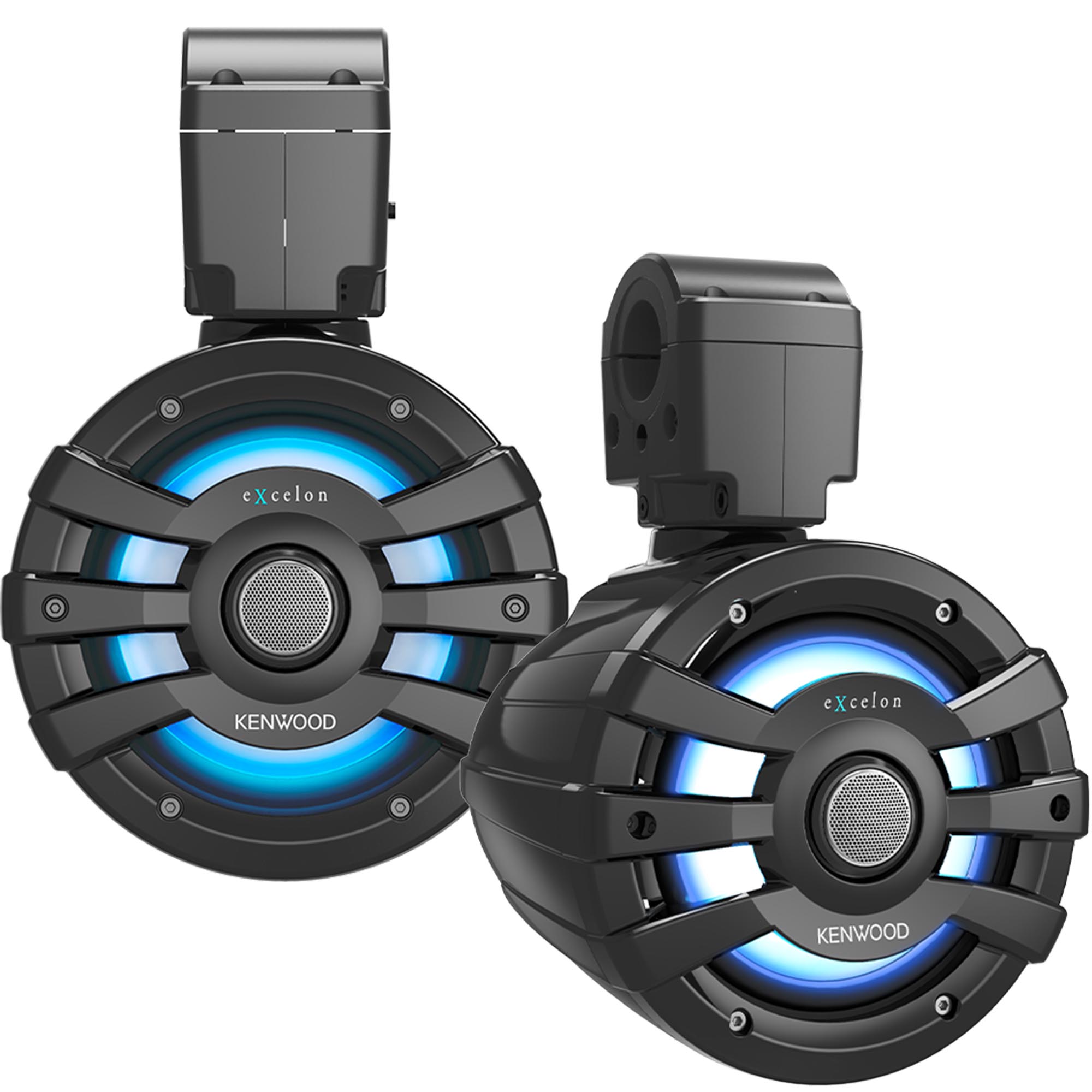

1x Kenwood XM65TBL Marine/Powersports Tower Speakers with Black Enclosures, 6.5" 2-Way Speaker, 21-Color Front & Back RGB Illumination, Cast Aluminum Mounting Clamp for 1-1/2" to 2" diameter round structure (XM65TBL)
XM65TBL blends reliable audio performance with customizable lighting, perfect for boats, ATVs, UTVs, or any powersport rig where visibility and style matter. With its durable enclosure, water resistance, and flexible mounting, it’s tailored for rugged and wet environments.
Features
75W RMS Power Handling
6.5” PP Mica Cone
4 Ohm Impedance
65Hz-20kHz Frequency Response
87 dB/1W at 1m Sensitivity
Waterproof Rating of IPX6
RGB Lighting Controller Included
1.5", 1.75", 2" Mounting Rubber Gaskets are Included
Adjustable Multi-Lighting through RF Remote Controller
21 Illumination Colors
21 Lighting Mode Patterns
8 Brightness Adjustments
7 Speed Adjustments
General Features
RMS Input Power: 75W
Woofer Size: 6.5" PP Mica Cone
Tweeter Size: 1" Silk Balanced Dome Tweeter
Nominal Impedance: 4ohms
Frequency Response: 65Hz – 20kHz
Sensitivity (dB/W at 1m): 87dB
