Description
Included in this kit
This bundle includes a Kenwood KMR-XM500 eXcelon Motorsports 3" Gauge Mount Receiver, 2.7" LCD screen with IP66 rating, Bluetooth 5.0, FM & Weatherband Tuner, USB, Backup Camera Input, a Kenwood XM302-4 Marine/Motorsports 4ch Amplifier with 50W x 4 @ 4ohms, 75W x 4 @ 2ohms, 600W Maximum Power, Conformal Coated Main PCB,, a Kenwood XM502-1 Marine/Motorsports Mono Amplifier with 300W @ 4ohms, 500W @ 2ohms, 1000W Maximum Power, Conformal Coated Main PCB, 2x Kenwood XM1041WL 10" Motorsports Subwoofer, White grill and frame, 21 Color RGB Lighting and Remote Controller, 4-Ohm, a Kenwood XM77TWL 7.7" Marine/Powersports Tower Speakers with White Enclosures, 21-Color Front & Back RGB Illumination, Fits 2-1/4" to 3" Bars, and a Kenwood XM77WL 7.7" 2-Way White Coaxial Speakers Marine/Powersports for 6-7/32" Diameter Mounting Hole, 21-Color Front & Back RGB Illumination.
1x Kenwood KMR-XM500 eXcelon Motorsports 3" Gauge Mount Receiver, 2.7" LCD screen with IP66 rating, Bluetooth 5.0, FM & Weatherband Tuner, USB, Backup Camera Input (KMR-XM500)
Features:
3” Gauge-Style Mounting
2.7” LCD Display
AM/FM/Global Weather Band Tuner
Waterproof Rating of IP66
Wired Remote Ready (KCA-RC35MR, Sold Separately)
SiriusXM Ready®
Rear USB Port w/ 1.5A Charging
Variable Color Illumination
Bluetooth® Streaming
Rear View Camera Input
50 Watts x 4
3 Pre-Outs (5.0V)
Enhanced Durability
Water-proof & Dust-proof Front Panel
IP66 certified
*IPX4 for Chassis
Salt Spray-Proof
ASTM B117 salt spray (or salt fog) corrosion test simulates harsh conditions in a salt water environment to ensure the product does not corrode or fail in these harsh conditions.
UV Protection
The unit cover satisfied ASTM D4329 UV resistant test.
Vibration Resitant
3-axis multi-freqeuncy vibration tested to withstand damaging shocks.
Conformal Coating
Improved moisture resistance of the circuit boards to prevent corrosion.
Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.
Playable USB Files
Compatible with a broad range of audio file formats from FLAC and MP3, WMA and AAC.
Music Codec - Playable Up To:
FLAC - ～48kHz / ～24bit
MP3 - ～48kHz / ～384kbps
WMA - ～48kHz / ～320kbps
AAC - ～48kHz / ～320kbps
13-Band EQ
13-Band equalizer gives optimal tuning enhancements for the listener.
Independent Subwoofer Volume Control
allows you to easily adjust your subwoofer volume.
*The volume works when the SW RCA Output is connected to amplifier/Subwoofer.
All Weather System EXPANSION Ready
The KMR-XM500 has RCA outputs to expand the system to connect amplifiers to power additional speakers & subwoofer(s).
2.7" LCD Display
2.7" LCD display secures higher visibility under sunlight and daytime use.
Rear View Camera Input Support
KMR-XM500 is equipped with a rear view camera input. With an optional camera connected, you have increased safety while driving UTVs, boats, etc.
SiriusXM Radio Ready
Access additional music, sports and entertainment content on the go with SiriusXM Radio.
1x Kenwood XM302-4 Marine/Motorsports 4ch Amplifier with 50W x 4 @ 4ohms, 75W x 4 @ 2ohms, 600W Maximum Power, Conformal Coated Main PCB, (XM302-4)
Ready to outfit your Side-by-Side, Watercraft, Off-Road Vehicle, & More? The KENWOOD eXcelon Motorsports XM302-4 is a Class D 4-Channel Marine-Grade Power Amplifier. The inclusion of a conformal coated circuit board, a protective terminal cover, and stainless-steel mounting screws ensure this amplifier is ready for the elements.
Product Features & Highlights
• Class D 4-Channel Marine Power Amplifier
• 50W x 4 @ 4 ohms (RMS)
• 75W x 4 @ 2 ohms (RMS)
• 150W x 2 Bridged @ 4 ohms (RMS)
• Conformal Coated Circuit Board
• Protective Terminal Cover
• Stainless-Steel Mounting Screws
• Signal Sensing Turn-On
• Speaker Level Input w/Included Cable
• Power MOS-FET Switiching Power Supply
• Bass Boost 40Hz 0-18dB – B Ch.
• LP Crossover 50-200Hz 12dB – A&B Ch.
• HP Crossover 50-200Hz 12dB – A&B Ch.
• Dimensions: 8-3/8” x 2-1/16” x 5-7/8”
1x Kenwood XM502-1 Marine/Motorsports Mono Amplifier with 300W @ 4ohms, 500W @ 2ohms, 1000W Maximum Power, Conformal Coated Main PCB (XM502-1)
Ready to outfit your Side-by-Side, Watercraft, Off-Road Vehicle, & More? The KENWOOD eXcelon Motorsports XM302-4 is a Class D 4-Channel Marine-Grade Power Amplifier. The inclusion of a conformal coated circuit board, a protective terminal cover, and stainless-steel mounting screws ensure this amplifier is ready for the elements.
Product Features & Highlights
• Class D Mono Marine Power Amplifier
• 300W x 1 @ 4 ohms (RMS)
• 500W x 1 @ 2 ohms (RMS)
• Conformal Coated Circuit Board
• Protective Terminal Cover
• Stainless-Steel Mounting Screws
• Signal Sensing Turn-On
• Speaker Level Input w/Included Cable
• Power MOS-FET Switiching Power Supply
• Bass Boost 40Hz, 0-18dB
• LP Crossover 50-200Hz 24dB
• Wired Remote Level Control Ready
(KCA-RC01A sold separately)
• Dimensions: 8-3/8” x 2-1/16” x 5-7/8”

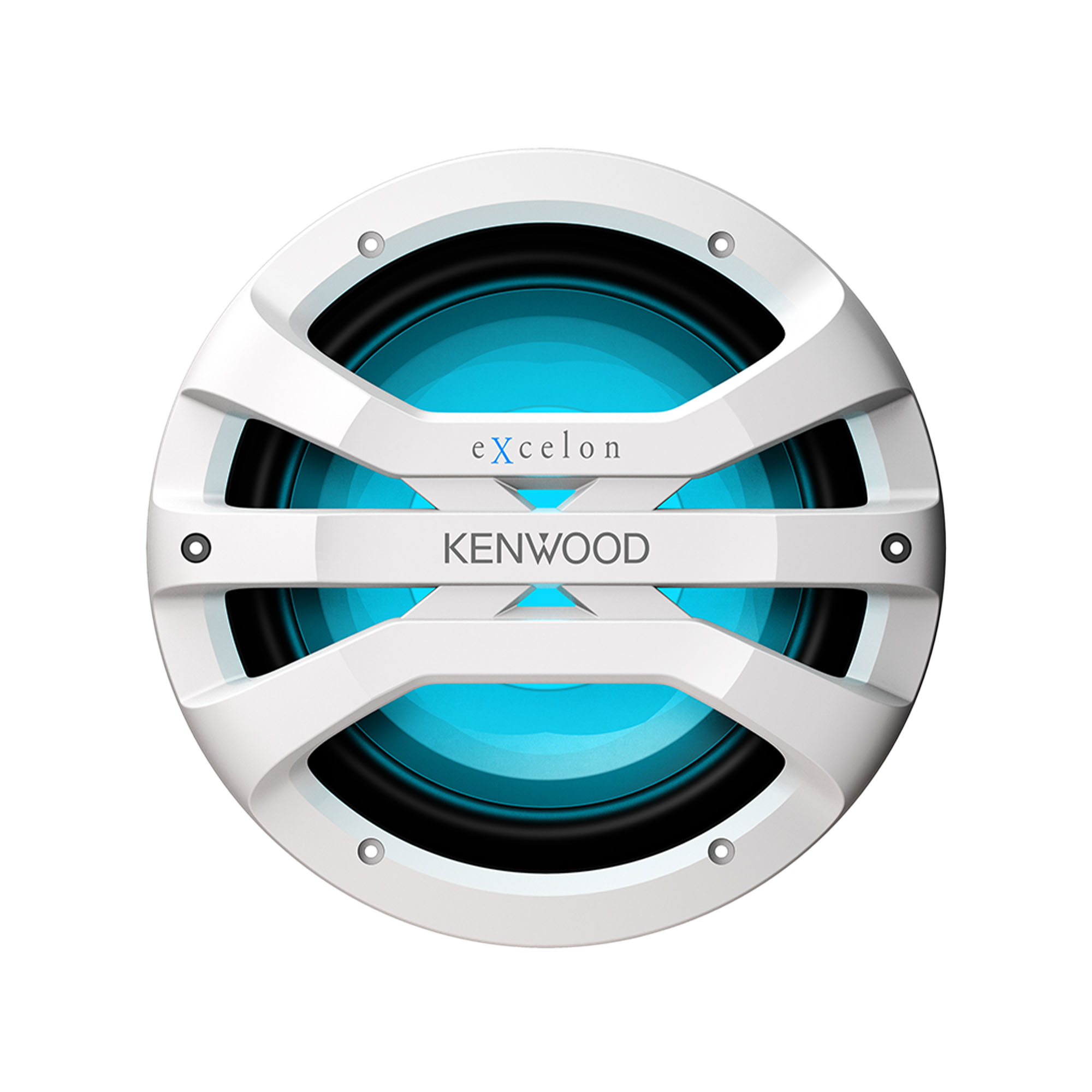

2x Kenwood XM1041WL 10" Motorsports Subwoofer, White grill and frame, 21 Color RGB Lighting and Remote Controller, 4-Ohm (XM1041WL)
Salt Spray and UV Proof -
ASTM B117 salt spray (or salt fog) corrosion testing ensures the subwoofer will not corrode or fail in saltwater and other harsh environments. ASTM G154 UV resistant woofer cone and subwoofer grille prevents deterioration and discoloration from strong sunlight.
Ultimate Performance -
Deep Bass: Large Magnet and 4 layer voice coil reproduces deep bass sound.
Durability: Thick 0.7mm Cone, 1.4mm Cap and Φ45.5mm Voice coil ensure sufficient strength and reduction of unnecessary noise.
Heat Protection: Glass Fiber Reinforced Plastics (GFRP) protect the woofer basket from the magnet’s heat, stabilizing its sound and condition.
Adjustable Multi-Lighting through RF Remote Controller: 21 Illumination Colors, 21 Lighting Mode Patterns, 8 Brightness Adjustments, 7 Speed Adjustments
Features -
• Peak Input Power: 1300W
• RMS Input Power: 300W
• Size: 10"
• Woofer Magnet Composition: Ferrite
• Nominal Impedance: 4ohms
• Frequency Response: 40Hz – 300Hz
• Sensitivity (dB/W at 1m): 84dB
• Cutout Diameter: 9-1/8"
• Top Height: 1-13/16"
• Mounting Depth: 5-1/2"
1x Kenwood XM77TWL 7.7" Marine/Powersports Tower Speakers with White Enclosures, 21-Color Front & Back RGB Illumination, Fits 2-1/4" to 3" Bars (XM77TWL)
XM77TWL blends reliable audio performance with customizable lighting, perfect for boats, ATVs, UTVs, or any powersport rig where visibility and style matter. With its durable enclosure, water resistance, and flexible mounting, it’s tailored for rugged and wet environments.
Features
100W RMS Power Handling
7.7” PP Mica Cone
4 Ohm Impedance
60Hz-20kHz Frequency Response
87.5 dB/1W at 1m Sensitivity
Waterproof Rating of IPX6
RGB Lighting Controller Included
2.25", 2.5", 2.75", 3", 3.25" Mounting Rubber Gaskets are Included
Adjustable Multi-Lighting through RF Remote Controller
21 Illumination Colors
21 Lighting Mode Patterns
8 Brightness Adjustments
7 Speed Adjustments
General Features
RMS Input Power: 100W
Woofer Size: 7.7" PP Mica Cone
Tweeter Size: 1" Silk Balanced Dome Tweeter
Nominal Impedance: 4ohms
Frequency Response: 60Hz – 20kHz
Sensitivity (dB/W at 1m): 87.5dB
1x Kenwood XM77WL 7.7" 2-Way White Coaxial Speakers Marine/Powersports for 6-7/32" Diameter Mounting Hole, 21-Color Front & Back RGB Illumination (XM77WL)
XM77WL blends reliable audio performance with customizable lighting, perfect for boats, ATVs, UTVs, or any powersport rig where visibility and style matter. With its durable enclosure, water resistance, and flexible mounting, it’s tailored for rugged and wet environments.
Features
100W RMS Power Handling
7.7” PP Mica Cone
4 Ohm Impedance
60Hz-20kHz Frequency Response
87.5 dB/1W at 1m Sensitivity
Waterproof Rating of IPX6
RGB Lighting Controller Included
Adjustable Multi-Lighting through RF Remote Controller
21 Illumination Colors
21 Lighting Mode Patterns
8 Brightness Adjustments
7 Speed Adjustments
General Features
RMS Input Power: 100W
Woofer Size: 7.7" PP Mica Cone
Tweeter Size: 1" Silk Balanced Dome Tweeter
Nominal Impedance: 4ohms
Frequency Response: 60Hz – 20kHz
Sensitivity (dB/W at 1m): 87.5dB
Cutout Diameter: 6-3/16", 15.7mm
Mounting Depth: 3-15/32", 8.8mm
