Description
Included in this kit
This bundle includes a Kenwood X303-4 eXcelon 600W Max Class D 4/3/2 HPF/LPF Channel Amplifier, and 2x Kenwood KFC-X683C 6x8" 2-way Speaker System , 180W Max Power.
1x Kenwood X303-4 eXcelon 600W Max Class D 4/3/2 HPF/LPF Channel Amplifier (X303-4)
Kenwood X303-4 Class D 4-Channel Power Amplifier
The Kenwood X303-4 delivers powerful and versatile audio performance in a compact design. High-Resolution Audio certification ensures exceptional sound quality, making this amplifier a perfect upgrade for your audio system.
Key Features and Specifications
Power Output:
RMS Power: 50W x 4 @ 4Ω, 75W x 4 @ 2Ω, 150W x 2 (Bridged)
Max Power: 600W
Compact Design:
Dimensions: 8-3/8" (W) x 2-1/16" (H) x 5-7/8" (D)
Weight: 3.1 lbs (1.4 kg)
High-Resolution Audio Certified:
Captures and reproduces audio beyond CD quality for a rich and detailed sound experience.
Variable Filters:
Includes Variable High Pass and Low Pass Filters for precise audio tuning.
Bass Boost:
Adjustable bass boost for added depth and punch in your music.
High-Quality Components:
Output Coil with Magnetic Shield reduces noise and improves sound clarity.
PMLCAP (Polymer Multi-Layer Capacitors) in LC filter circuits minimize distortion for a more accurate sound.
User-Friendly Features:
Speaker Level Input Harness allows compatibility with factory-installed receivers.
Gauge-Style Terminals ensure secure wiring with set screws.
One-Side Connection Design simplifies installation and keeps your setup looking clean.
Durable Build:
Includes 20A x 2 fuses for safe operation.
Controls and Inputs
Input sensitivity controls for channels A and B.
Bass Boost level control for channel B.
Filter frequency control and switch for channels A and B.
Speaker level input and line-in terminals for versatile connectivity.
The Kenwood X303-4 Class D 4-Channel Power Amplifier is a compact, high-performance amplifier that combines advanced features and high-quality components to deliver an immersive and powerful audio experience. Perfect for enhancing any car audio system!

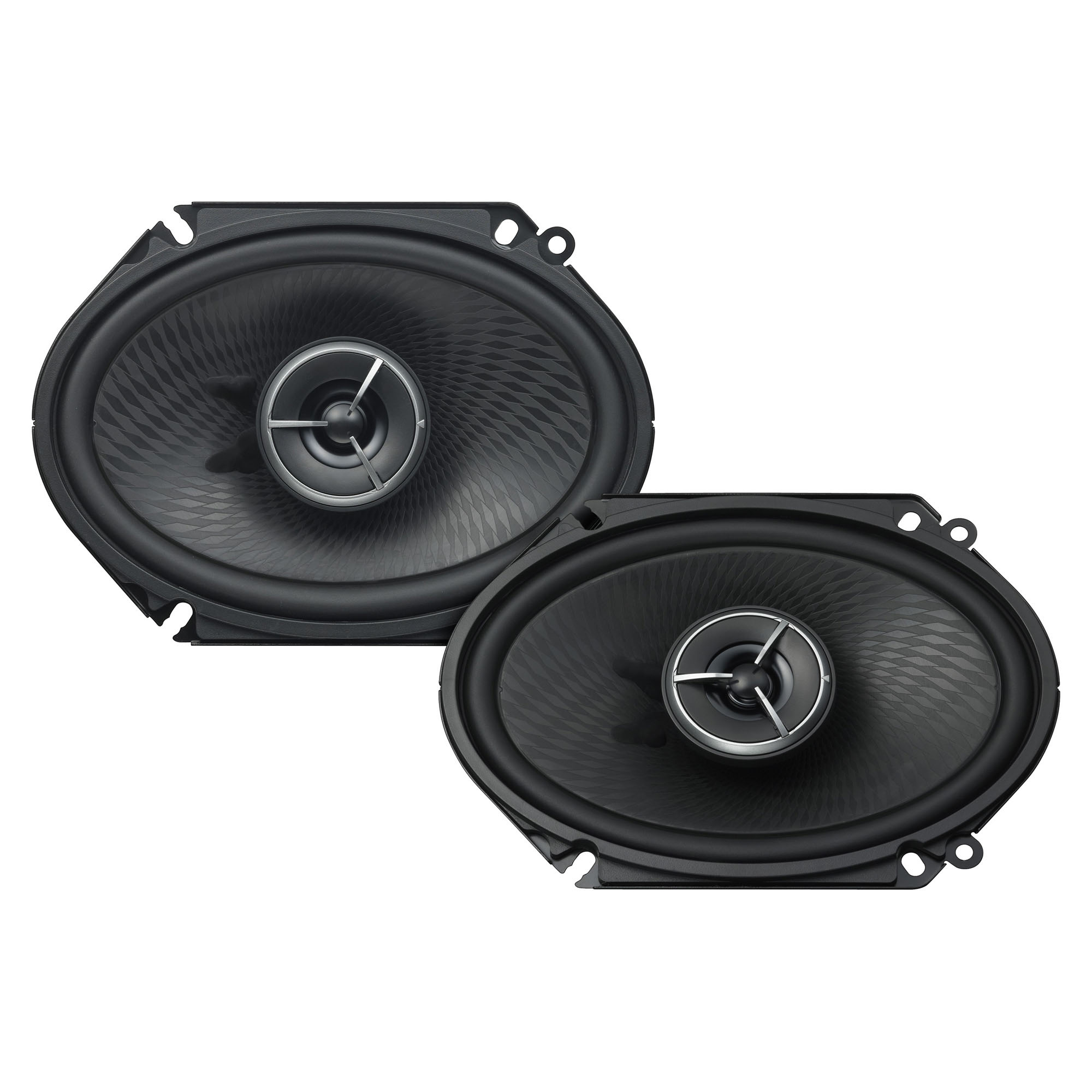

2x Kenwood KFC-X683C 6x8" 2-way Speaker System , 180W Max Power (KFC-X683C)
The KFC-X683C 6"x8" full-range speakers feature 1-3/16" balanced dome tweeters that deliver all the high-frequency details without sounding harsh. Because of their specially designed magnetic circuitry and neodymium magnets, these compact tweeters use less steel in their construction than most tweeters, so you hear more accurate response.
Features -
• Carbon-Polypropylene Hybrid Cone with Diamond Array Pattern
• Peak Power: 180W
• Rated Input Power: 60W
• 3 Ohm Impedance
• Frequency Response: 80Hz - 21kHz
• Diamond Array Pattern Diaphragm: Yes
Woofer
• Woofer Size: 6 x 8 in (145 x 204mm)
• Woofer Diaphragm: Injection P.P. Cone
• Surround: Rubber
• Basket: Steel (Black)
• Magnet: Ferrite
Mid-Range
• Mid-Range Size: 1-3/16 in (30mm)
• Mid-Range Diaphragm: P.E.I Balanced Dome
Dimensions (without grill)
• Width: 8 in (203.7mm)
• Height: 5-11/16 in (145mm)
• Depth: 3-1/8 in (80mm)
• Mounting Depth: 2-1/2 in (64mm)
• Warranty: 2-Year
