Description
Included in this kit
This bundle includes a Kenwood KFC-X695 eXcelon 6x9" 2-Way Speakers, Pair, 300W Max Power, a Kenwood KFC-X175 6-1/2" Coaxial Speaker System, 240W Max Power, and a Kenwood X303-4 eXcelon 600W Max Class D 4/3/2 HPF/LPF Channel Amplifier.
1x Kenwood KFC-X695 eXcelon 6x9" 2-Way Speakers, Pair, 300W Max Power (KFC-X695)
Kenwood KFC-X695 eXcelon 6x9" 2-way Speaker System , 300W Max Power Peak Power: 300W RMS Power: 130W Woofer Type: Injection P.P. Cone Mounting Depth: Shallow for versatile installation Bracket: 6x9" Multi-Use Bracket for compatibility Enhanced Rigidity • The woofer cone is designed with an optimized material composition, increasing diaphragm rigidity to deliver accurate sound reproduction. 1-3/16" Tweeter • The large 1-3/16" tweeter expands the sound field and reduces interference, enhancing vocal clarity and delivering a rich front-stage sound. Woofer Multi-Bracket • The included 6x9" multi-bracket allows for easier installation across a wide range of vehicles. General Features • Peak Power: 300W • RMS Power: 130W • Impedance: 3Ω • Sensitivity: 84 dB/ W at 1m • Frequency Response: 46Hz - 21kHz Woofer • Diaphragm: Injection PP cone Tweeter • Size: 1-3/16" (30mm) • Diaphragm: Soft Dome Dimensions (without grill) • Tweeter Height: 3/4" (19.5mm) • Mounting Depth: 2-3/4" (70mm) Experience high-quality sound with the KFC-X695 6x9" 2-Way Speakers, designed for clear vocals, accurate sound reproduction, and easy installation in a variety of vehicles.

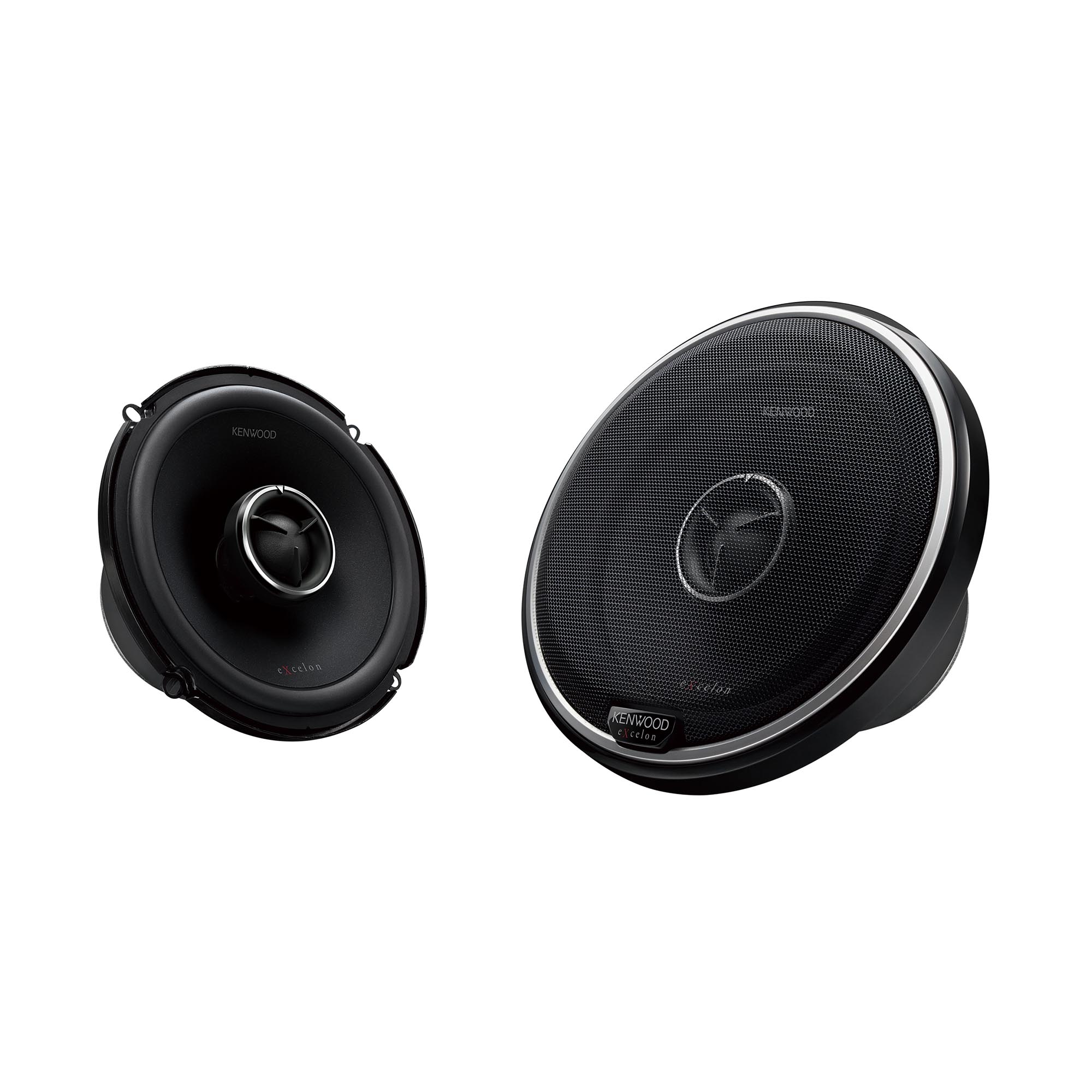

1x Kenwood KFC-X175 6-1/2" Coaxial Speaker System, 240W Max Power (KFC-X175)
Enhanced Rigidity
Adjusting the composition of the materials used in the woofer cone, the rigidity of the diaphragm increases and realized the accurate sound signals.
1" Tweeter
The 1" Tweeter widens the sound field and controls interference, providing a rich vocal sound in front through the 6-1/2" speaker.
WOOFER MULTI-BRACKET
Multi-bracket is included to make installation easier in a varierty of vehicle types.
Features
Peak Power: 240W
RMS: 80W
Injection P.P. Cone Woofer
Multi-use Bracket Included
General Specs
Peak Power: 240W
RMS Power: 80W
Impedance: 4Ω
Sensitivity: 87 dB/ W at 1m
Frequency Response: 67Hz - 21kHz
Woofer
Woofer Size: 6-1/2” (165mm)
Woofer Diaphragm: Injection PP cone
Tweeter
Tweeter Size: 1” (25mm)
Tweeter Diaphragm: Soft Dome
Dimensions (without grill)
Tweeter Height: 3/4" (19mm)
Mounting Depth: 2-3/16" (56mm)

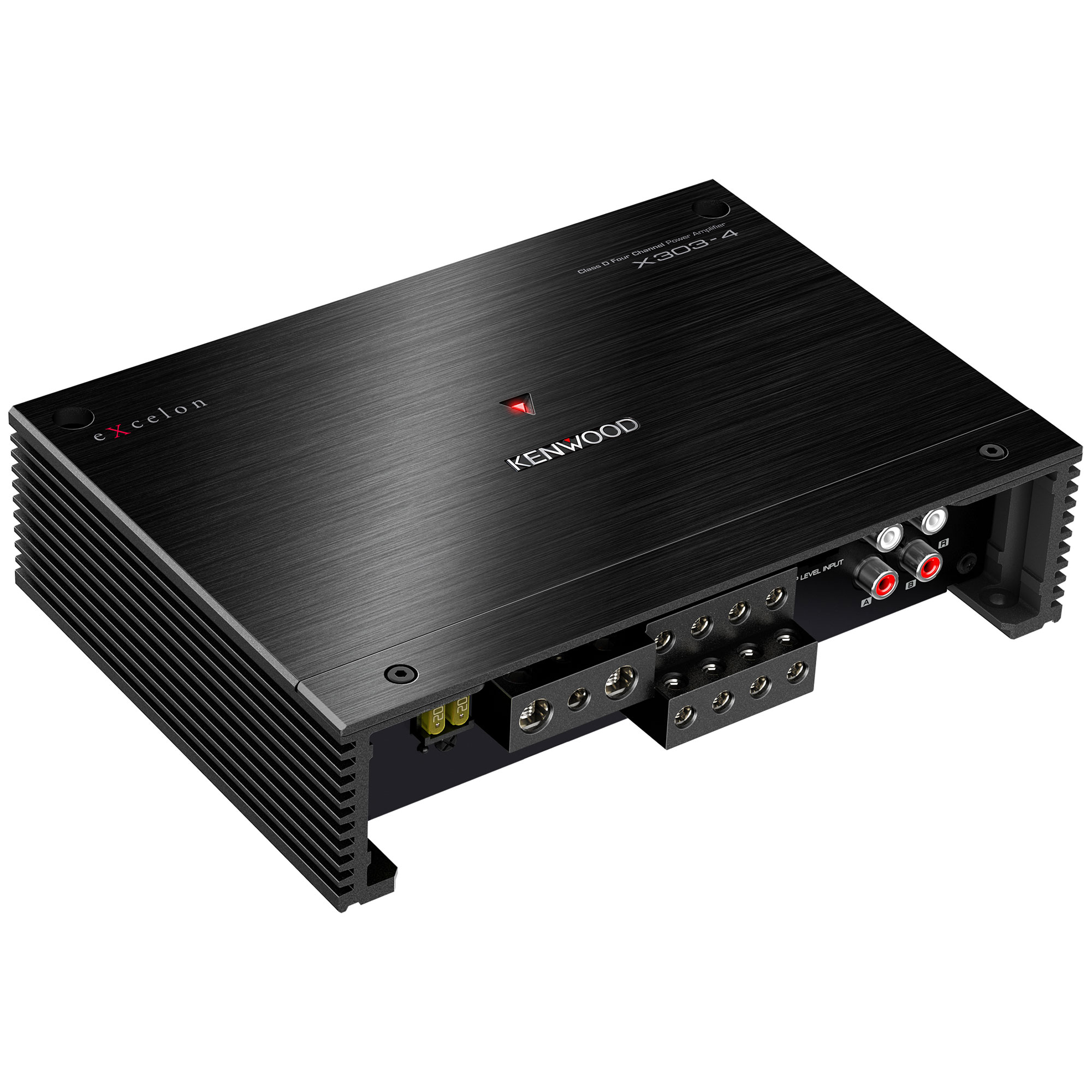

1x Kenwood X303-4 eXcelon 600W Max Class D 4/3/2 HPF/LPF Channel Amplifier (X303-4)
Kenwood X303-4 Class D 4-Channel Power Amplifier
The Kenwood X303-4 delivers powerful and versatile audio performance in a compact design. High-Resolution Audio certification ensures exceptional sound quality, making this amplifier a perfect upgrade for your audio system.
Key Features and Specifications
Power Output:
RMS Power: 50W x 4 @ 4Ω, 75W x 4 @ 2Ω, 150W x 2 (Bridged)
Max Power: 600W
Compact Design:
Dimensions: 8-3/8" (W) x 2-1/16" (H) x 5-7/8" (D)
Weight: 3.1 lbs (1.4 kg)
High-Resolution Audio Certified:
Captures and reproduces audio beyond CD quality for a rich and detailed sound experience.
Variable Filters:
Includes Variable High Pass and Low Pass Filters for precise audio tuning.
Bass Boost:
Adjustable bass boost for added depth and punch in your music.
High-Quality Components:
Output Coil with Magnetic Shield reduces noise and improves sound clarity.
PMLCAP (Polymer Multi-Layer Capacitors) in LC filter circuits minimize distortion for a more accurate sound.
User-Friendly Features:
Speaker Level Input Harness allows compatibility with factory-installed receivers.
Gauge-Style Terminals ensure secure wiring with set screws.
One-Side Connection Design simplifies installation and keeps your setup looking clean.
Durable Build:
Includes 20A x 2 fuses for safe operation.
Controls and Inputs
Input sensitivity controls for channels A and B.
Bass Boost level control for channel B.
Filter frequency control and switch for channels A and B.
Speaker level input and line-in terminals for versatile connectivity.
The Kenwood X303-4 Class D 4-Channel Power Amplifier is a compact, high-performance amplifier that combines advanced features and high-quality components to deliver an immersive and powerful audio experience. Perfect for enhancing any car audio system!
