Description
Included in this kit
This bundle includes a Kenwood XM802-5 Marine/Motorsports 5ch Amplifier with 75W x4 + 500W x1 @ 2ohms, 1600W Maximum Power, Conformal Coated Main PCB, 2x Kenwood XM77BL 7.7" 2-Way Black Coaxial Speakers Marine/Powersports for 6-7/32" Diameter Mounting Hole, 21-Color Front & Back RGB Illumination, and a Kenwood XM1041BL 10" Motorsports Subwoofer, Black grill and frame, 21 Color RGB Lighting and Remote Controller, 4-Ohm.

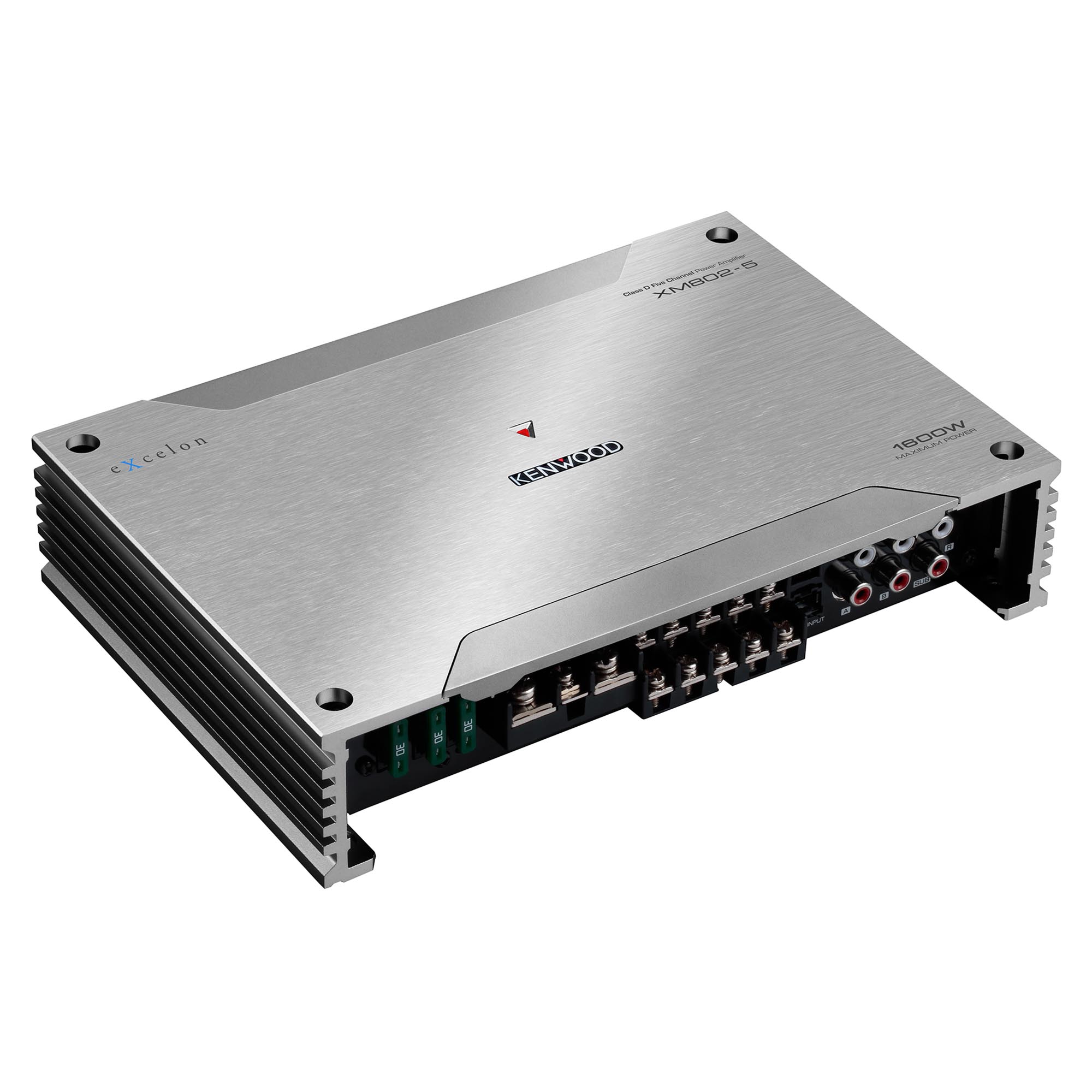

1x Kenwood XM802-5 Marine/Motorsports 5ch Amplifier with 75W x4 + 500W x1 @ 2ohms, 1600W Maximum Power, Conformal Coated Main PCB (XM802-5)
Ready to outfit your Side-by-Side, Watercraft, Off-Road Vehicle, & More? The KENWOOD eXcelon Motorsports XM802-5 is a Class D 5 Channel Marine-Grade Power Amplifier. The inclusion of a conformal coated circuit board, a protective terminal cover, and stainless-steel mounting screws ensure this amplifier is ready for the elements.
Product Features & Highlights
• Class D 5-Channel Marine Power Amplifier
• 50W x 4 + 300W x 1 @ 4 ohms (RMS)
• 75W x 4 + 500W x 1 @ 2 ohms (RMS)
• 150W x 2 Bridged @ 4 ohms+ 500W x 1 @ 2 ohms (RMS)
• Conformal Coated Circuit Board
• Protective Terminal Cover
• Stainless-Steel Mounting Screws
• Signal Sensing Turn-On
• Power MOS-FET Switiching Power Supply
• Speaker Level Input w/Included Cable
• Bass Boost 40Hz, 0-18dB – Sub
• LP Crossover 50-200Hz 24dB – Sub
• HP Rrossover 50-200Hz 12dB – A&B
• Wired Remote Level Control Ready (KCA-RC01A sold separately)
• Dimensions: 9-3/4” x 2-1/16” x 6-5/8”
2x Kenwood XM77BL 7.7" 2-Way Black Coaxial Speakers Marine/Powersports for 6-7/32" Diameter Mounting Hole, 21-Color Front & Back RGB Illumination (XM77BL)
XM77BL blends reliable audio performance with customizable lighting, perfect for boats, ATVs, UTVs, or any powersport rig where visibility and style matter. With its durable enclosure, water resistance, and flexible mounting, it’s tailored for rugged and wet environments.
Features
100W RMS Power Handling
7.7” PP Mica Cone
4 Ohm Impedance
60Hz-20kHz Frequency Response
87.5 dB/1W at 1m Sensitivity
Waterproof Rating of IPX6
RGB Lighting Controller Included
Adjustable Multi-Lighting through RF Remote Controller
21 Illumination Colors
21 Lighting Mode Patterns
8 Brightness Adjustments
7 Speed Adjustments
General Features
RMS Input Power: 100W
Woofer Size: 7.7" PP Mica Cone
Tweeter Size: 1" Silk Balanced Dome Tweeter
Nominal Impedance: 4ohms
Frequency Response: 60Hz – 20kHz
Sensitivity (dB/W at 1m): 87.5dB
Cutout Diameter: 6-3/16", 15.7mm
Mounting Depth: 3-15/32", 8.8mm
1x Kenwood XM1041BL 10" Motorsports Subwoofer, Black grill and frame, 21 Color RGB Lighting and Remote Controller, 4-Ohm (XM1041BL)
Salt Spray and UV Proof -
ASTM B117 salt spray (or salt fog) corrosion testing ensures the subwoofer will not corrode or fail in saltwater and other harsh environments. ASTM G154 UV resistant woofer cone and subwoofer grille prevents deterioration and discoloration from strong sunlight.
Ultimate Performance -
Deep Bass: Large Magnet and 4 layer voice coil reproduces deep bass sound.
Durability: Thick 0.7mm Cone, 1.4mm Cap and Φ45.5mm Voice coil ensure sufficient strength and reduction of unnecessary noise.
Heat Protection: Glass Fiber Reinforced Plastics (GFRP) protect the woofer basket from the magnet’s heat, stabilizing its sound and condition.
Adjustable Multi-Lighting through RF Remote Controller: 21 Illumination Colors, 21 Lighting Mode Patterns, 8 Brightness Adjustments, 7 Speed Adjustments
Features -
• Peak Input Power: 1300W
• RMS Input Power: 300W
• Size: 10"
• Woofer Magnet Composition: Ferrite
• Nominal Impedance: 4ohms
• Frequency Response: 40Hz – 300Hz
• Sensitivity (dB/W at 1m): 84dB
• Cutout Diameter: 9-1/8"
• Top Height: 1-13/16"
• Mounting Depth: 5-1/2"
