Description
Included in this kit
This bundle includes a Kicker 52DCVR122 CompVR 12" dual subwoofers in vented box, 2-ohm, a KICKER 53CXA9001 CXA900.1 900-Watt Mono Class-D Subwoofer Amplifier, and a Kicker 46CXARC CXARC Remote Control for Kicker 46CX Series Amps.

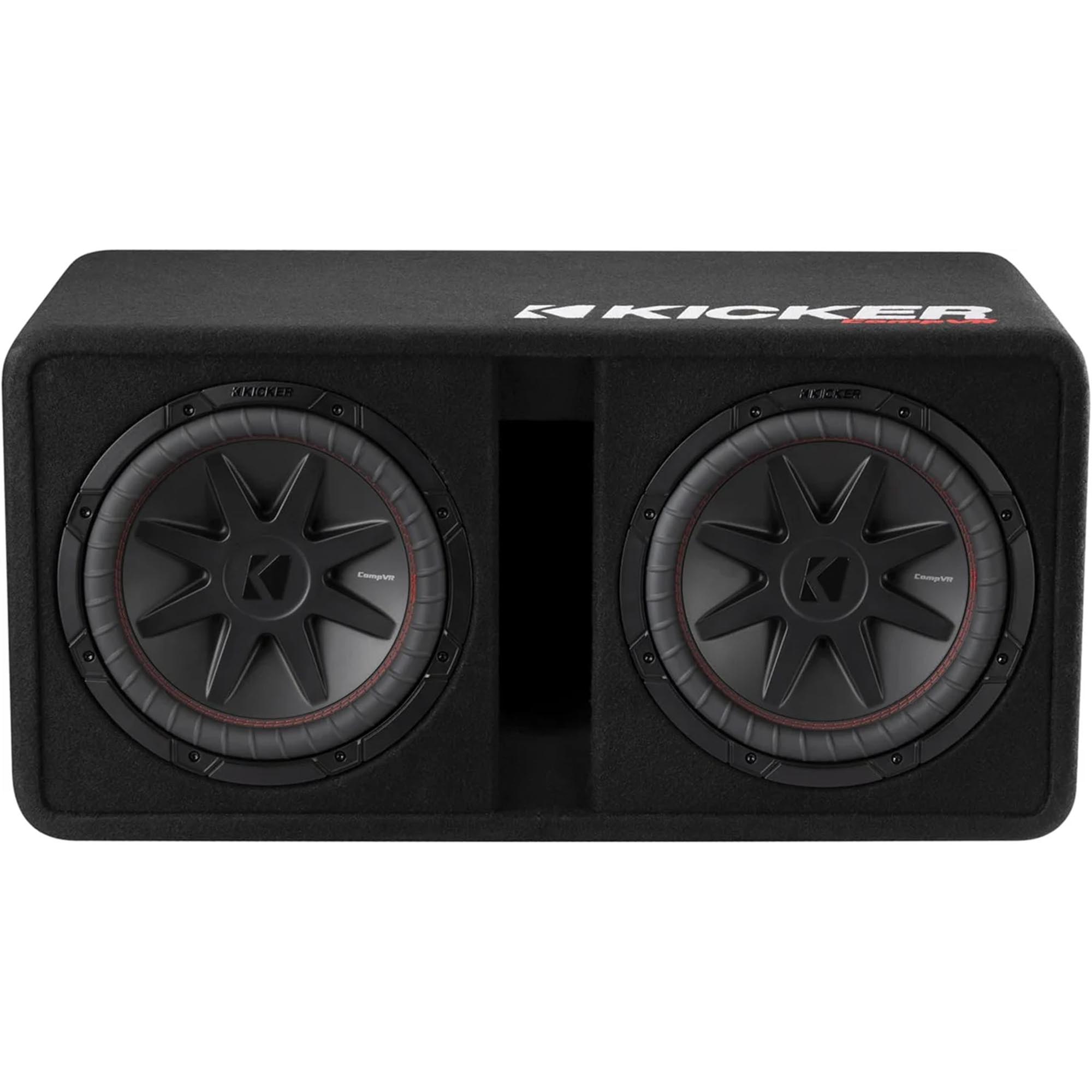

1x Kicker 52DCVR122 CompVR 12" dual subwoofers in vented box, 2-ohm (52DCVR122)
CompVR Subwoofers loaded in factory-tuned loaded enclosures have been reengineered for incredible KICKER bass with Forced-Air Cooling™. You get cool, reliable speakers that last and last. Thick black carpeting gives the tough enclosure a sleek, refined look. The front-facing tuned port raises the bar for acoustic efficiency, creating incredible bass levels with minimal amplifier power.
The Dual CompVR Loaded Enclosure works best in SUVs, hatchbacks, and car trunks.
Specifications
TYPE: dual
NO. OF WOOFERS/SIZE (in, cm): (2) 12, 30
IMPEDANCE (Ohms): 2
Recommended Amplifier Power (watts RMS) 450-900
Peak Power (watts, per ANSI/CTA-2031-A) 1800
SENSITIVITY (dB 1w/1m): 98
Tuning Frequency [Hz] 30
BOX TOP DEPTH (in, cm): 16-1/4, 41.3
BOX BOTTOM DEPTH (in, cm): 19-1/2, 49.5
BOX HEIGHT (in, cm): 15-15/16, 40.5
BOX WIDTH (in, cm): 32-1/2, 82.5
1x KICKER 53CXA9001 CXA900.1 900-Watt Mono Class-D Subwoofer Amplifier (53CXA9001)
KICKER • 53CXA9001
KICKER 53CXA9001 CXA900.1 900-Watt Mono Class-D Subwoofer Amplifier
Power a subwoofer system with the KICKER CXA900.1 mono amplifier. The one-ohm-stable Class-D design delivers up to 900 watts, with active thermal rollback and a compact chassis. FIT+ inputs accept factory or aftermarket radio signals, while onboard filters and KickEQ bass boost let you adjust the bass output.
Mono Class D350 W x 1600 W x 1
Features and installation
- One-ohm-stable Class-D design delivers 900 W x 1 at 1 ohm, 600 W at 2 ohms, or 350 W at 4 ohms.
- FIT+ integration accepts up to 40 V of speaker-level input for connection to factory audio systems.
- Variable 50–200 Hz low-pass crossover and 15 Hz subsonic filter both use 24 dB/octave slopes.
- Gain-Match LED assists gain setup, while variable KickEQ adds up to 6 dB of bass boost at 40 Hz.
- Full-range outputs support system expansion; optional CXARC remote adjusts bass from the dash.
Technical specifications
| Model | 53CXA9001 / CXA900.1 |
| Amplifier type | Mono Class D |
| Power at 4 ohms | 350 W x 1 |
| Power at 2 ohms | 600 W x 1 |
| Power at 1 ohm | 900 W x 1 |
| Frequency response | 15–200 Hz, +0/-6 dB |
| Low-level input sensitivity | 125 mV–5 V |
| High-level input sensitivity | 1–40 V |
| Signal-to-noise ratio | Greater than 75 dB, A-weighted, referenced to rated power |
| Low-pass crossover | Variable 50–200 Hz, 24 dB/octave LR |
| Subsonic filter | 15 Hz, 24 dB/octave |
| KickEQ boost | Variable 0–6 dB at 40 Hz |
| Height | 2-7/32 inches |
| Length | 7-1/16 inches |
| Width | 6-27/32 inches |
| Remote bass control | CXARC compatible, sold separately |
CXARC remote bass controller is sold separately.
1x Kicker 46CXARC CXARC Remote Control for Kicker 46CX Series Amps (46CXARCt)
Kicker 46CXARC Remote / Bass Knob
CX-Series mono amps offer an optional remote level control to adjust your bass right from the dash. Dial it up the way you want to hear it.
CXARC Remote
Customize your bass, right from your front seat.
The CXARC is a remote bass controller, compatible with any CX, DX or PX KICKER amplifier equipped with a REMOTE BASS jack on its end.
