Description

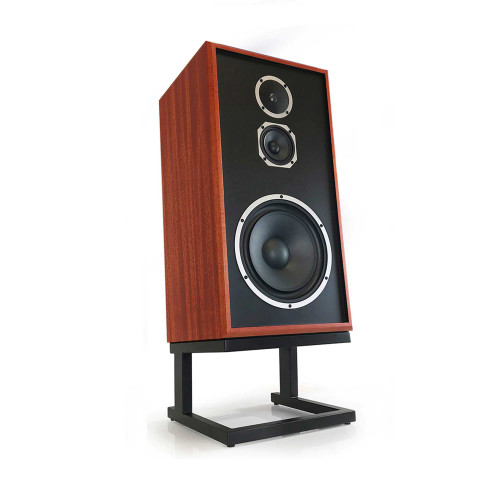

The legendary KLH Model Five was first introduced in 1968 and served as the heart and soul of KLH’s success throughout the late 1960’s and 1970’s. At its core was the acoustic suspension design that dominated the loudspeaker industry for decades and made the Model Five one of the best-selling loudspeakers of its era. In 2021, KLH re-introduced the Model Five; building on the original acoustic suspension design and using the most advanced loudspeaker technology available today.
Features:
• Iconic Mid-Century Modern Styling
• Acoustic Suspension Design – The most accurate and linear enclosure design available today
Specifications
Frequency Response: 42Hz – 20,000Hz +/- 3dB
Low Frequency Extension: -10dB @ 32Hz
In-Room Sensitivity: 90.5dB @2.83V / 1M
Free-field Sensitivity: 87.5dB @ 2.83V / 1M
Power Handling: 200 Watts / 800 Watts Peak
Recommended Amplification: 20 Watts to 200 Watts
In-Room Maximum SPL: 112.3dB
Impedance: 6 Ohms (3.5 ohm minimum @140 Hz)
Horizontal Dispersion: 140° Degrees
Features: Three-Position Acoustic Balance Control
Crossover Frequency: MF: 380Hz (2nd Order Electro-Acoustic), HF: 2,850Hz (2nd Order Electro-Acoustic)
High Frequency Driver: 1" Aluminum Dome with Soft, Rubber Suspension
Mid Frequency Driver: 4" Pulp-Paper Cone with Reverse, Roll Rubber Suspension
Low Frequency Driver: 10" Pulp-Paper Cone with Reverse, Roll Rubber Suspension, 2" Diameter, Flat-Wire Voice Coil
Enclosure Material: Structurally Reinforced ¾" Medium, Density Fiberboard
Inputs: Five-Way Gold-Plated Binding Posts
Height: 34.25" (87.0cm) w/ Included Riser Base, 26.0" (66cm) w/o Riser Base
Width: 13.75" (35.0cm)
Depth: 13.0" (33.0cm) w/ Included Riser Base, 11.5" (29.2cm) w/o Riser Base
Weight: 44Ibs. (20.0kg) w/o Riser Base, 52Ibs. (23.6kg) w/ Included Riser Base
Included Accessories: 5° Slant Riser Base
