Description
Included in this kit

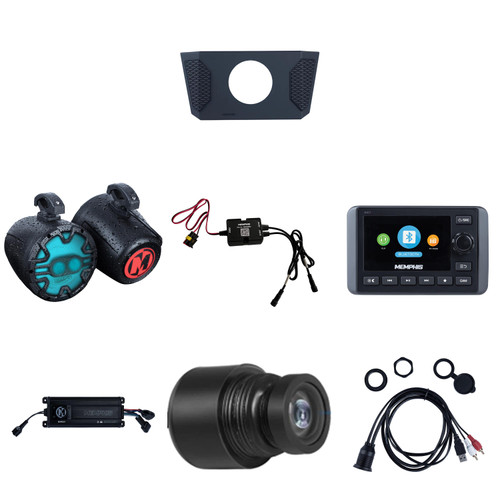

This bundle includes a Memphis Audio MXRGBBTC - Phone Controlled Bluetooth RGB LED Controller, a Memphis Audio MX63PS - 6.5" (A.T.A.C) Dual Tweeter High Output Utv - Tower Speaker Pod Speaker, a Memphis Audio SMC3 Marine Multi-Zone Media Center with Subwoofer Control, Bluetooth, a Memphis Audio MX400.4 Powersports 400 Watts 4-Channel Amplifier, a Memphis MXCAM Waterproof Camera for Media Centers and Soundbars, a Memphis Audio MXUSBA Round Aux and USB port, and a Memphis Audio RZRPRODK - Dash Kit Compatible with Select Rzr Xp Pro.
1x Memphis Audio MXRGBBTC - Phone Controlled Bluetooth RGB LED Controller (MXRGBBTC)
MXRGBBTC RGB LED Light Controller
Take control of your lighting system with the Memphis Aura RGB LED Light Controller. Using the Memphis AURA iOS/Android app interface, the MXRGBBTC gives you access to color selection, lighting effects, and brightness adjustment for a customized display across multiple Memphis LED speakers.
Overview
App-Controlled RGB Lighting Management
The Memphis MXRGBBTC is designed to manage Aura RGB LED lighting through the Memphis AURA app interface on iOS and Android devices. It provides centralized lighting control for compatible Memphis LED speakers and allows users to build a coordinated lighting display across multiple zones.
With support for up to 8 Memphis LED speakers per controller, the MXRGBBTC is suited for larger lighting setups in vehicles and recreational applications where synchronized color and effect control is important.
Control Features
Expanded Lighting Customization
- Select from up to 30 light colors through the app interface.
- Adjust flash and fade lighting effects directly from the app.
- Control brightness and additional lighting functions for a tailored display.
- Optional app interface available via QR code on the product box.
System Expansion
Multi-Controller Sync Capability
The Memphis AURA app is capable of pairing up to 5 individual MXRGBBTC devices, making it possible to synchronize multiple lighting displays to a single app interface. This allows broader control in multi-zone installations where a single controller is not enough.
- Pairs up to 5 MXRGBBTC controllers in the Memphis AURA app.
- Supports synchronized control of multiple lighting displays from one app.
- Designed for scalable installations across larger systems.
Application
Built for Multiple Environments
The MXRGBBTC is built for use in a wide range of installations, including car, boat, motorcycle, and powersports applications. Its IPX7 water-resistant construction helps it handle environments where moisture resistance is important.
IPX7 water-resistant construction supports use in marine, motorcycle, powersports, and automotive lighting applications.
| Model | MXRGBBTC |
| Product Type | RGB LED light controller |
| App Compatibility | iOS / Android via Memphis AURA app |
| Speaker Control Capacity | Up to 8 Memphis LED speakers |
| Controller Pairing Capacity | Up to 5 individual MXRGBBTC devices |
| Lighting Control Functions | Up to 30 light colors, flash, fade, brightness, and more |
| Water Resistance | IPX7 |
| Application Use | Car, boat, motorcycle, and powersports |
1x Memphis Audio MX63PS - 6.5" (A.T.A.C) Dual Tweeter High Output Utv - Tower Speaker Pod Speaker (MX63PS)
Memphis MX63PS 6.5" Powersports Pod Speakers
MX63PS Powersports Pods are built for riders who want serious sound in places where space is anything but generous. Designed specifically for side-by-sides, UTVs, ATVs, and other compact off-road builds, these 6.5" pods bring loud, clean audio to cabins where a traditional speaker install just isn’t practical.
Compact Pods, Big Sound
When you are working with tight roll cages, bars, and limited mounting real estate, every inch matters. MX63PS pods are engineered with a compact footprint that mounts easily without getting in the way, so you can add real sound to your machine without sacrificing comfort or visibility.
- Tailored for UTVs, side-by-sides, ATVs, and similar powersports applications
- Compact design for installations where space is limited
- Mounts cleanly to bars and cages while staying out of the way
6.5" Speakers Built for Open-Air Environments
Getting audio to “carry” outside a vehicle is a different challenge than filling the inside of a car. MX63PS pods use upgraded 6.5" speakers that are specified to deliver strong, clear audio that carries in open-air environments, so music stays present even when the ride gets loud.
- 6.5" size for a balance of output and compact packaging
- Polypropylene woofer for durability and controlled response
- Dual PEI dome tweeter array for extended high-frequency detail
- Power handling: 150W RMS / 300W peak
- Impedance: 4Ω
Ready for the Elements – IP66 Water, Element & UV Resistant
Powersports gear is exposed to more than just music. MX63PS pods are listed as water, element & UV resistant (IP66), giving you a speaker solution designed for outdoor use where the environment is part of every ride.
- IP66 rating
- Water, element, and UV resistant as specified
- Designed for use in powersports environments
Smart Mounting with 360° Adjustability
Installation flexibility is key on modern UTVs and side-by-sides. MX63PS pods include adjustable aluminum mounting hardware with 360° mount capability, so you can aim the speakers where they work best for your seating and cage layout.
- Adjustable aluminum hardware with 360° mount capability
- Clamp fit range: 1.5" to 2.25"
- Pod dimensions: 7.48" x 6.5"
Clean, Aligned Look at Any Angle
These pods are designed to look as intentional as they sound. Both the front grille and rear illuminated LED badge can rotate, letting you keep logos and styling elements aligned even when the pods are mounted at unconventional angles.
- Front grille rotates in 60° increments for alignment at various mounting angles
- Rear illuminated LED badge is rotatable for a clean, aligned appearance
- Grill included
Integrated RGB LED Lighting
When the sun goes down, the integrated RGB LED included with MX63PS pods keeps the energy up. Tie your audio system into the rest of your lighting theme and give your build a finished, custom feel.
- RGB LED included in each pod
- Rotatable rear illuminated LED badge adds a visual focal point
Specifications – MX63PS
- Model: MX63PS
- Size: 6.5"
- RMS / Peak Power: 150W / 300W
- Impedance: 4Ω
- Dimensions: 7.48" x 6.5"
- Clamp Fit Range: 1.5" to 2.25"
- Water / Element / UV Resistance: IP66
- Grill Included: Yes
- Warranty: 2 years
MX63PS 6.5" Powersports Pod Speakers combine a compact, UTV-focused form factor with IP66 resistance, integrated RGB lighting, and upgraded drivers that are specified to deliver strong, clear sound in open air—making them a powerful option for your next cage or bar-mounted system.
1x Memphis Audio SMC3 Marine Multi-Zone Media Center with Subwoofer Control, Bluetooth (SMC3)
SMC3 – Full-Color Powersports & Marine Media Center
3" TFT Display • 4 × 50W Built-In Amplifier • Multi-Zone Control
The Memphis SMC3 is a full-featured media center designed to control every aspect of your audio system in demanding environments. Featuring a brilliant full-color TFT wet bonded LCD display with auto dimming and day/night modes, the SMC3 is easy to view in any lighting condition. With multiple source options, video input capability, and extensive system expansion via multiple RCA pre-outputs, the SMC3 is ideal for boats, side-by-sides, and other outdoor applications where performance and durability matter.
Overview
Total System Control in One Compact Unit
The SMC3 media center is engineered to serve as the command center for advanced audio systems. A built-in 4 × 50 watt amplifier powers speakers directly, while four pairs of RCA pre-outputs (front, rear, subwoofer, and zone 2) allow seamless expansion with external amplifiers. Independent sub control and multi-zone functionality give you complete control over your sound.
- Built-in amplification for simple systems.
- Multiple RCA outputs for advanced multi-amp setups.
- Independent subwoofer and zone control.
Four pairs of RCA pre-outputs make the SMC3 ideal for everything from simple installs to fully amplified multi-zone systems.
Display & Interface
Full-Color TFT Display
A 3-inch TFT wet bonded color LCD display provides clear visibility in bright sunlight or low-light conditions. Auto dimming with day and night modes ensures optimal readability at all times, while the intuitive interface makes system control simple and efficient.
- 3" full-color TFT LCD display.
- Auto dimmer with day/night modes.
- EEPROM memory for saved settings.
Features
Built for Outdoor Performance
| Model | SMC3 |
| Built-In Amplifier Power | 4 × 50 W |
| Display Size | 3" TFT Color LCD |
| RCA Pre-Outputs | 4 Pairs (Front / Rear / Sub / Zone 2) |
| Presets | 18 FM / 12 AM |
| Cutout Size | 3 in |
| Mounting Depth | 4 in |
| Face Dimensions | 5.5 × 3.5 in |
| IP Rating | IP66 |
1x Memphis Audio MX400.4 Powersports 400 Watts 4-Channel Amplifier (MX400.4)
Memphis Audio MX400.4 – Powersports 4-Channel Amplifier
Memphis MX powersports amplifiers are designed with side-by-side and powersports applications at their core. The MX400.4 delivers strong multi-channel power in an ultra-compact, weather-resistant chassis, making it an ideal solution for limited-space installations that demand reliable performance in harsh environments.
Overview
Built for Powersports Environments
The MX400.4 is engineered to deliver dependable power in off-road and marine-style environments. An IP66 rated enclosure, conformal coated boards, and sealed connectors help protect against water, dust, and the elements, while the compact footprint allows easy installation in tight spaces.
- Designed specifically for powersports and side-by-side systems
- Water and element resistant construction
- Compact size for limited mounting locations
Features & Control
Simple Tuning, Secure Design
- Compact amplifier design
- Conformal coated board for added durability
- IP66 rated water and element resistance
- Top mounted controls with protective cover
- Fixed 80Hz crossover (MX400.4)
- High / low level input compatibility
- 2 / 4 input switch (MX800.4 / MX400.4)
- Sealed connectors
| Model | MX400.4 |
| RMS Power @ 4Ω | 75W x 4 |
| RMS Power @ 2Ω | 100W x 4 |
| Bridged Power @ 4Ω | 200W x 2 |
| Total Harmonic Distortion | <1% @ 4Ω |
| Frequency Response | 10Hz – 20kHz |
| Input Range | 300mV – 9.7V |
| Dimensions (L x W x H) | 8.75" x 3.25" x 1.75" |
| Recommended Amp Kit | 8GKIT |
Use the recommended 8GKIT wiring kit to support proper power delivery and reliable amplifier operation.
1x Memphis MXCAM Waterproof Camera for Media Centers and Soundbars (MXCAM)
This rugged IP68 waterproof backup camera is your ultimate solution for any environment. Never be caught off guard while reversing or navigating tough terrain again. Experience unparalleled safety and awareness with an extra set of eyes on the move. Versatile connectivity with built-in trigger wires and easy flush or surface mounting options. Eliminate blind spots with the ultra-wide 170-degree view angle, uncover hidden obstacles, and customize your display for maximum convenience. Upgrade your vehicle’s safety and performance with MXCAM.
Features -
• Camera
• Surface Mount Adapter
• Flush Mount Hardware
• 6m Video Cable
• Power Cable
• Flush mount screws
• Hole saw
Specifications -
• Model: MXCAM • Sensor: CMOS III • Effective Pixel: 648×488 • Horizontal Sync Freq.: 15625KHZ • Vertical Sync Freq.: PAL 50Hz/NTSC 60Hz • Scanning System: 2:1 Interlace • Sync System: Internal • AGC: Auto • BLC: Auto • Resolution: 520TV Lines • S/N Ratio More Than: 48dB • Current Consumption: No More 300mA • Power Supply: DC 12V +/- 10% • Operating Temp.: -20oC – 60oC RH 95% MAX • Storage Temp.: -30oC – 60oC RH 95% MAX • Horizontal Angle: 130o/ 140o • Water Proof: IP68

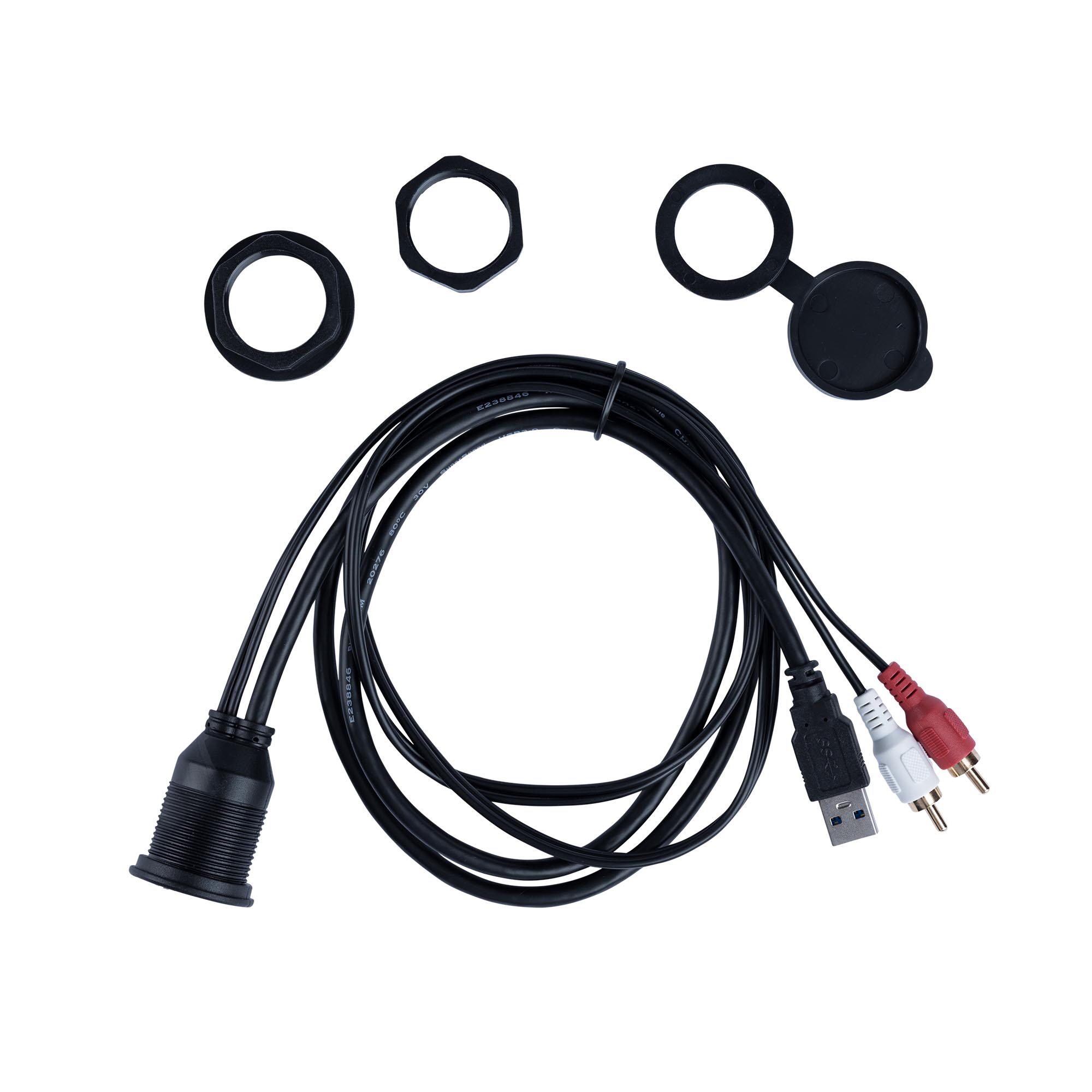

1x Memphis Audio MXUSBA Round Aux and USB port (MXUSBA)
The MXUSBA is a versatile 1.25″ round AUX and USB connection device, enabling seamless connections between your audio system and various devices using 3.5mm AUX cords and USB connections. Designed with covered marine-grade ports, it’s an ideal choice for marine and powersports applications. This unit effortlessly fits into a 1″ hole, offering easy and flexible mounting options. With 3 feet of included wire, you’ll have ample room to connect it to your radio or other devices, ensuring a hassle-free setup for your audio needs.
FEATURES
• Designed for Marine & Powersports applications
• 3.5MM Input, Male RCA output
• 1″ Mounting Diameter
• 1.25″ Overall diameter
• Includes 3Ft of wire to connect other devices
• Sealed Cover
• IPX6 Rated
SPECIFICATIONS
Inputs:
Wire Gauge: 3.5MM, USB; Quantity: 2
Outputs:
Wire Gauge: Male RCA; Quantity: 4
1x Memphis Audio RZRPRODK - Dash Kit Compatible with Select Rzr Xp Pro (RZRPRODK)
Dash Kit Compatible with Select Rzr Xp Pro
