Description
Included in this kit
This bundle includes a Memphis Audio 4GKIT 4-Gauge Amp Install Kit With ANL Fuse Holder With One 200A Fuse, And A Pair Of ETP-17 17-Foot RCAs, a Memphis Audio 76PRX500.4V2 Special Edition 4 Channel 500 Watt Amplifier - 125 Watts RMS x 4 at 2-Ohm, a Memphis MSCKIT MSeries Coaxial to Component Conversion Kit, and 2x Memphis Audio MS60V - 6.5" Oversized Convertible Set.
1x Memphis Audio 4GKIT 4-Gauge Amp Install Kit With ANL Fuse Holder With One 200A Fuse, And A Pair Of ETP-17 17-Foot RCAs (4GKIT)
Memphis Audio 4GKIT – 4 Gauge Amplifier Installation Kit
Memphis Audio amplifier installation kits are built using true standard AWG wire made from 100% pure oxygen-free copper to ensure maximum power transfer and reliable performance. The 4GKIT includes everything required to properly install your amplifier, including high-quality RCA interconnects, making it one of the highest performance 4-gauge amp kits available.
Overview
Proper Power for Maximum Amplifier Performance
Your amplifier’s performance is directly affected by the quality of the wiring and connections used. The Memphis Audio 4GKIT is engineered using true oxygen-free copper wiring and high-quality termination components to ensure consistent voltage delivery and clean signal transfer. Trusted by installers nationwide, this kit provides the foundation for dependable amplifier performance.
- True standard AWG wire for accurate current capacity
- Oxygen-free copper for improved conductivity
- Complete kit for a clean, professional installation
Included Components
Everything You Need in One Kit
- 17' 4-AWG frosted orange power wire
- 3' 4-AWG frosted black ground wire
- 17' 18-AWG blue remote turn-on wire
- (2) 17' 2-channel parallel RCA interconnects
- ANL fuse block with satin chrome plated brass
- Nickel plated 200A ANL fuse
- (4) 4-AWG nickel plated ring terminals
- (2) 4-AWG snap bushings
- (2) 22–18 AWG butt splices
- (6) 6" black cable ties
Application
Installer-Grade Reliability
Designed for performance-focused installations, the 4GKIT is ideal for powering a wide range of amplifiers where consistent current delivery and dependable connections are critical. This kit eliminates guesswork by providing matched, high-quality components trusted by professional installers.
| Model | 4GKIT |
| Power Wire Gauge | 4 AWG |
| Fuse Holder Type | ANL |
| Interconnects | (2) ETP-17 |
1x Memphis Audio 76PRX500.4V2 Special Edition 4 Channel 500 Watt Amplifier - 125 Watts RMS x 4 at 2-Ohm (76PRX500.4V2)

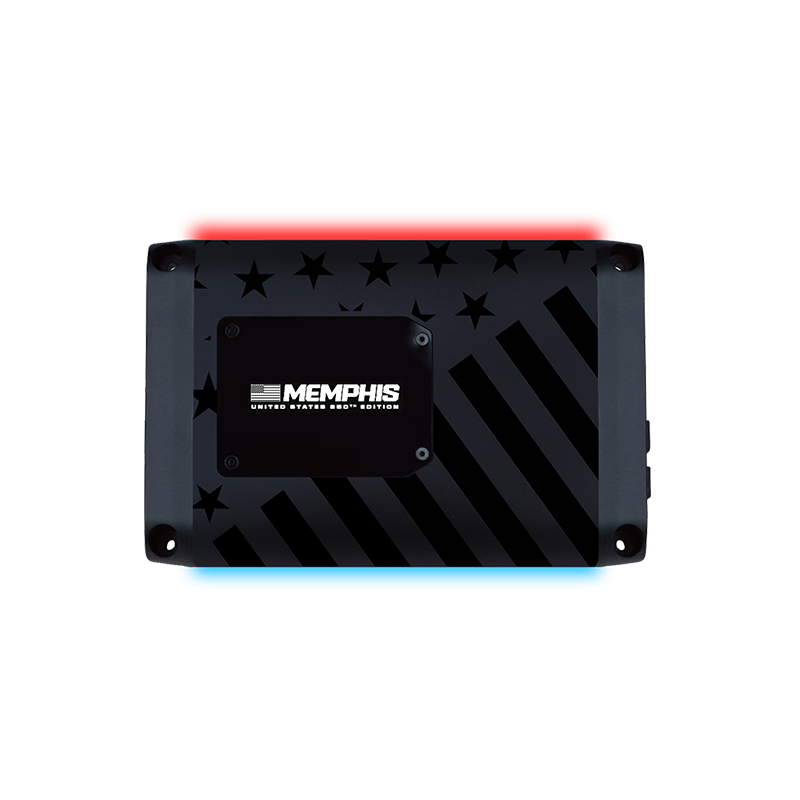

Memphis Audio 76PRX500.4V2 Special Edition – 4-Channel Amplifier (125W RMS x 4 @ 2Ω)
The 76PRX500.4V2 Special Edition celebrates America’s 250th anniversary (1776–2026) with a pride-forward, commemorative presentation while retaining the space-saving performance focus of Power Reference amplifiers. A sleek LED-accented acrylic top panel conceals top-mounted controls for quick adjustment in tight installs, and undermount LED accent lighting adds a custom, high-end appearance.
RED top LED ground lighting • WHITE LED top cover • Blue bottom LED ground lighting
Overview
Commemorative Look, Power Reference Performance
Power Reference amplifiers offer a blend of space-saving design and robust performance, redesigned with a smaller footprint compared to their predecessors while maintaining the power ratings you expect. The objective behind Power Reference was to preserve exceptional performance while enhancing versatility by reducing overall footprint by up to 43% on specific models.
- LED-accented acrylic top panel with top-mounted controls hidden under the panel.
- Undermount LED accent lighting for a personalized, high-end custom appearance.
- Selectable amp turn on for flexible integration.
Tuning & Flexibility
Full-Range Control for Multi-Speaker Systems
- 12 dB/octave Butterworth crossovers with variable crossover adjustment.
- Variable EQ boost from 0–12dB.
- Bridgeable configuration: 250W x 2 @ 4Ω.
Construction
Compact Chassis with Premium Visual Accents
- Compact space-saving design (8.6" x 5.7" x 2.16").
- Extruded aluminum heatsink.
- RED / WHITE / Blue LED accent package for Special Edition presentation.
| Model | Memphis Audio 76PRX500.4V2 Special Edition |
| Type | 4-channel amplifier |
| RMS Power @ 4Ω | 75W x 4 |
| RMS Power @ 2Ω | 125W x 4 |
| Bridged Mono @ 4Ω | 250W x 2 |
| THD | <1% |
| Frequency Response | 10Hz–27kHz |
| Crossovers | 12 dB/octave Butterworth; variable crossovers |
| EQ Boost | Variable 0–12dB |
| Amp Turn-On | Selectable amp turn on |
| Controls | Top mount controls hidden under panel |
| Heatsink | Extruded aluminum |
| LED Accents | RED top LED ground lighting; WHITE LED top cover; Blue bottom LED ground lighting |
| Dimensions (in) | 8.6 x 5.7 x 2.16 |
| Recommended Amp Kit | 8GKIT |
1x Memphis MSCKIT MSeries Coaxial to Component Conversion Kit (MSCKIT)
The MSCKIT equips you with everything you need to transform any MSeries speaker into a high-performance component system. This comprehensive kit includes phase plugs for all MSeries speaker sizes, along with both surface and flush mount tweeter cups. Whether you’re upgrading your MS57V, MS60V, MS62V, or MS69V, the MSCKIT lets you easily remove the tweeter from the speaker’s center and mount it separately—enhancing imaging and expanding installation options to fit a wide range of applications. Designed for versatility and precision, one MSCKIT is all you need to convert a single pair of MSeries speakers into a superior component setup. This kit contains phase plugs and mounting cups only, it does not include speakers or tweeters. The tweeters come standard will all non MV model MSeries speakers. Simply remove the tweeter from the center of your existing MSeries speaker and replace it with the phase plug included in this kit and mount the tweeter into one of the two different mounting cups provided in this kit.
FEATURES
• Phase plug to accommodate all sizes of MS Speakers
• 2x Surface mount tweeter cups
• 2 x flush mount tweeter cups
• Converts all MS coaxial speakers to component speakers
SPECIFICATIONS
Phase Plugs
Surface Mount Tweeter Cups
Flush Mount Tweeter Cups
2x Memphis Audio MS60V - 6.5" Oversized Convertible Set (MS60V)
Memphis Audio MS60V – 6.5" Oversized Convertible Speaker Set (Coaxial / Component Capable)
The Memphis Audio MS60V is part of the MSeries lineup, built for listeners who value sound quality and installation flexibility. Featuring carbon fiber cones, aluminum dome tweeters, and a convertible mounting design, the MS60V adapts easily to a wide range of vehicles and system layouts.
Audio Performance
Clear, Accurate MSeries Sound
Lightweight, highly responsive carbon fiber cones are paired with integrated aluminum dome tweeters to deliver crisp, accurate sound across the full frequency spectrum. A durable rubber surround supports consistent performance and long-term reliability.
- Carbon fiber cone for responsive, detailed sound.
- Integrated aluminum dome tweeter for high-frequency clarity.
- Rubber surround for durability and control.
Convertible Design
One Speaker, Multiple Install Options
The MS60V features a convertible design that allows the coaxially mounted tweeters to be removed and reconfigured into a component system using the optional MSCKIT (sold separately). This flexibility supports improved imaging and optimized sound staging.
- Convertible coaxial or component configuration.
- Component mounting requires optional MSCKIT.
- Adaptable to a wide range of installations.
Feature Highlights
MS60V Key Features
Fitment
Oversized 6.5" Design
The MS60V uses an oversized 6.5" frame design with a shallow mounting depth, making it suitable for many factory and aftermarket locations.
- Speaker size: 6.5" O/S
- Mounting depth: 2.48"
- External passive crossovers included.
Component configuration and multi-mount tweeter options require the optional MSCKIT (sold separately).
Convertible design allows one speaker set to support multiple system layouts.
| Model | MS60V |
| Size | 6.5" Oversized |
| Power Handling | 75W RMS / 150W peak |
| Sensitivity | 89 dB |
| Mounting Depth | 2.48" |
| Magnet Size | 10 oz |
| Cone / Surround | Carbon fiber cone / Rubber surround |
| Tweeter | Aluminum dome tweeter |
| Crossovers | External passive crossovers with MClip mounting solution |
| Grilles Included | Yes |
| Warranty | 2 years |
