Description
Included in this kit
This bundle includes a Memphis Audio 4GPWKIT 4-Gauge Power Kit With AFS Fuse Holder and One 150A Fuse, a Memphis SRXE12DP Dual 12" SRX Vented Bass Package with SRX600.1V Amplifier, a Memphis Audio SRX600.1V Mono 1-ohm 600 Watt Amplifier, and a Memphis Audio ETP-17 17-Foot 2 -Channel Audio Interconnect Cables.
1x Memphis Audio 4GPWKIT 4-Gauge Power Kit With AFS Fuse Holder and One 150A Fuse (4GPWKIT)
Amazing sound starts with amazing connection. To achieve maximum performance a system requires clean power. Memphis relies on the highest quality pure copper wire for all of our connection pieces. Don't be fooled by the competition offering inexpensive wire backed by false claims. For the ultimate performance in audio connections look no further than Memphis Connection wire. 4GPWKIT include everything in the 4KIT with the exception of RCA's.
Features:
Includes all the essential tools to complete a quality installation
100% pure copper wire
True AWG rated wire
Power and ground distribution blocks included
Maximizes your audio performance
Extends the life of your audio equipment
RCAs NOT included
Specifications:
POWER WIRE GAUGE: 4 AWG
FUSE HOLDER: AFS
INTERCONNECTS: NONE

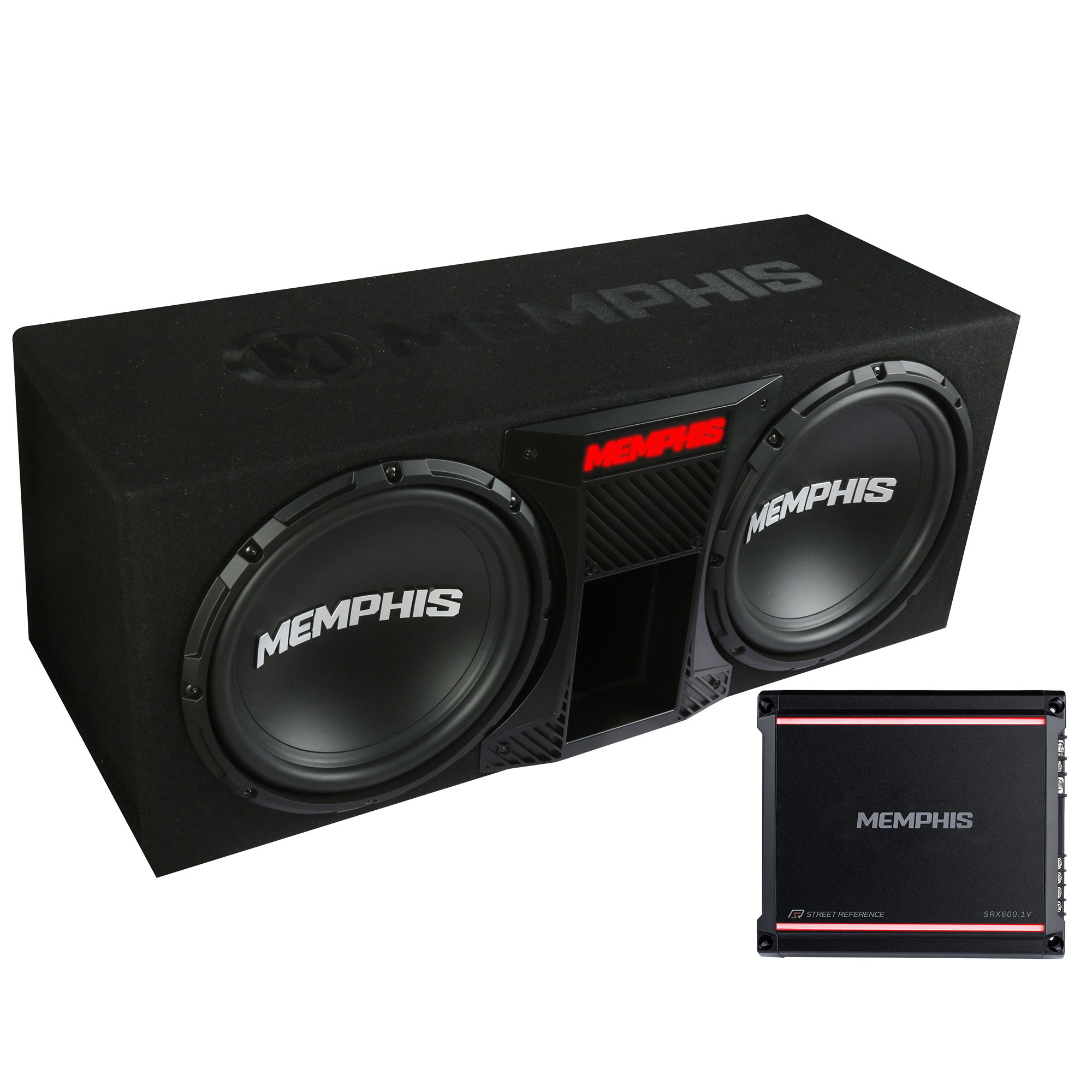

1x Memphis SRXE12DP Dual 12" SRX Vented Bass Package with SRX600.1V Amplifier (SRXE12DP)
Memphis SRXE12DP – Dual 12" SRX Vented Bass Package with SRX600.1V Amplifier (600W RMS)
The Memphis SRXE12DP is a complete, all-in-one bass package pairing dual 12" SRX subwoofers in a front-ported, precision-tuned enclosure with the included SRX600.1V amplifier. Designed to maximize output right out of the box, it delivers deep, clean bass response with integrated control features and built-in RGB LED lighting on the front panel.
Overview
All-in-One Bass System Tuned for Output
Built around two SRX 12" subwoofers and the SRX600.1V amplifier, the SRXE12DP is engineered as a matched package. The enclosure is front-ported and precision-tuned to the subwoofers’ T/S parameters to support strong low-end performance with clean response.
- Dual 12" subwoofers in a precision-tuned ported enclosure.
- Included SRX600.1V amplifier designed to maximize performance out of the box.
- Large front-vented port for enhanced bass output.
Style + Control
RGB Lighting and Built-In Tuning Features
Integrated RGB LED lighting in the front panel adds visual impact. Lighting can be hardwired to a single color or paired with the optional MXRGBBTC controller for expanded color control and lighting effects.
- RGB LED illumination integrated into the front panel.
- Hardwire to a single color or pair with optional MXRGBBTC for full control.
- Remote bass knob included for convenient level adjustment.
Feature Highlights
System Features
Integration
Designed for Easy System Add-On
The SRXE12DP includes both RCA and high-level inputs for flexible integration. Onboard tuning features help you tailor the bass response to your vehicle and system.
- RCA and high-level inputs.
- Variable low-pass filter: 50Hz–200Hz (12dB slope).
- Variable bass boost: 0–12dB.
- 0–180° phase switch.
- Remote bass knob included.
Front-ported enclosure is precision-tuned to the subwoofers’ T/S parameters for deep, clean bass response.
RGB can be hardwired to a single color or paired with the optional MXRGBBTC controller for expanded control and effects.
| Model | SRXE12DP – Dual 12" Ported SR Bass Package |
| System Type | Dual 12" subwoofers in a precision-tuned front-ported enclosure |
| Amplifier Included | SRX600.1V |
| Amplifier Power | 600W RMS |
| Low-Pass Filter | Variable, 12dB slope, 50Hz–200Hz |
| Bass Boost | Variable, 0–12dB |
| Inputs | RCA and high-level |
| Phase Control | 0–180° switch |
| Remote Level Control | Remote bass knob included |
| Lighting | RGB LED illumination integrated into front panel (optional MXRGBBTC compatibility noted) |
| Enclosure Dimensions (L x H x Top D x Bottom D) | 33.5" x 13.75" x 11.9" x 14.3" |
1x Memphis Audio SRX600.1V Mono 1-ohm 600 Watt Amplifier (SRX600.1V)
Memphis Audio SRX600.1V – Street Reference Monoblock Amplifier
Street Reference amplifiers deliver an aggressive blend of performance, style, and value. Designed for entry to mid-level audio systems, the SRX600.1V provides reliable subwoofer power in a compact chassis with Street Reference styling and essential tuning controls.
Overview
Street Reference Bass Power
The SRX600.1V is built to push solid low-frequency power without stretching your budget. With flexible impedance stability and onboard tuning features, this monoblock amplifier makes it easy to dial in clean, controlled bass performance for a wide range of subwoofer and enclosure combinations.
- Designed for entry to mid-level subwoofer systems
- Compact footprint with strong power output
- Simple controls for effective system tuning
Features
Tuning & Street Reference Styling
- Textured aluminum heatsink
- Selectable bass boost
- Variable crossover network
- Variable subsonic filter
- Ultra-bright LED accent light strip
- Remote level control included
| Model | SRX600.1V |
| RMS Power @ 4Ω | 300W x 1 |
| RMS Power @ 2Ω | 500W x 1 |
| RMS Power @ 1Ω | 600W x 1 |
| Total Harmonic Distortion | <1% @ 4Ω |
| Frequency Response | 17Hz – 250Hz |
| Dimensions (L x W x H) | 8.92" x 7.87" x 2.16" |
| Recommended Amp Kit | 4GKIT |
Use the recommended 4GKIT wiring kit to ensure proper power delivery and dependable amplifier performance.
1x Memphis Audio ETP-17 17-Foot 2 -Channel Audio Interconnect Cables (ETP-17)
ETP RCA connections provide a sound connection for all of your audio equipment. These connectors feature molded color matched ends, flexible PVC jacket and twisted pair wires for noise rejection. Your system performance relies heavily on the connections you use. Don’t sacrifice your vehicles audio quality, use only the best connection available from Memphis Audio.
Molded color matched ends
Clear flexible PVC jacket
Twisted pair design for excellent noise rejection
End 1: 2 Male RCA
End 2: 2 Male RCA
CHANNELS: 2
LENGTH: 17ft
