Description
Included in this kit
This bundle includes a Memphis PRXL12FT Power Reference 12" 1/2/4 Ohm RGB LED Selectable Impedance Subwoofer, and a Memphis Audio PRXG12 12" Power Reference Subwoofer Grill.

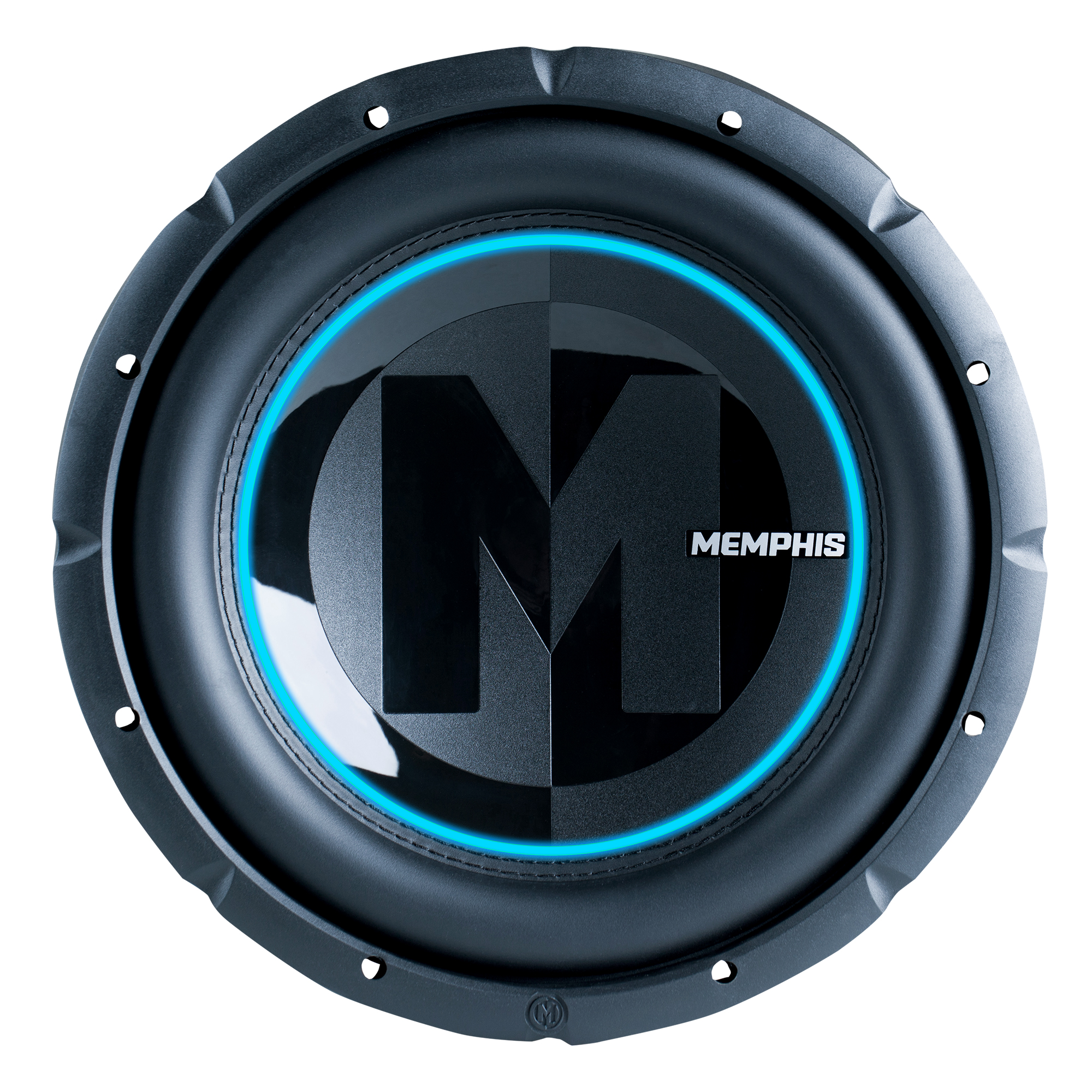

1x Memphis PRXL12FT Power Reference 12" 1/2/4 Ohm RGB LED Selectable Impedance Subwoofer (PRXL12FT)
Memphis PRXL12FT – Power Reference 12" RGB LED Subwoofer (Selectable 1Ω / 2Ω / 4Ω, 400W RMS / 800W Peak)
The Memphis Audio PRXL12FT is a 12" Power Reference subwoofer built for strong low-end output with a compact footprint and an integrated RGB LED accent ring around the cone. Its FLEX Triple Voice Coil Technology uses a jumper plug to select 1-ohm, 2-ohm, or 4-ohm impedance for flexible amplifier matching.
Overview
Selectable-Impedance Bass + RGB Style
Designed to deliver deep, clean bass, the PRXL12FT is rated at 400 watts RMS (800 watts peak) and features Memphis FLEX Triple Voice Coil Technology. With a simple jumper plug, you can switch between 1-ohm, 2-ohm, or 4-ohm impedance to fit a wide range of amplifier setups.
- FLEX triple selectable impedance design: 1Ω / 2Ω / 4Ω via jumper plug.
- RGB LED accent light encircles the edge of the cone for a custom look.
- 400W RMS / 800W peak power handling for high-output systems.
Built for Play Time
Cooling + Materials for Daily Performance
DVVC (Direct Voice Coil Cooling) technology is integrated for maximum thermal efficiency during extended, high-powered play. A black-on-black polypropylene cone, reinforced spider, stitched butyl rubber surround, and woven tinsel leads are used to support durability, control, and signal transfer.
- DVVC Direct Voice Coil Cooling technology for thermal efficiency.
- Black-on-black polypropylene cone for durability and a stealth look.
- Stitched butyl rubber surround and reinforced spider for improved suspension control.
Feature Highlights
What You Get with the PRXL12FT
System Design
One Sub, Multiple Impedance Options
The PRXL12FT uses a tri-flex selectable voice coil configuration. Select 1Ω, 2Ω, or 4Ω with the included jumper-style impedance selector to align with your amplifier’s preferred load.
- Selectable: 1Ω / 2Ω / 4Ω (jumper plug).
- Sensitivity varies by selected impedance (see specs below).
- Designed for custom installs or factory-system upgrades where flexibility matters.
Set the selectable impedance before powering the system and verify your amplifier is stable at the chosen load (1Ω / 2Ω / 4Ω). Incorrect impedance selection can cause poor performance or amplifier issues.
Use the mounting depth and cutout diameter below to confirm enclosure and baffle clearance before installation.
| Model | Memphis Audio PRXL12FT |
| Size | 12" |
| Voice Coil / Impedance | Tri Flex Selectable VC: 1Ω / 2Ω / 4Ω |
| Power Handling | 400W RMS / 800W peak |
| Sensitivity (dB) | 1Ω: 85.6 • 2Ω: 85.5 • 4Ω: 86 |
| Magnet Size | 63 oz |
| Mounting Depth | 5.5" |
| Cutout Diameter | 11" |
| Voice Coil Diameter | 2" |
| Lighting | RGB LED illuminated cone accent |
| Cooling | DVVC Direct Voice Coil Cooling technology |
| Cone Material | Black-on-black polypropylene cone |
| Surround | Stitched butyl rubber surround |
| Suspension | Reinforced spider and improved suspension |
| Leads | Woven tinsel leads |

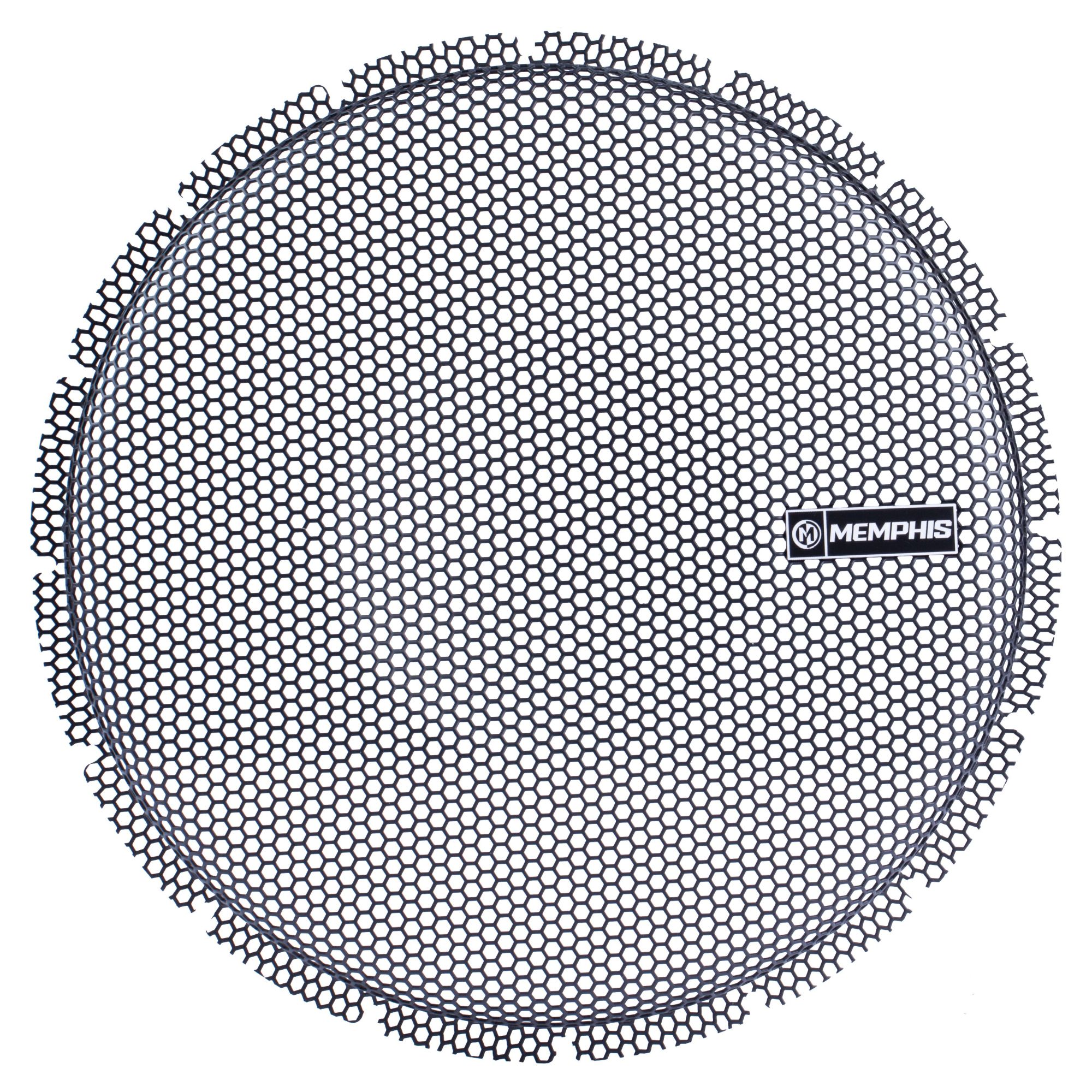

1x Memphis Audio PRXG12 12" Power Reference Subwoofer Grill (PRXG12)
Memphis subwoofer grills add a stylish element of protection to your subwoofer. Our reinforced mesh grills are extremely rigid and are digitally designed to avoid interference with the subwoofer during times of extreme excursion. We have grills to fit all sizes of subwoofers from 6.5" up to 15".
Features:
• Durable mesh construction
• Branded Memphis logo badge
• Concaved center for added rigidity and vibration reduction
Subwoofer Fitment
GRILL TYPE - SUBWOOFER FITMENT
• MG15 - MOJO6 & M6 15"
• BRMG12 - MOJO6, M6, BR 12"
• BRMG10 - M6 & BR 10"
• PRXG15 - Fits PR & BR 15"
• PRXG12 - PR,CSA, SA, SR 12"
• PRXG10 - PR, CSA, SA, SR 10"
• BRG8 - BR 8"
• PRXG8 -PR 8"
• PRXG6 - PR 6.5"
