Description
Included in this kit
This bundle includes a Memphis Audio NANO10SPX Weatherproof 10” Powered Under Seat Bass System, and a Memphis Audio 8GKIT 8-Gauge Amp Install Kit -AFS Fuse Holder With 60A Fuse, And A Pair Of ETP-17 17-Foot RCAs.
1x Memphis Audio NANO10SPX Weatherproof 10” Powered Under Seat Bass System (NANO10SPX)

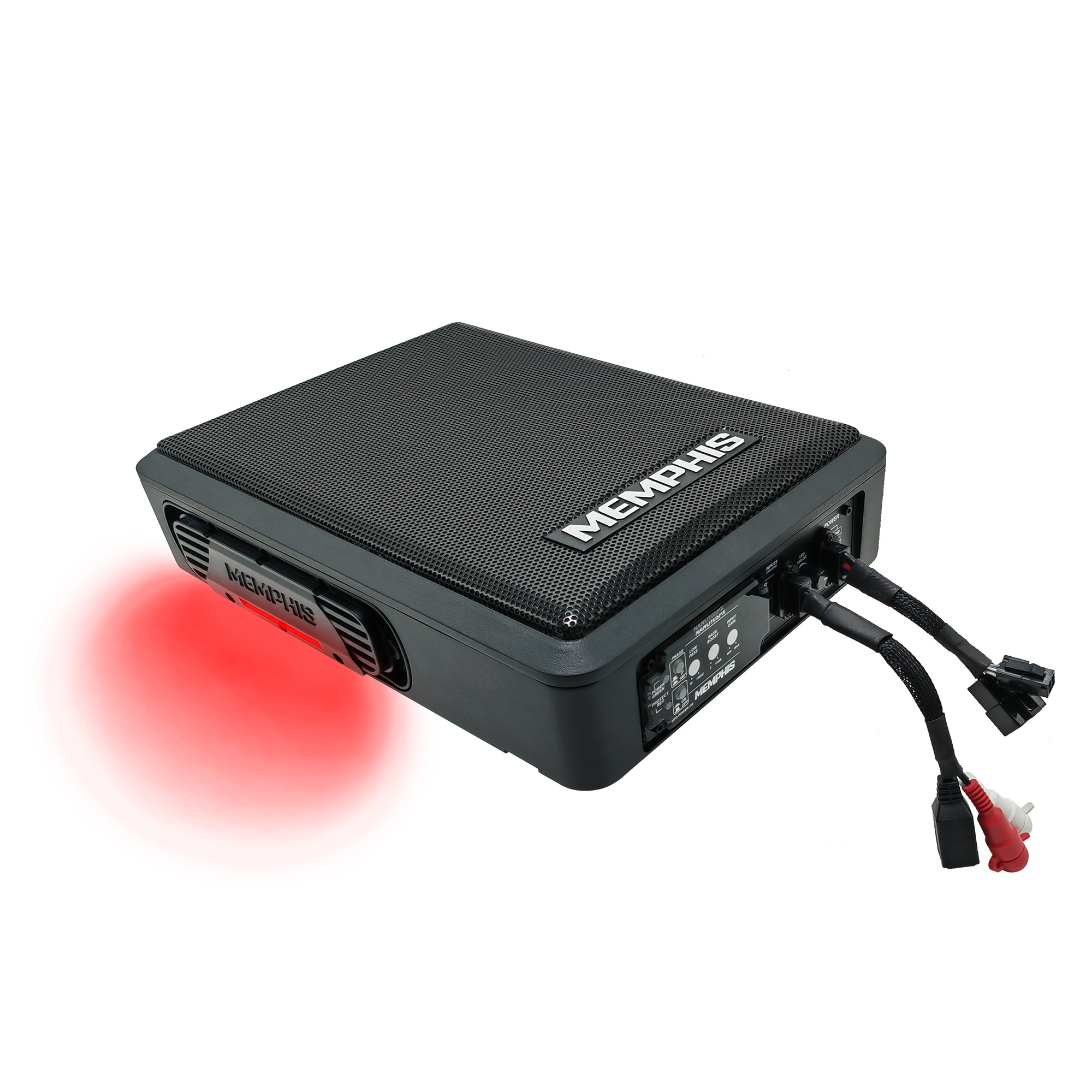

NANO10SPX 10" Powered Under-Seat Subwoofer
The Memphis Audio NANO10SPX is a compact powered subwoofer designed for vehicles where space is limited but durability and performance still matter. With a low-profile enclosure, integrated amplifier, and weather-resistant construction, it delivers controlled low-frequency output in cars, trucks, Jeeps, UTVs, and marine-capable installations.
Overview
Big Bass Performance in Tight Spaces
Built around a 10-inch 2Ω subwoofer and an integrated Class D amplifier, the NANO10SPX delivers efficient, controlled bass in a sealed, low-profile diecast aluminum enclosure. Its compact footprint allows it to fit under seats or in other confined locations without sacrificing low-frequency impact.
An oversized passive radiator increases bass output without requiring additional enclosure volume, making the NANO10SPX an ideal solution when traditional subwoofer enclosures simply won’t fit.
Feature Highlights
Designed for Versatility & Control
- Integrated Class D amplifier rated at 180W RMS for efficient power delivery.
- Oversized passive radiator enhances low-frequency response in a compact enclosure.
- Remote level control allows quick bass adjustment from the driver’s seat.
- Adjustable low-pass filter (50–150Hz), 20Hz subsonic filter, and 0–14dB bass boost.
- High-level and low-level inputs for compatibility with factory and aftermarket head units.
- Built-in RGB LED ground lighting for added visual impact.
Construction
Weather-Resistant & Road-Ready
The NANO10SPX features a diecast aluminum enclosure with an IP66 rating, providing protection against water, dust, and debris. Sealed connectors and a protected control panel support long-term reliability in harsh environments, including off-road and marine-adjacent applications.
- IP66-rated weather-resistant enclosure.
- Sealed connectors and control panel for added durability.
- Thermal, short-circuit, and overload protection built into the amplifier.
Integration
Flexible Installation Options
With both high-level and low-level inputs, the NANO10SPX integrates easily into factory or aftermarket audio systems. Its slim 2.75-inch height allows under-seat mounting in many vehicles, while included mounting hardware simplifies installation.
- Compatible with factory and aftermarket head units.
- Compact under-seat form factor: 13.6" × 9.6" × 2.75".
- Includes power/signal harness and mounting hardware.
| Model | Memphis Audio NANO10SPX |
| Subwoofer Size | 10" |
| Subwoofer Impedance | 2Ω |
| Amplifier Power | 180W RMS / 360W Max |
| Frequency Response | 20–150Hz |
| Low-Pass Filter | Adjustable 50–150Hz |
| Subsonic Filter | 20Hz |
| Bass Boost | 0–14dB |
| Signal-to-Noise Ratio | >90dB |
| Total Harmonic Distortion | <1% |
| Enclosure Rating | IP66 weather-resistant |
| Dimensions (W × D × H) | 13.6" × 9.6" × 2.75" |
What’s Included
In the Box
- NANO10SPX powered subwoofer
- Remote level control with cable
- Power/signal harness
- Mounting hardware
1x Memphis Audio 8GKIT 8-Gauge Amp Install Kit -AFS Fuse Holder With 60A Fuse, And A Pair Of ETP-17 17-Foot RCAs (8GKIT)
Amazing sound starts with amazing connection. To achieve maximum performance a system requires clean power. Memphis relies on the highest quality pure copper wire for all of our connection pieces. Don't be fooled by the competition offering inexpensive wire backed by false claims. For the ultimate performance in audio connections look no further than Memphis Connection wire. Amp kits include RCAs.
Includes all the essential tools to complete a quality installation
100% pure copper wire
True AWG rated wire
Power and ground distribution blocks included
Maximizes your audio performance
Extends the life of your audio equipment
Includes RCAs
