Description
Included in this kit
This bundle includes a Modus MX12 2-Zone Receiver with Backlit LCD Display 2 Zones and Bluetooth Audio Streaming, and 2x Modus GX-65W - High Efficiency Marine Grade Coaxial Speaker with IP66 Protection, 50W RMS Power, Deutsch Style Connectors, and White Sport Grille.
1x Modus MX12 2-Zone Receiver with Backlit LCD Display 2 Zones and Bluetooth Audio Streaming (MX12)
MX12 2-Zone Receiver
The MX12 is a marine receiver designed to provide source control, built-in amplification, and zone-based audio management in a compact marine-ready format. With Bluetooth audio streaming, AM/FM radio with weather band, 25W RMS x 6 output, and 2-zone preamp capability, it is built for boats that need practical control and reliable everyday performance on the water.
Overview
2-Zone Marine Audio Control with Built-In Power
The MX12 is built as a marine receiver for boats that need source control, built-in amplification, and practical multi-zone flexibility from one central unit. Its built-in amplifier is rated at 25 watts RMS across six channels, making it suitable for marine speaker systems that need everyday onboard power.
Bluetooth audio streaming, AM/FM radio with weather band, and 2-zone RCA plus subwoofer preamp outputs give the MX12 a balance of playback flexibility and system expansion capability.
- 2-zone marine receiver.
- 25W RMS x 6 built-in amplification.
- Designed for everyday marine source and zone control.
Display & Interface
Optically Bonded LCD for Marine Visibility
The MX12 uses an optically bonded backlit LCD display sized at 2.54 inches. The screen is described as polarized-sunglass viewable and is paired with display dimming to improve visibility and usability in changing marine light conditions.
- 2.54" optically bonded backlit LCD display.
- Polarized-sunglass viewable.
- Display dimmer for changing light conditions.
Feature Highlights
What the MX12 Adds to a Boat
Connectivity & Sources
Streaming, Radio, and Remote Expansion
The MX12 includes Bluetooth audio streaming and an AM/FM tuner with weather band for core onboard source flexibility. Bluetooth transom remote readiness adds another layer of marine-specific control potential.
- Bluetooth audio streaming.
- AM/FM tuner with weather band.
- Bluetooth transom remote ready.
Marine Operation
Built for Repeatable Everyday Use
Marine-oriented features include bass, mid, and treble tuning, non-volatile memory for saved settings, UV and salt/fog protection, conformal coated PCB construction, and an included radio cover for additional protection when not in use.
- Bass, mid, and treble tuning.
- NVM for audio settings, stations, and presets.
- UV and salt/fog protection.
- Conformal coated PCB.
| Model | MX12 |
| Type | 2-zone marine receiver |
| Display | Optically bonded backlit LCD display |
| Screen Size | 2.54" |
| Bluetooth® | Audio streaming |
| Power Output | 25W RMS x 6 |
| Pre-Amp Outputs | 2 zone RCA + 1 sub 4V pre-amp output |
| Party Mode | Yes |
| Remote Compatibility | Bluetooth transom remote ready |
| Radio | AM/FM tuner with weather band |
| Display Visibility | Polarized sunglass viewable |
| Audio Tuning | Bass, mid, treble |
| Memory | NVM for audio settings, AM/FM stations, and presets |
| Protection | UV and salt/fog protection, conformal coated PCB |
| Other Features | Low voltage alert, display dimmer, radio cover included |
| Mounting | Custom |
| Total Channels | 6 |
| Length | 5.89" |
| Width | 6.22" |
2x Modus GX-65W - High Efficiency Marine Grade Coaxial Speaker with IP66 Protection, 50W RMS Power, Deutsch Style Connectors, and White Sport Grille (GX-65W)

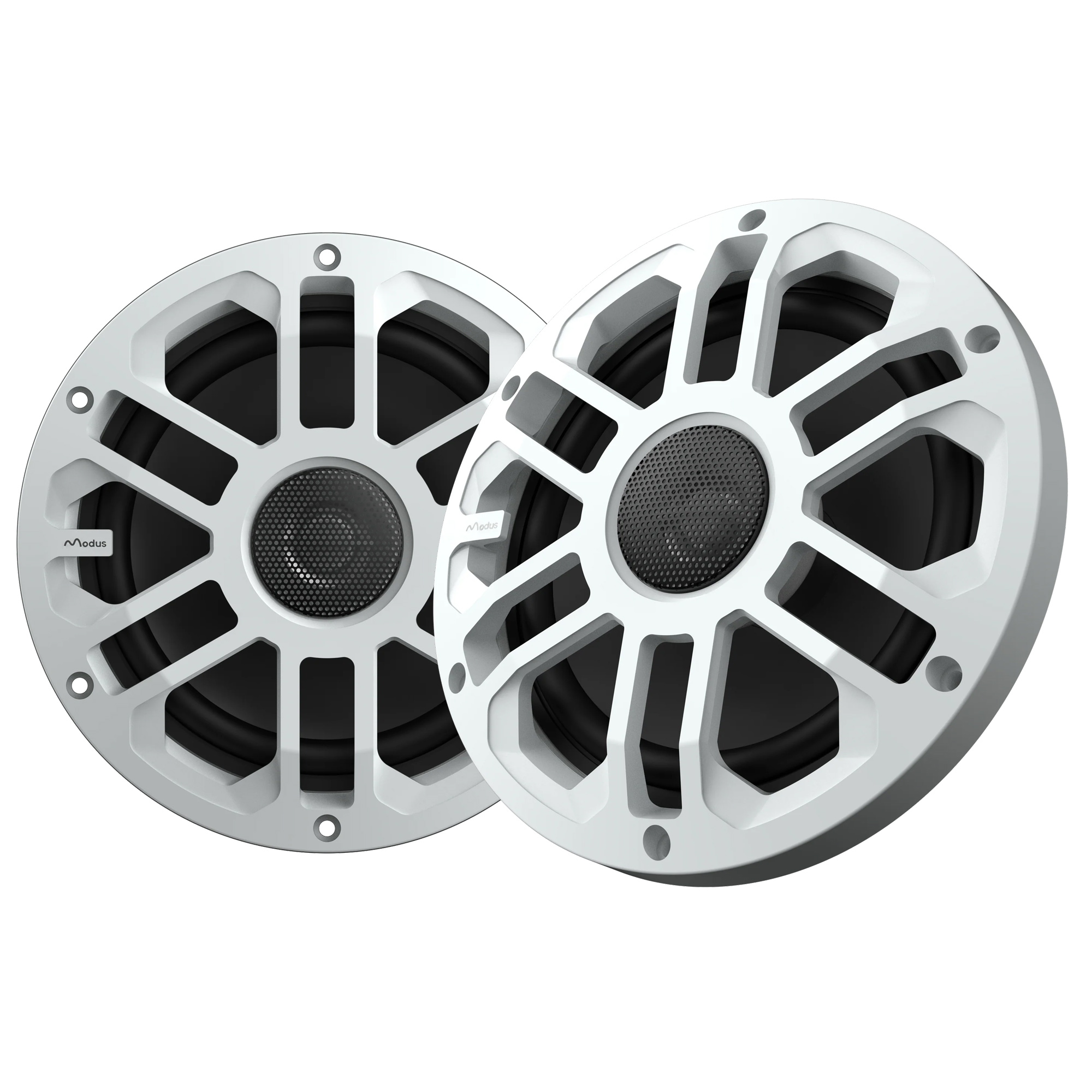

GX-65W 6.5 Inch Coaxial Speaker
The Modus GX-65W is a 6.5 inch marine grade coaxial speaker designed for reliable full range performance in marine audio systems. With 50 watts RMS power handling, 4 ohm impedance, a polypropylene cone, PEI dome tweeter, and Deutsch style connectors, it is built as a practical speaker option for marine installations that need clean sound and straightforward fitment in a white finish.
Overview
Marine Grade 6.5 Inch Coaxial Sound
The GX-65W is built as a 6.5 inch coaxial speaker for marine applications where compact size, marine ready construction, and full range output all matter. Its 50 watt RMS power handling and 4 ohm impedance make it a practical fit for a variety of marine audio system layouts.
Modus pairs a polypropylene cone with a PEI dome tweeter and Deutsch style connectors, creating a speaker that focuses on usable marine performance with straightforward installation hardware and a white finish suited for marine interiors.
Feature Highlights
What the GX-65W Adds to a System
Performance
Basic Power and Response Data
Published performance specifications list 50 watts total power output, 4 ohm impedance, and a frequency response from 20 Hz to 20 kHz. T S data is also provided, including Vas 10.1041, Qes 1.121, Qms 6.808, and Qts 0.962.
Fitment
Speaker and Cutout Dimensions
The GX-65W is listed with a 6.93 inch overall diameter with grille, 6.65 inch overall diameter without grille, 5.16 inch cutout diameter, and 2.44 inch mounting depth. Grille protrusion is listed at 1.1 inch, and tweeter protrusion is listed at 1.18 inch.
| Model | Modus GX-65W |
| Type | 6.5 inch coaxial speaker |
| Grade | Marine grade |
| RMS Power Handling | 50W |
| Speaker Impedance | 4 ohm |
| Cone | Polypropylene cone |
| Tweeter | PEI dome tweeter |
| Tweeter Size | 0.5 inch, 13 mm |
| Connectors | Deutsch style connectors |
| Frequency Response | 20 Hz to 20 kHz |
| VAS | 10.1041 |
| QES | 1.121 |
| QMS | 6.808 |
| QTS | 0.962 |
| Weight | 4.41 lbs |
| Overall Speaker Diameter without Grille | 6.65 inch, 169 mm |
| Overall Speaker Diameter with Grille | 6.93 inch, 176 mm |
| Cutout Diameter | 5.16 inch, 131 mm |
| Mounting Depth | 2.44 inch, 62 mm |
| Grille Protrusion | 1.1 inch, 28 mm |
| Tweeter Protrusion | 1.18 inch, 30 mm |
| Length | 6.93 inch |
| Width | 6.93 inch |
