Description
Included in this kit
This bundle includes a MTX Audio 7512-22 75-Series 12" 750W RMS Dual 2-Ohm Subwoofer, a MTX Audio THUNDER693 Thunder Series 6x9", 3-Way, 100W RMS 4-Ohm Coaxial Speaker Pair, a MTX Audio THUNDER61 Thunder Series 6.5", 2-Way, 90W RMS 4-Ohm Component Speaker Pair, and a MTX TH1400.5 - Thunder Series Amplifier, 5-Channel 1400 Watts.
1x MTX Audio 7512-22 75-Series 12" 750W RMS Dual 2-Ohm Subwoofer (7512-22)
MTX 7512-22
12" 750-Watt RMS Dual 2Ω Car Audio Subwoofer
75 Series subwoofer has been known for being extremely reliable while it rocks like nobody's business...one of the best in the market. We stepped it up a few notches and have now brought the 75 Series back. Just like the 95 Series, the 75 Series is a "GAME CHANGER" in the SPL world. And sound quality is uncomparable, exceeded by only the 95 Series.
Spider Plateau Venting is a mechanical cooling process that circulates hot air for cool air at the voice coil as the subwoofer continuously cycles. The constant movement of hot air out and cooler air in, targeted directly at the high temperature voice coil increases reliability and longevity.
The specially designed backplate on the 75 Series not only gives it an impressive stance, but acts as an additional medium to conduct heat away from the voice coil. The increased surface area of the backplate dissipates additional heat ensuring the 75 subwoofer plays with lower distortion for extended periods.
FEATURES:
• Inverted Apex Surround - Increases Surface Area Resulting in Increased Volume Displacement and SPL
• Progressive Suspension - Controls Excursion at High Power Reducing Distortion Resulting in Better Sound Quality
• Radial Ribbed T-Yoke - Helps Dissipates Heat and Decreases Distortion Improving Sound Quality
• Spider Plateau Venting - Targets Cool Air at Voice Coil for Improved Thermal Performance
• Cast Aluminum Basket - Reduces Resonance for Improved Sound Quality
• 2.5" Aluminum Voice Coil - Designed to Handle High Power
SPECIFICATIONS:
• Recommended Amp Power (RMS): 375 - 750
• Frequency Response: 24Hz - 130Hz
• Impedance: Dual 2Ω
• Sensitivity: 85.34 dB
• Voice Coil: 2.5"
• Magnet Weight: 103.4 oz.
• Mounting Depth: 7.437"
• Cut Out Diameter: 11.125"
• Volume Displacement (cu in): 57.49
• Sealed Enclosure Net Volume: 1.25 cu ft
• Vented Enclosure Net Volume: 2.32 cu ft

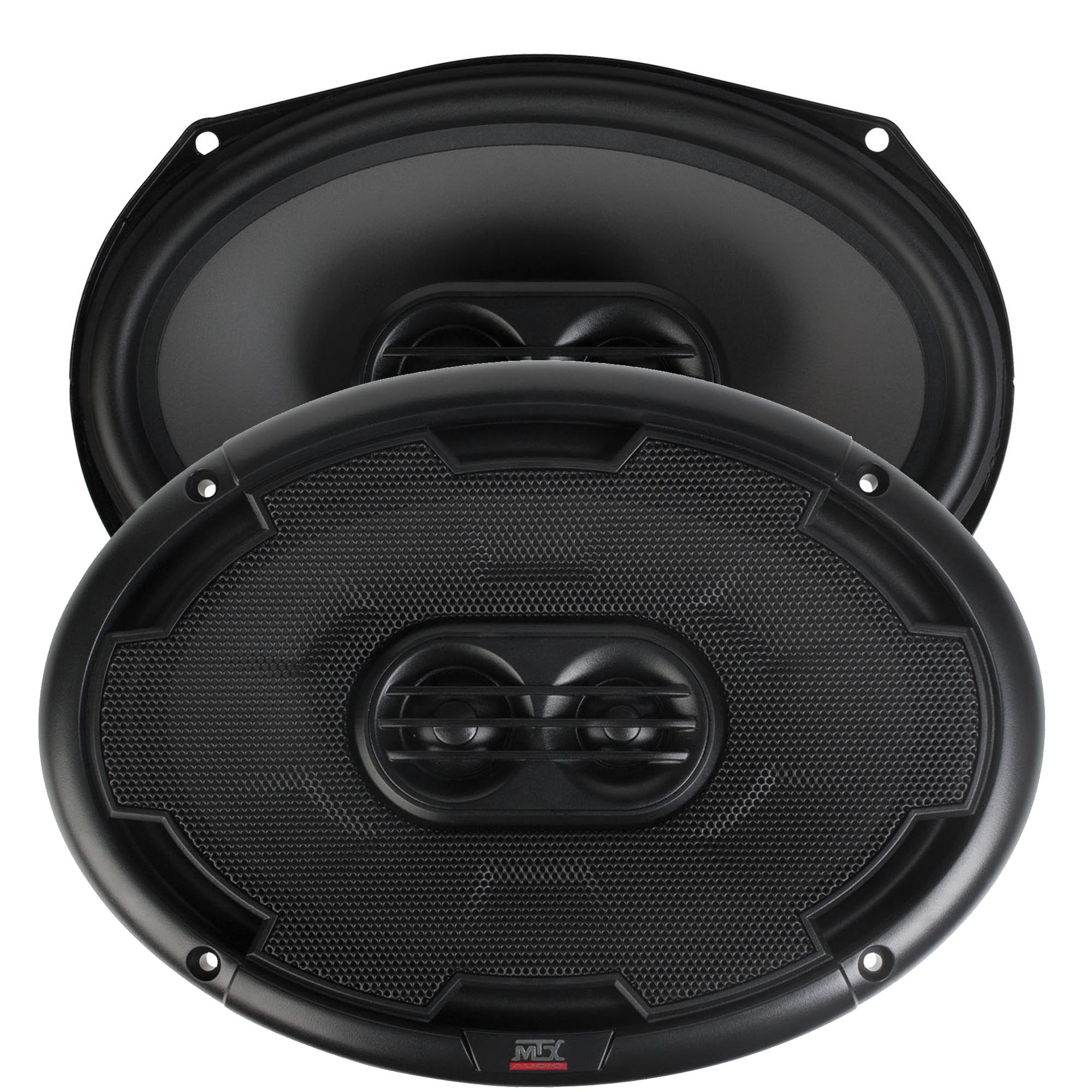

1x MTX Audio THUNDER693 Thunder Series 6x9", 3-Way, 100W RMS 4-Ohm Coaxial Speaker Pair (THUNDER693)
MTX THUNDER693
6" X 9" 3-WAY 100-WATT RMS 4Ω COAXIAL SPEAKER PAIR
THUNDER Series speakers are designed to compliment any installation while delivering a full range sound experience for all types of music. Get the most out of your music and hear it as the artist performed it.
Rich Bass
The THUNDER693 is a 6" x 9" 3-way coaxial speaker pair that can handle up to 100-watts RMS power. THUNDER speakers are set apart from the "other guys" because of its ability to reproduce low frequencies that other speakers cannot reproduce.
No Subwoofer Required!
The Thunder Coaxials offer unbeatable performance for the price in their class. They provide outstanding low frequency reproduction, easy installation, and are great as factory replacements with or without an additional amplifier.
While no car speaker can produce bass like a subwoofer, these speakers truly shine in the lower frequencies. The THUNDER Series Coaxial offers it all. You will have incredibly clear response with the built-in tweeter, and plenty of Low THUNDER response from this speaker's Polypropylene cone. The rubber surround will shrug off the weather and wear that come with living in your car full-time.
Ready for an easy-to-install speaker with an awesome price? Then let the "THUNDER ROLL" with the THUNDER Coaxials.
FEATURES
• Extended Low Frequency Reproduction - Allows the speaker to deliver a Bigger, Fuller Sound
• Concave Cone Design - Produces Improved Off-Axis Response
SPECIFICATIONS
• RMS Power (Watts) 100
• Sensitivity 92dB
• Frequency Response 42Hz - 20kHz
• Cone Material Polypropylene
• Grille Included Yes
• Woofer Mounting Depth 3.0"

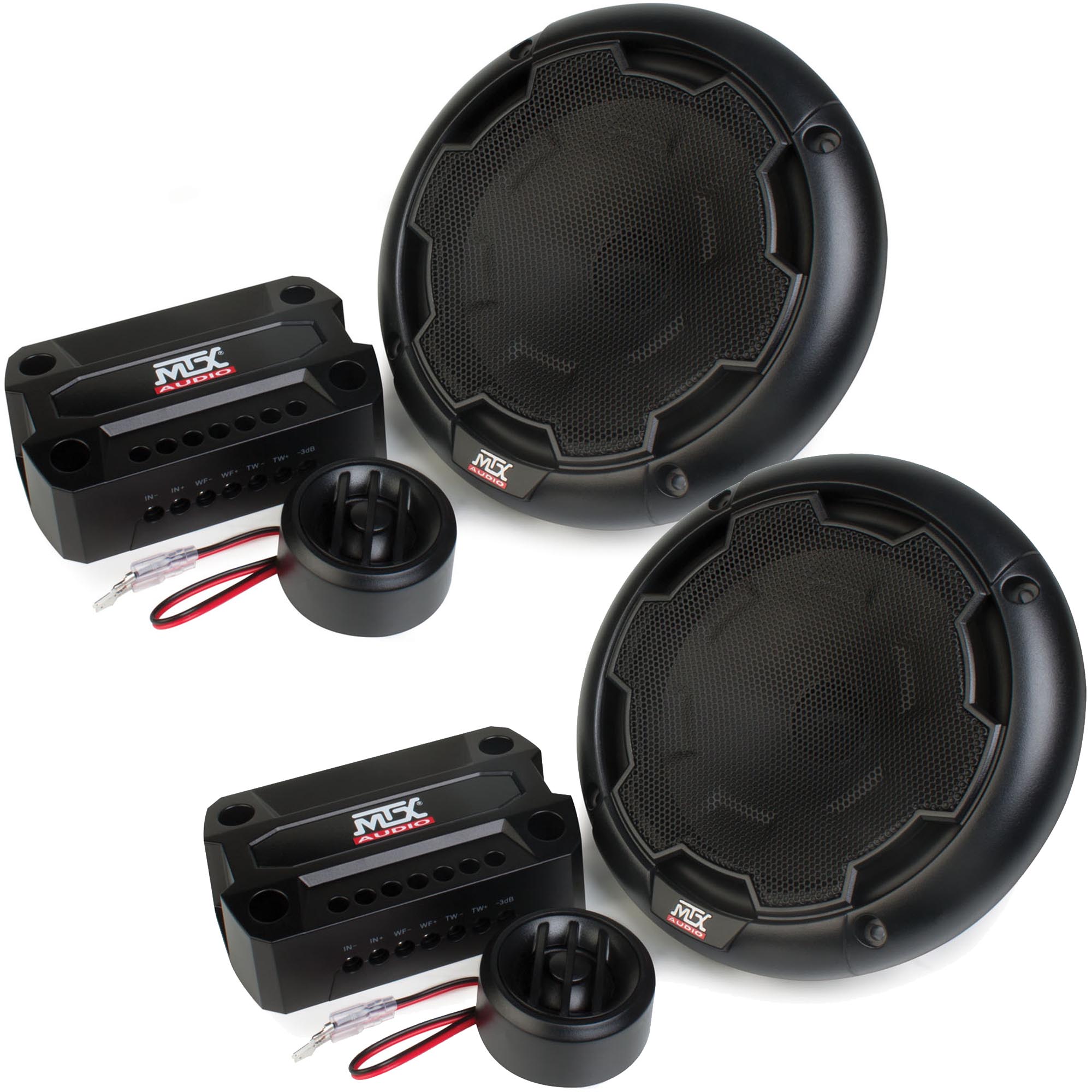

1x MTX Audio THUNDER61 Thunder Series 6.5", 2-Way, 90W RMS 4-Ohm Component Speaker Pair (THUNDER61)
MTX THUNDER61
6.5" 2-WAY 90-WATT RMS 4Ω COMPONENT SPEAKER PAIR
To The Next Level
The THUNDER Series speakers are designed to take any car audio installation to the next level while delivering a full-range, sound experience for all types of music. This unit features a polypropylene woofer and soft dome tweeter that offer excellent clarity and imaging. The crossover includes a two position tweeter adjustment of 0dB or -3dB allowing the user to customize the sound based on their preference.
Rich Full Range
The THUNDER Series offers the best full range sound reproduction of any speaker in their class with particular focus on low frequency reproduction where THUNDER speakers play much lower than other models allowing you to listen to great bass even if you do not have a subwoofer. MTX Engineers came up with this Speaker Series that keep dollars in your pocket book, but still brings you awesome sounding components for your ride. The THUNDER Component Series is best used with external amplification to deliver unmatched low frequency reproduction and dazzling sound quality for all types of music.
FEATURES
• Extended Low Frequency Reproduction - Allows the speaker to deliver a Bigger, Fuller Sound
• 25mm Soft Dome Tweeter - Can be Mounted Anywhere to Improve Imaging and Exceed Expectations, with the Ability to Clearly Recreate the Crispest Highs
• Concave Cone Design - Produces Improved Off-Axis Response
• 2-Way Crossover - Featuring an Adjustable Tweeter Level The Crossover Uses Mylar Capacitors for Superior Signal Integrity
• Multi-Mount Tweeter - Included Flush or Surface Mount Adaptor and can Swivel within Adaptor for Superior Imaging
SPECIFICATIONS
• Sensitivity 90dB (2.83V/1m)
• Frequency Response 44Hz - 20kHz
• Cone Material Polypropylene
• Voice Coil 1.0" (2.54 cm)
• Woofer Mounting Depth 2.19" (5.56 cm)
• Woofer Cut Out Diameter 5.0" (12.7 cm)

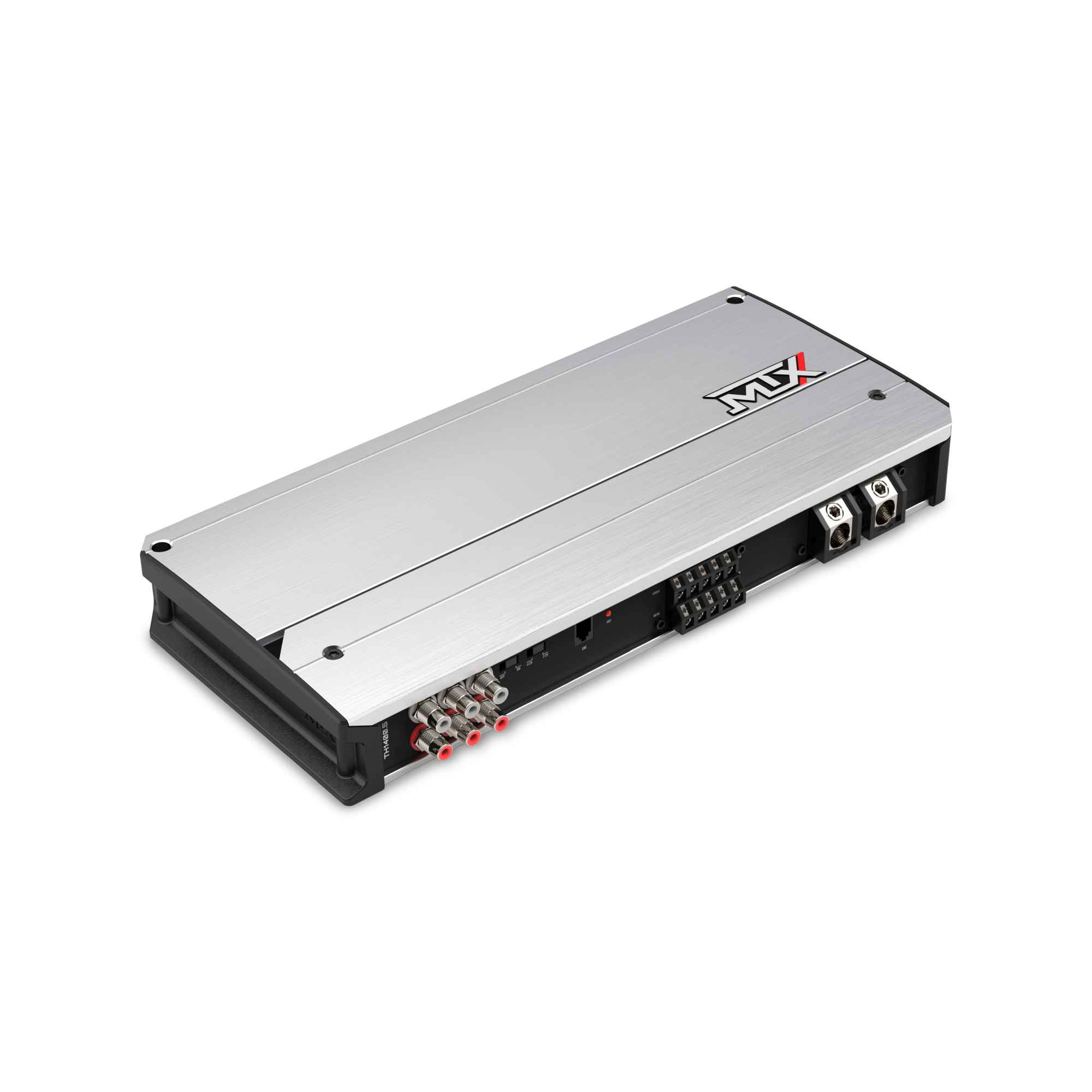

1x MTX TH1400.5 - Thunder Series Amplifier, 5-Channel 1400 Watts (TH1400.5)
THUNDER 1400-Watt RMS Class-D 5-Channel Amplifier
One Amp for Your Entire System
Simplify your car audio setup with the TH1400.5, a versatile five-channel amplifier from MTX Audio’s THUNDER Series. Designed to power your entire system, this amp provides full-range clarity for your speakers and deep, impactful bass for your subwoofer. With its compact size, advanced features, and powerful performance, the TH1400.5 is the perfect all-in-one solution for audiophiles who demand the best.
Complete Audio Power in One System
The TH1400.5 delivers exceptional versatility and performance, with four full-range channels providing up to 100 watts RMS each at 2Ω, plus a dedicated subwoofer channel capable of a massive 800 watts RMS at 1Ω. Whether it’s crystal-clear highs, smooth mids, or room-shaking bass, the TH1400.5 ensures every note is reproduced with precision and power.
Custom Sound, Simplified
Take control of your sound with adjustable gain, crossover, and bass boost controls. Hidden beneath a sleek panel cover, these settings allow you to fine-tune your audio for a perfectly balanced soundstage. The included external bass control remote puts subwoofer adjustments within easy reach, so you can tweak your bass levels on the go.
Efficient and Reliable Performance
Engineered with Class-D technology, the TH1400.5 delivers high output while keeping heat and power consumption low. Its advanced protection circuits safeguard against thermal overload, short circuits, and voltage fluctuations, while the LED status indicator keeps you informed of your system’s performance for uninterrupted music enjoyment.
Big Power in a Compact Design
Despite its impressive power, the TH1400.5’s compact footprint allows for easy installation in tight spaces. Its stylish design enhances any vehicle interior, combining aesthetics with functionality to elevate your car audio system. Each unit includes a Dyno Certificate, proving that it exceeds its rated performance and ensures reliable, powerful output.
Features
1400 Watts RMS Power Output
Four Full-Range Channels and One Mono Subwoofer Channel
High-Efficiency Class-D Circuit Design
Adjustable Gain, Crossover, and Bass Boost Controls
Hidden Control Panel for a Clean Look
Included External Bass Control Remote
Power and Protection LED Status Indicator
Thermal, Short, and Over/Under Voltage Protection
High-Quality Tiffany-Style RCA Input
10V High-Level Audio Input Compatibility
Clip Detection Light for Tuning Optimization
Surface Mount Component Technology
Direct Insert Power and Speaker Terminals
Dyno Power Rating Certificate Included
Specifications
Description: 5-Channel
Topology: Class D
4Ω RMS Power Output: 100W x 4 Channels + 300W (Sub)
2Ω RMS Power Output: 150W x 4 Channels + 500W (Sub)
4Ω RMS Bridged Power Output: 300W x 2 Channels (1/2/3/4)
1Ω RMS Power Output: 800W (Sub Only)
THD: < 0.4%
Signal to Noise Ratio: > 95dB
Frequency Response: 20Hz - 20KHz (Ch1-4), 20Hz - 250Hz (Sub)
Crossover: 40Hz - 400Hz (Ch1-4), 50Hz - 250Hz (Sub)
Subsonic Filter: 10Hz - 55Hz (Sub)
Maximum Input Signal: 10V
Warranty Period: 24 months from date of purchase
Dimensions & Weight
Length: 14 ¹⁄₂” (367mm)
Width: 7” (176mm)
Depth: 2” (50mm)
Weight: 9.06 lbs (4.11 kg)
The TH1400.5 is the ultimate solution for powering your entire car audio system. With its powerful output, advanced controls, and compact design, it’s the perfect choice for audiophiles who want seamless performance and exceptional sound quality.
