Description
Included in this kit
This bundle includes a MTX TERMINATOR 800-Watt RMS 5-Channel Class D Amplifier, a MTX Audio TERMINATOR6 Terminator Series 6.5", 2-Way, 45W RMS 4-Ohm Coaxial Speaker Pair, a MTX Audio TERMINATOR69 Terminator Series 6x9", 2-Way, 60W RMS 4-Ohm Coaxial Speaker Pair, and 2x MTX Audio TN10-04 Terminator 10" 150W RMS 4-Ohm Subwoofer.

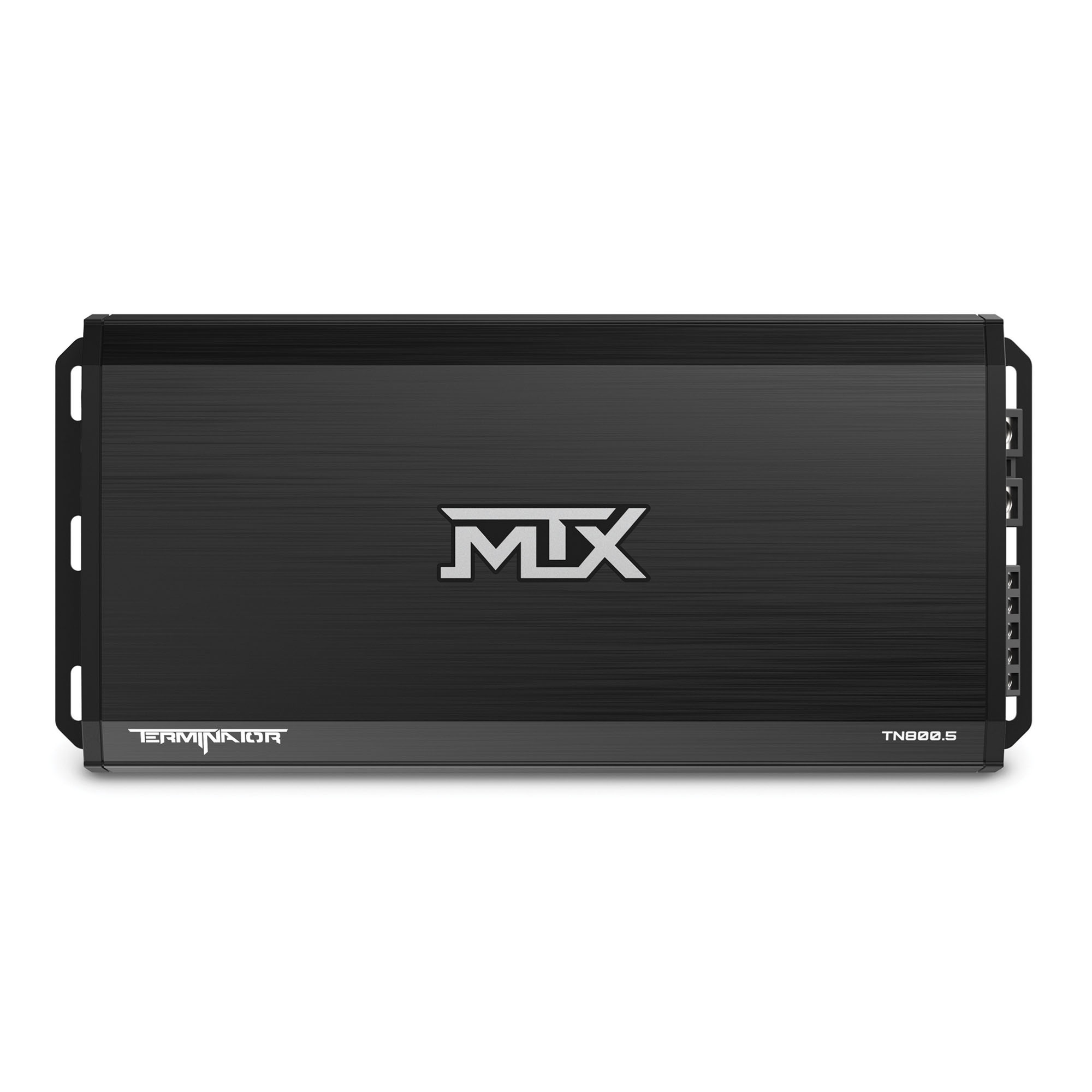

1x MTX TERMINATOR 800-Watt RMS 5-Channel Class D Amplifier (TN8005)
The TERMINATOR 800.5 5-channel amplifier gives you dynamic power and complete adjustability while removing the hassle and cost of using multiple amplifiers needed for a concert level system. The TERMINATOR legacy that stands for quality and reliability is evident in this new model along with features and controls found in much more expensive amplifiers. This “one and done” solution saves you space, time and money all while delivering a high-performance audio experience in your ride.
Features -
• Reliable and Efficient Class-D Circuit Design
• Small Size Footprint for Easy Installation
• Surface Mount Component Technology
• Fully Adjustable Gain and Crossover controls
• Integrated Bass Boost and Subsonic Circuits
• Direct Insert Power and Speaker Terminals
• Power and Protection LED Light Status Indicator
• Short, Thermal, and Under / Over Voltage Protection
• Remote Bass Knob Included
Specifications -
• Description: 5-CHANNEL
• Topology: FULL RANGE CLASS D
• 4Ω RMS Power Output: 50W X 4 CHANNELS + 300W X 1 CHANNEL
• 2Ω RMS Power Output: 75W X 4 CHANNELS + 500W X 1 CHANNEL
• 4Ω RMS Bridged Power Output : 150W X 2 CHANNELS (CH 1/2/3/4)
• THD: < 0.3%
• Signal to Noise Ratio: > 90DB
• Frequency Response: 40HZ - 400HZ (CH 1-4) 50HZ - 250HZ (SUB)
• Crossover: 20HZ - 40KHZ (CH 1-4) 20HZ - 250HZ (SUB)
• Subsonic Filter: 10HZ - 55HZ (SUB)
• Bass Boost: 0 - 12DB @ 45HZ (SUB)
• Maximum Input Signal: 6V
• Warranty Period: 24 MONTHS FROM DATE OF PURCHASE
1x MTX Audio TERMINATOR6 Terminator Series 6.5", 2-Way, 45W RMS 4-Ohm Coaxial Speaker Pair (TERMINATOR6)
MTX TERMINATOR6
6.5" 2-Way 45-Watt RMS 4Ω Coaxial Speaker Pair
Upgrading your factory speakers is one of the easiest ways to get better sound in your car. Aftermarket speakers are able to handle more power and use better materials to deliver a better listening experience. The TERMINATOR Series speakers are designed to improve factory sound and work even better with an aftermarket radio and external amplifier.
The TERMINATOR6 is a 6.5" coaxial speaker that is capable of handling up to 45W RMS power and has a 4Ω impedance. The unit includes a durable steel basket, polypropylene cone, and silk dome tweeter.
Point Source Technology
The TERMINATOR5 utilizes a point source tweeter design that recesses the tweeter flush with the woofer cone. This design increases sonic accuracy as the sound waves from the tweeter and woofer do not intermix causing distortion. The point source tweeter also enables the speaker to have a shallower mounting depth making it usable in more applications.
Aggressive Style
The TERMINATOR6 features a red cone that looks great in any interior. The removable grille incorporates a trim ring that makes all mounting screw heads invisible once installed.
Terminating Bad Sound
Whether you are upgrading blown factory speakers, using them with source-unit amplification, or even putting them on a small aftermarket amplifier, the TERMINATOR series speakers are going to bring your music to life. The latest generation TERMINATOR speakers deliver exceptional sound quality at an unbeatable price.
SPECIFICATIONS:
• RMS Power (Watts): 45
• Impedance: 4Ω
• Sensitivity: 86.8dB (2.83V/1m)
• Frequency Response: 62Hz - 20kHz
• Cone Material: Polypropylene
• Grille Included: Yes
• Woofer Mounting Depth: 1.63" (4.15 cm)
• Crossover: NA
1x MTX Audio TERMINATOR69 Terminator Series 6x9", 2-Way, 60W RMS 4-Ohm Coaxial Speaker Pair (TERMINATOR69)
MTX TERMINATOR69
6" x 9" 2-Way 60-Watt RMS 4Ω Coaxial Speaker Pair
Upgrading your factory speakers is one of the easiest ways to get better sound in your car. Aftermarket speakers are able to handle more power and use better materials to deliver a better listening experience. The TERMINATOR Series speakers are designed to improve factory sound and work even better with an aftermarket radio and external amplifier.
The TERMINATOR69 is a 6" x 9" coaxial speaker that is capable of handling up to 60W RMS power and has a 4Ω impedance. The unit includes a durable steel basket, polypropylene cone, and mylar dome tweeter.
Point Source Technology
The TERMINATOR69 utilizes a point source tweeter design that recesses the tweeter flush with the woofer cone. This design increases sonic accuracy as the sound waves from the tweeter and woofer do not intermix causing distortion. The point source tweeter also enables the speaker to have a shallower mounting depth making it usable in more applications.
Aggressive Style
The TERMINATOR69 features a red cone that looks great in any interior. The removable grille incorporates a trim ring that makes all mounting screw heads invisible once installed.
Terminating Bad Sound
Whether you are upgrading blown factory speakers, using them with source-unit amplification, or even putting them on a small aftermarket amplifier, the TERMINATOR series speakers are going to bring your music to life. The latest generation TERMINATOR speakers deliver exceptional sound quality at an unbeatable price.
SPECIFICATIONS:
• RMS Power (Watts): 60
• Sensitivity: 87.8dB (2.83V/1m)
• Frequency Response: 51Hz-20kHz
• Cone Material: Polypropylene
• Impedance: 4Ω
• Grille Included: Yes
• Woofer Mounting Depth: 2.76" (7.0 cm)
• Crossover: NA
2x MTX Audio TN10-04 Terminator 10" 150W RMS 4-Ohm Subwoofer (TN10-04)
MTX TN10-04
10" 150-WATT RMS 4Ω SUBWOOFER
The Terminator Sub
The terminator subwoofer is loaded with MTX engineering technology including Spider Plateau Venting that ensures trouble free performance and an Assymetrical Linear Drive System that limits distortion ensuring unbeatable performance.
If you are looking for a great subwoofer that won't break your bank look no further. The Terminator sub is still one badass bass pounder.
FEATURES
• ALDS Asymmetrical Linear Drive System with a Flat Progressive Spider and Extended Pole Piece for Smooth, Linear, Piston like Drive
• Exclusive Spider Plateau Venting Cooling System Cools at the Voice Coil
• Rubber Surround for Greater Durability and Longevity of the Sub
SPECIFICATIONS
• Recommended Amp Power (RMS) 75 - 150
• Frequency Response 29Hz - 160Hz
• Impedance 4Ω
• Sensitivity 84.9dB
• Voice Coil 1.50" (3.81 cm)
• Magnet Weight 27 oz.
• Mounting Depth 4.86"
• Cut Out Diameter 9.19"
• Volume Displacement (cu in) 21.21 cu in
• Sealed Enclosure Net Volume 0.75 cu ft
• Vented Enclosure Net Volume 1.45 cu ft
