Description
Included in this kit
This bundle includes a MTX AWBTC Universal Bluetooth Receiver and Remote Control, a MTX Audio MUD100.4 Thunder Sports 100W x 4 @ 2Ω Full Range Class D Marine Grade Amplifier, and 2x MTX Audio MUD65PL All-Weather 6.5" 50W RMS 4Ω Cage Pod Speaker Pair w/ RGB LED.

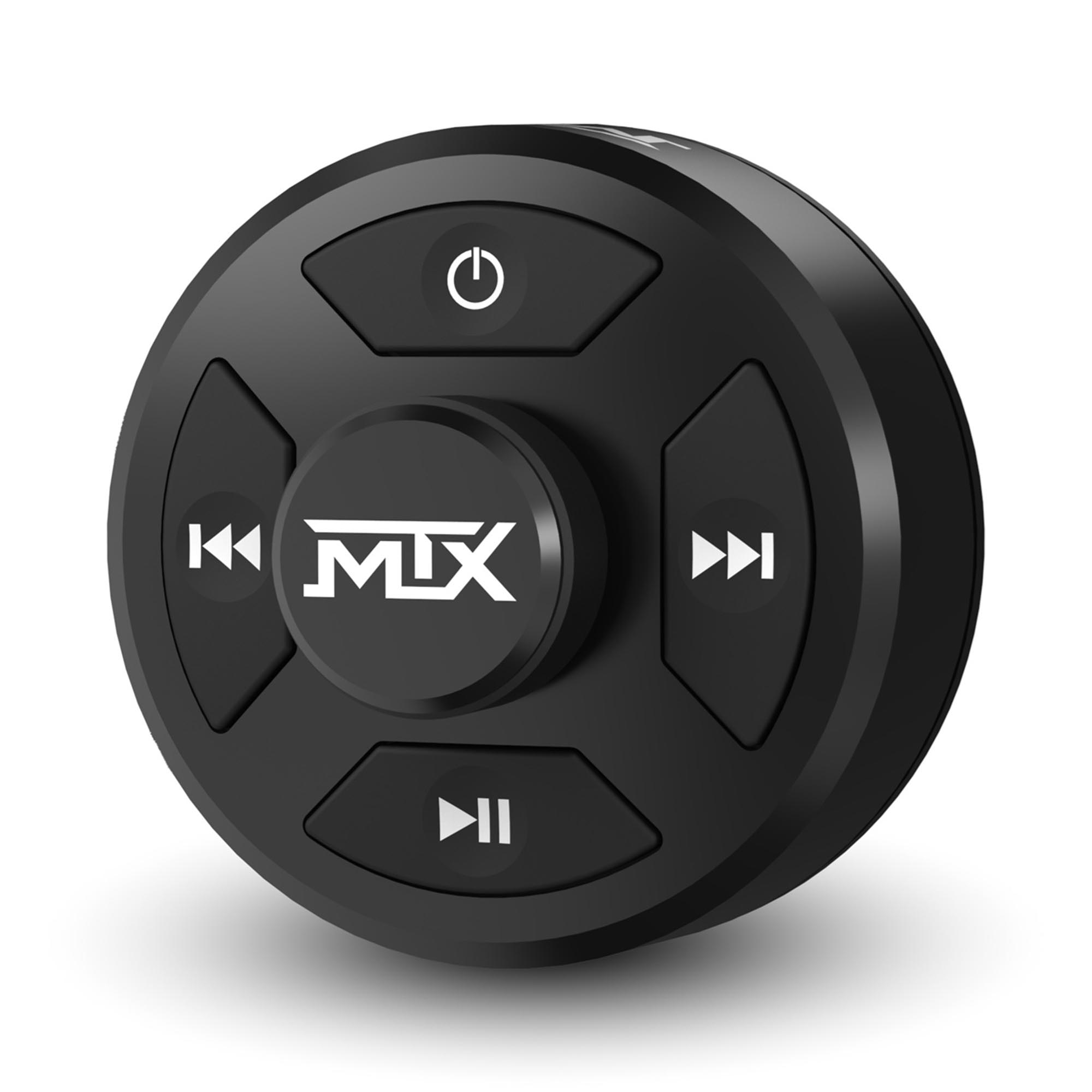

1x MTX AWBTC Universal Bluetooth Receiver and Remote Control (AWBTC)
CONTROL THE RIDE, WITHOUT THE HEAD UNIT
The AWBTC is an all-weather Bluetooth receiver and remote control that gives you wireless command over your sound system — no bulky head unit required. With rugged IP65 protection, dual RCA outputs, and multiple mounting options, it's built for ultimate flexibility on any vehicle, from boats to bikes to side-by-sides.
Next-Level Bluetooth Control
The AWBTC turns your Bluetooth-enabled smartphone or tablet into the command center of your audio system. Stream music wirelessly and control playback with easy-to-use backlit buttons and a tactile rotary volume knob. It automatically reconnects to your paired device, so you can hop in and hit play without missing a beat.
Built for the Elements
Built for life outdoors, the AWBTC is IP65-rated for water and dust resistance. This controller is engineered to survive and thrive in extreme conditions. Its oversized buttons and durable construction make it ideal for off-road adventures and marine applications.
Easy Installation, Maximum Versatility
The AWBTC is built to adapt. It comes with surface, flush, and clamp mounting options, making it easy to install in a variety of setups. Its compact size fits neatly on handlebars, dashes, or panels without getting in the way. With two sets of 4V RCA preouts, it sends a clean, powerful signal to your system and keeps the music flowing without the need for a head unit.
Features
Ideal for use in boats, UTVs, ATVs, and cars/trucks
Replaces head unit and works with most aftermarket audio systems
Three mounting options: surface, flush, or clamp (fits 7/8", 1", 1-1/4" handlebars)
IP65-rated weather-resistant design
Rotary volume knob with integrated Bluetooth control
Four front panel buttons for playback and track control
Compatible with most Bluetooth-enabled smartphones and tablets
Automatic Bluetooth pairing and reconnection
Includes power, ground, and RCA output connections
SPECIFICATIONS
Warranty Period: 36 months from date of purchase
Dimensions
Diameter: 2.375” (59mm)
Depth: 1.438” (36mm)

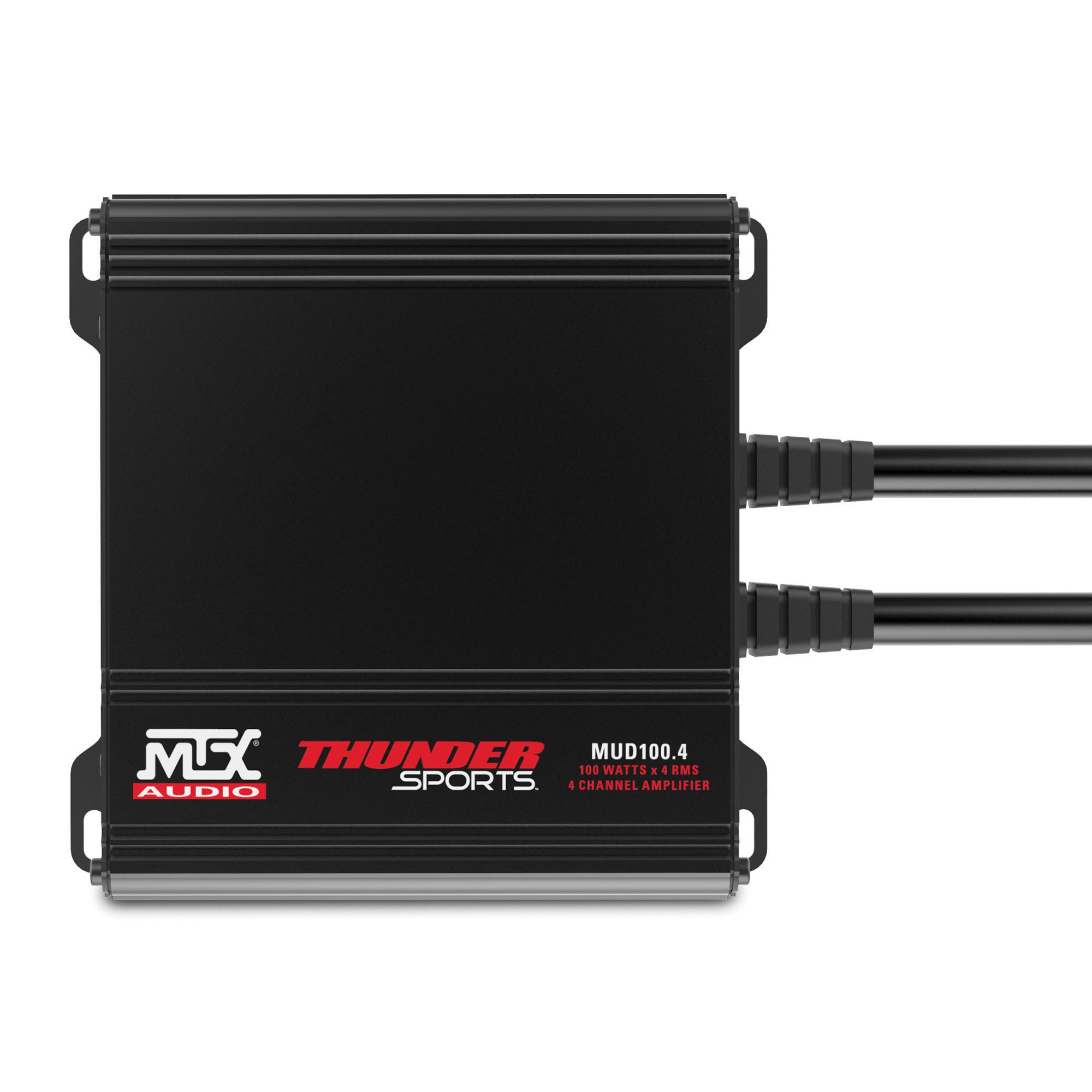

1x MTX Audio MUD100.4 Thunder Sports 100W x 4 @ 2Ω Full Range Class D Marine Grade Amplifier (MUD100.4)
MTX MUD100-4
400 Watt RMS 4-Channel Powersports Amplifier
The MTX MUD100.4 is the most compact amplifier that MTX has ever made. This unit features full range class D topology that delivers exceptional sound quality and excellent thermal efficiency. The unit includes 2 channels that are capable of delivering 100 watts of RMS power per channel.
The entire unit is weather resistant including a conformal coated circuit board and control covers that prevent damage from moisture intrusion. The unique design includes a pigtail that contains all of the wiring necessary to connect power, ground, and signal without having to make a connection directly at the amplifier. This pigtail keeps moisture, dirt, and other hazards from harming the internal components of the unit, ensuring you can enjoy your music wherever the trail takes you.
The compact nature of the amplifier and its excellent efficiency make it ideal for a variety of applications including UTV's and motorcycles. The amplifier footprint fits on most OEM motorcycle radios and its resistance to radio frequency interference make it the perfect choice for upgrading the stereo on any motorcycle.
FEATURES:
• Compact Design - The small footprint chassis allows for installation in space challenged vehicles
• Conformal Coated Circuit Board - Protects against corrosion or circuit deterioration due to exposure to moisture or salt conditions
• Fixed Crossover - High and Low Pass Crossovers Allow Use with Full Range Speakers or Subwoofers
• High and Low Level Inputs - Allows connection to both Speaker and RCA Input signals
SPECIFICATIONS:
• Description: 4-Channel
• 4Ω RMS Power Output: 50W x 4 Channels
• 2Ω RMS Power Output: 100W x 4 Channels
• 4Ω Bridged: 200W RMS x 2 Channels
• Topology: Full Range Class D
• Frequency Response: 10Hz - 32kHz
• Crossover: Fixed HPF/LPF @ 80Hz, 12dB/Oct
• Max Sensitivity: 200mV
• Maximum Input Signal: 5V
• Height: 6.52" (165.5mm)
• Width: 5.51" (140mm)
• Depth: 1.86" (47.2mm)
2x MTX Audio MUD65PL All-Weather 6.5" 50W RMS 4Ω Cage Pod Speaker Pair w/ RGB LED (MUD65PL)
MTX MUD65PL
Powersport 6.5" 50W RMS 4-Ohm Cage Mount Coaxial Speakers With RGB LED - Pair
Customized Color
Each MUD65PL includes a RGB LED light ring that enables you to choose between red, blue, or green to highlight the speaker cone and make them look really cool at night. Use with the optional MUDLEDC remote and control harness and get complete control including up to 20 different color combinations and other features that allow you to customize the LEDs to match your ride and your style.
Low Profile Mounting
The MUD65PL includes low profile mounting brackets that are designed to fit 1.5", 1.75", and 2" bars. Their low profile design allows the speakers to be securely attached to the cage and out of the way of harmful branches and other road hazards ensuring you can enjoy them for many years. Use optional bracket MUDPFCwith the MUD65PL to attach them to vehicles with ProFit or Profile style cages including the Polaris General and Polaris Ranger.
360° Sound
The unique mounting bracket allows you to install the speaker facing whatever direction is best for your application. The bracket allows the speaker to swivel in any direction so the speakers are always pointed in the direction of your choice and are not limited by the shape or angle of your cage.
FEATURES:
• Fits Bars with Diameters of 1.5", 1.75", and 2"
• Polypropylene Woofer and Soft Dome Tweeter
• Internal Crossover Network
• ABS Impact Resistant Grille with UV Inhibitor
• Tested 500hrs to ASTM B117, D4329 Standard
• RGB LEDs in Grille Allow Selection of Red, Blue, or Green
• Optional Remote Control and Wiring Harness Available for Custom Color Creation (MUDLEDC)
SPECIFICATIONS
• Description: 6.5" 2-Way Cage Mount Speakers
• Sensitivity: 86dB
• Impedance: 4Ω
• Cone Material: Polypropylene
• Frequency Response: 70Hz - 20kHz
• Grille: Yes
• Environmental Spec: 500hrs ASTM B117, D4329
• Light: RGB LED In Grille
• Dimensions (HxWxD): 9.34" (237.16mm) x 7.09" (179.96mm) x 8.76" (222.49mm)
