Description
Included in this kit
This bundle includes a MTX PS800.4 800-Watt RMS Full Range Class-D IP-67 Rated, Compact, 4-Channel, Bridgeable, Powersports Amplifier, and 2x MTX PS8C-BP Powersports 8" All-Weather Speaker Pod w/ RGB LED, 150W RMS 4Ω Black.
1x MTX PS800.4 800-Watt RMS Full Range Class-D IP-67 Rated, Compact, 4-Channel, Bridgeable, Powersports Amplifier (PS800.4)
The PS800.4 Powersports Amplifier delivers clean, powerful sound across your entire system. With 4 channels of full-range Class-D power in a compact, weatherproof design, it’s built to drive your speakers hard and keep the music going wherever you ride.
Compact Powerhouse
At just under 10 inches wide, the PS800.4 fits easily into tight installations while still delivering 200 watts RMS per channel at 2Ω. Its efficient Class-D circuit design means you get big sound without putting unnecessary strain on your electrical system.
Built for the Outdoors
IP67-rated against dust and water, the PS800.4 is engineered to handle the harshest environments. From desert trails to muddy backroads, stainless steel hardware and a sealed chassis keep it performing no matter where you ride.
Features
Reliable and Efficient Full Range Class-D Circuit Design
IP67 Rated Against Water and Dust
Small Size Footprint for Easy Installation
Surface Mount Component Technology
Power and Protection LED Light Status Indicators
Short, Thermal, and Under / Over Voltage Protection
DC Offset Auto Turn On
10V High-Level Audio Input Compatibility
SPECIFICATIONS
Description: Full Range
Topology: Class D
2Ω RMS Power Output: 200W x 4 Channels
4Ω RMS Power Output: 100W x 4 Channels
4Ω RMS Bridged Power Output : 400W x 2 Channels
THD: < 0.8%
Signal to Noise Ratio: > 98dB
Frequency Response: 20Hz - 20kHz
Crossover: 50Hz - 500Hz
Maximum Input Signal: 10V
Warranty Period: 24 months from date of purchase

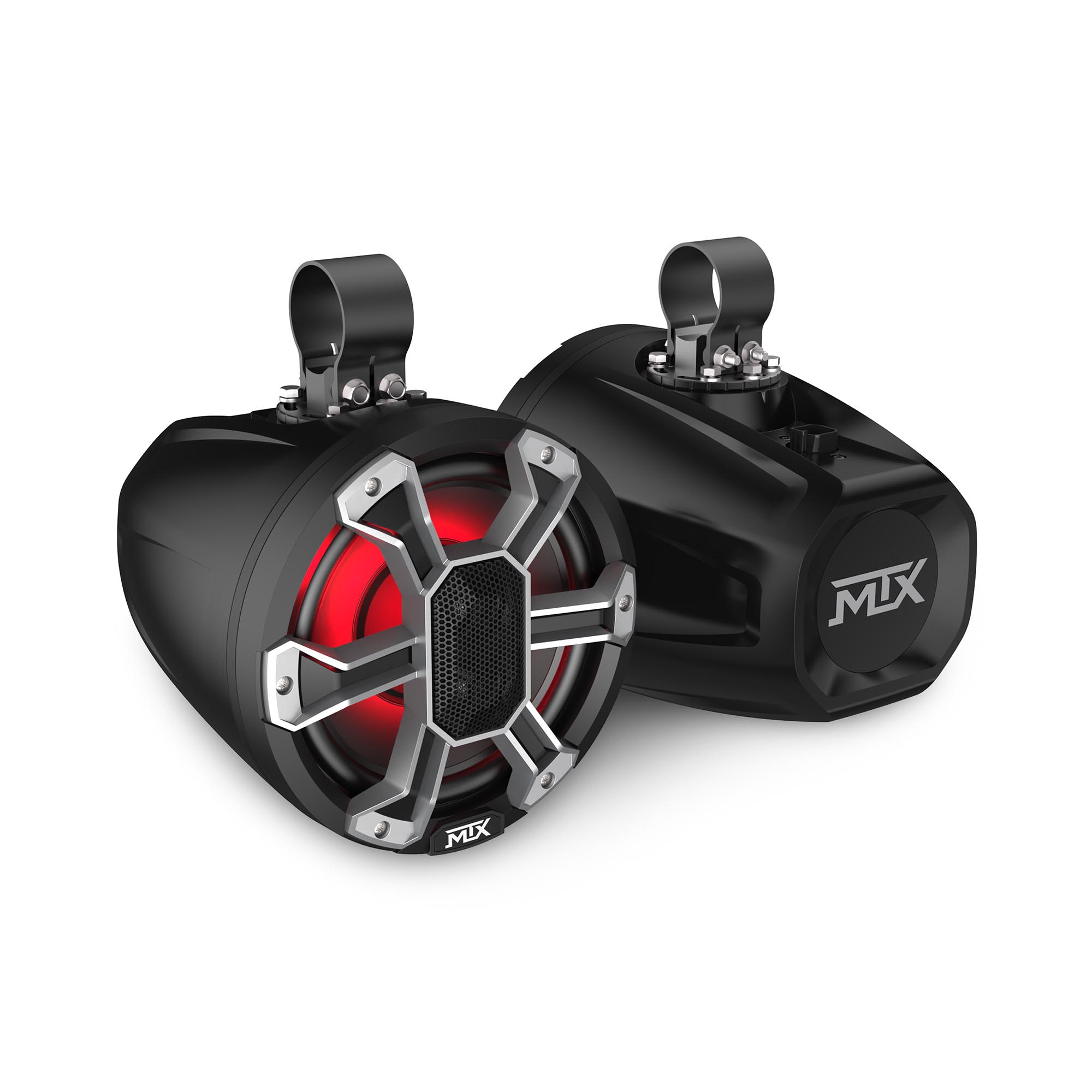

2x MTX PS8C-BP Powersports 8" All-Weather Speaker Pod w/ RGB LED, 150W RMS 4Ω Black (PS8C-BP)
Make It Your Own
The PS8C-BP speakers come integrated with RGB LED lights that can be connected in a multitude of different color combinations. If you can’t decide which color you want illuminated, you can always connect them to our optional MUDLEDC controller for full color combination and lighting effects. If you wish to personalize the panel color of your PS8C-BP’s, the grill and pods can be easily disassembled for preferred paint matching so you can create a style that matches you.
360° Low Profile Mounting
Our 360° mounting bracket design gives you adjustability options for your preferred mounting angle. If you would like to change the position, the bracket allows you to swivel giving you full control of your sound direction. The low-profile mounting style and included 1.75”, 1.85”, and 2” clamps allow you to secure your PS8Cs to a wide variety of bar widths and locations.
IP67 Rated and Durability Tested
If you are looking for a speaker design that can handle the elements as well as the sound, look no further than the PS8C-BP. These speaker components have been vigorously tested and meet the IP67 rating for wet conditions. In addition, they have also been ASTM G154 UV and ISO 16750-4 Salt Spray tested with over 500 hours each and shock tested at 16G to make sure these speakers will handle whatever nature can throw at it.
Features
Integrated RGB LED Lighting
Includes Brackets for 1.75”, 1.85”, and 2” Bars
360° Rotating Clamp Assembly with Integrated Indexing Points
ASA Impact Resistant Enclosure and Grille
Polypropylene Woofer and Dual Teteron Dome Tweeters
Paintable Speaker Mounting Ring and Grille Overlay
6-Pin Waterproof Deutsch / Amphenol Connector
SPECIFICATIONS
Type: 8" Coaxial
Sensitivity: 93dB (2.83V/1m)
Power Handling (RMS): 150 Watts
Power Handling (Peak): 300 Watts
Impedance: 4Ω
Frequency Response: 80Hz - 20kHz
Fits Bars: 1.75", 1.85", 2"
Dimensions
Speaker Diameter: 8 9/16" (217mm)
Overall Depth: 10 1/4" (260mm)
Overall Height: 11 1/4" (260mm)
