Description
Included in this kit
This bundle includes an AudioControl OVERDRIVE PLUS 2 Channel Line Driver with Optional Level Control & an ACR-1 Dash Remote.

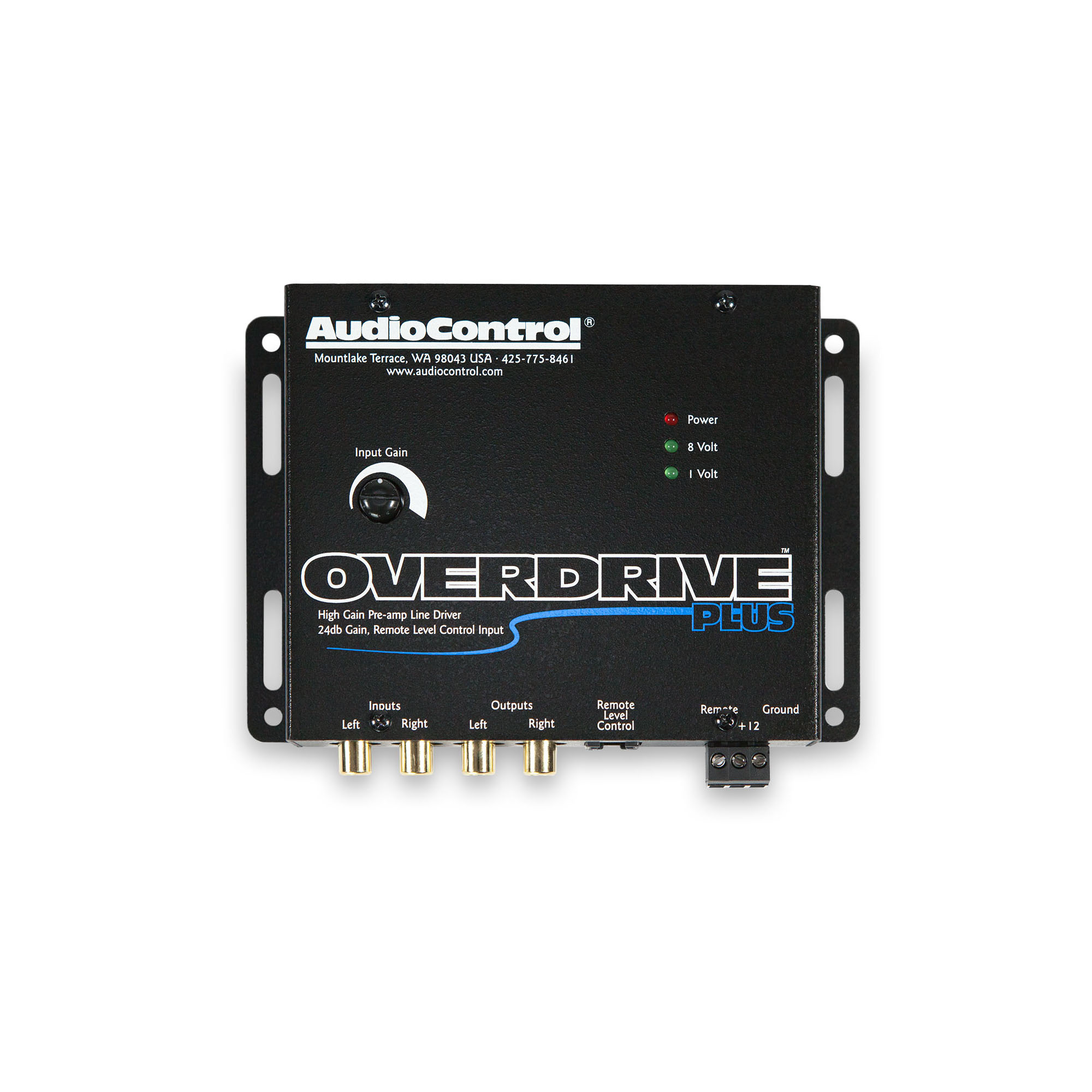

AudioControl OVERDRIVE PLUS 2 Channel Line Driver with Optional Level Control
High performance car audio amplifiers love lots of signal voltage. This allows them to deliver optimum sound quality and maximum bass response. Unfortunately, many of today’s after market source units don’t output the optimum voltage levels these amplifier need.
The OVERDRIVE PLUS features an optional dash control input which facilitates remote control of pre-amp signal levels. This makes the OVERDRIVE PLUS an ideal controller for overall system master volume (great for tablet installs) or subwoofer levels.
FEATURES
High signal voltage capability: 9.5 volts RMS output
24dB of gain
Input for optional Dash Control for remote level
Ultra-low distortion, ultra-quiet operation
Low noise, high current output circuitry
High-headroom PWM switching power supply
Selectable ground isolation
Voltage indicator LEDs
INPUTS
Preamp Inputs: 1 (2 channels)
Input Gain: 24dB
Input Impedance: 20kΩ
OUTPUTS
Preamp Outputs: 4 (8 channels)
Maximum Output Level: 9.5Vrms
Output Impedance: 45Ω
PERFORMANCE
Total Harmonic Distortion: 0.005%
Frequency Response: 10Hz-100kHz ±1dB
Signal to Noise: >110dB
CONTROL
Remote In
GENERAL
Power Supply: Transformer Isolated PWM
Current Draw: 150mA
Recommended Fuse Rating: 1A
AudioControl ACR-1 Dash Remote
Add remote level control for your AudioControl processor or amplifier. This is the replacement remote for the Epicenter. Comes with a 20 foot cable and removable mounting enclosure (for custom dash installations).
WEIGHTS & DIMENSIONS
Dimensions: 1.75”W x 2.5”D x 1.0”H
Weight: 2.3oz (65.2g)
IN THE BOX: ACR-1, 20’ Phone Cable
