Description
Included in this kit
This bundle includes a PowerBass ASA3-400.1 - 400 Watt x 1 @ 2-Ohm Amplifier, and a PowerBass PBX1-10D4 - 10" Dual 4 ohm VC 450Wrms / 900Wmax.
1x PowerBass ASA3-400.1 - 400 Watt x 1 @ 2-Ohm Amplifier (ASA3-400.1)
PowerBass ASA3-400.1 400W RMS @ 2Ω MONO BLOCK CLASS A/B AMPLIFIER
PowerBass's A/B Class mono block amplifiers combine our new clean low profile design that still has all the necessary features built into an economical package that puts power and control at your command. Features like a MOSFET power supply, RCA pre-amp out, and variable LPF electronic crossover make these ideally suited to add some punch to any system.
The ASA3-400.1 mono subwoofer amp is a great choice when you're looking to pound out the bass. With 400 watts, there’s plenty of juice on tap to power our S or M Series single 4-ohm woofers.
Features -
• 400 Watt High Efficiency Class A/B Design
• 2-OHM Stable Mono Block Amplifier
• PWM MOSFET Power Supply
• Low Level RCA Input/Low Level RCA Pass Through Output
• Remote Soft Delay Turn On/Off Circuit
• Variable Low Pass Electronic Crossover
• Variable 12dB Bass Boost EQ
• Variable Gain Control
• Wired Secondary Remote Gain Control Included
• Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
• Switchable Logo Back Lighting
Specifications -
• Selectable Subwoofer EQ: 0-18 dB Gain @ 45Hz
• Inputs: RCA Input/RCA Pass-Through Output
• Equalization Boost/Cut: 0 - 18 dB @ 45 Hz
• Power Supply: Unregulated PWM
• 4-ohm Power: 200 watts x 1
• 2-ohm Power: 400 watts x 1
• Subwoofer EQ Frequency: 45 Hz
• Variable Subwoofer EQ: 0 - 18 dB
• Low-Pass Crossover Freq: 40 Hz - 250 Hz
• Peak Power: 800 watts
• Crossover Slope: 12 dB
• Dimensions (in Inches): 13.7" x 8.3" x 2.3"
• Input Sensitivity: 0.25 V - 6.0 V
• S/N Ratio: >94 dB
• Output Power (14.4 V) @ 4 ohm: 200 watts x 1
• Output Power (14.4 V) @ 2 ohm: 400 watts x 1
• Channels (mono): 1
• Frequency Response: 20 Hz - 22 kHz
1x PowerBass PBX1-10D4 - 10" Dual 4 ohm VC 450Wrms / 900Wmax (PBX1-10D4)

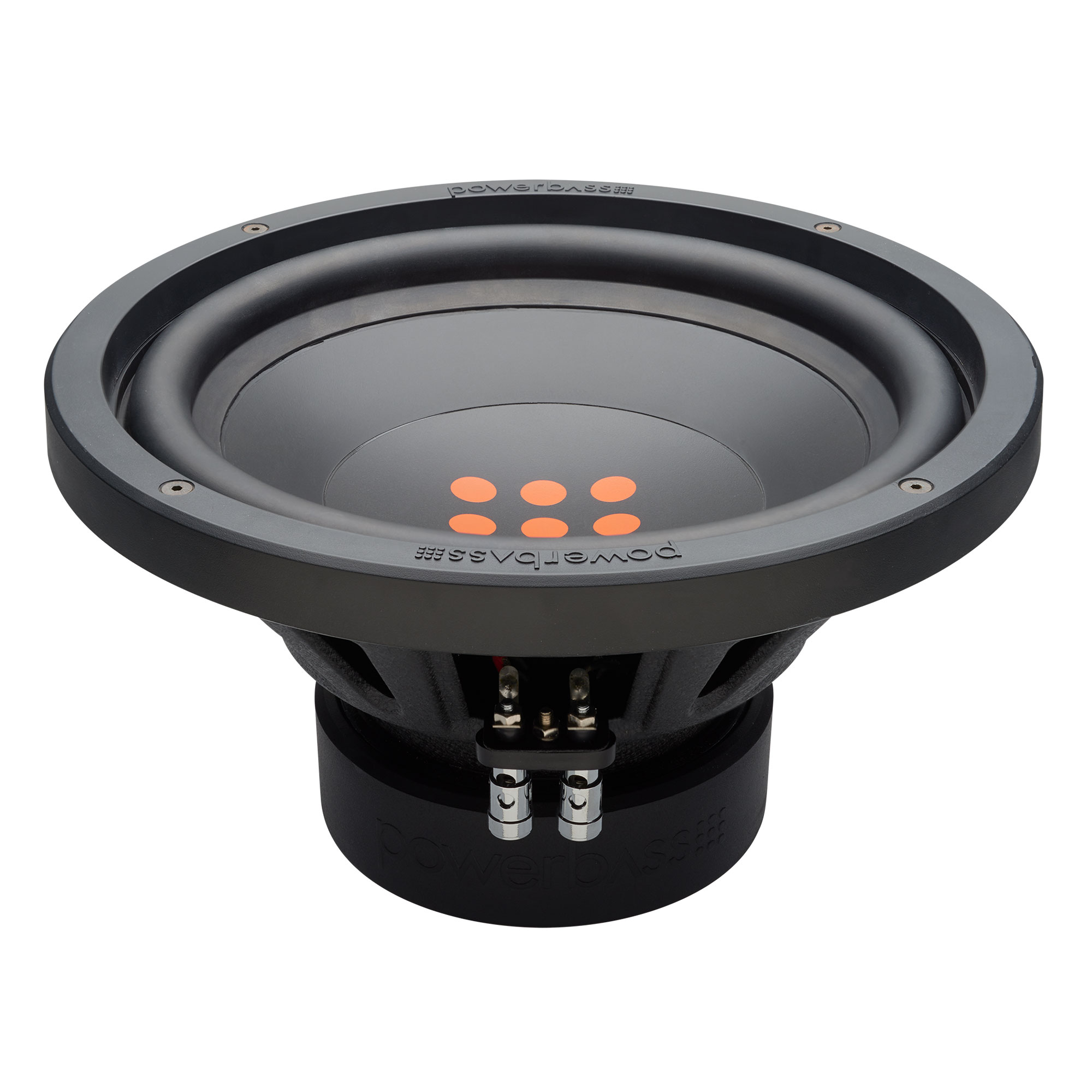

PBX1-10D4 10" Subwoofer
The PBX1-10D4 10" Subwoofer from the PBX-1 Series delivers powerful and precise bass performance, optimized for extended low-frequency response. Engineered with premium materials and innovative design, this subwoofer ensures exceptional sound quality and durability, whether used in sealed or ported enclosures.
Key Features
High-Powered Output: Handles 450W RMS and 900W peak power, delivering deep, impactful bass with clarity and precision.
Extended Low-Frequency Response: Optimized for a range of 29 Hz - 350 Hz, providing a tight, accurate bass experience.
Durable and Responsive Materials: Features a polycarbonate cone with an inverted dust cap and a Parabolic Santoprene Hybrid Surround for precise and controlled bass tones.
Efficient Cooling System: Equipped with Perimeter Aero-Vent Voice Coil Cooling Vents and a vented BASV voice coil former, ensuring consistent performance during extended use.
Versatile Enclosure Compatibility: Designed to excel in both sealed and ported enclosures, offering flexibility in setup and sound tuning.
Construction and Build
Proprietary Non-Resonance Steel Basket: Stamped and textured for reduced resonance while maintaining lightweight durability.
Multi-Layer Progressive Spiders: Enhance durability and provide controlled bass response.
Compact Design: Fits seamlessly into various setups with a cutout diameter of 9.5" and a mounting depth of 6".
Specifications
Size: 10 inches
Nominal Impedance: Dual 4-ohm
Voice Coil Size: 2 inches
Magnet Size: 127 oz
Sensitivity: 83 dB
Frequency Range: 29 Hz - 350 Hz
Xmax: 14.9 mm
Power Handling: 450W RMS / 900W Peak
Enclosure Compatibility
The PBX1-10D4 subwoofer is versatile and performs exceptionally well in both sealed and ported enclosures. For added protection, pair it with PowerBass SWX Subwoofer Grills.
