Description
Included in this kit
This bundle includes a PowerBass ASA3-700.5 - 100 Watt x 4 + 400 Watt x 1 @ 2-Ohm Amplifier, and a PowerBass PB-GAIN1 - Remote Level Controller for XMA, XL, ACS and ASA3.
1x PowerBass ASA3-700.5 - 100 Watt x 4 + 400 Watt x 1 @ 2-Ohm Amplifier (ASA3-700.5)

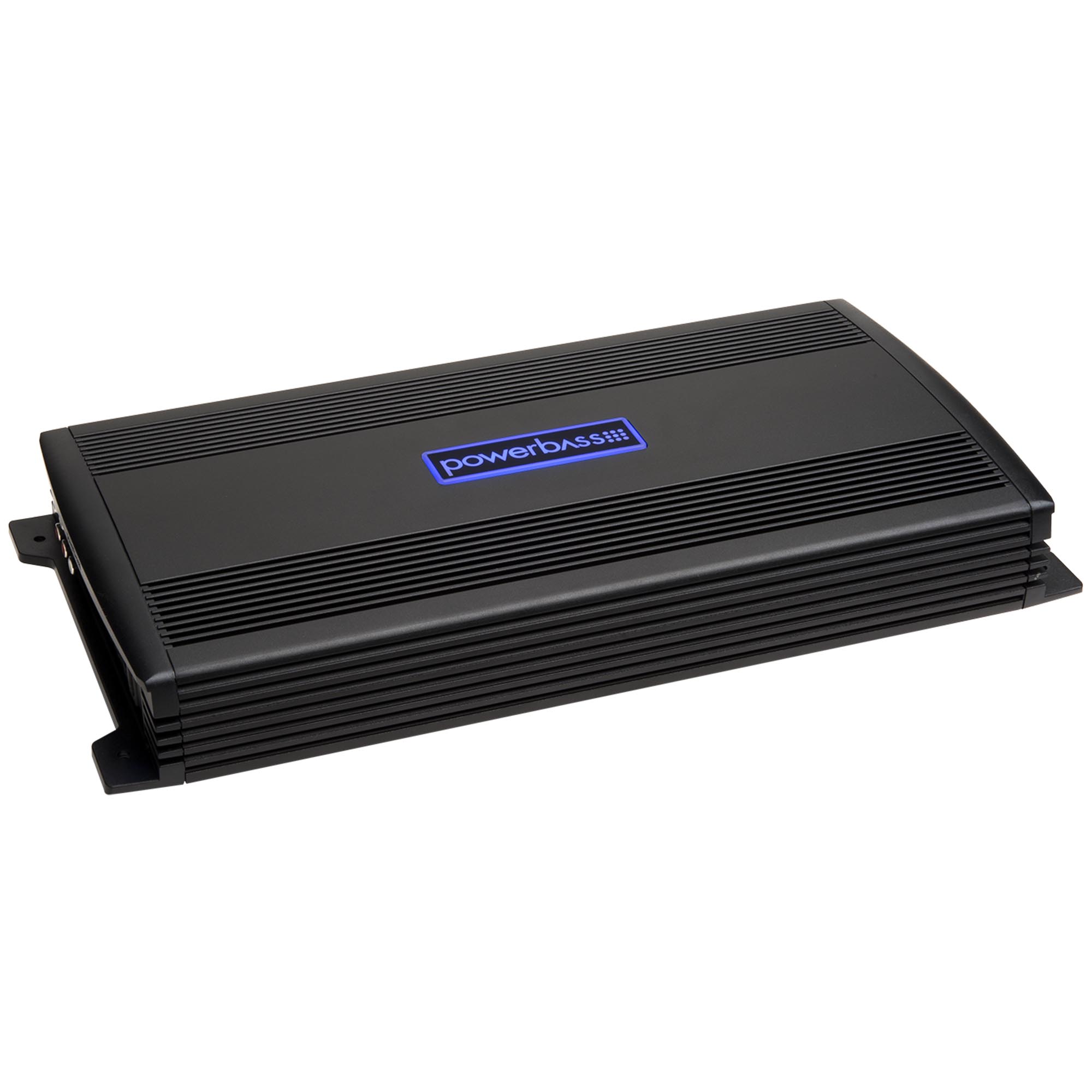

PowerBass ASA3-700.5 800W RMS 5-CHANNEL CLASS A/B AMPLIFIER
PowerBass's third generation of ASA-Series amplifiers have a narrower footprint for installation versatility, increased over-voltage protection, broader input sensitivity, new extruded chassis designed for better heat management and a sporty light up badge.
The new improved extruded heatsink uses more fins while still maintaining the clean lines that made ASA a classic. These amplifiers always deliver pure, clean power with the soul of rock and roll or whatever your taste is. Variable 12 dB, high/low pass electronic crossover for infinite system applications.
Features -
• 5-Channel 800 Watt High Efficiency Class A/B Design
• 2-ohm Stable (4-ohm in Bridged Mode)
• PWM MOSFET Power Supply
• Low Level RCA Input/Low Level RCA Pass Through Output
• Remote Soft Delay Turn On/Off Circuit
• Variable High/Low Pass Electronic Crossover
• Variable 18dB Bass Boost EQ @ 45 Hz
• Variable Gain Control
• Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
• Wired Secondary Remote Gain Control (Optional PB-GAIN1)
• Switchable Logo Back Lighting
Specifications -
• Selectable Subwoofer EQ: 0-18 dB Gain @ 45Hz
• Inputs: 3 Pairs of RCA
• Equalization Boost/Cut: 0 - 18 dB
• Subwoofer Frequency Range: 20 Hz - 250 Hz
• 4-ohm Mono Power: 200 watts x 2 + 400 x 1 (2-ohm)
• 4-ohm Power: 50 watts x 4 + 200 x 1
• 2-ohm Power: 100 watts x 4 + 400 x 1
• Subwoofer EQ Frequency: 45 Hz
• Variable Subwoofer EQ: 0 - 18 dB
• Low-Pass Crossover Freq: 40 Hz - 250 Hz
• High-Pass Crossover Freq: 40 Hz - 250 Hz
• Peak Power: 1600 watts
• Crossover Slope: 12 dB
• Dimensions (in Inches): 16.8" x 8.3" x 2.3"
• Input Sensitivity: 0.25 V - 6.0 V
• S/N Ratio: >94 dB
• Total Harmonic Distortion: 0.05% at Rated Power
• Output Power (14.4 V) @ 4 ohm: 50 watts x 4 + 200 x 1
• Output Power (14.4 V) @ 2 ohm: 100 watts x 4 + 400 x 1
• Channels (mono): 5
• Frequency Response: 20 Hz - 22 kHz
1x PowerBass PB-GAIN1 - Remote Level Controller for XMA, XL, ACS and ASA3 (PB-GAIN1)
PowerBass PB-GAIN1 Wired Remote Level Control
The PB-GAIN1 gives you the control that you need to balance the bass with each song.
The PB-GAIN1 is an easy one wire install that gives you a secondary gain control in the cockpit of your vehicle to turn the bass up or down depending on your listening desires.
Features -
•Remote Wired Variable Level Controller (secondary gain control)
•Includes Bass Knob, Cable & Mounting Screws
•For use with the following PowerBass amplifier series:
- ASA Amplifiers - ASA3 Amplifiers - ACS Amplifiers
