Description
Included in this kit
This bundle includes a PowerBass ACS-500D - 500 Watt x 1 @ 1-Ohm Amplifier, and a PowerBass PBX1-12D2 - 12" Dual 2 ohm VC 500Wrms / 1000Wmax.
1x PowerBass ACS-500D - 500 Watt x 1 @ 1-Ohm Amplifier (ACS-500D)
PowerBass ACS-500.2D 1ch Compact Amplifier
PowerBass is pleased to introduce their newest series of Class A/B full range and Class D bass amplifiers. Borrowing from their classic ASA series, these new amplifiers offer the most desired features in the most compact chassis allowable. To accomplish this they selected SMD parts and engineered a brand new 6 oz/kg high density heat sink engineered for maximum efficiency and cooling.
The result a line-up of two, four and mono channel models that offer great performance and fantastic value. Ultra efficient, the ACS amplifiers produce plenty of low distortion high fidelity audio in a footprint small enough to fit nicely in nearly any vehicle.
Features -
• 500 Watt High Efficiency Class D Design
• 1-OHM Stable Mono Block Amplifier
• High Level (Speaker)/Low Level (RCA) Input
• Remote Soft Delay Turn On/Off Circuit
• Variable Low Pass Electronic Crossover
• Selectable 12dB Bass Boost EQ
• Variable Gain Control
• Remote Level Control Port (for optional PB-GAIN1 controller)
• Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
Specifications -
• Variable Subsonic Freq: Variable 15 Hz - 50 Hz
• Inputs: RCA, 1 Pair Input, 1 Pair Speaker Level Input
• Equalization Boost/Cut: Switchable 0/12 dB @ 45Hz
• Subwoofer Frequency Range: 10 Hz - 250 Hz
• Power Supply: Unregulated PWM
• Switchable Subwoofer EQ: 0 / +12 dB @ 45 Hz
• Subwoofer EQ Frequency: 45 Hz
• Variable Subwoofer EQ: Switchable 0/+12 dB
• Low-Pass Crossover Freq: Variable 30 Hz - 250 Hz
• Peak Power: 1000 watts
• Crossover Slope: 12 dB
• Dimensions (in Inches): 9.7" x 7.1" x 2.0"
• Input Sensitivity: 0.25 - 6.0 Volts
• S/N Ratio: >90 dB
• Total Harmonic Distortion: 0.5% at Rated Power
• Output Power (14.4 V) @ 4 ohm: 200 watt x 1
• Output Power (14.4 V) @ 2 ohm: 300 watt x 1
• Output Power (14.4 V) @ 1 ohm: 500 watt x 1
• Channels (mono): 1
• Frequency Response: 10 Hz - 250 Hz
1x PowerBass PBX1-12D2 - 12" Dual 2 ohm VC 500Wrms / 1000Wmax (PBX1-12D2)

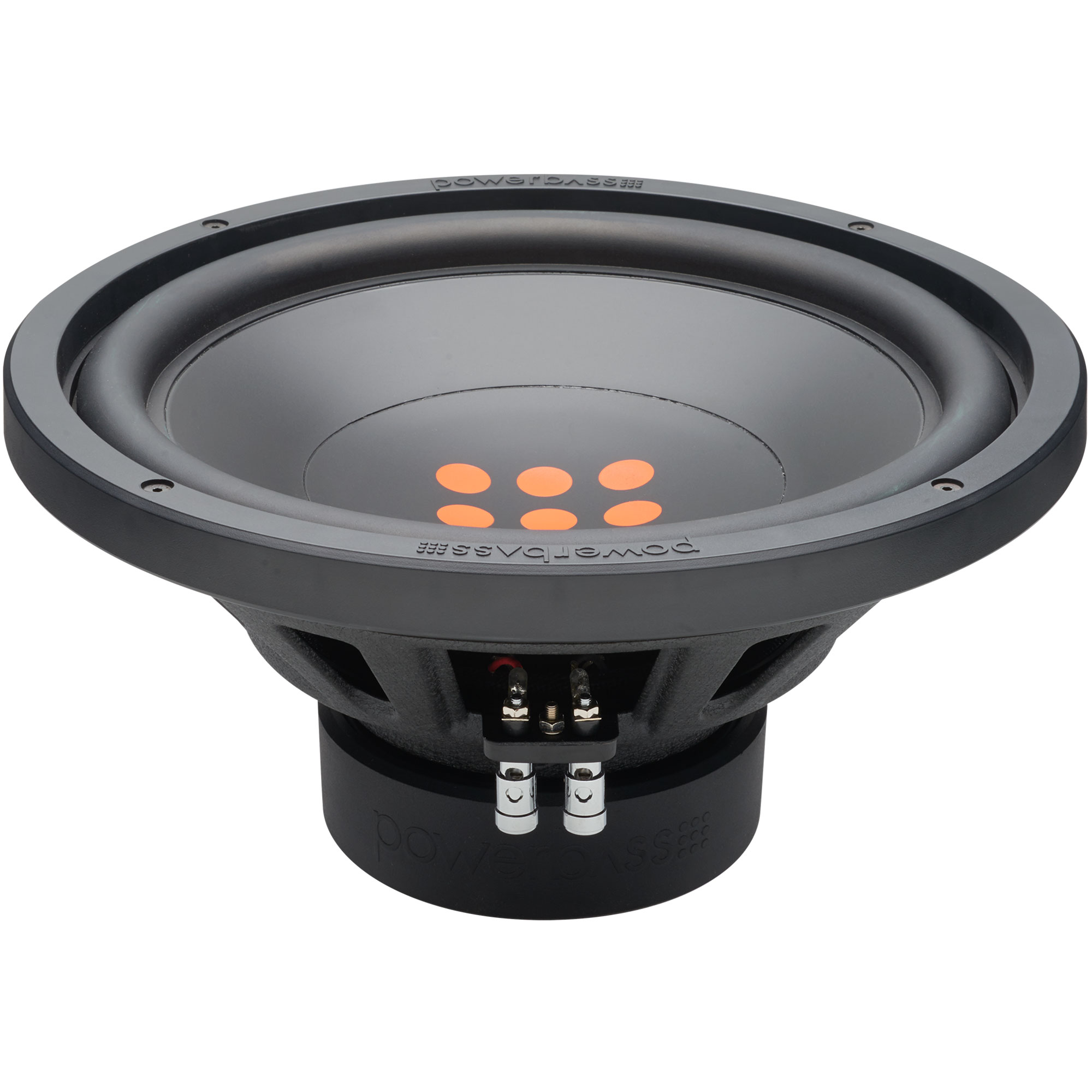

PBX1-12D2 12" Subwoofer
The PBX1-12D2 12" Subwoofer from the PBX-1 Series is designed for extended low-frequency response, delivering powerful, accurate bass with exceptional precision and durability. Featuring advanced materials and innovative engineering, this dual 2-ohm subwoofer provides optimal performance in both sealed and ported enclosures.
Key Features
High-Powered Output: Capable of handling 500W RMS and 1000W peak power, providing impactful and clean bass for any setup.
Extended Low-Frequency Response: Optimized for a frequency range of 29 Hz - 400 Hz, ensuring tight, accurate, and deep bass tones.
Advanced Materials: Features a polycarbonate cone with an inverted dust cap and a Parabolic Santoprene® Hybrid Surround for controlled and precise bass performance.
Efficient Cooling System: Equipped with Perimeter Aero-Vent Voice Coil Cooling Vents and a vented BASV voice coil former, maintaining consistent performance during demanding tracks.
Versatile Enclosure Compatibility: Performs exceptionally in both sealed and ported enclosures, making it adaptable for various audio applications.
Construction and Build
Proprietary Non-Resonance Steel Basket: Stamped and textured to minimize resonance while ensuring durability and lightweight construction.
Multi-Layer Progressive Spiders: Provide enhanced durability and controlled bass response.
Chrome Push Terminals: Ensure secure and efficient wiring for reliable connections.
Compact and Install-Friendly: Features a cutout diameter of 11" and a mounting depth of 6".
Specifications
Size: 12 inches
Nominal Impedance: Dual 2-ohm
Voice Coil Size: 2 inches
Magnet Size: 127 oz
Sensitivity: 85 dB
Frequency Range: 29 Hz - 400 Hz
Xmax: 14.5 mm
Power Handling: 500W RMS / 1000W Peak
Enclosure Compatibility
The PBX1-12D2 subwoofer is optimized for use in both sealed and ported enclosures, providing deep, impactful bass for a wide range of setups. Pair it with PowerBass SWX Subwoofer Grills for added protection.
The PBX1-12D2 12" Subwoofer blends cutting-edge technology, premium materials, and versatile design to deliver best-in-class bass performance. Whether you're upgrading your car audio system or building a custom setup, this subwoofer ensures precise, powerful, and immersive low-frequency sound.
