Description
Included in this kit
This bundle includes 2x PowerBass XL-1044 - 10" Single 4-Ohm VC 350Wrms / 700Wmax, and a PowerBass ASA3-600.1 - 600 Watt x 1 @ 2-Ohm Amplifier.
2x PowerBass XL-1044 - 10" Single 4-Ohm VC 350Wrms / 700Wmax (XL-1044)

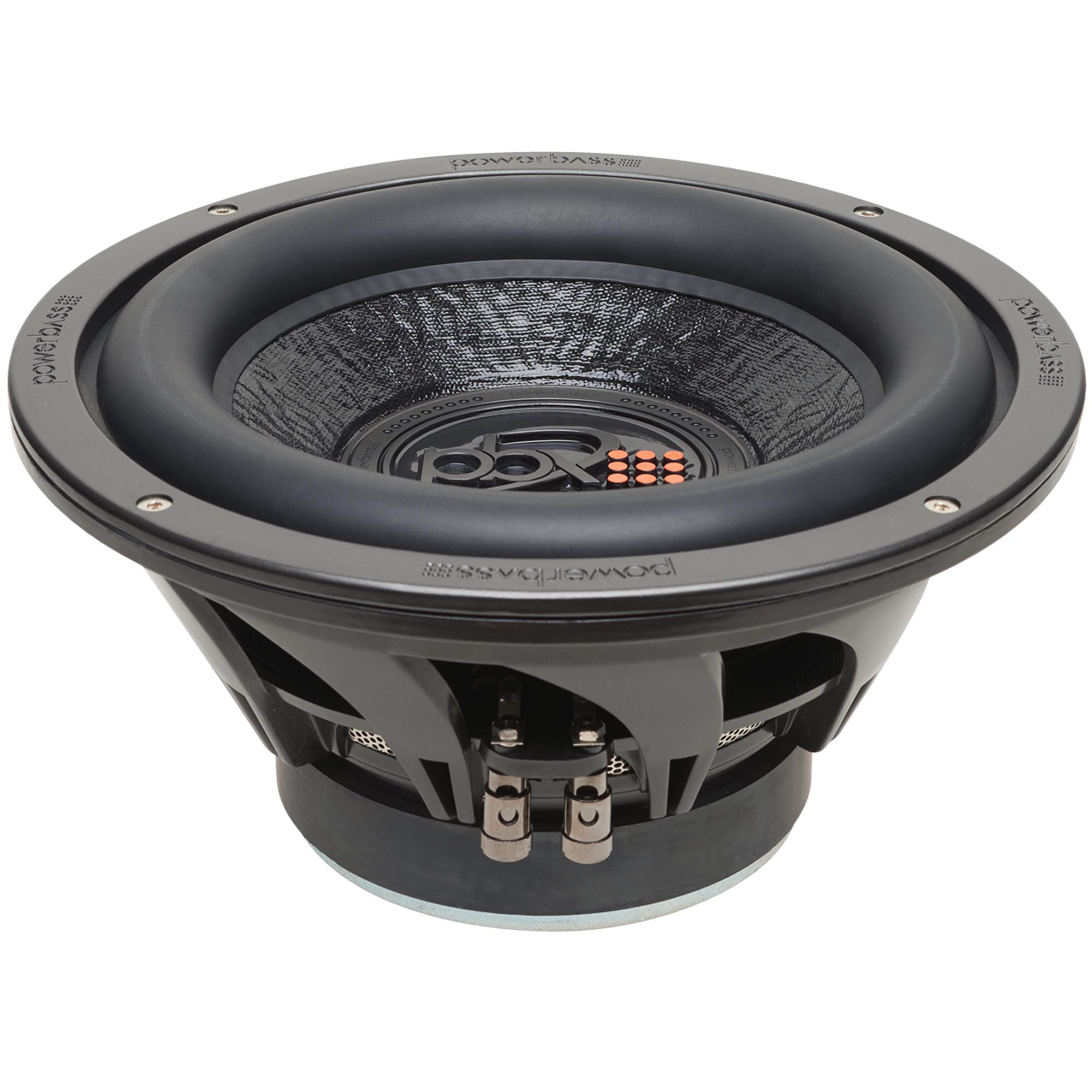

PowerBass XL-1044 10" 4-Ohm 350 Watt RMS Subwoofer
Boasting a custom turbine style frame constructed of polycarbonate/glass fiber, this unique basket supports dual stack magnets and a extended dome backplate.
They utilize a combination of perimeter and pole venting to keep air circulating over the voice coil so everything stays cool.
A non-pressed paper cone was selected for its natural smooth bass reproduction and its ability to provide high output with low distortion even under the stress of high SPL. Finally, to make sure the power gets to the subwoofer, they used chrome push terminals for maximum current transfer.
Features -
• NEW Large Roll Santoprene® Surround
• 10" 4-Ohm Subwoofer
• 350 watt RMS/700 Watts Max
• Proprietary Non-pressed Paper DDC Coated Cone
• 2.0" Vented BASV Voice Coil Former
• Perimeter Aero-Vent Voice Coil Cooling Vents
• Proprietary Non Resonance Polycarbonate/Glass Fiber Basket
• Chrome Push Terminals
• Optimally Designed for Both Small Sealed or Ported Enclosures
Specifications -
• Nominal Impedance: 4-ohm
• BL: 14.48
• Inputs: Single Coil
• Subwoofer Frequency Range: 28 Hz - 350 Hz
• Voice Coil Size: 2 in
• Material: Non Pressed Paper
• Magnet Size: 164 oz
• Sensitivity (1W / 1M): 85.60 dB
• Motor Structure: 164 oz
• Cutout Diameter: 9 5/16" (237mm)
• Mounting Depth: 5.25 in
• Xmax: 8 mm
• Spl: 85.60 dB
• No: 0.219%
• Qts: 0.387
• Qes: 0.423
• Qms: 4.558
• Mms: 146.27 g
• Cms: 195 uM/N
• Vas: 36.31 Ltr
• SD: 363.05 sqCM
• Fs: 29.8 Hz
• Test Impedance: 3.24-ohm
• VC Impedance: 4-ohm
• Size: 10 in
• Sensitivity: 85.60 dB
• Frequency Response: 28 Hz - 350 Hz
• Voice Coil Size: 2 in
• Power Handling (RMS/Peak): 350 / 700 watts
1x PowerBass ASA3-600.1 - 600 Watt x 1 @ 2-Ohm Amplifier (ASA3-600.1)
PowerBass ASA3-600.1 600W RMS @ 2Ω MONO BLOCK CLASS A/B AMPLIFIER
PowerBass's A/B Class mono block amplifiers combine our new clean low profile design that still has all the necessary features built into an economical package that puts power and control at your command. Features like a MOSFET power supply, RCA pre-amp out, and variable LPF electronic crossover make these ideally suited to add some punch to any system.
The ASA3-600.1 mono subwoofer amp is a great choice when you're looking to pound out the bass. With 600 watts, there’s plenty of juice on tap to power a pair of S or M Series single 4-ohm woofers.
Features -
• 600 Watt High Efficiency Class A/B Design
• 2-OHM Stable Mono Block Amplifier
• PWM MOSFET Power Supply
• Low Level RCA Input/Low Level RCA Pass Through Output
• Remote Soft Delay Turn On/Off Circuit
• Variable Low Pass Electronic Crossover
• Variable 12dB Bass Boost EQ
• Variable Gain Control
• Wired Secondary Remote Gain Control Included
• Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
• Switchable Logo Back Lighting
Specifications -
• Selectable Subwoofer EQ: 0-18 dB Gain @ 45Hz
• Inputs: RCA Input/RCA Pass-Through Output
• Equalization Boost/Cut: 0 - 18 dB
• 4-ohm Power: 300 watts x 1
• 2-ohm Power: 600 watts x 1
• Subwoofer EQ Frequency: 45 Hz
• Variable Subwoofer EQ: 0 - 18 dB
• Low-Pass Crossover Freq: 40 Hz - 250 Hz
• Peak Power: 1200 watts
• Crossover Slope: 12 dB
• Dimensions (in Inches): 16.8" x 8.3" x 2.3"
• Input Sensitivity: 0.25 Volts - 6.0 Volts
• S/N Ratio: >94 dB
• Total Harmonic Distortion: 0.3% @ Rated Power
• Output Power (14.4 V) @ 4 ohm: 300 watts x 1
• Output Power (14.4 V) @ 2 ohm: 600 watts x 1
• Channels (mono): 1
• Frequency Response: 20 Hz - 22 kHz
