Description
Included in this kit
This bundle includes a Rockford Fosgate TM1000X5AD 5 Channel Marine Amplifier 100x4 + 400x1 @ 4-Ohm,- 100x4 + 600x1 @ 2-Ohm, Na + 600x1 @ 1-Ohm, a Rockford Fosgate M2D4-10IB 10" Color Optix Infinite Baffle Marine Subwoofer, DVC (4-Ohm)- 400 Watts Rms, 1600 Watts Peak, Black & Stainless Grilles Included, 2x Rockford Fosgate M1WL-65MB Black 6.5" Color Optix Moto Can Speakers, 75w Rms, 300w Peak, Clamps Included, a Rockford Fosgate RFK4I Power Interconnect Amp Kit: 17ft 4awg Power Wire, 3ft 4awg Ground Wire, (1) 16ft Twisted Pair Rca, 20ft Remote Wire, Maxi Fuse Holder, 100 Amp Fuse, and a Rockford Fosgate PLC2 Remote Punch Level Control- Works With Current Punch Amps.
1x Rockford Fosgate TM1000X5AD 5 Channel Marine Amplifier 100x4 + 400x1 @ 4-Ohm,- 100x4 + 600x1 @ 2-Ohm, Na + 600x1 @ 1-Ohm - (TM1000X5AD)
Rockford Fosgate Power Marine 1,000 Watt Class-ad 5-Channel Amplifier
The Power Marine TM1000x5ad is an compact, Class ad 1000 Watt multi-channel amplifier. It features differential inputs with high-level auto turn-on, CLEAN circuit with input/output clip detection, top mounted controls and dual fan forced induction cooling. Additionally, it has our patented Punch EQ circuit built in and Differential inputs with auto turn-on capabilities making it perfect for hybrid, electric, small cars, trucks, motorcycles, and side-by-side UTVs
The TM1000X5ad Element Ready multi-channel amplifier is a 1000 watt RMS unit built on our proprietary Class ad platform designed to deliver unprecidented sound quality with superior power efficiency. Combined with our Constant Power technology, this amplifier can easily exceed its rated power by up to 25% additional output per channel. Amplifier top mounted controls include our C.L.E.A.N. level setting system, integrated high/ low pass crossovers, Input channel configuration switches and our Punch EQ boost circuit.
Upgraded input RCA connectors allow for high or low level input signals to be used through our differential input circuit which eliminates incoming noise and can provide a remote out signal when using high level inputs. Dual fan cooling, real time thermal monitoring and dual extruded heat sinks maintain heat dissipation even at high outputs keeping the amp cool. Other features include a conformal coated circuit board for protection against element exposure and compatibility with our PLC2 level remote control for the sub channel.
- Rockford Fosgate proprietary Class AD technology
- Class-BD Technology
- Differential inputs with high level auto turn-on feature
- AP remote out feature when using high level inputs
- 4/2 Ohm Multi-Impedance Constant Power
- 2013 PLC2 remote ready
- C.L.E.A.N. input/output clip detection and indicator LEDs
- Top mounted controls
- Dual fan cooled
- Real time thermal sensing
- Dual extruded heat sinks
- All other Rockford protection schemes
- CEA-2006 and CE Compliant
- Discrete surface mount technology
- Marine grade two part epoxy coating on circuit boards
- 2-Year Warranty
General Specifications
CEA-2006 Power Rating100W x 4 + 400W x 1 @ 4Ω
≤1.0% THD+N
(Sum of Rated Power)
(RMS Continuous Power)
100 Watts x 4 + 600 Watts x 1 @ 2Ω
N/A + 600 Watts x 1 @ 1Ω
200 Watts x 2 @ 4Ω Bridged + N/A
(PVC/PowerCube®)
118 Watts x 4 + 748 Watts x 1 @ 2Ω
N/A + 663 Watts x 1 @ 1Ω
225 Watts x 2 @ 4Ω Bridged + N/A
Front Terminals: Left (+) Right (-)
Rear Terminals: Left (+) Right (-)
Rear High/Low Input: 4-Pin harness
Input Switch: 2CH/4CH
(2CH: sub signal derived from Front Left input)
Front/Rear Bass: 0 to +18 dB @ 45Hz (LP mode)
Sub: 0 to +18 dB @ 45Hz
Low-Pass: 50Hz - 250Hz @ 12dB/Octave
Subwoofer: 50Hz - 250Hz @ 12dB/Octave
Infrasonic: 28Hz @ 12dB/Octave
Butterworth Alignment on all filters
Protect: Red LED
Input Clip: Red LED3
Output Clip: Blue/Violet/Red LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Sub: 10 AWG
Rear: 4-Pin Harness
Sub: Detachable Compression Terminal
(not included)
4.1 x 10.8 x 30.5 (cm)
1x Rockford Fosgate M2D4-10IB 10" Color Optix Infinite Baffle Marine Subwoofer, DVC (4-Ohm)- 400 Watts Rms, 1600 Watts Peak, Black & Stainless Grilles Included - (M2D4-10IB)
Rockford Fosgate M2 10" DVC 4Ω Color Optix™ Infinite Baffle Marine Subwoofer - Black
The M2D4-10IB Color Optix™ 10” DVC 2-Ohm infinite baffle subwoofers deliver loud, clear, accurate bass, and light the way for your journey! M2 provides a customized look by using either the stainless-steel grille or the black “sport” grille insert. The subwoofers connect with the Rockford Fosgate Color Optix™ Controller and RF Connect App, allowing you to customize your own color patterns. The Element Ready™ design and IPX6 certification makes them truly purpose-built for marine or motorsport applications where protection from damaging UV rays and water spray is essential. This subwoofer is optimized for Infinite Baffle installations, where an enclosure is not required.
The M2 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M2 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 2 and 8 ohms as easy as flipping a switch. This subwoofer is optimized for Infinite Baffle installations, where an enclosure is not required. A mounting baffle is required to isolate any interaction between the front and rear wavelengths to prevent cancellation.
- 2" (50mm) High Temp Kapton™ Woofer Voice Coil Former
- Ultra-high temperature PA66 with 30% glass fill injection-molded frame with UV inhibitors
- Gold plated Marine grade brass terminals provide a corrosion resistant connection
- Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
- Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
- Vented motor design with water-repelling nano coated mesh screen
- 100% UV Stable Centrex plastic grill
- Linear Aramid-Polyester Composite Spider
- Fully insulated silicone tinsel leads
- Injection molded UV stable foam surround
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Injection molded mineral filled polypropylene cone body with UV inhibitors
- Co-molded surround and mineral filled polypropylene cone body
- Optically clear UV stable RGB Lighting Encapsulation
- Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
- VERSA impedance switch quickly allows series or parallel configuration without additional wiring
- Optimized for infinite baffle applications when an enclosure is not an option
- 2-Year Warranty
Specifications
1600 Watts PEAK
2x Rockford Fosgate M1WL-65MB Black 6.5" Color Optix Moto Can Speakers, 75w Rms, 300w Peak, Clamps Included - (M1WL-65MB)
Rockford Fosgate M1 6.5” ColorOptix™ Moto-Can Speakers
Tackle any terrain with the M1WL-65MB Color Optix™ 6.5" 2-way motorsport cans. Designed rugged and rock solid, the new line-up of 6.5” cans are built for true outdoor audio performance. Higher output, rider customization, and an Element Ready™ design creates an off-road audio experience second to none.
Choose your color out of the box or adjust your own bright, wide, and limitless lightning experience with the Rockford Fosgate Color Optix™ plug-and-play controller and App (sold separately.) Purpose built for the off-road environment, Rockford Fosgate’s Element Ready™ products are built to stand up to water, dirt, mud and UV rays, making sure your speakers stand the test of time. With 3DIL™ technology or 360-degree rotating rear illuminated logo, a universal clamping system fitting 1-inch to 2-inch round bars, everything was designed and engineered for the perfect fit and finish for your ride. Integrated Deutsch™/Amphenol™ connections provide industry leading plug-and-play connectivity as well as error proof installation. The new innovative clamp-door also eliminates the need for a lanyard by preventing the captive Torx screw from vibrating loose.
- Adjust color experience to suit your taste with Rockford Fosgate® Color Optix™ controller (optional)
- Element Ready™ design protects against outdoor exposure
- Integrated Deutsch™/Amphenol™ RGB and Speaker input makes wiring connections simple and error proof
- Rear Color Optix™ Medallion with Illuminated RF logo
- Infinitely rotatable rear lighted badge allowing for any orientation
- Included mounting clamp fits SXS ROPS (Roll Over Protection System) from 1" to 2"
- Integrated Deutsch™/Amphenol™ RGB and Speaker inputs
- Deutsch™ connectors incorporate front/rear silicone seals to protect against environmental ingress
- Comes loaded with Color Optix™ M1-65 Element Ready™ Speakers
- Provides superb low and midrange frequency reproduction with smooth high frequency roll-off
- 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
- Injection molded mineral filled polypropylene cone body with UV inhibitors
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Klippel Verified certification program delivers the best possible speakers
- IPX6 Water Intrusion Rated
- 2-Year Warranty
Specifications
300 Watts (PEAK)
(2) Universal clamps
(4) grommets
(2) spare safety inserts for screw clamp
(1) Safety Torx wrench
(2) 1" to 1.6" rubber inserts and stainless screws
(2) 1.6" to 2" rubber inserts and stainless screws
(2) 2-pin Deutsch Pigtails
(243.2 mm x 180.5 mm x 206.4 mm)

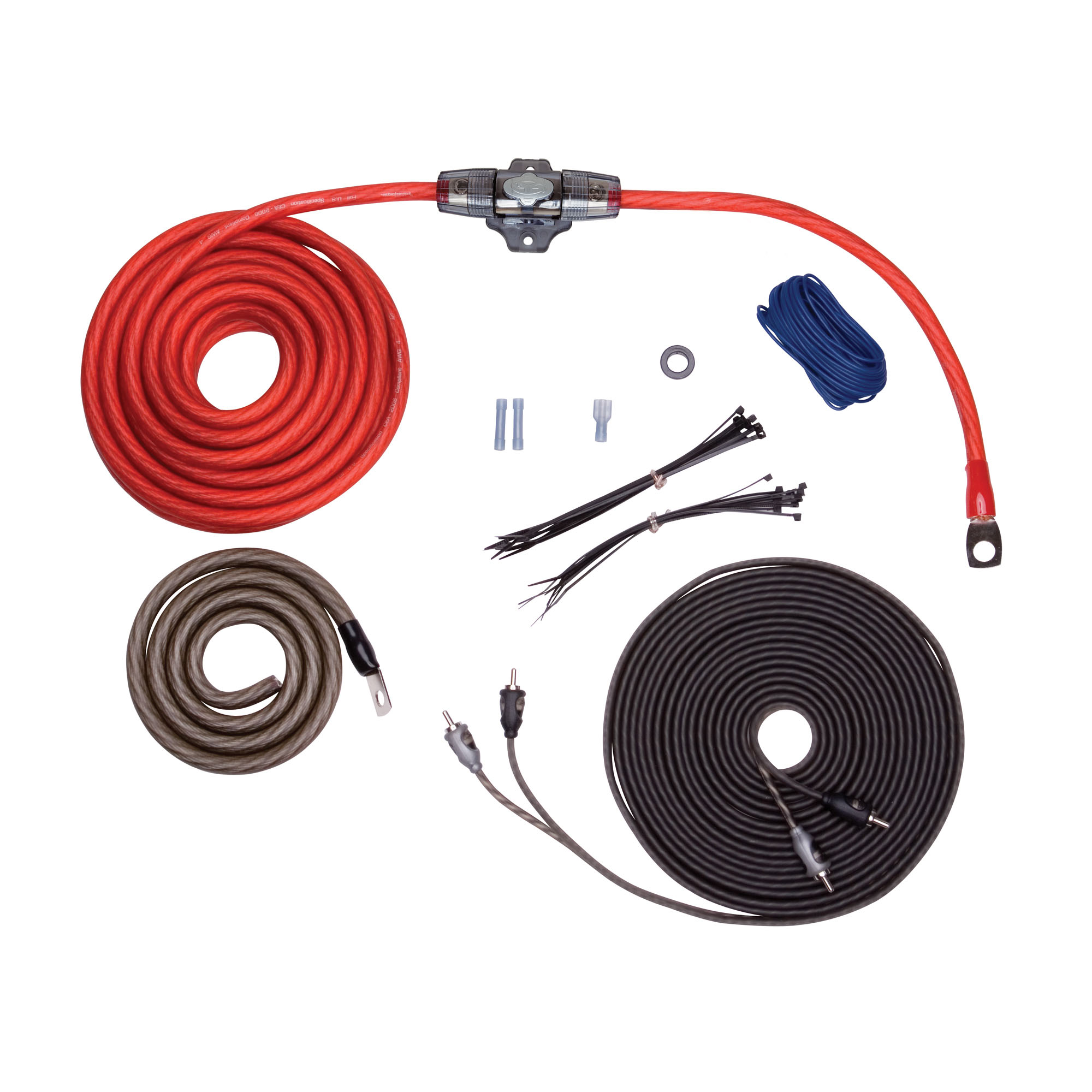

1x Rockford Fosgate RFK4I Power Interconnect Amp Kit: 17ft 4awg Power Wire, 3ft 4awg Ground Wire, (1) 16ft Twisted Pair Rca, 20ft Remote Wire, Maxi Fuse Holder, 100 Amp Fuse - (RFK4I)
Rockford Fosgate 4 AWG Power & Signal Installation Kit
4 gauge power, ground and signal installation kit for an amplifier.
Kit includes 17 feet of 4 AWG power wire, 3 feet of 4 AWG ground wire, (1) 16 feet twisted pair RCA, Maxi fuse holder and fuse, 20 feet of remote wire, 100 Amp fuse.
- FULL spec cable - meets or exceeds AWG (American Wire Gauge) requirements
- 100% Pure Crystal-Oxygen Free Copper (PC-OFC)
- Includes appropriate wire termination hardware
- 4 AWG (21.1mm²) 1,862 strands
- 1 Year Warranty
Specifications
1x Rockford Fosgate PLC2 Remote Punch Level Control- Works With Current Punch Amps - (PLC2)
Remote Level Control offers remote level control of the amplifier. Once the on-board gain control is set, the PLC2 can attenuate (and not increase) the level from that point. Cable and mounting hardware included. For use with select 2013 and newer PUNCH and POWER amplifiers
Features:
Remote wired level control Works in conjunction with on-board gain control Dual function LED (power/clipping) Controls level when crossover set to LP (Low-Pass) Controls level on rear outputs of 4-channel amplifiers Conveniently mount under dash, inside center console or glovebox Includes bass knob, cable, mounting clip, mounting screws 1 Year Warranty
Specifications:
Mounting: Under Dash, Panel Mount
Connector Type: RJ45, (8-conductor non-flipped)
Cable Length: 16.5-feet (503 cm)
