Description
Included in this kit
This bundle includes a Rockford Fosgate HD9813SG-STG3 Stage-3 Amplified 4-Speaker M5 Audio Kit Compatible With Select 1998-2013 Street Glide & Electra Glide Motorcycles, and a Rockford Fosgate TMS5 5.25” Full Range Coaxial For 1998-2013 Motorcycles- 65 Watts Rms, 130 Watts Peak, Grilles Included.

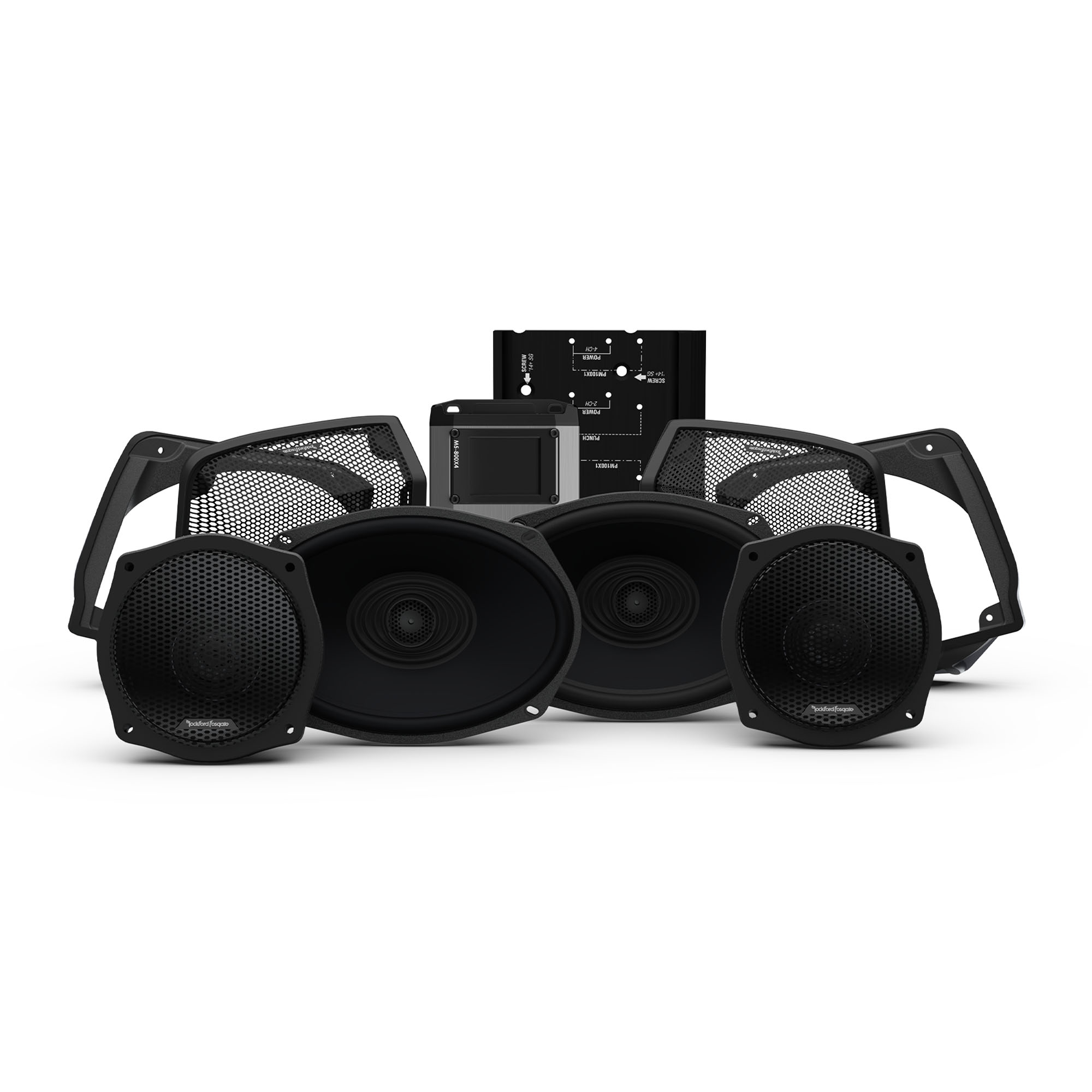

1x Rockford Fosgate HD9813SG-STG3 Stage-3 Amplified 4-Speaker M5 Audio Kit Compatible With Select 1998-2013 Street Glide & Electra Glide Motorcycles (HD9813SG-STG3)
Rockford Fosgate HD9813SG-STG3
1998-2013 Street Glide Stage 3 Audio Kit
The HD9813SG-STG3 is a high-performance 4-speaker, 800-watt amplified audio system that includes:
The next step in motorcycle performance, our M5 audio kits are the loudest and clearest audio systems we’ve created. Featuring simple plug-and-play installation and paired with freeway speed output all create the best in class on bike audio experience.
Plug-and-Play Design:
Designed to work right out of the box. Everything is included to make for easy installation and all to ensure less time in the garage and more time out riding.
Full Throttle Output:
Audio engineered to perform on the open road. Speakers and amplifiers specifically tuned and designed to not only overcome wind, road, and exhaust noise, but to give you that second to none audio experience on your bike.
RF3 (Rockford Factory Fit and Finish):
Designed and engineered to match and compliment the factory fit and finish of your bike. These components are purpose built to the exact specifications to ensure the best-in-class fitment and look.
Element Ready™:
Purpose built for the harsh motorcycle environment. The speakers and amplifier are designed to stand up to water, dirt, UV, and motorcycle vibration, ensuring that your audio system will stand the test of time.
Flexible Bass System:
Sound when you want it, space when you need it. This patent pending design allows you to remove one or both subwoofers easily with no tools. So, if you need your bags for a long ride, this flexible system allows for just that.
Key Features
- • (2) 6.5" fairing speakers
- • (2) 6x9" saddlebag speakers
- • (1) 800W 4-channel amp
- • (1) amp installation kit
- • (1) multi-media source unit (see below)
The next step in motorcycle performance, our M5 audio kits are the loudest and clearest audio systems we’ve created. Featuring simple plug-and-play installation and paired with freeway speed output all create the best in class on bike audio experience.
Plug-and-Play Design:
Designed to work right out of the box. Everything is included to make for easy installation and all to ensure less time in the garage and more time out riding.
Full Throttle Output:
Audio engineered to perform on the open road. Speakers and amplifiers specifically tuned and designed to not only overcome wind, road, and exhaust noise, but to give you that second to none audio experience on your bike.
RF3 (Rockford Factory Fit and Finish):
Designed and engineered to match and compliment the factory fit and finish of your bike. These components are purpose built to the exact specifications to ensure the best-in-class fitment and look.
Element Ready™:
Purpose built for the harsh motorcycle environment. The speakers and amplifier are designed to stand up to water, dirt, UV, and motorcycle vibration, ensuring that your audio system will stand the test of time.
Flexible Bass System:
Sound when you want it, space when you need it. This patent pending design allows you to remove one or both subwoofers easily with no tools. So, if you need your bags for a long ride, this flexible system allows for just that.
Key Features
- No drilling or cutting required
- Plug and Play design for easy installation
- Kits bolt to factory attachment points
- Direct connect wiring harnesses for Harley-Davidson® models
- Speakers are custom tuned so you can hear music over wind, road & exhaust noise at highway speed
- TMS6SG: 6.5" 2-way Element Ready™ speaker with phase-aligned 25 mm tweeter and Street Glide® grille
- TMS69BL9813: 6x9” Element Ready™ speaker retrofit kit for factory H-D® hardshell bags (non fiberglass models)
- M5-800X4: 800-watt 4-channel IPX6 Element Ready™ amplifier
- RFK-HD9813M5: Amp install kit for M5-800X4 on 1998-2013 Harley-Davidson® models
- Y-adaptors included in amp install kit supports expansion of lower fairing, saddlebag, or Tour-Pak® speakers
- Quality & Performance tested using proprietary RATS (Rockford Automated Testing System)
- Klippel Verified certification program delivers the best possible loudspeakers
- 2-Year Warranty
- Speaker Qty: 4
- Amplifier Type: External
- Total Power: 800 Watts
- Grille/Trim Ring Included: Yes
- Mounting Hardware: Yes
- Included In The Box:
- (1 pr) TMS6SG
- (1 ea) TMS69BL9813
- (1 ea) M5-800X4
- (1 ea) RFK-HD9813M5
| YEAR | MAKE | MODEL | CHASSIS | FAIRING |
|---|---|---|---|---|
| 2006–2013 | Harley-Davidson® | Street Glide® 1,2,3,4,5 | FLHX | Bat Wing |
| 1998–2013 | Harley-Davidson® | Electra Glide® Standard 1,2,3,4,5 | FLHTI | Bat Wing |
1 If kit used with PMX-HD9813, radio not compatible with factory amplified systems, CB, Intercom, rear volume controls, rear speakers on 1998-2005 Ultra’s, and factory equipped satellite radio systems.
2 Saddlebag Kit compatible only with ABS plastic lids. Not compatible with Fiberglass lids.
3 Saddlebag Kit not compatible with H-D® Power Lock Kit
4 Installation on CVO™ and Screaming Eagle™ models are not plug-n-play and will require modification
5 Tour-Pak® speakers not 100% plug-n-play compatible (contact support on work-around)
1x Rockford Fosgate TMS5 5.25” Full Range Coaxial For 1998-2013 Motorcycles- 65 Watts Rms, 130 Watts Peak, Grilles Included (TMS5)
Rockford Fosgate Power Harley-Davidson® 5.25" Full Range Tour-Pak Speakers (1998-2013) - Pair
The TMS5 is a full range coaxial speaker designed to fit the Tour-Pak speaker locations of the 1998 - 2013 model year Harley-Davison® Motorcycles. It features a Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug and is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker mounts using the factory hardware and comes with new grille assemblies.
The TMS5 full range coaxial speaker is designed for direct fitment applications in 1998-2013 Harley-Davidson® motorcycles in the Tour-Pak locations. This speaker directly replaces the existing factory speakers using the factory mounting hardware and speaker connectors.
It features a compact Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround This ensures that you get maximum frequency response and output in both the mid and low frequency range. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug for crisp clear highs even at highway cruising speeds.
It is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker requires no modification of the factory location and comes with new grille assemblies.
Harley-Davidson® is a registered trademark of Harley-Davidson Motor Company
- Element Ready design that is weather and water resistant
- Neodymium Tweeter with Integrated Phase Plug and ASA Grill
- Ultra‐Efficient 25mm Proprietary Film Dome Tweeter
- Carbon‐Fiber Re‐Inforced Polypropylene Cone
- Santoprene VAST Surround
- Co‐Molded Cone and Surround
- Santoprene Front Isolation Spider
- Poly‐Cotton Spider
- High Power 35mm Voice‐Coil
- Ultra‐Efficient Neodymium Ring Magnet Motor
- Ultra‐High Temperature Glass Reinforced Polymer Frame
- Integrated Spade Terminals
- Integrated 6dB Crossover with High Power Polyester Capacitor
- Low Profile Coaxial Tweeter Design
- Discreet (Hidden) Tweeter Wire
- Designed for 1998‐2013 Harley-Davidson® Rear Tour-Pak Locations
- NOTE: Installation on CVO™ and Screaming Eagle™ models are not plug-n-play and will require modification
- 2-Year Warranty
Compatibility
| YEAR | MAKE | CHASSIS | MODEL | FAIRING |
|---|---|---|---|---|
| 2006–2013 | Harley-Davidson® | FLHX | Street Glide® | Bat Wing |
| 1998–2013 | Harley-Davidson® | FLHTI | Electra Glide® Standard | Bat Wing |
Specifications
CEA-2031 Compliant
Speaker Type
2-Way Coax
Midrange Size
(Nominal Diameter)
(Nominal Diameter)
5.25"
Nominal Impedance (Ohms)
4-Ohm
Frequency Response (Hz)
64 Hz - 20 kHz
Power Handling (MAX)
130 Watts MAX
Power Handling (RMS)
65 Watts RMS
Voice Coil Diameter (in/mm)
1.40"
(35.6 mm)
(35.6 mm)
Tweeter Mounting Depth
N/A
Grille/Trim Ring Included
Yes
Mounting Hardware
Yes
Sensitivity
(dB @ 2.83V/1M)
(dB @ 2.83V/1M)
94 dB
Sensitivity
(dB @ 1W/1M)
(dB @ 1W/1M)
91 dB
Midrange Mounting Depth
2.05"
(52.0mm)
(52.0mm)
Crossover
Built-in tweeter crossover
Included In The Box
(2) Speakers
(2) Speaker Grilles
(1) Hardware Pack
(2) Speaker Grilles
(1) Hardware Pack
Extra Information
Brand:
Rockford Fosgate
Weight:
38.49 LBS
RMS Wattage Per Speaker:
65
UPC:
199730564972
Bundle:
Yes
Feature 1:
This bundle includes a Rockford Fosgate HD9813SG-STG3 Stage-3 Amplified 4-Speaker M5 Audio Kit and a Rockford Fosgate TMS5 5.25” Full Range Coaxial Speaker, both compatible with 1998-2013 Street Glide & Electra Glide Motorcycles.
Feature 2:
Experience high-performance audio with the HD9813SG-STG3, featuring an 800-watt amplified system with 4 speakers, including 6.5" fairing and 6x9" saddlebag speakers for immersive sound.
Feature 3:
The TMS5 speakers deliver crisp, clear highs with a 25mm dome tweeter and reinforced polypropylene cone, designed for direct fitment in Harley-Davidson Tour-Pak locations.
Feature 4:
Enjoy easy installation with the plug-and-play design, ensuring more time on the road and less time in the garage, with components that match the factory fit and finish.
Feature 5:
Built for durability, the Element Ready™ design withstands water, dirt, UV, and vibration, making it perfect for the harsh motorcycle environment, ensuring long-lasting audio performance.
Condition:
NEW
Weight:
38.4900 lbs
