Description
Included in this kit

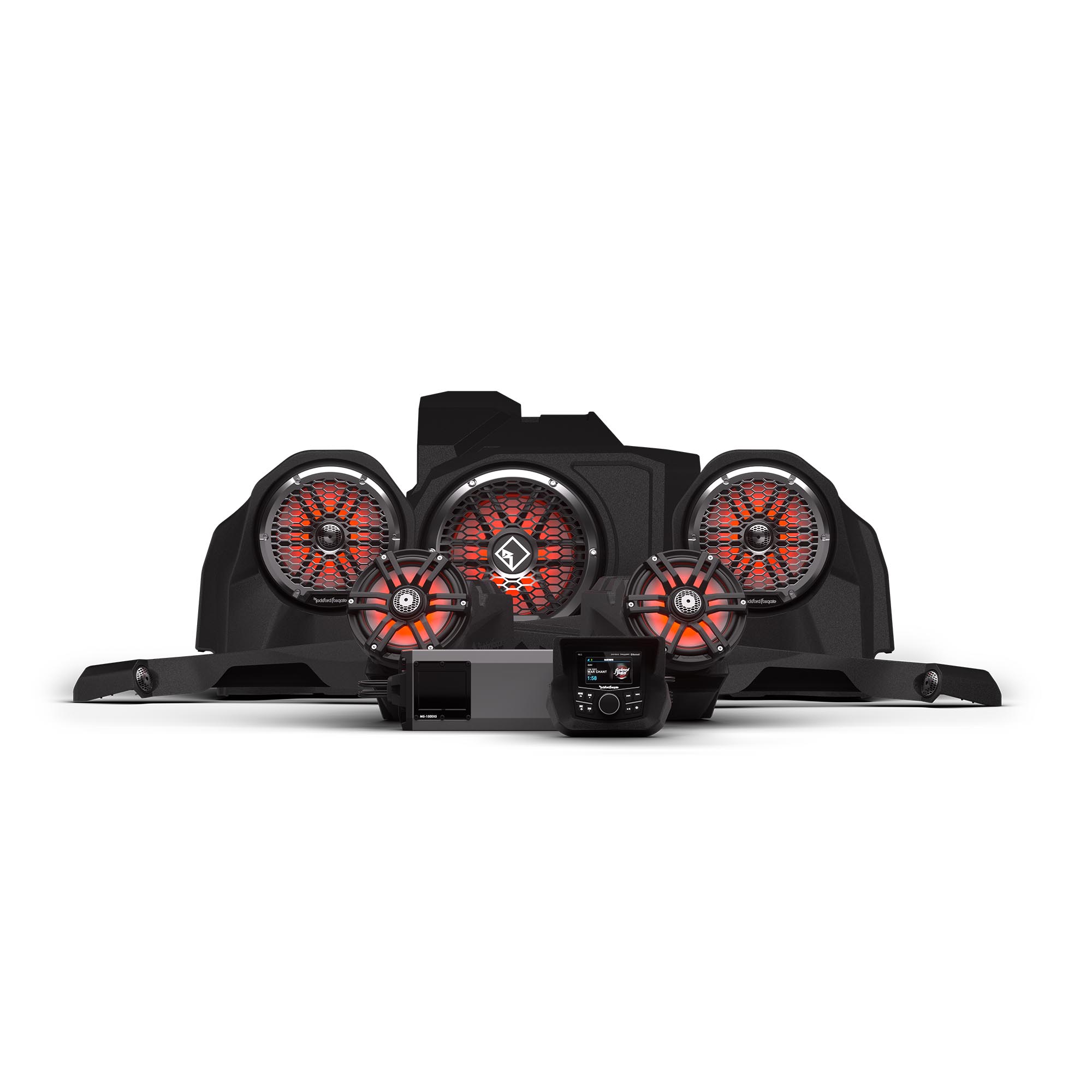

This bundle includes a Rockford Fosgate RZR24XP-STG6 Pmx-3, 1500w, Color Optix Front Speakers, Color Optix Sub & Color Optix Rear Horn Speakers Kit Compatible With Select '24 & up RZR Models, and a Rockford Fosgate MX-CAM Element Ready Powersports Camera with PMX Compatibility.
1x Rockford Fosgate RZR24XP-STG6 Pmx-3, 1500w, Color Optix Front Speakers, Color Optix Sub & Color Optix Rear Horn Speakers Kit Compatible With Select '24 & up RZR Models (RZR24XP-STG6)
Specifications:
Speaker Qty: 7
Amp Type: External
Total Power: 1,500W
Mounting Hardware: Yes
Grille-Trim Ring Included: Yes
Expansion Ports: Color Optix™ RGB Front and Rear: DT06-4S(4-Pin)
Included Components
1 ea PMX-3
1 ea M5-1500X5
1 pr M2-TS
1 pr M2-65B
1 pr M2-8B
1 ea M2D4-10IB-G2
1 ea PMX-RGB
Included In The Box
PMX-DK
4x Torx plastic tapping screw, ¼” x 1” long
1x PMX radio bracket
RZR24XP-FSE
1x RZR24 Driver FSE
1x RZR24 Passenger FSE
6x Torx Bolt M6x0.75mm, 14mm long
12x Hex Bolt M4x0.7mm, 22mm long
2x Hex Screw M6 self-tapping
2x Tube clamp mount bracket
RZR24-FTP
1x RZR24 Driver Pod
1x RZR24 Passenger Pod
4x Washer, M3x1.5” thick
2x Hex bolt M3x0.6mm, 20mm long
1x Hex key 2.5mm
RZR24-RSE
1x RZR24 Driver RSE
1x RZR24 Passenger RSE
1x RSE Driver bracket
1x RSE Passenger bracket
4x Torx screw M8x25mm long
2x T40 Torx screw M6x25mm long
2x Gasket A
2x Gasket B
12x Hex crew M
4x0.7mm, 30mm long
RZR24-FWE
1x RZR24 FWE
1x Passenger dash trim
1x Port tube cap
2x Torx screw M5, 36mm long
2x Torx screw M5, 22mm long
6x Hex bolt M5x0.8mm, 48mm long
4x Torx bolt M6x0.75mm, 14mm long
2x Tube clamp mount
RZR24-K4
1x RZR24-K4 bracket
1x RZR24 wiring harness
1x Tube clamp
1x T40 Torx bit
1x Hex key 2.5mm
1x Hex key 3mm
1x Hex key 5mm
6x Hex screw M4x0.7mm
Compatibility:
2-Seat Models
2024-2025 RZR XP 1000 Sport
2024-2025 RZR XP 1000 Premium (RF1, RC)
2024-2025 RZR XP 1000 Ultimate (RC, RF3)
4-SEAT MODELS
2024-2025 RZR XP 4 1000 Sport
2024-2025 RZR XP 4 1000 Premium (RF1, RC)
2024-2025 RZR XP 4 1000 Ultimate (RC, RF3)
Notes:
RC: Ride Command comes factory equipped. Required for Rockford Fosgate audio kits with "RC" in model number.
RF1: Stage 1 factory equipped with Rockford Fosgate premium audio (2 front speakers). Needs bypassed.
RF3: Stage 3 factory equipped with Rockford Fosgate premium audio (2 tweeters, 2 front speakers, 2 rear speakers, 400W amp). Needs bypassed.
1x Rockford Fosgate MX-CAM Element Ready Powersports Camera with PMX Compatibility (MX-CAM)
**Camera requires corresponding vehicle specific mounting kit. Details available under Accessories tab.**
The MX-CAM is a universal camera, purpose-built for motorsports applications, making it a perfect add-on for Stage-5 and Stage-6 Color Optix kits. The high-resolution color camera provides a crystal-clear picture for backing-up or rock-crawling. When paired with a vehicle specific installation kit, the T-harness allows for easy, error proof connections along with mounting brackets for a direct fit on select Polaris® and Can-Am® models. Harness plugs directly into PMX-3 and PMX-8 source units with an included trigger wire adaptor.
It is equipped with several Element Ready technologies that resist UV rays, water, dust, and corrosion. Its durable design also makes it resistant to vibration and thermal shock where true outdoor resilience is a must. Designed to fit select Polaris® and Can-Am® models with corresponding mounting kits with a simple plug-and-play interface for easy, error proof connection. Designed for use with PMX-3 and PMX-8 source units, and compatible with any source unit featuring a composite video input.
• Designed for use with MX-CAM-RZR14, MX-CAM-X317, MX-CAM-RNGR18 vehicle specific mounting kit
• HD Video Resolution for crystal clear image
• Element Ready to withstand the harsh outdoor environment
• Image display switchable from mirror to normal to accommodate rear or front installation
• 2-Year Warranty
• Image Sensor: 1/4" CMOS
• Resolution: 680 x 488
• Lens: 120(H), 89(V)
• Video Output: 1.0Vpp Composite, 75-Ohms
• Minimum Illumination: 0.1 Lux
• Mirror Image: OFF = cut mirror option wire; ON = connect mirror option wire
• Cutout Diameter: 19mm (0.75")
• Operating Temp: -30 to +70 Celcius
• DC Power: 12V, 70mA
• Operating Voltage: DC 12V (8V-15V)
• In The Box: (1) Eyeball camera with 11" pigtail
