Description
Included in this kit
This bundle includes a Rockford Fosgate RZR14RC-STG4 800w, Color Optix Front Speakers, Color Optix Sub & Color Optix Rear Speakers Kit Compatible With Select Ride Command Models, a Rockford Fosgate MX-CAM Element Ready Powersports Camera with PMX Compatibility, and a Rockford Fosgate MX-CAM-RZR14 Camera Plug and Play Harness and Mounting Kit for MX-CAM Compatible With Select Polaris RZR.

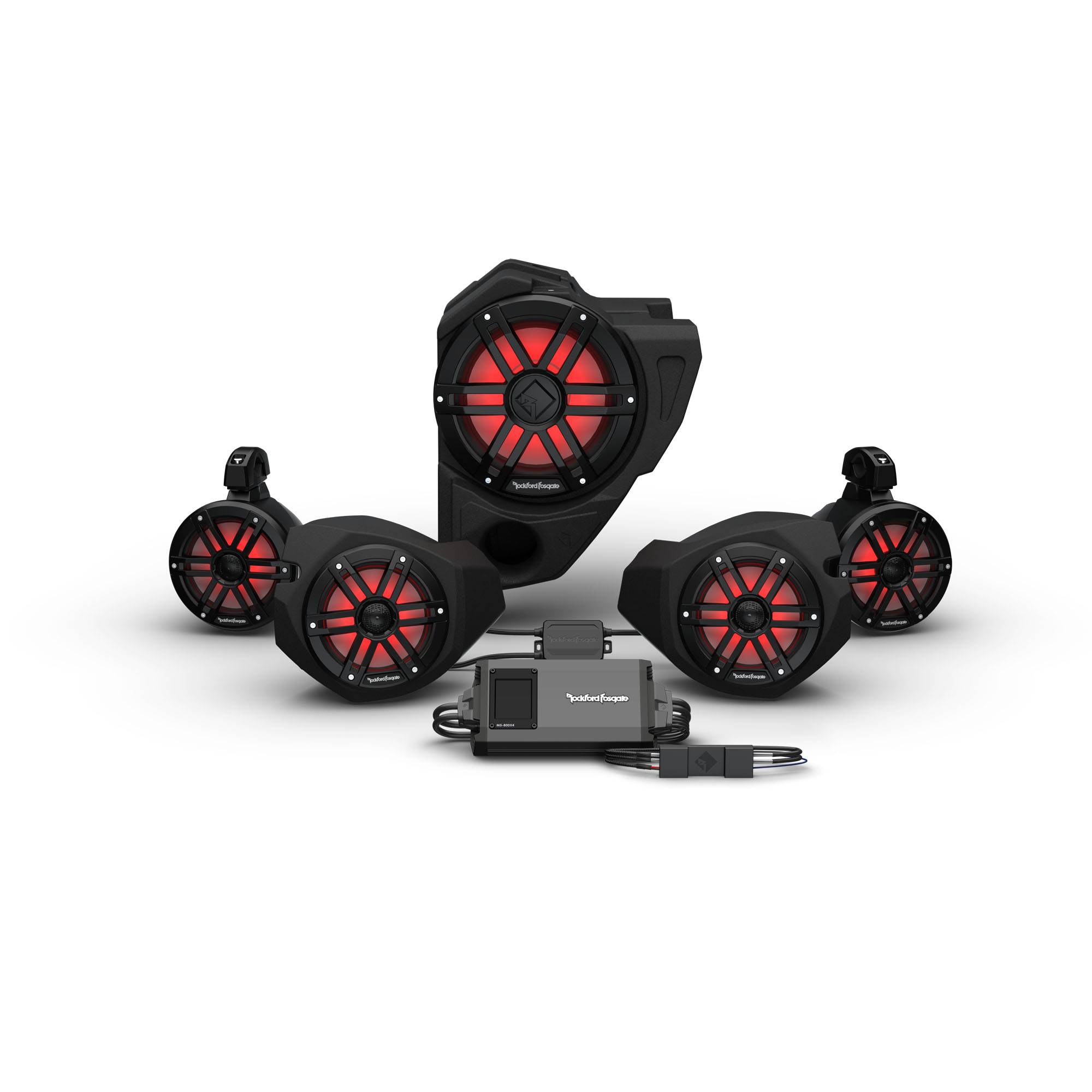

1x Rockford Fosgate RZR14RC-STG4 800w, Color Optix Front Speakers, Color Optix Sub & Color Optix Rear Speakers Kit Compatible With Select Ride Command Models (RZR14RC-STG4)
Rockford Fosgate Ride Command® 2-Way Interface, 800 Watt, Front Color Optix™ Speaker, Subwoofer & Rear Speaker Kit for Select Polaris® RZR® Models (Gen-3)
Our Gen-3 Stage 4 for Ride Command® provides all the features or our standard Stage 4 kit while using Ride Command® as your source unit. System allows you to add front and rear Color Optix™ speakers and a subwoofer on select RZR models. Kit is equipped with a Ride Command® interface, front speaker enclosures, M1 6.5" Color Optix™ speakers, 800-watt Element Ready™ amplifier, front subwoofer enclosure, M1 10" Color Optix™ subwoofer, 8-gauge wiring harness, M1 6.5" Color Optix™ moto-cans with harness, and a Color Optix™ controller. Kit supplied with all necessary mounting and installation hardware requiring minimal time and tools. Refer to our COMPATIBILITY chart to verify fitment before purchasing.
This Rockford Fosgate audio kit is Color Optix™ enabled by featuring our Color Optix™ controller to allow color adjustment of speakers and rear moto-cans. Audio system is 100% Element Ready™ solution and provides ability to take your off-road vehicle into any environment. Amplifier employs Rockford Fosgate preset for easy set up allowing maximum performance without any tuning. System features a plug and play design, does not require any cutting or drilling of vehicle, step by step install videos available.
- Color Optix™ enabled
- Complete Element Ready™ audio system
- Easy setup of audio system: amplifier preset for maximum performance without tuning
- No drilling or cutting required
- Plug-n-Play wiring harnesses for RZR models
- Enclosures for speakers and/or subwoofer integrate with no loss of passenger space
- RFPOL-RC34: 2-way active noise reduction adaptor for Polaris® Ride Command®
- RZR14-FSE: Direct Fit Front Color Optix™ 6.5" Loaded Speaker Enclosures for select Polaris® RZR® Models
- M1-65B: M1 6.5” Color Optix™ Marine 2-Way Speakers - Black
- M5-800X4: 800 Watt 4-Channel Element Ready™ Amplifier
- RZR14-FWE: Direct Fit Front Color Optix™ 10" Ported Loaded Subwoofer Enclosure for select Polaris® RZR® Models
- M1D2-10B: M1 10" DVC 2Ω Color Optix™ Subwoofer - Black
- RZR14-K8: 8 AWG Amp Installation Kit for select Polaris® RZR® Models
- M1WL-65MB: M1 6.5" Element Ready™ Color Optix™ Moto Can Speaker - Black
- MX-RSW16: Rear Color Optix™ Speaker Add-On Harness for Select UTV Models
- PMX-RGB: Color Optix™ Light Controller with Optional App Interface
Fitment
RZR
| MODEL | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 |
|---|---|---|---|---|---|---|---|---|
| RZR 900 2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR 900 XC 1,2 | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR 2 900 EPS 1,2 | ✔ | ✔ | ✔ | ✔ | ✔ | — | — | — |
| RZR 4 900 EPS 1,2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR RS1 | — | — | — | — | — | — | — | — |
| RZR S 900 2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR S 1000 1,2 | — | — | — | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR S4 1000 2 | — | — | — | — | — | ✔ | ✔ | ✔ |
| RZR XP 1000 1,2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR XP Turbo 1,2 | — | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR XP Turbo S 2 | — | — | — | — | — 3 | ✔ | ✔ | ✔ |
| RZR XP Turbo Dynamix Edition 2 | — | — | — | — | ✔ | ✔ | ✔ | ✔ |
| RZR XP 4 1000 1,2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR XP 4 Turbo 1,2 | — | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR XP 4 Turbo S 2 | — | — | — | — | — 3 | ✔ | ✔ | ✔ |
| RZR XP 4 Turbo Dynamix Edition 2 | — | — | — | — | ✔ | ✔ | ✔ | ✔ |
| RZR XP 1000 Trails and Rocks 2 | — | — | — | — | — | ✔ | ✔ | ✔ |
| RZR XP 1000 High Lifter 2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| RZR XP 4 1000 High Lifter 2 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
RZR PRO XP
| MODEL | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 |
|---|---|---|---|---|---|---|---|---|
| RZR PRO XP | — | — | — | — | — | — | —4 | —4 |
| RZR PRO XP Premium | — | — | — | — | — | — | —4 | —4 |
| RZR PRO XP Ultimate | — | — | — | — | — | — | —4 | —4 |
| RZR PRO XP 4 | — | — | — | — | — | — | —4 | —4 |
| RZR PRO XP 4 Premium | — | — | — | — | — | — | —4 | —4 |
| RZR PRO XP 4 Ultimate | — | — | — | — | — | — | —4 | —4 |
1
2014-2018 models compatible only with lower pocket assembly supplied with dash kit. Uses larger amp bracket supplied with amp mounting kit.
2
Kits featuring subwoofer not compatible with Polaris® heater option (located where sub enclosure should fit)
3
The 2 seat Turbo S shipped in early 2018, the 4 seat Turbo S shipped in October 2018, however both are considered 2019 models and are compatible.
4
The RZR PRO XP shipped in 2020 featuring a different chassis and body panels, therefore it is not compatible.
1x Rockford Fosgate MX-CAM Element Ready Powersports Camera with PMX Compatibility (MX-CAM)
**Camera requires corresponding vehicle specific mounting kit. Details available under Accessories tab.**
The MX-CAM is a universal camera, purpose-built for motorsports applications, making it a perfect add-on for Stage-5 and Stage-6 Color Optix kits. The high-resolution color camera provides a crystal-clear picture for backing-up or rock-crawling. When paired with a vehicle specific installation kit, the T-harness allows for easy, error proof connections along with mounting brackets for a direct fit on select Polaris® and Can-Am® models. Harness plugs directly into PMX-3 and PMX-8 source units with an included trigger wire adaptor.
It is equipped with several Element Ready technologies that resist UV rays, water, dust, and corrosion. Its durable design also makes it resistant to vibration and thermal shock where true outdoor resilience is a must. Designed to fit select Polaris® and Can-Am® models with corresponding mounting kits with a simple plug-and-play interface for easy, error proof connection. Designed for use with PMX-3 and PMX-8 source units, and compatible with any source unit featuring a composite video input.
• Designed for use with MX-CAM-RZR14, MX-CAM-X317, MX-CAM-RNGR18 vehicle specific mounting kit
• HD Video Resolution for crystal clear image
• Element Ready to withstand the harsh outdoor environment
• Image display switchable from mirror to normal to accommodate rear or front installation
• 2-Year Warranty
• Image Sensor: 1/4" CMOS
• Resolution: 680 x 488
• Lens: 120(H), 89(V)
• Video Output: 1.0Vpp Composite, 75-Ohms
• Minimum Illumination: 0.1 Lux
• Mirror Image: OFF = cut mirror option wire; ON = connect mirror option wire
• Cutout Diameter: 19mm (0.75")
• Operating Temp: -30 to +70 Celcius
• DC Power: 12V, 70mA
• Operating Voltage: DC 12V (8V-15V)
• In The Box: (1) Eyeball camera with 11" pigtail

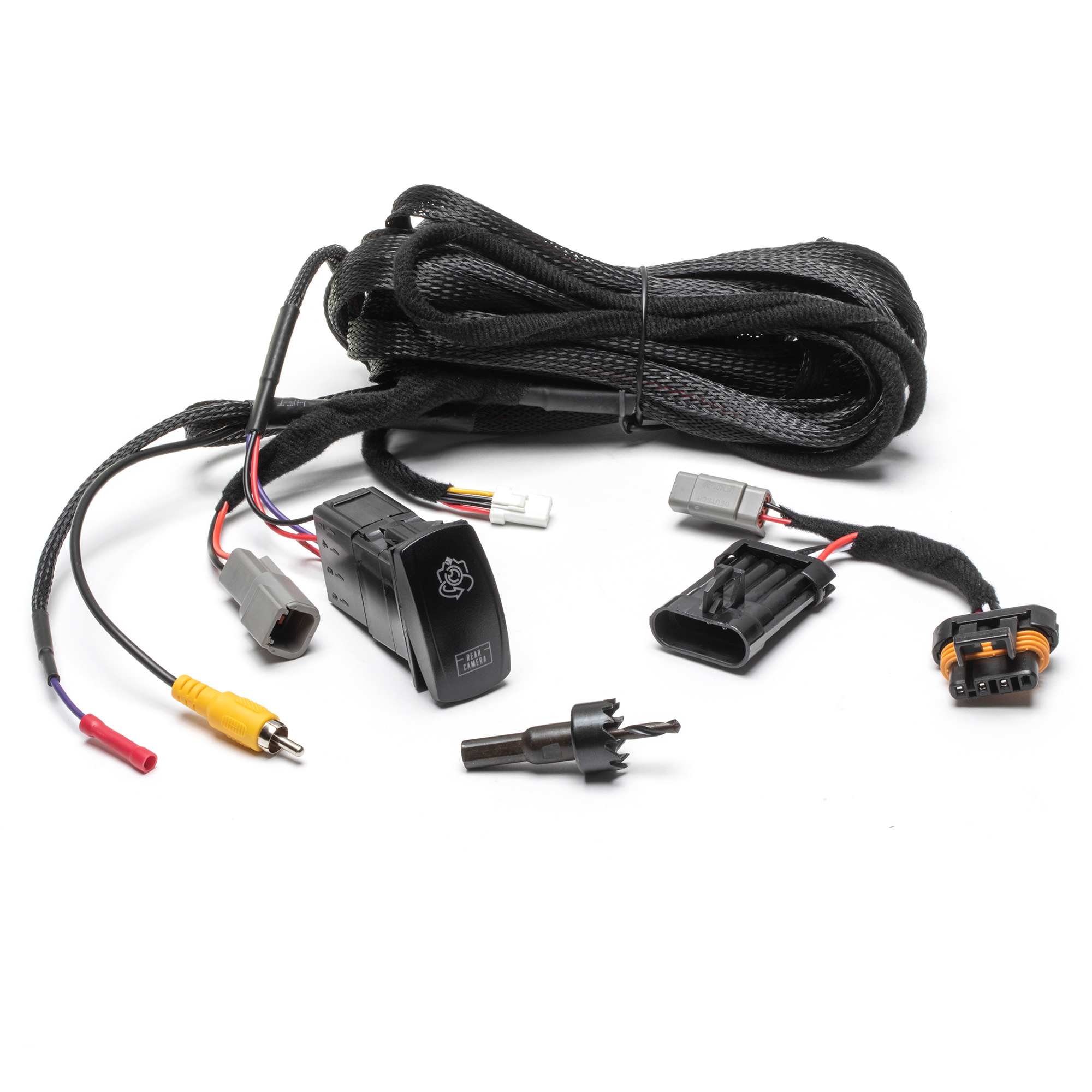

1x Rockford Fosgate MX-CAM-RZR14 Camera Plug and Play Harness and Mounting Kit for MX-CAM Compatible With Select Polaris RZR (MX-CAM-RZR14)
**This Kit requires matching MX-CAM motorsports backup camera.**
Compatible Source Units and Stage kits: RZR14-STG5, RZR14-STG6, PMX-3, PMX-8DH
The MX-CAM-RZR14 is a vehicle specific installation kit for the MX-CAM, purpose-built for select Polaris RZR models. The included T-harness allows for easy, error proof electrical connections. An included hole saw allows for fitment on RZR 2014 – 2018 models, allowing for direct fitment on 2019 and newer models. The harness plugs directly into PMX-3 and PMX-8 source units with an integrated trigger wire, and the included red/blue backlit rocker snaps into an open slot in the RZR14-DK providing instant camera view.
The MX-CAM-RZR14 harness provides everything needed to install the MX-CAM on select Polaris RZR models. A vehicle specific T-harness plugs directly in the taillight to supply power for the camera. Composite video is accessible through an industry standard male RCA for connection to any source unit with a video line input. PMX-3 and PMX-8 compatibility is ensured with an additional remote trigger, turning the camera on/off when shifting the UTV into reverse. The panel mount rocker switch features a blue backlit “rear camera” logo for easy identification and a red backlit camera icon to indicate the on/off status.
In The Box
(1) Hole saw for camera installation (19mm/0.75")
(1) Main harness with carling switch
(1) RZR Tail-light T-Harness adapter
