Description
Included in this kit
This bundle includes 2x Rockford Fosgate PPS4-10 10” Pro 4-Ohm Mid-Range, Sold Individually- 350 Watts Rms, 700 Watts Peak, Grille Included, 2x Rockford Fosgate PP4-NT 1” Pro 4-Ohm Neo Tweeter, Sold Individually- 50 Watts Rms, 100 Watts Peak, 2x Rockford Fosgate PP4-X 4-Ohm Pro Passive Crossover, Sold Individually - For Use With Pro Mid-Range (6, 8 Or 10”), a Rockford Fosgate P1000X2 2 Channel Amplifier - 300x2 @ 4-Ohm, 500x2 @ 2-Ohm, 1000x1 @ 4-Ohm Bridged, and a Rockford Fosgate RFK1 Power Only Amp Kit: 17ft 1/0awg Power Wire, 3ft 1/0awg Ground Wire, 20ft Remote Wire, Anl/Maxi Fuse Holder, - 300 Amp Fuse.
2x Rockford Fosgate PPS4-10 10” Pro 4-Ohm Mid-Range, Sold Individually- 350 Watts Rms, 700 Watts Peak, Grille Included (PPS4-10)
Rockford Fosgate Punch Pro 10" 4-Ohm Midrange - Sold Individually
The Pro PPS4-10 is an 10” 4-Ohm woofer engineered specifically for high SPL (Sound Pressure Level) conditions. It features 350 watt RMS power handing and includes grilles with mounting hardware. Speakers sold as individual units (not pairs.)
The PPS4-10 Punch Pro is a 10" midrange loudspeaker engineered for high SPL (Sound Pressure Level) conditions. The oversized motor structure and high temperature voice coil, combined with a fiber reinforced paper cone and corrugated treated cloth surround create the foundation for a highly sensitive speaker that can handle plenty of power. You'll be proud, because these things are loud! Package includes protective grilles.
- Corrugated treated cloth surround
- Fiber reinforced high strength paper cone with treated "W" style surround
- Billet stock machined aluminum phase plug
- High temp aluminum voice coil
- Fatigue and tear resistant poly cotton spider
- Periodic-stitched fatigue resistant lead wire
- Stamp-cast aluminum frame
- All Metal Input Spring Terminal Connection
- Grilles and mounting hardware included
- Sold as individual units (not in pairs)
- 1 Year Warranty
Specifications
(Nominal Diameter)
700 Watts Max
(dB @ 1W/1M)
(Nominal Diameter)

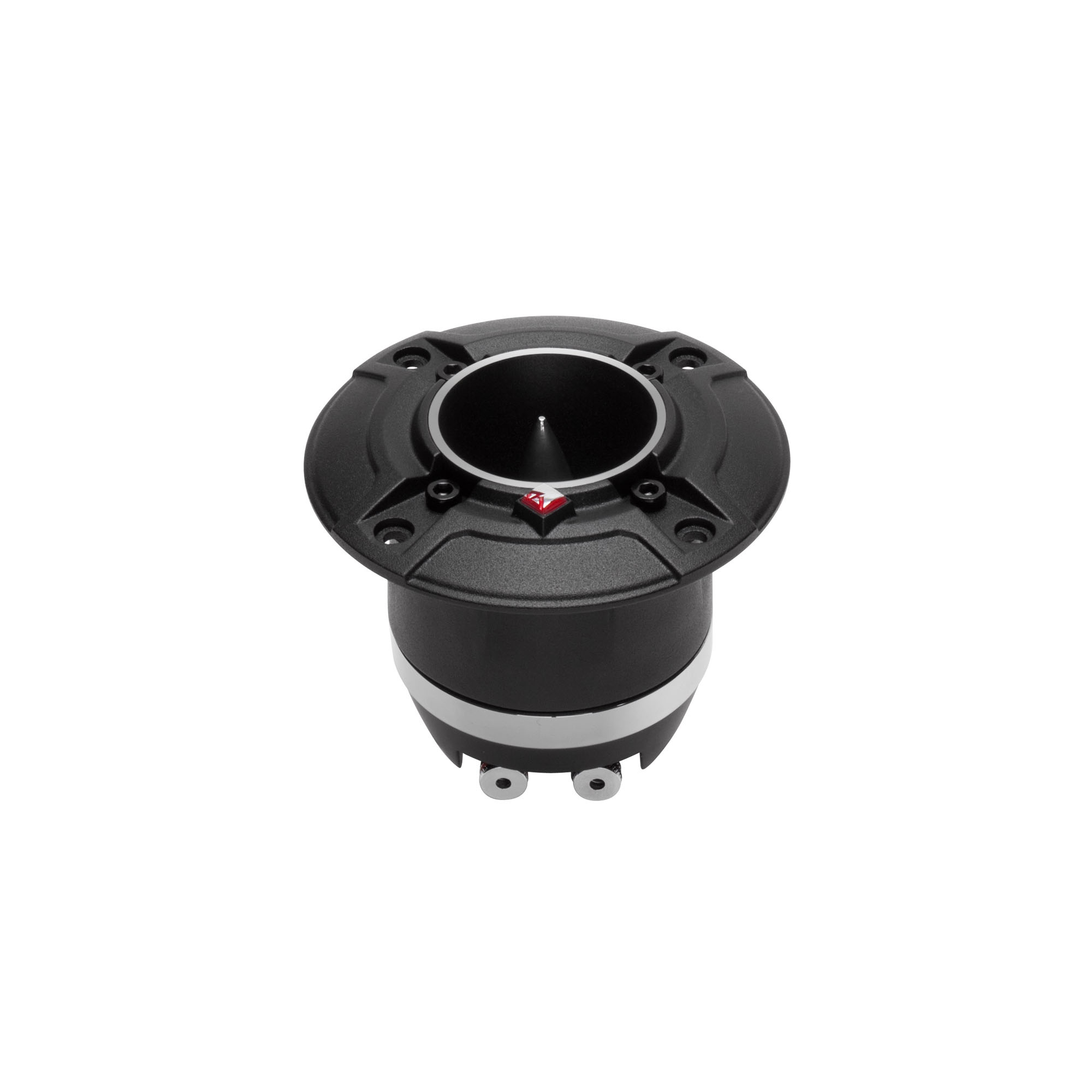

2x Rockford Fosgate PP4-NT 1” Pro 4-Ohm Neo Tweeter, Sold Individually- 50 Watts Rms, 100 Watts Peak (PP4-NT)
Rockford Fosgate Punch Pro 1" 4-Ohm Neodymium Tweeter - Sold Individually
The PP4-NT is a Punch Pro 1" neodymium 4-ohm tweeter designed for SPL systems. Its smaller size allows for use in compact areas while still producing very loud output.
The PP4-NT Punch Pro is a 1" tweeter with integral 6dB high Pass crossover engineered for high SPL (Sound Pressure Level) conditions. The neodymium motor structure and high power diaphragm, combined with a billet machined aluminum phase plug create the foundation for a highly sensitive speaker that can handle plenty of power. You'll be proud, because these things are loud! Package includes mounting hardware.
- High efficiency horn tweeter
- Aluminum diaphragm
- Aluminum phase plug
- High temp Nomex former voice coil
- Die cast aluminum frame
- All Metal Input Spring Terminal Connection
- Neodymium motor structure
- Built-in 6dB/Octave crossover
- Removable mounting flange
- Mounting hardware included
- PP4-X and PP8-X crossover compatible
- Sold as individual units (not in pairs)
- 1 Year Warranty
Specifications
(Nominal Diameter)
100 Watts Max
Small Trim Ring: 1.79" (45.5 mm)
(Nominal Diameter)
(dB @ 1W/1M)

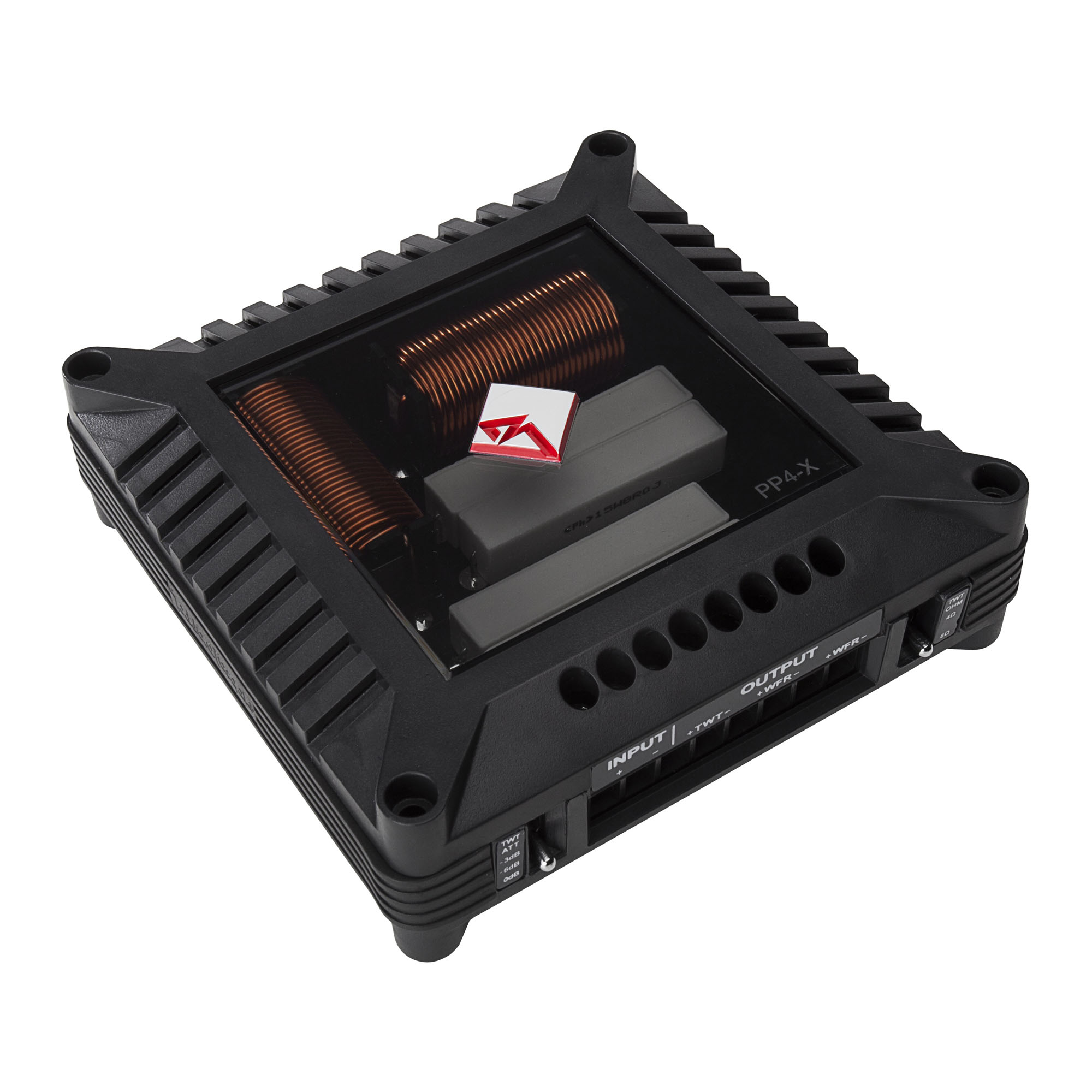

2x Rockford Fosgate PP4-X 4-Ohm Pro Passive Crossover, Sold Individually - For Use With Pro Mid-Range (6, 8 Or 10”) (PP4-X)
Rockford Fosgate Punch Pro 4-Ohm Passive Crossover
The PP4-X is designed for use with 4-Ohm Punch Pro midrange drivers and tweeters.
The PP4-X is designed for use with 4-Ohm Punch Pro midrange drivers and tweeters. It features dual woofer outputs for use with two Punch Pro midrange drivers. Provides 6dB/Octave dedicated low pass filter for the woofer.
Must use existing built-in 6dB/Octave Punch Pro crossover supplied with tweeter. Designed ONLY for Rockford Fosgate Punch Pro speakers (not designed to be used as a stand-alone passive crossover for other "pro" brands). Mounting hardware included.
- Designed for use with Punch Pro midrange drivers and tweeters
- 125 Watts RMS (250 Watts MAX) power handling
- Must use 4-Ohm load on woofer outputs
- Dual woofer outputs for use with two Punch Pro midrange
- Provides 6dB/Octave, 3kHz low pass for woofer
- Works with built-in 6dB/Octave Punch Pro tweeter crossover
- Selectable tweeter impedance: 4-Ohm or 8-Ohm
- Selectable tweeter attenuation: 0dB, -3dB, -6dB
- Mounting hardware included
- Sold as individual units (not in pairs)
Specifications
0dB/-3dB/-6dB Tweeter Attenuation
(Nominal Diameter)
1x Rockford Fosgate P1000X2 2 Channel Amplifier - 300x2 @ 4-Ohm, 500x2 @ 2-Ohm, 1000x1 @ 4-Ohm Bridged (P1000X2)
Rockford Fosgate Punch 1,000 Watt 2-Channel Amplifier
Punch 1,000 Watt 2-Channel Amplifier P1000X2 The Punch P1000X2 is a 2-channel stereo amplifier capable of producing 500 Watts into each channel at 2-Ohms. The P1000X2 amplifier is great with full-range or component systems or can be bridged for use with several subwoofers.
The P1000X2 is an excellent way to PUNCH up your sound system without monopolizing your entire trunk - that way you have more room for subs! With its massive output stage, this amplifier is best suited for driving a pair of 8-ohm SVC subwoofers or four 2-ohm DVC subwoofers. Remember to utilize the recommended power and speaker cables to optimize power delivery.
- High level input capable with Auto Turn-On circuit
- RCA pass-thru outputs
- Features C.L.E.A.N. Set-up
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- 12dB/octave Butterworth crossover
- On-board Punch EQ with +18dB boost @ 45Hz
- Muted turn on
- Stealth top mounted control panel
- Cast aluminum heatsink
- Short circuit protection
- Over current protection
- 1 Year Warranty
General Specifications
300W x 2 @ 4Ω
≤1.0% THD+N
(Sum of Rated Power)
(RMS Continuous Power)
500 Watts x 2 @ 2-Ohm
1000 Watts x 1 @ 4-Ohm Bridged
(PVC/PowerCube®)
656 Watts x 2 @ 2-Ohms 0° Res
64% @ 2-Ohm
2-Ohm: <1.0%
Punch EQ2 Treble: 0dB to +12dB @ 12.5kHz
Function depends upon LP/AP/HP switch position
Input Clip LED3
Output Clip LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
(not included)
6.05 x 19.71 x 38.18 (cm)
1x Rockford Fosgate RFK1 Power Only Amp Kit: 17ft 1/0awg Power Wire, 3ft 1/0awg Ground Wire, 20ft Remote Wire, Anl/Maxi Fuse Holder, - 300 Amp Fuse (RFK1)
Rockford Fosgate 1/0 Power Installation Kit
1/0 gauge power and ground installation kit for an amplifier.
Kit includes 17 feet of 1/0 AWG power wire, 3 feet of ground wire, ANL/Maxi fuse holder and fuse, 20 feet of remote wire, 100 Amp fuse.
- FULL spec cable - meets or exceeds AWG (American Wire Gauge) requirements
- 100% Pure Crystal-Oxygen Free Copper (PC-OFC)
- Includes appropriate wire termination hardware
- 1/0 AWG (53.5mm²) 4,704 strands
- 1 Year WarrantyFULL spec cable - meets or exceeds AWG (American Wire Gauge) requirements
- 100% Pure Crystal-Oxygen Free Copper (PC-OFC)
- Includes appropriate wire termination hardware
- 1/0 AWG (53.5mm²) 4,704 strands
- 1 Year Warranty
Specifications
