Description
Included in this kit
This bundle includes 2x Rockford Fosgate PPS4-8 8” Pro 4-Ohm Mid-Range, Sold Individually- 125 Watts Rms, 250 Watts Peak, Grille Included, 2x Rockford Fosgate PP4-NT 1” Pro 4-Ohm Neo Tweeter, Sold Individually- 50 Watts Rms, 100 Watts Peak, 2x Rockford Fosgate PP4-X 4-Ohm Pro Passive Crossover, Sold Individually - For Use With Pro Mid-Range (6, 8 Or 10”), a Rockford Fosgate T400X4AD 4 Channel Amplifier - 100x4 @ 4-Ohm, 100x4 @ 2-Ohm, 200x2 @ 4-Ohm Bridged, and a Rockford Fosgate RFK4X Complete Amp Kit: 17ft 4awg Power Wire, 3ft 4awg Ground Wire, 30ft 16awg Spkr Wire, (1) 16ft Twisted Pair Rca, 20ft Remote Wire, Maxi Fuse Holder, 100 Amp Fuse.

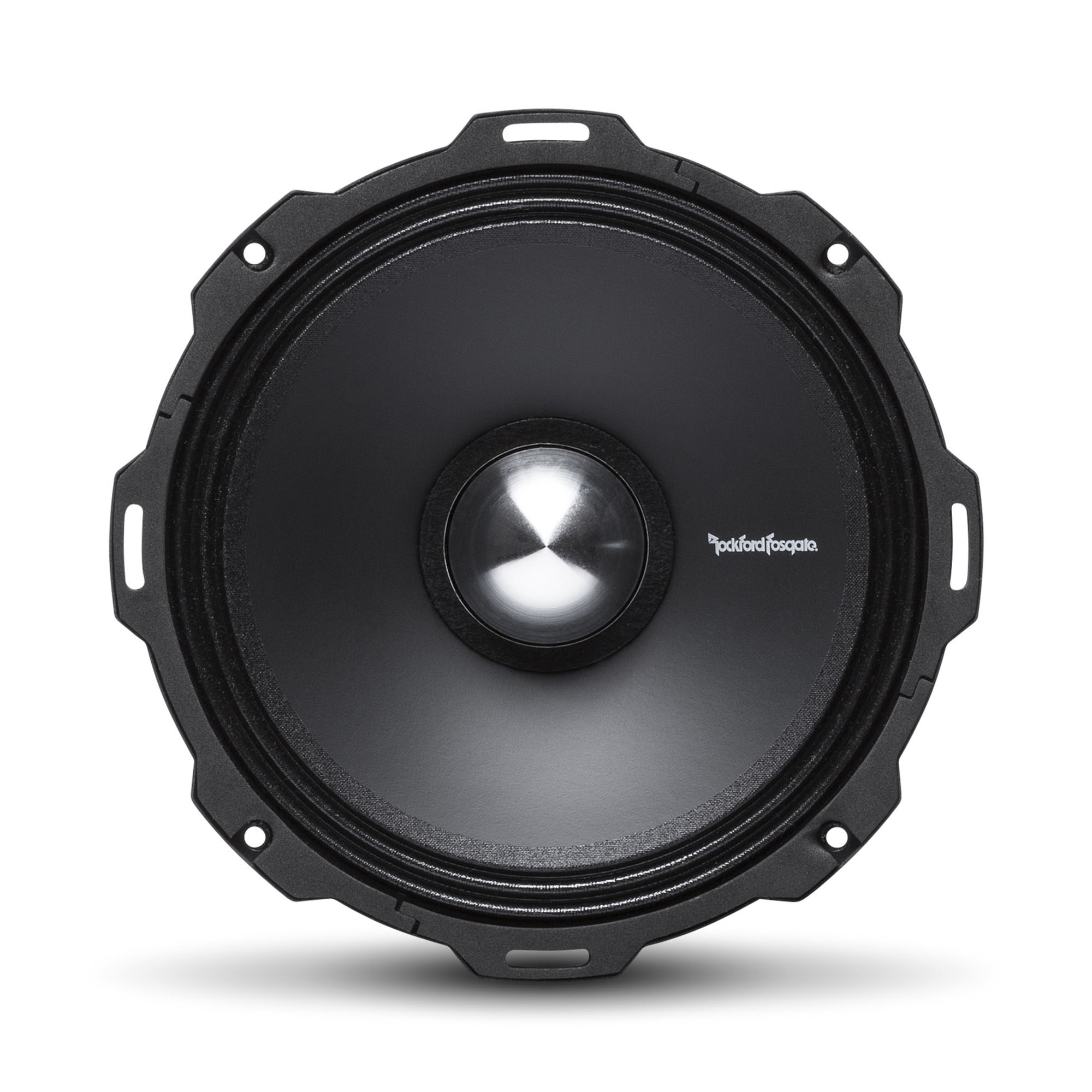

2x Rockford Fosgate PPS4-8 8” Pro 4-Ohm Mid-Range, Sold Individually- 125 Watts Rms, 250 Watts Peak, Grille Included (PPS4-8)
Rockford Fosgate Punch Pro 8" 4-Ohm Midrange - Sold Individually
The Pro PPS4-8 is an 8” 4-Ohm woofer engineered specifically for high SPL (Sound Pressure Level) conditions. It features 125 watt RMS power handing and includes grilles with mounting hardware. Speakers sold as individual units (not pairs.)
The PPS4-8 Punch Pro is a 8" midrange loudspeaker engineered for high SPL (Sound Pressure Level) conditions. The oversized motor structure and high temperature voice coil, combined with a fiber reinforced paper cone and corrugated treated cloth surround create the foundation for a highly sensitive speaker that can handle plenty of power. You'll be proud, because these things are loud! Package includes protective grilles.
- Stamp-cast aluminum frame
- All Metal Input Spring Terminal Connection
- Billet stock machined aluminum phase plug
- Corrugated treated cloth surround
- Fatigue and tear resistant poly cotton spider
- Fiber reinforced high strength paper cone with treated "W" style surround
- Grilles and mounting hardware included
- High temp aluminum voice coil
- Periodic-stitched fatigue resistant lead wire
- Sold as individual units (not in pairs)
- 1 Year Warranty
Specifications
(Nominal Diameter)
250 Watts Max
(Nominal Diameter)
(dB @ 1W/1M)
2x Rockford Fosgate PP4-NT 1” Pro 4-Ohm Neo Tweeter, Sold Individually- 50 Watts Rms, 100 Watts Peak (PP4-NT)
Rockford Fosgate Punch Pro 1" 4-Ohm Neodymium Tweeter - Sold Individually
The PP4-NT is a Punch Pro 1" neodymium 4-ohm tweeter designed for SPL systems. Its smaller size allows for use in compact areas while still producing very loud output.
The PP4-NT Punch Pro is a 1" tweeter with integral 6dB high Pass crossover engineered for high SPL (Sound Pressure Level) conditions. The neodymium motor structure and high power diaphragm, combined with a billet machined aluminum phase plug create the foundation for a highly sensitive speaker that can handle plenty of power. You'll be proud, because these things are loud! Package includes mounting hardware.
- High efficiency horn tweeter
- Aluminum diaphragm
- Aluminum phase plug
- High temp Nomex former voice coil
- Die cast aluminum frame
- All Metal Input Spring Terminal Connection
- Neodymium motor structure
- Built-in 6dB/Octave crossover
- Removable mounting flange
- Mounting hardware included
- PP4-X and PP8-X crossover compatible
- Sold as individual units (not in pairs)
- 1 Year Warranty
Specifications
(Nominal Diameter)
100 Watts Max
Small Trim Ring: 1.79" (45.5 mm)
(Nominal Diameter)
(dB @ 1W/1M)
2x Rockford Fosgate PP4-X 4-Ohm Pro Passive Crossover, Sold Individually - For Use With Pro Mid-Range (6, 8 Or 10”) (PP4-X)
Rockford Fosgate Punch Pro 4-Ohm Passive Crossover
The PP4-X is designed for use with 4-Ohm Punch Pro midrange drivers and tweeters.
The PP4-X is designed for use with 4-Ohm Punch Pro midrange drivers and tweeters. It features dual woofer outputs for use with two Punch Pro midrange drivers. Provides 6dB/Octave dedicated low pass filter for the woofer.
Must use existing built-in 6dB/Octave Punch Pro crossover supplied with tweeter. Designed ONLY for Rockford Fosgate Punch Pro speakers (not designed to be used as a stand-alone passive crossover for other "pro" brands). Mounting hardware included.
- Designed for use with Punch Pro midrange drivers and tweeters
- 125 Watts RMS (250 Watts MAX) power handling
- Must use 4-Ohm load on woofer outputs
- Dual woofer outputs for use with two Punch Pro midrange
- Provides 6dB/Octave, 3kHz low pass for woofer
- Works with built-in 6dB/Octave Punch Pro tweeter crossover
- Selectable tweeter impedance: 4-Ohm or 8-Ohm
- Selectable tweeter attenuation: 0dB, -3dB, -6dB
- Mounting hardware included
- Sold as individual units (not in pairs)
Specifications
0dB/-3dB/-6dB Tweeter Attenuation
(Nominal Diameter)
1x Rockford Fosgate T400X4AD 4 Channel Amplifier - 100x4 @ 4-Ohm, 100x4 @ 2-Ohm, 200x2 @ 4-Ohm Bridged (T400X4AD)
Rockford Fosgate Power 400 Watt Class-ad 4-Channel Amplifier
The Power T400X4ad is an ultra-compact, high efficiency 400 Watt 4-channel amplifier. Features multi-impedance Constant Power, input/output clip detection, top mounted controls and dual fan forced induction cooling. Perfect for hybrid, electric, small cars, trucks, motorcycles, and side-by-side UTVs.
The Power T400X4ad 400 Watt 4-channel ultra-compact, amplifier is built on Rockford Fosgate’s proprietary Class-AD technology, featuring Constant Power to produce the same output at both 4-Ohm and 2-Ohm impedances. Flexible vehicle integration enabled through low-level and high-level inputs with auto turn-on. Top mounted controls allow easy access to built-in crossover and C.L.E.A.N. input/output clip detection circuits. The 3-stage thermal lock extrusion with dual fan forced induction keeps everything cool while real-time thermal/protection schemes safeguard the amplifier.
- Rockford Fosgate proprietary Class AD technology
- 4/2 Ohm muti-impedance Constant Power
- Differential inputs with high level auto turn-on feature
- 8 AWG power/ground connector w/ upgraded RCA connectors
- Remote-Out feature when using high level inputs
- 2/4 channel input switch
- 4 Ohm bridged capable
- C.L.E.A.N. input/output clip detection and indicator LEDs
- Top mounted controls
- Dual fan cooled
- Real time thermal sensing
- Dual extruded heat sinks
- Discrete surface mount technology
- 2-Year Warranty
General Specifications
CEA-2006 Power Rating100W x 4 @ 4Ω
≤1.0% THD+N
(Sum of Rated Power)
(RMS Continuous Power)
100 Watts x 4 @ 2-Ohm
200 Watts x 2 @ 4-Ohm Bridged
(PVC/PowerCube®)
152 Watts x 4 @ 2-Ohm
290 Watts x 2 @ 4-Ohm Bridged
Front Terminals: Left (+) Right (-)
Rear Terminals: Left (+) Right (-)
2-Ohm: <1.0%
Rear High/Low Level Input: 4-Pin harness
Bass: 0 to +18 dB @ 45 Hz
Low-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
All-Pass: Yes
Protect: Red LED
Input Clip: Red LED3
Output Clip: Blue/Violet/Red LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Rear: 4-Pin Harness
(not included)
4.1 x 10.8 x 21.1 (cm)
1x Rockford Fosgate RFK4X Complete Amp Kit: 17ft 4awg Power Wire, 3ft 4awg Ground Wire, 30ft 16awg Spkr Wire, (1) 16ft Twisted Pair Rca, 20ft Remote Wire, Maxi Fuse Holder, 100 Amp Fuse (RFK4X)
Rockford Fosgate 4 AWG Complete Installation Kit
4 gauge complete power, ground and signal installation kit for a 2-channel amplifier.
Kit includes 17 feet of 4 AWG power wire, 3 feet of 4 AWG ground wire, 30 feet of 16 AWG speaker wire, (1) 16 feet twisted pair RCA, Maxi fuse holder and fuse, 20 feet of remote wire, 100 Amp fuse.
- FULL spec cable - meets or exceeds AWG (American Wire Gauge) requirements
- 100% Pure Crystal-Oxygen Free Copper (PC-OFC)
- Includes appropriate wire termination hardware
- 4 AWG (21.1mm²) 1,862 strands
- 16 AWG (1.31mm²) 65 strands
- 1 Year Warranty
Specifications
