Description
Included in this kit
This bundle includes a Rockford Fosgate RFK8I Power Interconnect Amp Kit: 17ft 8awg Power Wire, 3ft 8awg Ground Wire, (1) 16ft Twisted Pair Rca, 20ft Remote Wire, Agu Fuse Holder, 40 Amp Fuse, and a Rockford Fosgate P300-12T 12” Truck/Wedge Powered Subwoofer- 300 Watts Rms, H 15” X W 25.8” X D 8.5”.
1x Rockford Fosgate RFK8I Power Interconnect Amp Kit: 17ft 8awg Power Wire, 3ft 8awg Ground Wire, (1) 16ft Twisted Pair Rca, 20ft Remote Wire, Agu Fuse Holder, 40 Amp Fuse (RFK8I)
Rockford Fosgate 8 AWG Power & Signal Installation Kit
8 gauge power, ground and signal installation kit for an amplifier.
Kit includes 17 feet of 8 AWG power wire, 3 feet of 8 AWG ground wire, (1) 16 feet twisted pair RCA, AGU fuse holder and fuse, 20 feet of remote wire, 40 Amp fuse.
- FULL spec cable - meets or exceeds AWG (American Wire Gauge) requirements
- 100% Pure Crystal-Oxygen Free Copper (PC-OFC)
- Includes appropriate wire termination hardware
- 8 AWG (8.36mm²) 735 strands
- 1 Year Warranty
Specifications
1x Rockford Fosgate P300-12T 12” Truck/Wedge Powered Subwoofer- 300 Watts Rms, H 15” X W 25.8” X D 8.5” (P300-12T)

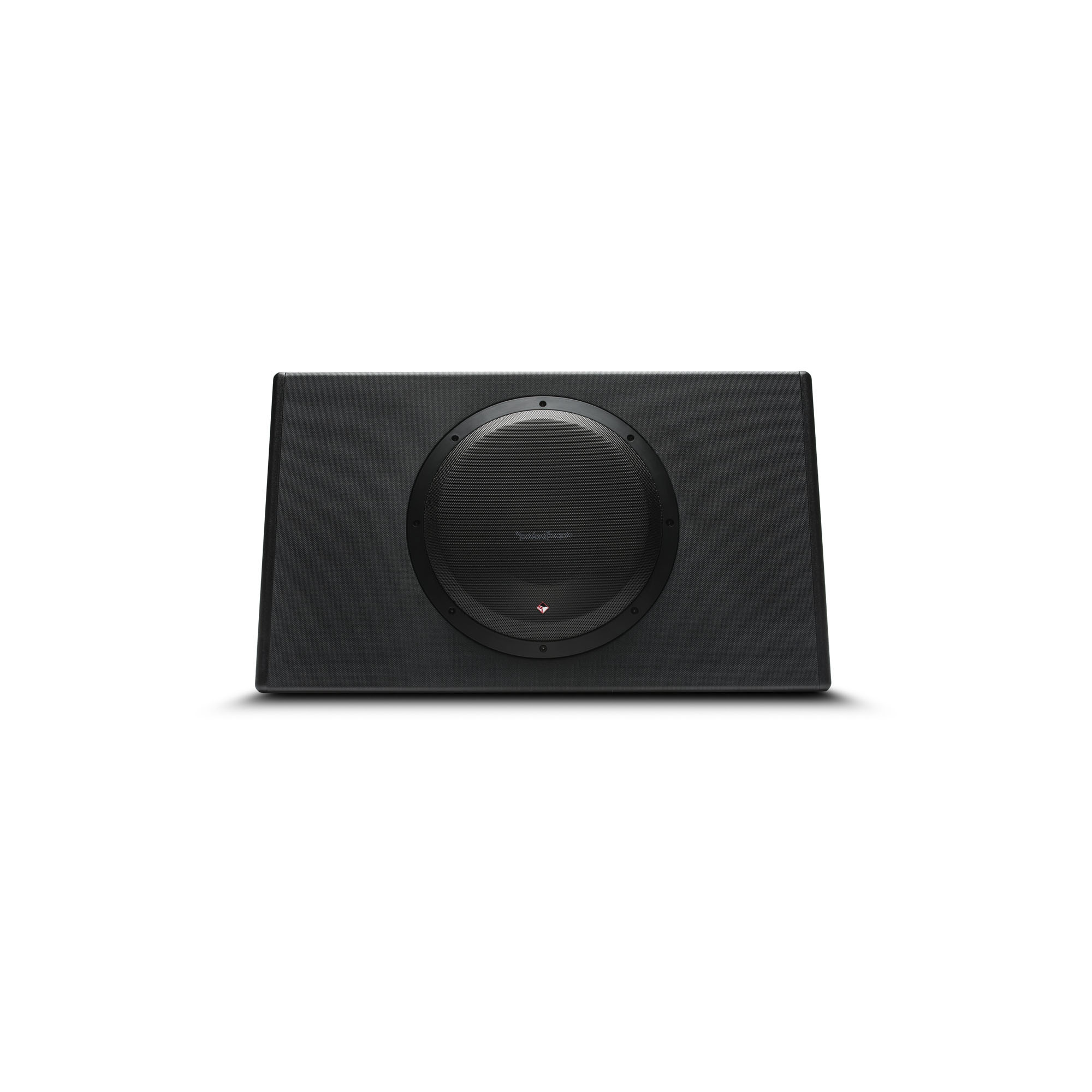

Rockford Fosgate Punch 12" 300-Watt Powered Truck Enclosure
The Punch P300-12T is an "all in one" solution for dropping Bass in any factory or aftermarket system. This model features a 12" high output woofer with a 300-watt internal amplifier in a slim design enclosure that's great for universal truck applications. The enclosure features quick release input and power connectors for easy removal when extra space is required.
The Punch 300-12T is a self-contained subwoofer enclosure with built-in amplifier. This "all in one" solution is great for systems that need extra Punch on the low-end of the frequency spectrum. The 12" high output subwoofer is impedance optimized for the built in 300-watt class-D amplifier that features a low-pass crossover, bass EQ and phase switch. The enclosure can be connected via speaker level inputs for connection to factory systems, or traditional line level inputs for aftermarket systems. It also features an intelligent auto turn-of/off circuit that eliminates the need for a separate turn-on wire. The enclosure itself is precision designed and constructed using MDF (Medium Density Fiberboard) for the best acoustical properties and covered with heat activated vinyl finish to resist marks.
- Optimized 12" Low Impedance Woofer
- 300 Watt Class-D Amplifier with Optimized "Closed Loop" Design
- Adjustable 12db/Octave low pass crossover
- On Board Phase Switch
- Intelligent auto turn on/off function
- Robust Power/Ground connections
- Quick Input Connections for Easy Removal
- On Board Adjustable Bass EQ
- Remote bass level control included
- Separate low level and speaker level inputs
- Precision Constructed MDF Enclosure with Heat Activated Vinyl Finish
- Thermal and over/under voltage protection
- Slim Design For Truck Applications
- 1 Year Warranty
Specifications
(Watts RMS)
12dB/Octave Butterworth
0 dB to +12 dB
Replacement Part: 1510-57864-01
DC Offset Sense
Audio Sense
Low-Level (RCA)
Replacement Part: 1560-57865-01
High-Level: 300 mV to 12 V
Replacement Part: 1040-57860-01
REM: 18 AWG
Box H x W x D
Wedge H x W x D1 x D2
380 mm x 656 mm x 122 mm x 215 mm
