Description
Included in this kit
This bundle includes a Rockford Fosgate PMX-RGB Color Optix Light Controller With Optional App Interface, a Rockford Fosgate M2-750X5 5 Channel Element Ready Amplifier- 50x4 + 200x1 @ 4-Ohm, 100x4 + 350x1 @ 2-Ohm, 200x2 @4-Ohm Bridged, 2x Rockford Fosgate M1-65B 6.5” Color Optix Marine 2-Way System- 75 Watts Rms, 300 Watts Peak, Black Grilles Included, and a Rockford Fosgate M1D4-10B 10" Color Optix Marine Subwoofer- DVC (4-Ohm), 300 Watts Rms, 1200 Watts Peak, Black Grille Included.
1x Rockford Fosgate PMX-RGB Color Optix Light Controller With Optional App Interface (PMX-RGB)
Rockford Fosgate PMX-RGB Color Optix™ Lighting Controller
The Rockford Fosgate PMX-RGB Color Optix™ controller provides centralized LED lighting control for Color Optix™ M1 and M2 speakers and subwoofers. Designed for marine environments, the controller allows you to create a unified lighting ecosystem that works seamlessly across your audio system.
When paired with the RF Connect™ smartphone app, users can customize lighting colors and effects directly from their mobile device. The controller supports lighting control for up to 16 Color Optix™ speakers or subwoofers, allowing for large multi-speaker installations while maintaining synchronized lighting effects.
Lighting Control & App Integration
- Controls LED lighting for Color Optix™ M1 and M2 speakers and subwoofers
- Supports up to 16 speakers or subwoofers from a single controller
- RF Connect™ smartphone app compatibility for lighting customization
- Multiple PMX-RGB controllers supported within the RF Connect™ ecosystem
Installation & System Integration
The PMX-RGB controller operates on a wide 9VDC–24VDC input range, allowing it to integrate into a variety of marine electrical systems. The unit includes extended power and signal leads to simplify installation in multi-speaker setups.
- Red and black power/ground leads extend 16 inches from the controller
- Eight female signal outputs with 16.5 inch leads
- Internal 2 Amp fuse for circuit protection
- Stainless steel mounting hardware included
Additional links and Y-adaptors are available separately for expanded lighting connections.
Specifications
| Max Speaker Capacity | Up to 16 Speakers / Subwoofers (slight dimming may occur at end of string) |
| Operating Voltage | 9VDC – 24VDC |
| Power / Ground Cable | Red & Black leads extend 16" |
| Signal Outputs | 8 female outputs with 16.5" leads |
| Internal Fuse | 2 Amp |
| RF Connect™ Capacity | Unlimited number of PMX-RGB controllers supported |
| Warranty | 2-Year |

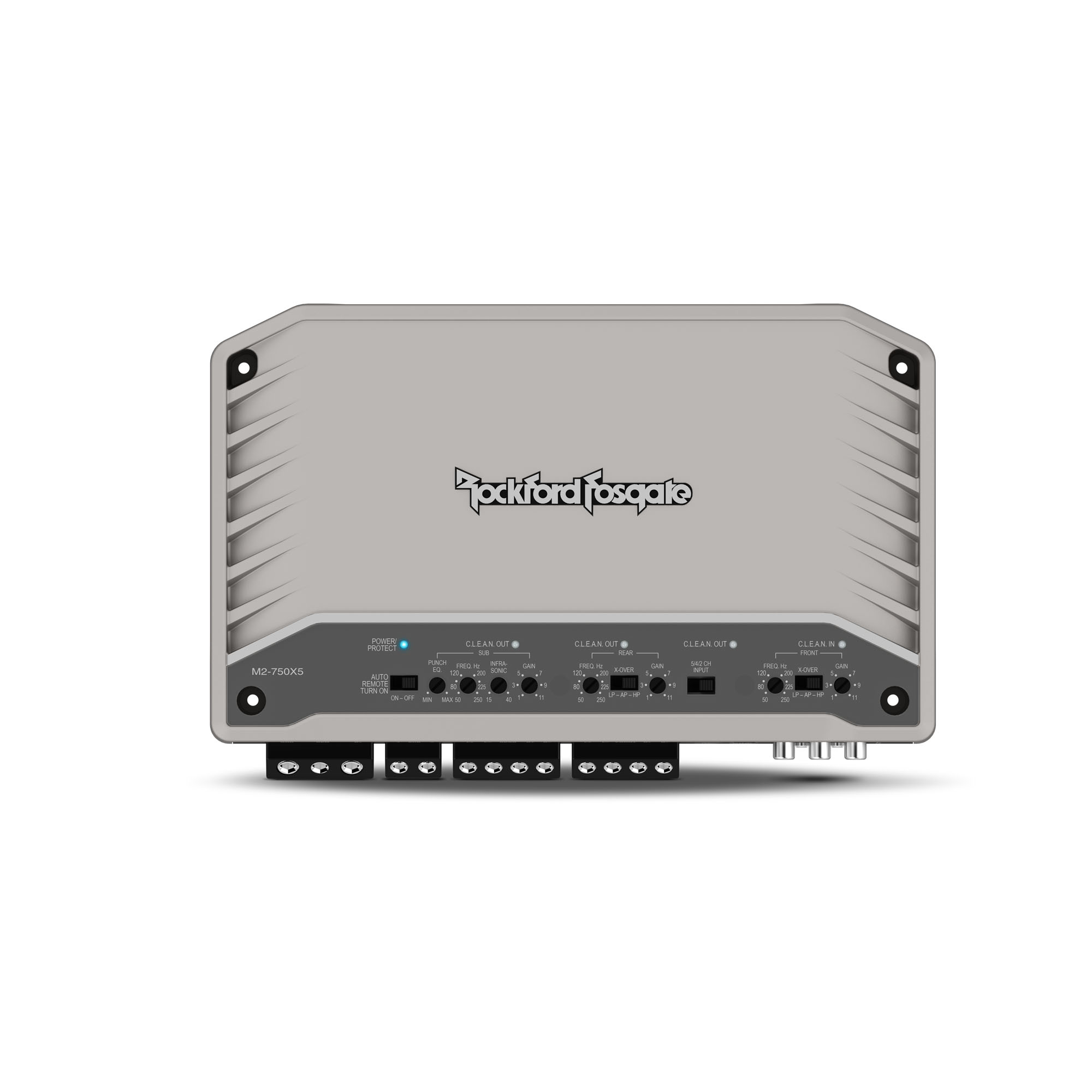

1x Rockford Fosgate M2-750X5 5 Channel Element Ready Amplifier- 50x4 + 200x1 @ 4-Ohm, 100x4 + 350x1 @ 2-Ohm, 200x2 @4-Ohm Bridged (M2-750X5)
Rockford Fosgate Power M2 750 Watt 5-Channel Element Ready™ Amplifier
Designed to withstand the elements, the R2-750X5 amplifier is an Element Ready™ 750 watt, full-range class-D model, capable of operating at 4Ω or 2Ω stereo, and 4Ω bridged/mono with a subwoofer channel that can be run at 4Ω or 2Ω. This amplifier is extremely efficient because of its class D technology which reduces demand on the electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass.
The M2 Series were developed for marine audio environments that feature UV resistant protection and special internal conformal coating that protect the electronics from water. It’s designed for those who want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. The latest generation of M2 Series amplifiers are also designed to be easy to setup and configure, making them perfect for use in any application.
- Element Ready™ design protects against outdoor exposure
- Conformal coated circuit board protects against dust and water
- UV stable powder coated cast aluminum heatsink
- Zinc Nickel-plated Marine grade brass connection terminals
- C.L.E.A.N. input/output clip detection and indicator LEDs
- Optimized using AudioGraph PowerCube measurement tool
- Continuously Variable On Board Punch EQ
- Includes RLC Remote Level Control
- Focused mass heat sink allows critical aluminum material to be located around hottest internal devices
- Top Mounted Control Panel
- Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
- 2/4/5 Channel Input Selection Switch
- Short Circuit & Over Current Protection
- Variable Infrasonic Filter
- Integrated Power and Speaker Terminals
- Balanced Differential Inputs eliminates noise picked up by signal cables
- Integration with OEM and Aftermarket Radios
- "Auto-Sense" turn-on with remote out (high level in)
- Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
- Low Impedance Stability
- Proprietary testing using RATS (Rockford Automated Testing System)
- CEA-2006 Compliant & CE Compliant
- Rollback Protection
- 2-Year Warranty
General Specifications
CEA-2006 Power Rating50W x 4 + 200W x 1 @ 4Ω
≤1.0% THD+N
(Sum of Rated Power)
(RMS Continuous Power)
100 Watts x 4 + 350 Watts x 1 @ 2Ω
200 Watts x 2 + N/A @ 4Ω Bridged/Mono
(PVC/PowerCube®)
114 Watts x 4 + 426 Watts x 1 @ 2Ω
234 Watts x 2 + N/A @ 4Ω Bridged/Mono
High-Level: 450 mV - 12 V
2Ω: <1.0%
Front High-Level: 4-Pin Molex
Rear Low-Level: 2 RCA
Rear High-Level: 4-Pin Molex
Sub Low-Level: 2 RCA
Sub High-Level: 4-Pin Molex
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Front Low-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Rear High-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Rear Low-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Sub Low-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Sub Infrasonic:
15 Hz - 40 Hz @ 12dB/Octave Butterworth
C.L.E.A.N. In
C.L.E.A.N. Out (front)
C.L.E.A.N. Out (rear)
C.L.E.A.N. Out (sub)
(not included)
(4.9 cm x 17.3 cm x 28.5 cm)
2x Rockford Fosgate M1-65B 6.5” Color Optix Marine 2-Way System- 75 Watts Rms, 300 Watts Peak, Black Grilles Included (M1-65B)
Rockford Fosgate M1 6.5” Color Optix™ Marine 2-Way Speakers - Black
The M1-65B Color Optix™ 2-way 6.5” speakers deliver loud, clear, accurate sound, and light the way for your journey! The speakers connect with the Rockford Fosgate Color Optix™ Controller and RF Connect App, allowing you to customize your own color patterns. The Element Ready™ design and IPX6 certification makes them truly purpose-built for marine or motorsport applications where protection from damaging UV rays and water spray is essential.
The M1 series of Element Ready™ speakers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the speaker. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To complete your sound experience, the M1 speakers are complimented by 8-inch, 10-inch and 12-inch subwoofers, also controlled through the Color Optix™ lighting system.
- Optically clear UV stable RGB Lighting Encapsulation
- Multiplexed RGB Input
- Ultra-Bright, Wide Angle Tri-Color Surface Mount LED's with Flat Mold Lenses
- Grill Integrated 1" (25 mm) LCP Balanced Dome Tweeter
- 1" (25mm) High Temp Kapton™ Woofer Voice Coil Former
- Sealed motor design
- 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
- Zinc Nickel-plated Marine grade brass connection terminals
- Proprietary Dual Function Input Terminals
- Integrated Deutsch RGB and Speaker receptacles
- Linear Synthetic Fiber Blend Spiders
- Santoprene VAST Surround
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Co-molded surround and mineral filled polypropylene cone body
- 6dB/Octave crossover network
- Fully sealed integrated concealed crossover (ICC) network
- 2-Year Warranty
Specifications
300 Watts Peak
1x Rockford Fosgate M1D4-10B 10" Color Optix Marine Subwoofer- DVC (4-Ohm), 300 Watts Rms, 1200 Watts Peak, Black Grille Included (M1D4-10B)
Rockford Fosgate M1 10" DVC 4Ω Color Optix™ Marine Subwoofer - Black
The M1D4-10B Color Optix™ 10” DVC 4-Ohm subwoofers deliver loud, clear, accurate bass, and light the way for your journey! The subwoofers connect with the Rockford Fosgate Color Optix™ Controller and RF Connect App, allowing you to customize your own color patterns. The Element Ready™ design and IPX6 certification makes them truly purpose-built for marine or motorsport applications where protection from damaging UV rays and water spray is essential.
The M1 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M1 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 2 and 8 ohms as easy as flipping a switch.
- Optically clear UV stable RGB Lighting Encapsulation
- Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
- Vented motor design with water-repelling nano coated mesh screen
- 2" (50mm) High Temp Kapton™ Woofer Voice Coil Former
- Fully insulated silicone tinsel leads
- 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
- Zinc Nickel-plated Marine grade brass connection terminals
- Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
- Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
- Linear Synthetic Fiber Blend Spiders
- Santoprene VAST Surround
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Co-molded surround and mineral filled polypropylene cone body
- Injection molded mineral filled polypropylene cone body with UV inhibitors
- VERSA impedance switch quickly allows series or parallel configuration without additional wiring
- 2-Year Warranty
Specifications
1200 Watts PEAK
