Description
Included in this kit
This bundle includes a Rockford Fosgate PMX-5CAN 1.75 Din 2.7” Marine Wet Bonded Ipx6 Color Media Receiver, Nmea 2000 Protocol & Remote Compatible, 2 Zone Control, 2x Rockford Fosgate PMX-1R 2.7” Wet Bonded Ipx6 Color Wired Remote, Compatible With Pmx-2, Pmx-3, Pmx-5can And Pmx-8bb, a Rockford Fosgate PMXYC Y Cable For Pmx-1r & Pmx-0r, and 2x Rockford Fosgate PMX25C 25 Ft Extension Cable For Pmx-1r & Pmx-0r.
1x Rockford Fosgate PMX-5CAN 1.75 Din 2.7” Marine Wet Bonded Ipx6 Color Media Receiver, Nmea 2000 Protocol & Remote Compatible, 2 Zone Control (PMX-5CAN)
Rockford Fosgate Punch Marine AM/FM/WB Multi-Zone Digital Media Receiver 2.7" Display w/ CANbus
The PMX-5CAN is an AM/FM/WB tuner and digital media receiver with 2.7" full color display with CAN bus functionality. Features CANbus functionality for connection to Raymarine MFD (Multi-Function Display) systems using PMX-CAN.
The PMX-5CAN digital media receiver is designed for marine and motorsports systems.
The PMX-5CAN features a 2.7"full color TFT display for optimum viewing - even in full sun - that is optically wet bonded to prevent any dust or moisture penetration. It is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination and front mounted sub level controls. Additionally, with features such as SiriusXM and Pandora capabilities, Bluetooth audio steaming with album art support for Apple and Android products and true 2 zone/2 source control, this unit becomes a true command center of any system.
Output flexibility comes a 4x50W @ 2ohm internal amplifier or dual zone output RCA's allowing the addition of after-market amplifiers for more power and output. Add in the EEPROM memory system, custom GUI interface and wired remote expansion capabilities and you have the only media receiver you'll ever need. The PMX-5CAN also features CANbus functionality for connection to Raymarine MFD (Multi-Function Display) systems using the PMX-CAN adaptor.
- ISO8846/SAE J1171 Ignition Protection Certified
- Stainless Steel Rear Chassis
- Steering Wheel Control Interface Compatible
- Pandora Internet Radio
- SiriusXM-Ready™
- A2DP and AVRCP Bluetooth Wireless Streaming
- FCC, CE, IC, and C-Tick Certified
- Multi Region Radio Frequencies
- Low Voltage Warning Alert
- AUX and USB Inputs with USB Charging
- On Board Punch EQ Control
- Independent Subwoofer Level Control
- Selectable HP / LP / AP Crossovers with Selectable Slope 12 / 24 dB/Oct
- IPX6 Marine Grade for prevention of water intrusion
- 7-Band Graphic EQ
- 2.7" full color display w/ auto dimming backlightning
- Zone Control: 2 Zone / 2 Source (F/R/S + F)
- AM / FM / WB Tuner
- CANbus (Controller Area Network) compatible. Requires PMX-CAN accessory
- Compatible with a Multi-Function Display using NMEA2K entertainment standard. See our MFD Compatibility Chart
- *Antenna not included
- 2-Year Warranty
Specifications
CEA-2006 Power Rating25W x 4 @ 4Ω RMS
50W x 4 @ 2Ω Peak
≤1.0% THD+N
Face Depth 1.5" (3.8cm)
Mount Depth 7.1" (18.2cm)
Height 3.5" (8.9cm)
Chassis to Face Top 0.9" (2.3cm)
Chassis to Face Bottom 0.59" (1.5cm)
(Yes/No)
Requires SXV300
(Yes/No)
(Yes/No)
(Yes/No)
(Yes/No)
(Yes/No)
(Yes/No)
(Yes/No)
(Yes/No)
Number Of Presets
Frequency Range
Sensitivity
Usable Sensitivity
Frequency Range
Frequency Range
(US & Canada)
Audio Format Compatibility
WMA
FLAC
iPod Touch (4th generation)
iPod Nano (7th generation)
iPod Nano (6th generation)
iPhone XS Max
iPhone XR (pending)
iPhone X
iPhone 8
iPhone 8 Plus
iPhone 7
iPhone 7 Plus
iPhone 6s
iPhone 6s Plus
iPhone 6
iPhone 6 Plus
iPhone 5S
iPhone 5C
iPhone 5
iPhone 4
iPhone 4S
Phone 3GS
999 Folders max
999 Songs max
2x Rockford Fosgate PMX-1R 2.7” Wet Bonded Ipx6 Color Wired Remote, Compatible With Pmx-2, Pmx-3, Pmx-5can And Pmx-8bb (PMX-1R)
Rockford Fosgate Punch Marine Wired Remote Control
The PMX-1R is a full function wired remote controller with a 2.7" full-color display for PMX source units. Requires PMX Extension cables.
Multi Zone Control, Front Panel Sub Control, Waterproof Rotary Encoder Volume Control, Front Panel Illumination Control, IPX6 Front Panel Certification, Back Lit LED Button Illumination. Works with all PMX source units. This remote requires the use of one of the following Rockford PMX Extension cables: PMX10C, PMX16C, PMX25C, PMX50C. Additional remotes can be added with the PMXYC Y-Adapter cable.
- 2.7" full color display w/ auto dimming backlightning
- Compatible wired remote for PMX-8BB
- Compatible wired remote for PMX-5 and PMX-5CAN
- Compatible wired remote for PMX-3
- Compatible wired remote for PMX-2
- NOTE: SiriusXM is compatible with PMX-8BB and PMX-5
- 2-Year Warranty
Specifications
106mm x 115mm x 64mm)
Faceplate Protrudes: 1.5" (38mm)
(Yes/No)
(Yes/No)
(Yes/No)
(Yes/No)
(Yes/No)
(Yes/No)
(Yes/No)
(Yes/No)
100 ft Total Wired Distance
(Yes/No)
(Yes/No)

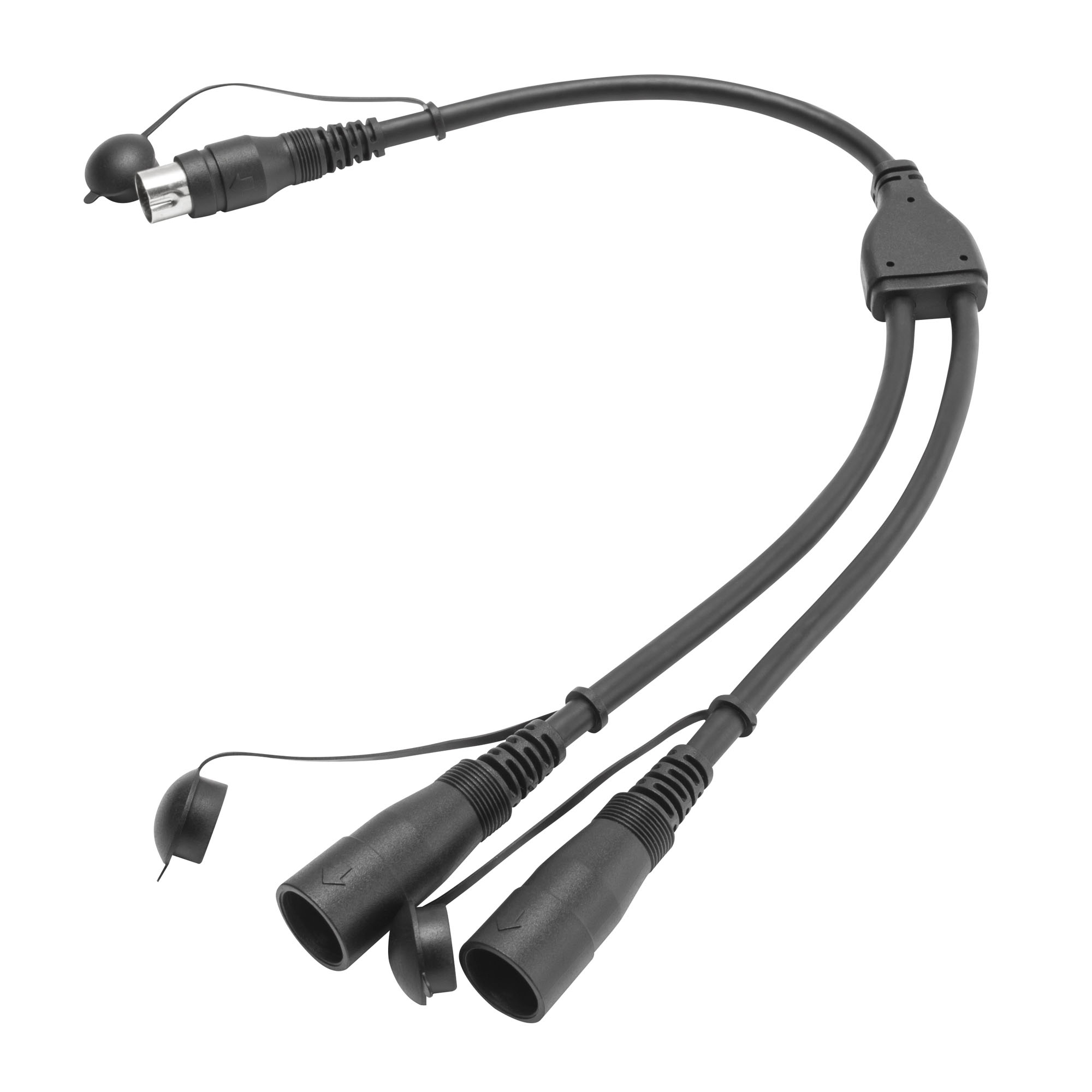

1x Rockford Fosgate PMXYC Y Cable For Pmx-1r & Pmx-0r (PMXYC)
Rockford Fosgate Punch Marine Y-Adaptor Cable
The PMXYC Y-adaptor allows installation of two remote controls with one source unit.
The PMXYC Y-adaptor allows installation of two remote controls with one source unit.
- Compatible extension cable for PMX-1R
- Compatible extension cable for PMX-0R
- 2-Year Warranty
2x Rockford Fosgate PMX25C 25 Ft Extension Cable For Pmx-1r & Pmx-0r (PMX25C)
Rockford Fosgate Punch Marine 25 Foot Extension Cable
The PMX25C is a 25-foot extension cable for the PMX-8DH, PMX-1R, or PMX-0R.
The PMX25C is a 25-foot extension cable for the PMX-8DH, PMX-1R, or PMX-0R.
- Compatible extension cable for PMX-8DH
- Compatible extension cable for PMX-1R
- Compatible extension cable for PMX-0R
- 2-Year Warranty
