Description
Included in this kit
This bundle includes a Rockford Fosgate P1-1X12 12" Ported Loaded Enclosure, 250 Watts Rms, - 4-Ohm Final, H 15.1” X W 19.1” X D 16.4”, a Rockford Fosgate R2-500X1 Mono Amplifier- 250x1 @ 4-Ohm, 500x1 @ 2-Ohm, and a Rockford Fosgate RFK8X Complete Amp Kit: 17ft 8awg Power Wire, 3 Foot 8awg Ground Wire, 30ft 16awg Spkr Wire, (1) 16ft Twisted Pair Rca, 20ft Remote Wire, Agu Fuse Holder, 40 Amp Fuse.
1x Rockford Fosgate P1-1X12 12" Ported Loaded Enclosure, 250 Watts Rms, - 4-Ohm Final, H 15.1” X W 19.1” X D 16.4” (P1-1X12)

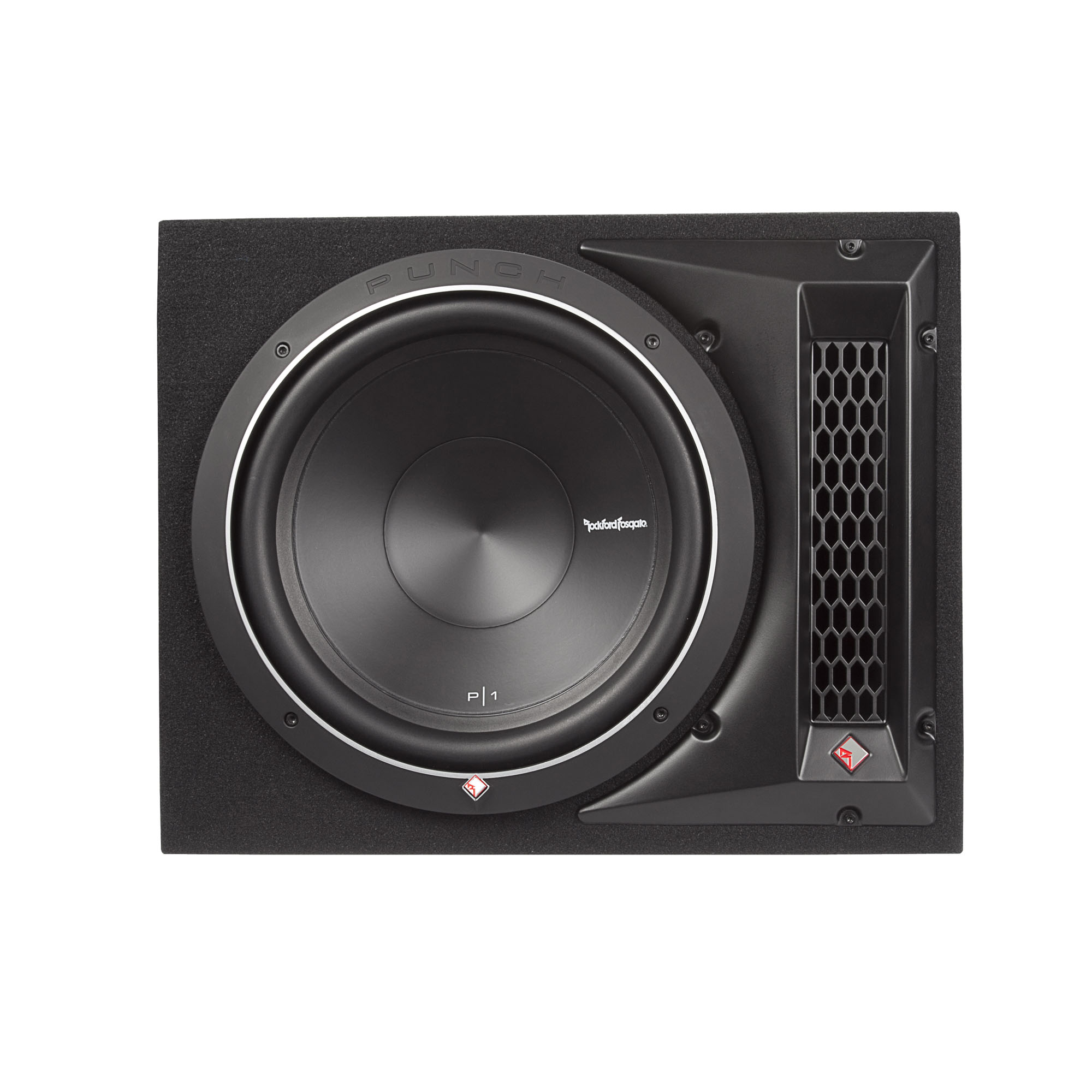

Rockford Fosgate Punch Single P1 12" Loaded Enclosure
The P1-1X12 is a single P1 12” vented enclosure with 250 Watts RMS power handling wired to a 4-Ohm load. The enclosure is constructed with 5/8” MDF, covered in high density carpet, and features quick release compression terminals.
The most convenient way to get low frequency bass in your system is to drop-in a Punch Loaded enclosure. We're not talking junk in the trunk, we're talking the same genuine Punch woofers available separately. Punch Loaded enclosures are constructed with durable 5/8" MDF and tuned by our computer aided design software. P1 Loaded Enclosures feature similar tonal performance as P2/P3 models, but are easier to move in-n-out of vehicles due to their lighter weight.
- Constructed with 5/8" MDF
- Proprietary high-flow, low-noise port
- High current binding posts
- 1 Year Warranty
Specifications
Internally wired to create a 4-Ohm amplifier load
500 Watts Max
Box (H x W x D)
Wedge (H x W x D1 x D2)
(38.4cm x 48.6cm x 40cm)
1x Rockford Fosgate R2-500X1 Mono Amplifier- 250x1 @ 4-Ohm, 500x1 @ 2-Ohm (R2-500X1)
Rockford Fosgate Prime 500 Watt Mono Amplifier
Primed for Performance, the R2-500X1 is a 500 watt, class-D amplifier capable of operating at 4Ω or 2Ω mono. This amplifier is extremely efficient because of its Class-D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass. Perfect for subwoofers, a variable infrasonic filter and remote level control allows you to tune the bass for the desired level for the music.
The R2 models were developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. These 3rd generation of Prime Series amplifiers are refined with the latest Rockford Fosgate technology for easy setup and configuration, making them perfect for use with factory audio or custom aftermarket systems.
- Balanced Differential Inputs with RCA Pass Through Outputs
- High Level Input Capable
- Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
- Features C.L.E.A.N. Set-up
- Variable Input Gain adjustment level
- Includes RLC Remote Level Control
- Variable Infrasonic Filter
- Continuously Variable On Board Punch EQ
- Top Mounted Control Panel
- Short Circuit & Over Current Protection
- CEA-2006 Compliant & CE Compliant
- Cast aluminum heat sink
- Class-D Topology
- Rollback Protection
- Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
- 1 Year Warranty
General Specifications
CEA-2006 Power Rating300W x 1 @ 4Ω
≤1.0% THD+N
(Sum of Rated Power)
(RMS Continuous Power)
500 Watts x 1 @ 2Ω
(PVC/PowerCube®)
590 Watts x 1 @ 2Ω
High-Level: 450 mV - 12 V
2Ω: <1.0%
High-Level: 4-Pin Molex
(Pass-Thru active with RCA or Hi-Level input)
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Infrasonic:
15 Hz - 40 Hz @ 12dB/Octave Butterworth
C.L.E.A.N. In
C.L.E.A.N. Out
(not included)
(4.9 cm x 17.3 cm x 21.5 cm)
1x Rockford Fosgate RFK8X Complete Amp Kit: 17ft 8awg Power Wire, 3 Foot 8awg Ground Wire, 30ft 16awg Spkr Wire, (1) 16ft Twisted Pair Rca, 20ft Remote Wire, Agu Fuse Holder, 40 Amp Fuse (RFK8X)
Rockford Fosgate 8 AWG Complete Installation Kit
8 gauge complete power, ground and signal installation kit for an amplifier.
Kit includes 17 feet of 8 AWG power wire, 3 foot of 8 AWG ground wire, 30 feet of 16 AWG speaker wire, (1) 16 feet twisted pair RCA, AGU fuse holder and fuse, 20 feet of remote wire, 40 Amp fuse.
- FULL spec cable - meets or exceeds AWG (American Wire Gauge) requirements
- 100% Pure Crystal-Oxygen Free Copper (PC-OFC)
- Includes appropriate wire termination hardware
- 8 AWG (8.36mm²) 735 strands
- 16 AWG (1.31mm²) 65 strands
- 1 Year Warranty
Specifications
