Description
Included in this kit
This bundle includes a Rockford Fosgate R2-500X1 Mono Amplifier- 250x1 @ 4-Ohm, 500x1 @ 2-Ohm, a Rockford Fosgate RFK8X Complete Amp Kit: 17ft 8awg Power Wire, 3 Foot 8awg Ground Wire, 30ft 16awg Spkr Wire, (1) 16ft Twisted Pair Rca, 20ft Remote Wire, Agu Fuse Holder, 40 Amp Fuse, and a Rockford Fosgate P3SD4-10 10" Slim Subwoofer - Dual 4-Ohm, 300W RMS, 600W Peak.
1x Rockford Fosgate R2-500X1 Mono Amplifier- 250x1 @ 4-Ohm, 500x1 @ 2-Ohm (R2-500X1)
Rockford Fosgate Prime 500 Watt Mono Amplifier
Primed for Performance, the R2-500X1 is a 500 watt, class-D amplifier capable of operating at 4Ω or 2Ω mono. This amplifier is extremely efficient because of its Class-D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass. Perfect for subwoofers, a variable infrasonic filter and remote level control allows you to tune the bass for the desired level for the music.
The R2 models were developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. These 3rd generation of Prime Series amplifiers are refined with the latest Rockford Fosgate technology for easy setup and configuration, making them perfect for use with factory audio or custom aftermarket systems.
- Balanced Differential Inputs with RCA Pass Through Outputs
- High Level Input Capable
- Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
- Features C.L.E.A.N. Set-up
- Variable Input Gain adjustment level
- Includes RLC Remote Level Control
- Variable Infrasonic Filter
- Continuously Variable On Board Punch EQ
- Top Mounted Control Panel
- Short Circuit & Over Current Protection
- CEA-2006 Compliant & CE Compliant
- Cast aluminum heat sink
- Class-D Topology
- Rollback Protection
- Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
- 1 Year Warranty
General Specifications
CEA-2006 Power Rating300W x 1 @ 4Ω
≤1.0% THD+N
(Sum of Rated Power)
(RMS Continuous Power)
500 Watts x 1 @ 2Ω
(PVC/PowerCube®)
590 Watts x 1 @ 2Ω
High-Level: 450 mV - 12 V
2Ω: <1.0%
High-Level: 4-Pin Molex
(Pass-Thru active with RCA or Hi-Level input)
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Infrasonic:
15 Hz - 40 Hz @ 12dB/Octave Butterworth
C.L.E.A.N. In
C.L.E.A.N. Out
(not included)
(4.9 cm x 17.3 cm x 21.5 cm)
1x Rockford Fosgate RFK8X Complete Amp Kit: 17ft 8awg Power Wire, 3 Foot 8awg Ground Wire, 30ft 16awg Spkr Wire, (1) 16ft Twisted Pair Rca, 20ft Remote Wire, Agu Fuse Holder, 40 Amp Fuse (RFK8X)
Rockford Fosgate 8 AWG Complete Installation Kit
8 gauge complete power, ground and signal installation kit for an amplifier.
Kit includes 17 feet of 8 AWG power wire, 3 foot of 8 AWG ground wire, 30 feet of 16 AWG speaker wire, (1) 16 feet twisted pair RCA, AGU fuse holder and fuse, 20 feet of remote wire, 40 Amp fuse.
- FULL spec cable - meets or exceeds AWG (American Wire Gauge) requirements
- 100% Pure Crystal-Oxygen Free Copper (PC-OFC)
- Includes appropriate wire termination hardware
- 8 AWG (8.36mm²) 735 strands
- 16 AWG (1.31mm²) 65 strands
- 1 Year Warranty
Specifications

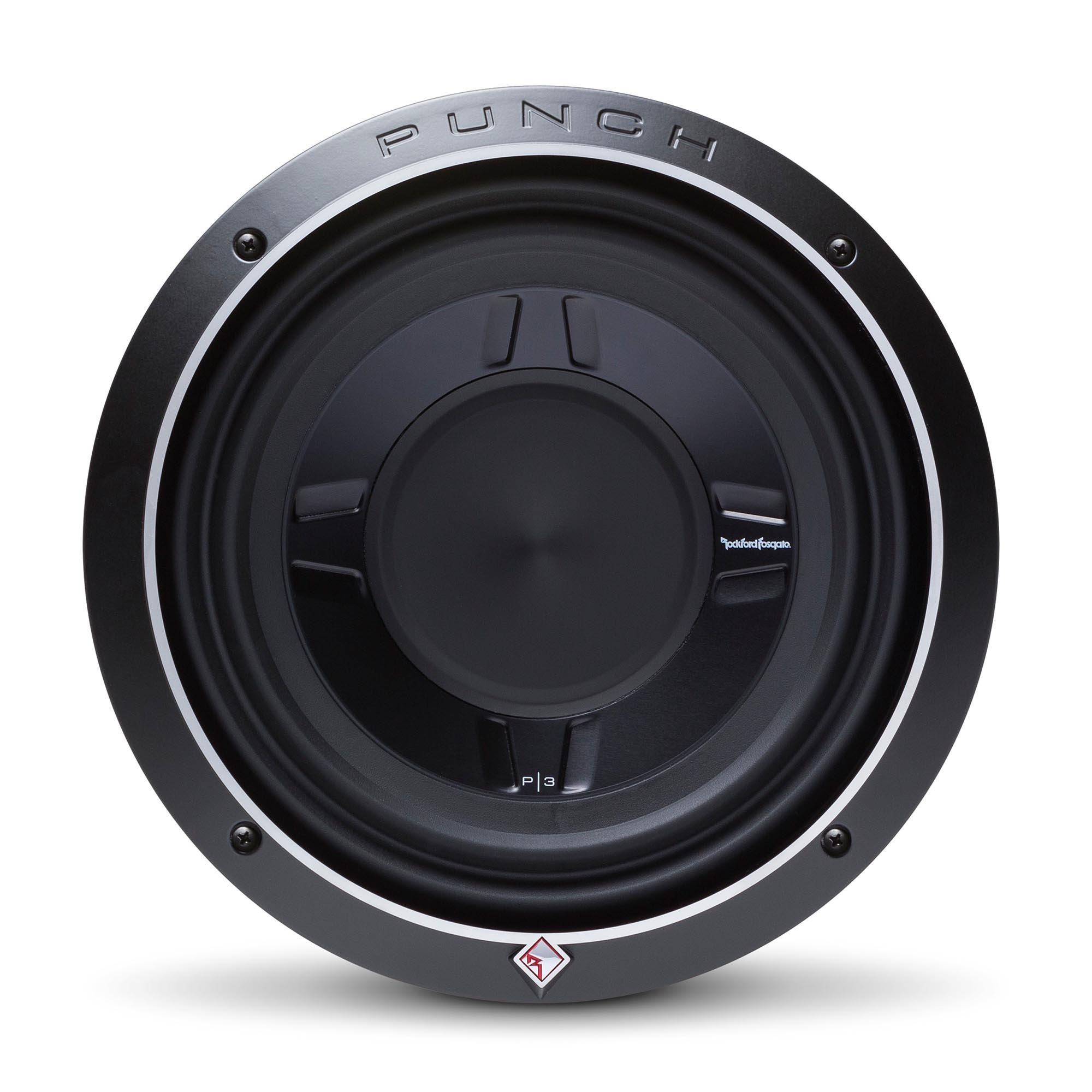

1x Rockford Fosgate P3SD4-10 10" Slim Subwoofer - Dual 4-Ohm, 300W RMS, 600W Peak (P3SD4-10)
Rockford Fosgate Punch 10" P3S Shallow 4-Ohm DVC Subwoofer
Rockford Fosgate P3S 10" shallow mount subwoofer delivers “Punch” even when depth is limited. The P3SD4-10 features Dual 4-Ohm voice coils for wiring flexibility and 300 Watts RMS power handling.
The Rockford Fosgate P3S 10" shallow mount subwoofer delivers Punch, even in depth limited situations. Rockford Fosgate understands all vehicles are not the same, because some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application. Shallow woofers are specifically designed for spaces where a traditional woofer cannot be used.
- M-Roll Santoprene™ surround
- StampCast basket with integrated spider venting
- Anodized aluminum cone and dustcap
- Dual linear spider with embedded 16 AWG tinsel leads
- Diamond cut cast aluminum trim ring with optional grille
- Shallow Motor Assembly
- Optimized for both sealed and vented enclosures
- 1 Year Warranty
Specifications
600 Watts Max
