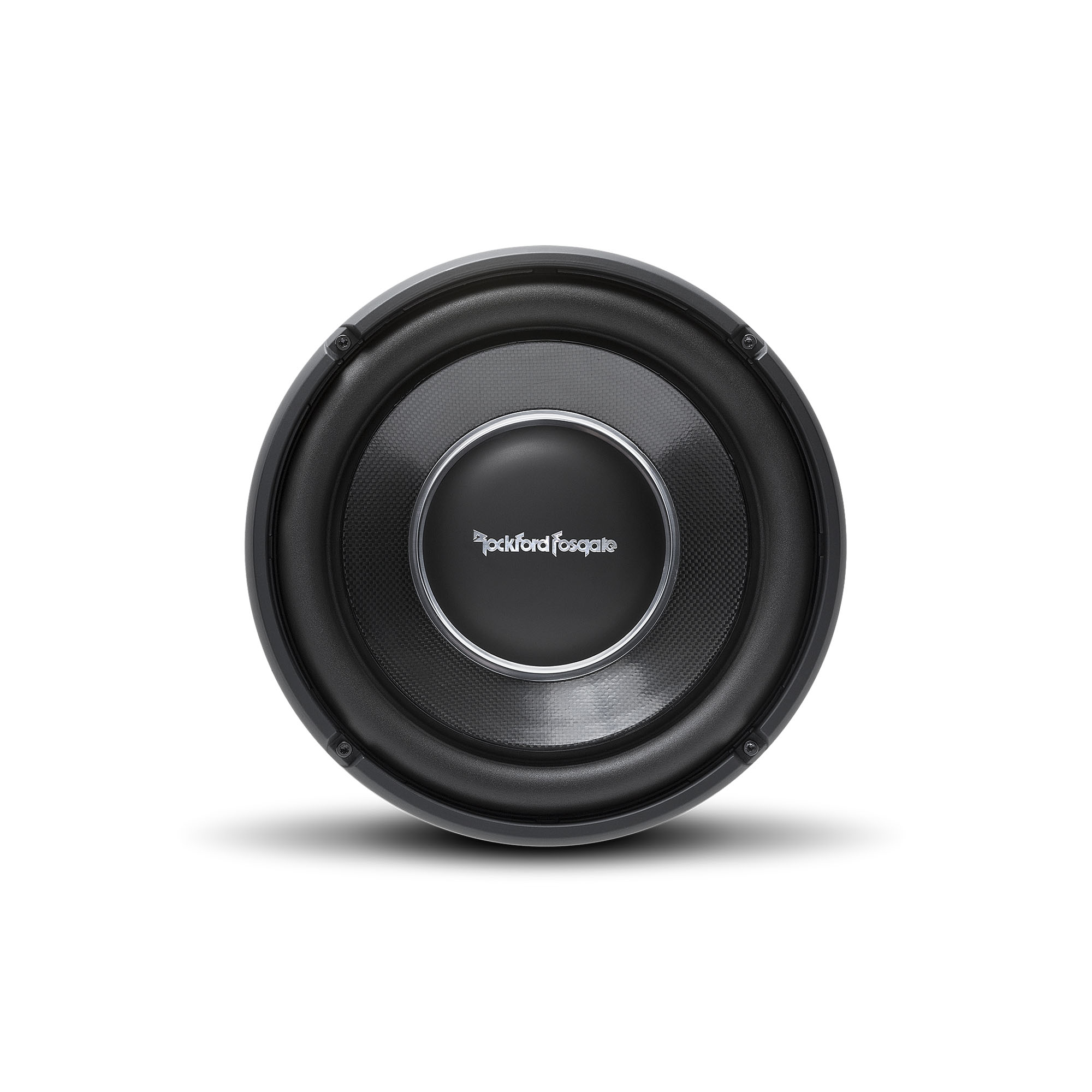

Rockford T1S2-12 Shallow 12in Sub, T750X1BD Amp and 4GA Kit

Kit includes 17 feet of 4 AWG power wire, 3 feet of 4 AWG ground wire, 30 feet of 16 AWG speaker wire, (1) 16 feet twisted pair RCA, Maxi fuse holder and fuse, 20 feet of remote wire, 100 Amp fuse.

• FULL spec cable - meets or exceeds AWG (American Wire Gauge) requirements
• 100% Pure Crystal-Oxygen Free Copper (PC-OFC)
• Includes appropriate wire termination hardware
• 4 AWG (21.1mm²) 1,862 strands
• 16 AWG (1.31mm²) 65 strands
• 1 Year Warranty

Need bass but don't have a lot of space? How about more power handling than your average shallow subwoofer? Well, the T1 "Slimline" subwoofers are not your average shallow, in fact, they have been painstakingly designed to near exact performance characteristics of traditional sized Power T1 subwoofers you're already familiar with.

We're calling these "slim" subwoofers because they don't take a lot of depth and offer bass response similar to a traditional sized model. How can this be true? Well, let's just say the Wizards-of-Fos engineered an ingenious slotted voice coil assembly that exhibits long excursion travel. Don't worry, you don't need to understand it, you just have to listen to how awesome they sound!

• Carbon fiber/PMI/glass fiber cone with aluminum dustcap
• Injection molded foam surround with VAST™
• Dual Nomex progressive spiders with integrated lead wires
• Aluminum diecast frame with integrated heat sink fins
• Custom insulated push spring 10 AWG terminals
• Dual wound 2.5" voice coil with interior/exterior windings
• Encapsulating voice coil to former coupling technology (patent pending)
• Detachable die cast aluminum trim ring
• Vented pole piece
• High temp high energy neodymium motor structure
• Proprietary split yoke pass thru motor technology (patent pending)
• Integrated copper cap heat sinking shorting ring (IDHS)
• Optional grille insert available
• Optimized for sealed enclosures
• 1 Year Warranty

The Power T750X1bd 750 Watt mono, ultra-compact amplifier is built on Rockford Fosgate’s patented Class bd technology platform. This design creates a highly efficient design that reduces the electrical impact on the vehicles charging system by using the efficient Class D technology while maintaining fidelity combining it with Class b topology.

Flexible vehicle integration is achieved via a configurable input harness with Molex style connectivity that accepts both RCA and speaker level signals while our differential input circuitry eliminates signal noise from entering the amplifier resulting in a clean audio signal. When using speaker level input signals, the amplifier also has integrated auto turn-on capabilities and converts its remote input terminal to an output that can be used to turn-on additional amplifiers.

This can eliminate the need of sourcing a separate remote turn-on signal for the amplifier from the vehicle. Top mounted controls allow easy access to the built-in low pass crossover, patented Punch EQ boost circuit and our patented C.L.E.A.N. input/output clip detection circuits. The 3-stage thermal lock extrusion with dual fan forced induction keeps everything cool while our real-time thermal/protection schemes safeguard the amplifier in the event of overheating or short circuit conditions. The unit is also compatible with our Punch PLC2 remote level controller and is ideal for those installations where you need a compact amplifier that can produce high output power.

• Class-BD
• Constant Power provides instantaneous delivery of output over varying impedance loads
• Differential inputs with high level auto turn-on feature
• Upgraded RCA connectors
• 8 AWG Power/Ground connector. 10 AWG speaker connector
• Remote-Out feature when using high level inputs
• 2013 PLC2 remote ready
• C.L.E.A.N. input/output clip detection and indicator LEDs
• Top mounted controls
• Dual fan cooled
• Real time thermal sensing with Rollback technology
• Dual extruded heat sinks
• All other normal Rockford protection schemes
• CEA-2006 and CE compliant
• Discrete surface mount technology
• 2-Year Warranty
