Description
Included in this kit
This bundle includes a Rockford Fosgate RFBTRCA Universal Bluetooth Receiver To Rca For Wireless Streaming, a Rockford Fosgate M2-300X4 4 Channel Element Ready Amplifier- 50x4 @ 4-Ohm, 75x4 @ 2-Ohm, 150x2 @ 4-Ohm Bridged, and 2x Rockford Fosgate RM1652B Black 6.5” Marine Full Range Coaxial With Integrated Grilles- 75 Watts Rms, 150 Watts Peak.

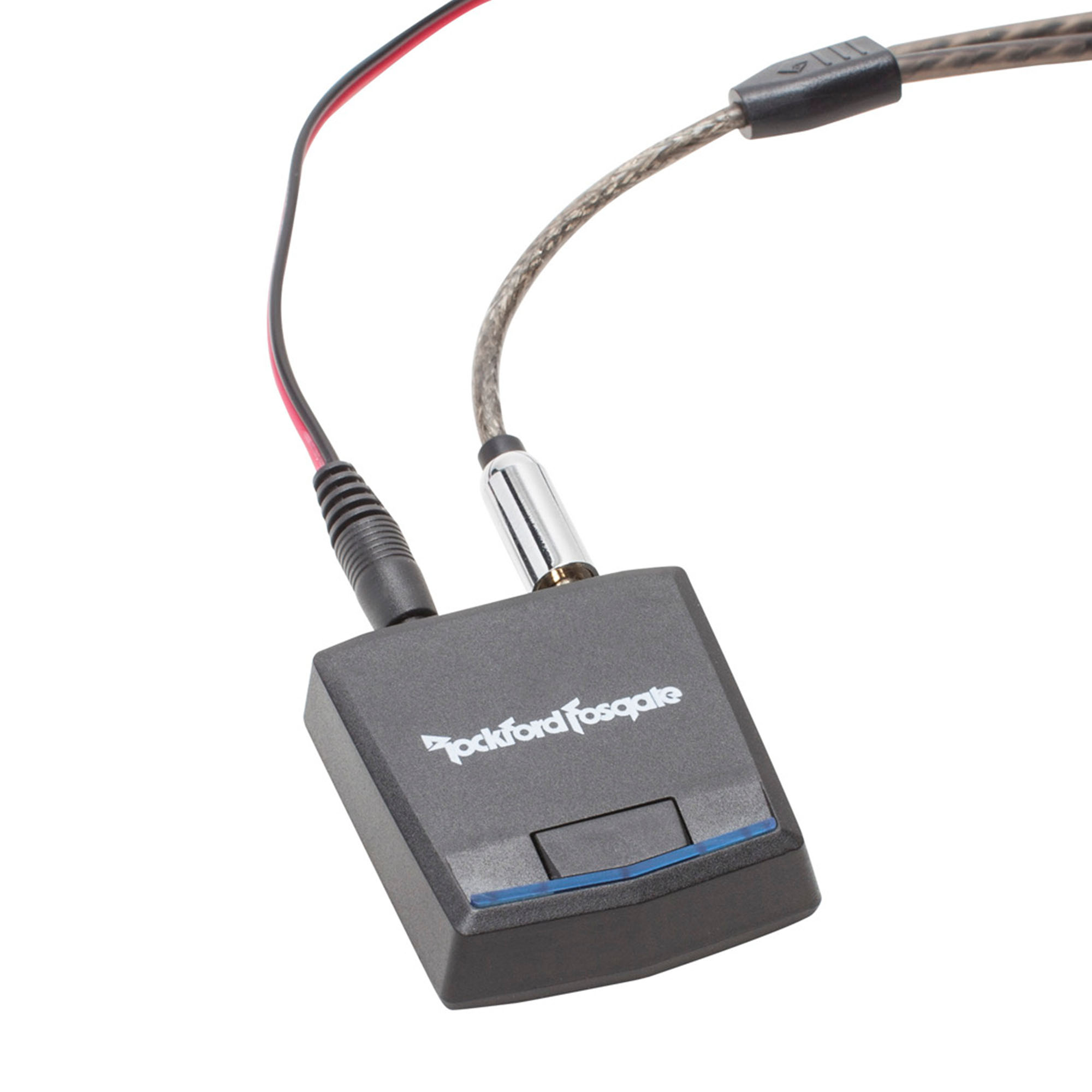

1x Rockford Fosgate RFBTRCA Universal Bluetooth Receiver To Rca For Wireless Streaming (RFBTRCA)
The RFBTRCA universal Bluetooth™ adapter allows to wirelessly stream media (music library, Pandora, Rhapsody, etc) from a Bluetooth™ enabled device through stereo RCA output jacks. Auxiliary input powered by the vehicle’s 12V accessory socket. Easy 1-button pairing function binds to Bluetooth™ enabled device and chimes on subsequent connections. Supplied 1/8” (3mm) cable sends audio through RCA outputs directly feeding audio system. Compatible with most Bluetooth™ devices, including smartphones, tablets, and laptops.
Features:
Bluetooth™ streaming receiver
12VDC wired connection
1/8" (3.5mm) to stereo RCA audio output
Simple one button pairing
Auto connect after initial pairing
Class 2 output power
Bluetooth™ V3.0+EDR
33 foot range
3 ft. (1m) 1/8" (3.5mm) to male RCA audio cable included
Compatible with Apple & Android Bluetooth™ devices
1 Year Warranty
Specifications:
Output Voltage: 800 mV
Signal Processing: Bluetooth™ Profile: V3.0 + EDR
Frequency Response: 20 Hz - 20 kHz
Operating Voltage: 9-16 VDC, 8" long coaxial power -to- bare wire +/-, Connector Type C: 3.8 mm OD, 1.4 mm ID
Dimensions (H x W x D)0.51" x 1.90" x 1.95" (13 mm x 48 mm x 49 mm)
Shipping Weight: 0.28 Lbs. (0.127 Kg.)
Processor Type: Streaming Device
Mounting: Dash/Surface Mount
Signal-to-Noise: >90 dB (DAC), >80 dB (Max Output)
Signal Output: 2-ch audio., 3 ft. (1m) long output cable, 1/8" (3.5mm) stereo -to- L/R male RCA
THD+N: <1.0
LED Indicators: Power: Center Solid Blue, Pairing: Left/Right Blinking Blue, Connected: All Solid Blue
Signal Input: Wireless Bluetooth
1x Rockford Fosgate M2-300X4 4 Channel Element Ready Amplifier- 50x4 @ 4-Ohm, 75x4 @ 2-Ohm, 150x2 @ 4-Ohm Bridged (M2-300X4)
Rockford Fosgate M2 300 Watt 4-Channel Element Ready™ Amplifier
Designed to withstand the elements, the M2-300X4 Element Ready™ amplifier is a 300 watt, full-range class-D model, capable of operating at 4Ω or 2Ω stereo, and 4Ω bridged/mono. This amplifier is extremely efficient because of its class D technology which reduces demand on the electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases.
The M2 Series were developed for marine audio environments that feature UV resistant protection and special internal conformal coating that protect the electronics from water. It’s designed for those who want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. The latest generation of M2 Series amplifiers are also designed to be easy to setup and configure, making them perfect for use in any application.
- Element Ready™ design protects against outdoor exposure
- Conformal coated circuit board protects against dust and water
- UV stable powder coated cast aluminum heatsink
- Zinc Nickel-plated Marine grade brass connection terminals
- C.L.E.A.N. input/output clip detection and indicator LEDs
- Optimized using AudioGraph PowerCube measurement tool
- Focused mass heat sink allows critical aluminum material to be located around hottest internal devices
- Top Mounted Control Panel
- Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
- Short Circuit & Over Current Protection
- 2/4 channel input switch
- Integrated Power and Speaker Terminals
- Balanced Differential Inputs eliminates noise picked up by signal cables
- RCA pass-thru outputs
- Integration with OEM and Aftermarket Radios
- "Auto-Sense" turn-on with remote out (high level in)
- Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
- Low Impedance Stability
- Proprietary testing using RATS (Rockford Automated Testing System)
- CEA-2006 Compliant & CE Compliant
- 2-Year Warranty
General Specifications
CEA-2006 Compliant
CEA-2006 Power Rating50W x 4 @ 4Ω
≤1.0% THD+N
Cta-2006 Compliant
Number of Channels
4
Total Power
(Sum of Rated Power)
(Sum of Rated Power)
300 Watts
Rated Power
(RMS Continuous Power)
(RMS Continuous Power)
50 Watts x 4 @ 4Ω
75 Watts x 4 @ 2Ω
150 Watts x 2 @ 4Ω Bridged/Mono
75 Watts x 4 @ 2Ω
150 Watts x 2 @ 4Ω Bridged/Mono
Dynamic Power
(PVC/PowerCube®)
(PVC/PowerCube®)
70 Watts x 4 @ 4Ω
115 Watts x 4 @ 2Ω
230 Watts x 2 @ 4Ω Bridged/Mono
115 Watts x 4 @ 2Ω
230 Watts x 2 @ 4Ω Bridged/Mono
Bridgeable
Yes
Frequency Response
20 Hz - 20 kHz
Input Sensitivity
Low-Level: 150 mV - 4 V
High-Level: 450 mV - 12 V
High-Level: 450 mV - 12 V
Circuit Topology Class
Class D
Efficiency (average)
Total Harmonic Distortion (THD+Noise)
4Ω: <1.0%
2Ω: <1.0%
2Ω: <1.0%
Signal Input
Front Low-Level: 2 RCA
Front High-Level: 4-Pin Molex
Rear Low-Level: 2 RCA
Rear High-Level: 4-Pin Molex
Input Switch: 2/4 Input
(works for RCA/High-Level inputs)
Front High-Level: 4-Pin Molex
Rear Low-Level: 2 RCA
Rear High-Level: 4-Pin Molex
Input Switch: 2/4 Input
(works for RCA/High-Level inputs)
Signal Output
Low-Level: 2 RCA
(Pass-Thru active with RCA or Hi-Level input)
(Pass-Thru active with RCA or Hi-Level input)
Tone Controls
No
Crossover Controls
Front High-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Front Low-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Rear High-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Rear Low-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth
All-Pass: Yes
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Front Low-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Rear High-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Rear Low-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth
All-Pass: Yes
Remote Controls
No
Visual Indicators
Power/Protect
C.L.E.A.N. In
C.L.E.A.N. Out (front)
C.L.E.A.N. Out (rear)
C.L.E.A.N. In
C.L.E.A.N. Out (front)
C.L.E.A.N. Out (rear)
Power Wire Gauge
4 AWG
Power Input Connector
Compression Terminal Block
Speaker Wire Gauge
8 AWG
Speaker Output Connector
Compression Terminal Block
Cooling
Convection
Heatsink
Operating Voltage
9 - 16 VDC
Recommended Fuse
(not included)
(not included)
60 A
Average Current Draw (13.8V Music)
Max. Current Draw (13.8V Sinewave)
39 A
Suggested Alternator
Dimensional Diagram
Dimensions (H x W x D)
1.9" x 6.8" x 10.1"
(4.9 cm x 17.3 cm x 25.5 cm)
(4.9 cm x 17.3 cm x 25.5 cm)
Shipping Weight
4.75 Lbs. (2.15 Kg)
2x Rockford Fosgate RM1652B Black 6.5” Marine Full Range Coaxial With Integrated Grilles- 75 Watts Rms, 150 Watts Peak (RM1652B)
Rockford Fosgate Prime Marine 6.5" Full Range Speakers - Black
The RM1652B Prime 6.5" is a 2-way component system with a coaxially integrated tweeter featuring marine grade weather proofing technologies. Supplied in all black with matching grille.
The Rockford Fosgate RM marine grade standard takes into account the devastating effects of the outdoor environment and takes extreme measures to ensure optimum performance.
The Marine RM full-range speakers are perfect for anyone looking to add some FANATIC sound to their vessel, and will always sound great when listening to your music at the dock or while tearing up the waves at full throttle.
- True Marine Grade compliance
- 100% UV stable ASA injection molded plastic parts
- Injection molded mineral filled polypropylene cone body with UV inhibitors
- UV and Salt-Fog Resistant Santoprene Surround
- Grill integrated 1" LCP volcano dome tweeter
- Ultra-flexible fully insulated silicone lead wire
- Corrosion resistant quick disconnect speaker terminals
- Moisture, tear and fatigue resistant Aramid fiber spider
- Available in black or white
- 2-Year Warranty
Specifications
Nominal Impedance (Ohms)
4-Ohm
CEA-2031 Compliant
Tweeter Size
(Nominal Diameter)
(Nominal Diameter)
1.0" (25 mm)
Sensitivity
(dB @ 1W/1M)
(dB @ 1W/1M)
89
Crossover
High-Pass (HP): 6dB/Octave
Power Handling (RMS)
75 Watts RMS
150 Watts Max
150 Watts Max
Speaker Type
2-Way Coax
Shipping Weight
Midrange Mounting Depth
2.5 in. (63 mm)
Frequency Response (Hz)
49Hz - 20kHz
Grille/Trim Ring Included
Yes
Mounting Hardware
Stainless Steel
Midrange Size
(Nominal Diameter)
(Nominal Diameter)
6.5"
