Description
Included in this kit
This bundle includes a Rockford Fosgate PMX-RGB Color Optix Light Controller With Optional App Interface, a Rockford Fosgate RGB-Y6P 6-Pin Color Optix™ Y-Adaptor for PMX-RGB (Gen-2), and 2x Rockford Fosgate RGB-6 6 Ft Color Optix Extension Cable To Be Used With Pmx-Rgb & RGB-Y4P or RGB-Y6P.
1x Rockford Fosgate PMX-RGB Color Optix Light Controller With Optional App Interface (PMX-RGB)
Rockford Fosgate PMX-RGB Color Optix™ Lighting Controller
The Rockford Fosgate PMX-RGB Color Optix™ controller provides centralized LED lighting control for Color Optix™ M1 and M2 speakers and subwoofers. Designed for marine environments, the controller allows you to create a unified lighting ecosystem that works seamlessly across your audio system.
When paired with the RF Connect™ smartphone app, users can customize lighting colors and effects directly from their mobile device. The controller supports lighting control for up to 16 Color Optix™ speakers or subwoofers, allowing for large multi-speaker installations while maintaining synchronized lighting effects.
Lighting Control & App Integration
- Controls LED lighting for Color Optix™ M1 and M2 speakers and subwoofers
- Supports up to 16 speakers or subwoofers from a single controller
- RF Connect™ smartphone app compatibility for lighting customization
- Multiple PMX-RGB controllers supported within the RF Connect™ ecosystem
Installation & System Integration
The PMX-RGB controller operates on a wide 9VDC–24VDC input range, allowing it to integrate into a variety of marine electrical systems. The unit includes extended power and signal leads to simplify installation in multi-speaker setups.
- Red and black power/ground leads extend 16 inches from the controller
- Eight female signal outputs with 16.5 inch leads
- Internal 2 Amp fuse for circuit protection
- Stainless steel mounting hardware included
Additional links and Y-adaptors are available separately for expanded lighting connections.
Specifications
| Max Speaker Capacity | Up to 16 Speakers / Subwoofers (slight dimming may occur at end of string) |
| Operating Voltage | 9VDC – 24VDC |
| Power / Ground Cable | Red & Black leads extend 16" |
| Signal Outputs | 8 female outputs with 16.5" leads |
| Internal Fuse | 2 Amp |
| RF Connect™ Capacity | Unlimited number of PMX-RGB controllers supported |
| Warranty | 2-Year |

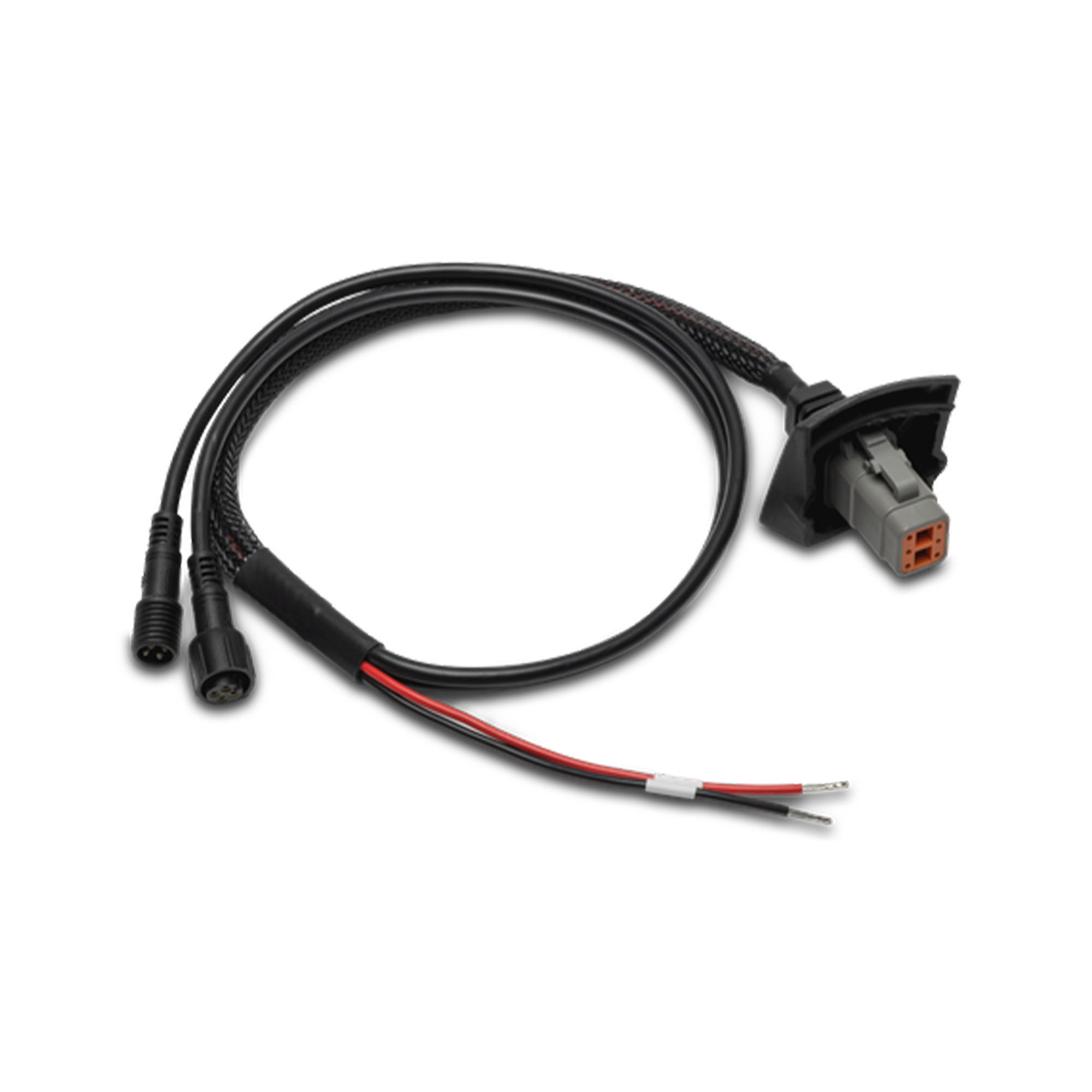

1x Rockford Fosgate RGB-Y6P 6-Pin Color Optix™ Y-Adaptor for PMX-RGB (Gen-2) (RGB-Y6P)
Plug-and-play Y-adaptor simplifies the installation of additional Color Optix™ speakers. Simply connect this Y-adaptor to the RGB controller or RGB-6/16/25 extension cable, plug-in the speaker's Deutsch™ connector, then use the additional 6-pin female connector to daisy-chain an additional speaker. Check compatibility chart of Rockford Fosgate marine audio speakers before purchasing.
Color Optix™ cables provide a water-tight seal for electrical connections between our RGB controller and matching Color Optix™ speaker. The cable carries DC low voltage, designed to illuminate the appropriate LEDs behind the speaker grille. The IPX6 rating ensures your connections are water-tight when properly secured.
Features -
• Element Ready™ Deutsch™ / Amphenol™ connector IP7 rated
• Y-adapter allows for daisy-chaining multiple speakers on a single run
• 2 conductor leads for speaker (+) and (-)
• True Marine ecoSystem that works together with Color Optix™ controller
• Ensures connections remain waterproof and safe from elements.
• Compatible with M1/M2 speakers and subwoofers
• 2-Year Warranty
• No cutting, no splicing
2x Rockford Fosgate RGB-6 6 Ft Color Optix Extension Cable To Be Used With Pmx-Rgb & RGB-Y4P or RGB-Y6P (RGB-6)
Plug and play extension cable that makes the installation of the PMX-RGB controller and RGB LED speakers simple. Extends distance between RGB controller to speaker by 6 feet.
Features -
• Element Ready™ Deutsch™ / Amphenol™ connector IP7 rated
• Controller illuminates up to 8 Color Optix™ speakers and/or subwoofers
• 2-Year Warranty
