Description
Included in this kit
This bundle includes a Rockford Fosgate R2-250X1 Mono Amplifier- 150x1 @ 4-Ohm, 250x1 @ 2-Ohm, and a Rockford Fosgate R2SD4-10 10“ Slim Subwoofer- DVC (dual 4-Ohm), 200 Watts Rms, 400 Watts Peak.
1x Rockford Fosgate R2-250X1 Mono Amplifier- 150x1 @ 4-Ohm, 250x1 @ 2-Ohm (R2-250X1)
Rockford Fosgate Prime 250 Watt Mono Amplifier
Primed for Performance, the R2-250X1 is a 250 watt, Class-D amplifier, capable of operating at 4Ω or 2Ω mono. This amplifier is extremely efficient because of its Class-D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass. Perfect for subwoofers, a variable infrasonic filter and remote level control allows you to tune the bass for the desired level for the music.
The R2 models are developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. These 3rd generation of Prime Series amplifiers are refined with the latest Rockford Fosgate technology for easy setup and configuration, making them perfect for use with factory audio or custom aftermarket systems.
- Balanced Differential Inputs with RCA Pass Through Outputs
- High Level Input Capable
- Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
- Features C.L.E.A.N. Set-up
- Variable Input Gain adjustment level
- Includes RLC Remote Level Control
- Variable Infrasonic Filter
- Continuously Variable On Board Punch EQ
- Top Mounted Control Panel
- Short Circuit & Over Current Protection
- CEA-2006 Compliant & CE Compliant
- Cast aluminum heat sink
- Class-D Topology
- Rollback Protection
- Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
- 1 Year Warranty
General Specifications
CEA-2006 Power Rating160W x 1 @ 4Ω
≤1.0% THD+N
(Sum of Rated Power)
(RMS Continuous Power)
250 Watts x 1 @ 2Ω
(PVC/PowerCube®)
328 Watts x 1 @ 2Ω
High-Level: 450 mV - 12 V
2Ω: <1.0%
High-Level: 4-Pin Molex
(Pass-Thru active with RCA or Hi-Level input)
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Infrasonic:
15 Hz - 40 Hz @ 12dB/Octave Butterworth
C.L.E.A.N. In
C.L.E.A.N. Out
(not included)
(4.9 cm x 17.3 cm x 20.5 cm)
1x Rockford Fosgate R2SD4-10 10“ Slim Subwoofer- DVC (dual 4-Ohm), 200 Watts Rms, 400 Watts Peak (R2SD4-10)

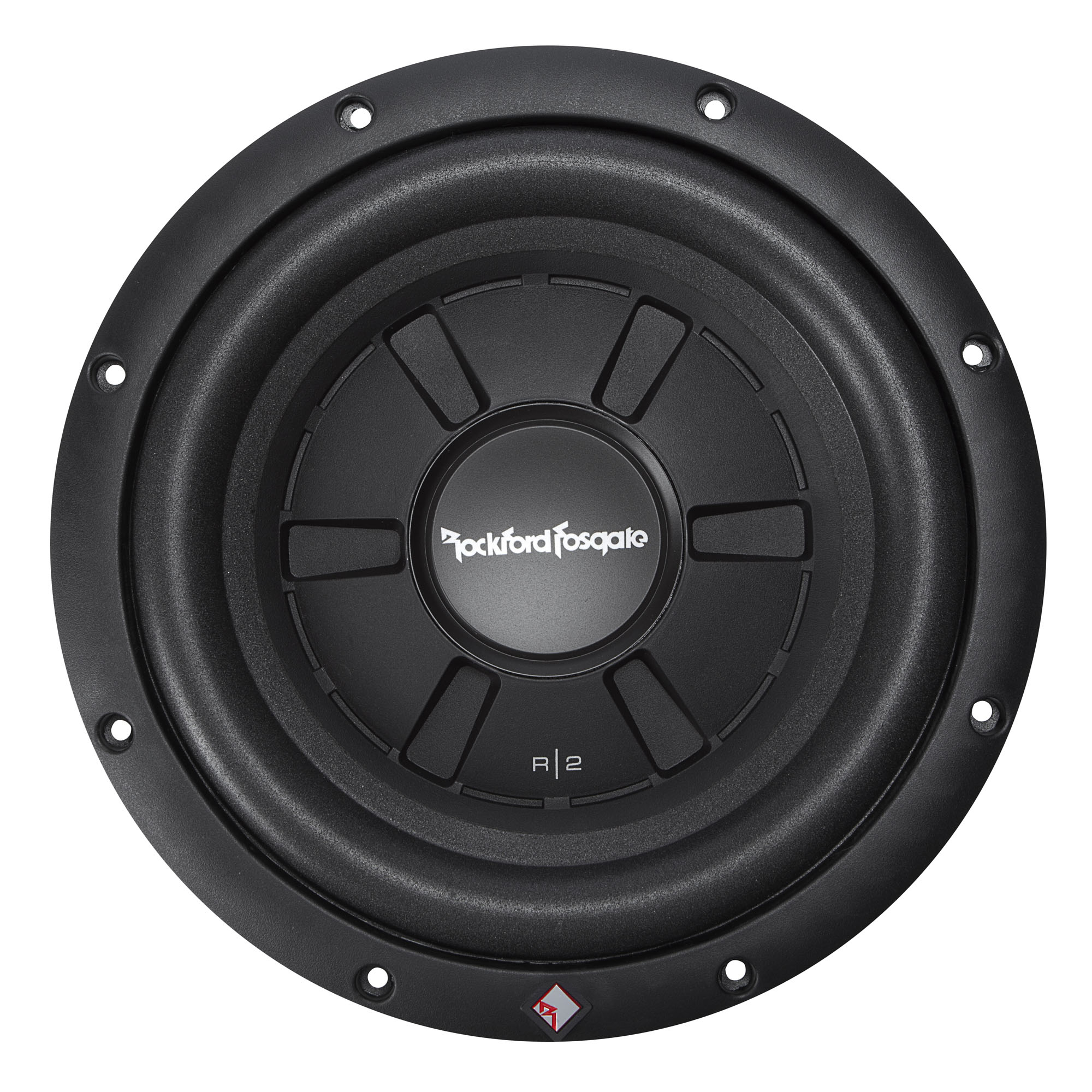

Rockford Fosgate Prime 10" R2 4-Ohm DVC Shallow Subwoofer
When you have no space for bass, our Prime R2SD4-10 shallow subwoofer will satisfy your need. This 10” subwoofer handles 200 Watts RMS and the 4-Ohm Dual Voice Coil design lets you to wire them in various configurations.
When you have no space for bass, our R2 10" shallow subwoofer can help satisfy your need for low frequency music. These drivers can fit in tight spaces due to an elevated motor structure that reduces speaker depth. Mica injected polypropylene cones make sure bass notes are clean and accurate. Stamp-cast baskets feature spider venting typically reserved for traditional depth mounted models to keep the motor cool! These shallow subwoofers are optimized for sealed enclosures.
- 12 AWG compression terminals
- Anodized aluminum voice coil former
- Optimized for sealed enclosures
- Mica injected polypropylene cone
- Linear spider with embedded 16 AWG tinsel leads
- StampCast basket with integrated spider venting
- Integrated PVC trim ring
- Shallow Motor Assembly
- 1 Year Warranty
Specifications
400 Watts Max
