Rockford Fosgate P3SD2-8 8in Subwoofer + P3SG-8 Grille

Description

Included in this kit

1x P3SD2-8

1x P3SG-8

---

This bundle includes a Rockford Fosgate P3SD2-8 8” Slim Subwoofer- DVC (dual 2-Ohm), 150 Watts Rms, 300 Watts Peak, and a Rockford Fosgate P3SG-8 8” Stamped Mesh Grille Insert.

1x Rockford Fosgate P3SD2-8 8” Slim Subwoofer- DVC (dual 2-Ohm), 150 Watts Rms, 300 Watts Peak (P3SD2-8)

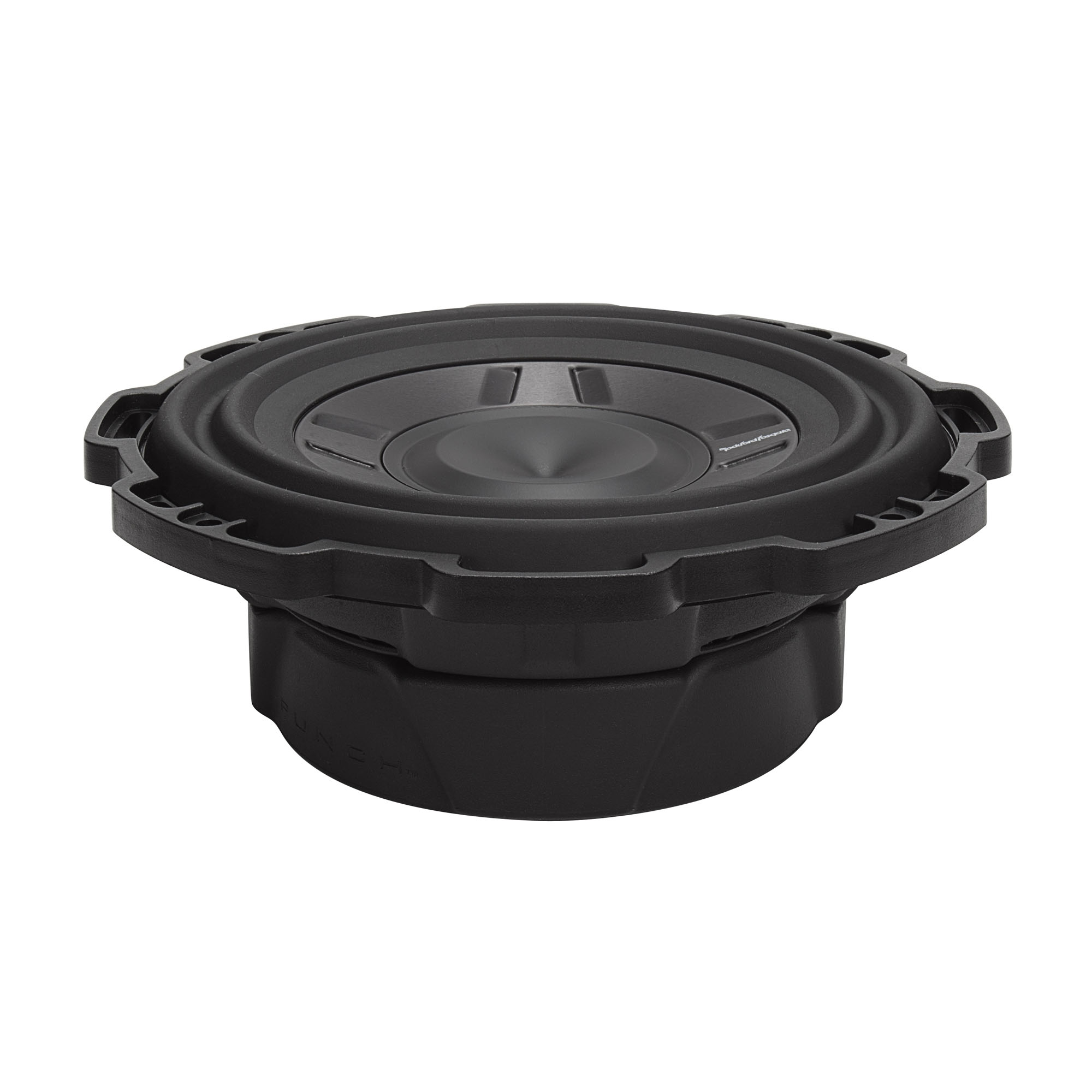

Rockford Fosgate Punch 8" P3S Shallow 2-Ohm DVC Subwoofer

Rockford Fosgate P3S 8" shallow mount subwoofer delivers “Punch” even when depth is limited. The P3SD2-8 features Dual 2-Ohm voice coils for wiring flexibility and 150 Watts RMS power handling.

The Rockford Fosgate P3S 8" shallow mount subwoofer delivers Punch, even in depth limited situations. Rockford Fosgate understands all vehicles are not the same, because some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application. Shallow woofers are specifically designed for spaces where a traditional woofer cannot be used.

• M-Roll Santoprene™ surround
• StampCast basket with integrated spider venting
• Anodized aluminum cone and dustcap
• Dual linear spider with embedded 16 AWG tinsel leads
• Diamond cut cast aluminum trim ring with optional grille
• Shallow Motor Assembly
• Optimized for both sealed and vented enclosures
• 1 Year Warranty

Specifications

Magnet Weight (kg) NOT USED

1.06 oz. (37.5 kg.)

Size

8"

Voice Coil Diameter

2" (51.6mm)

Speaker Connector

Dual 10 AWG Compression

Mounting Depth

2.66 in. (67.5 mm)

Shipping Weight

8.8 Lbs. (3.99 Kg.)

SPL (dB @ 1w/1m)

82

Qms

5

Vas (Liters)

15.8

Woofer Displacement

0.040 cu. ft. (1.13 Liters)

Re (Ohms)

3.2

Le (mH)

0.9

Nominal Impedance

Dual 2-Ohm

Power Handling (Watts RMS)

150 Watts RMS
300 Watts Max

Magnet Weight (oz)

37.5 oz. (1.06 Kg)

Qts

0.72

Qes

0.837

Xmax (mm)

8.3

Cutout Diameter

7.13 in. (181.0 mm)

CEA-2031 Compliant

Fs (Hz)

38

Sd (cm²)

220

Subwoofer Type

Shallow

Voice Coil Type

Dual Voice Coil

Sealed Box Volume (Vb)

0.25 cu. ft. (7.0 Liters)

Vented Box Volume (Vb)

0.75 cu. ft. (21.2 Liters)

1x Rockford Fosgate P3SG-8 8” Stamped Mesh Grille Insert (P3SG-8)

Made from stamped metal, this black grille will protect your 8" P3S shallow subwoofers from the brutal environment of your trunk. Keeps your golf clubs, softball bats, hockey sticks or even baby strollers away from your prized Rockford Fosgate subwoofers. Simply remove the existing trim ring from your woofer, insert the mesh grille, and re-secure the trim ring. Compatible with select models.

Features:
Inserts snugly into Gen-2 P3S trim rings.
Protects against surround and cone damage.
Sized to fit Gen-2 P3S woofers.
Stamped mesh grille insert.
1 Year Warranty

Extra Information

Brand:

Rockford Fosgate

Weight:

9.28 LBS

RMS Wattage Per Speaker:

150

UPC:

199730948581

Bundle:

Yes

Feature 1:

This bundle includes a Rockford Fosgate P3SD2-8 8” Slim Subwoofer and a P3SG-8 8” Stamped Mesh Grille Insert.

Feature 2:

Experience powerful bass with the 8” shallow mount subwoofer, delivering 150 Watts RMS and 300 Watts Peak power.

Feature 3:

The dual 2-Ohm voice coils provide flexible wiring options for various system configurations.

Feature 4:

The subwoofer features an anodized aluminum cone and dustcap for enhanced durability and sound quality.

Feature 5:

The stamped mesh grille insert offers robust protection for your subwoofer, keeping it safe from potential damage.

Condition:

NEW

Weight:

9.2800 lbs

Shipping:

Free 2-Day Shipping!
