Rockford Fosgate P500X1BD Amp + P2-1X12 12in Loaded Sub Box

Description

Included in this kit

1x P500X1BD

1x P2-1X12

---

This bundle includes a Rockford Fosgate P500X1BD Mono Amplifier - 150x1 @ 4-Ohm, 300x1 @ 2-Ohm, 500x1 @ 1-Ohm, and a Rockford Fosgate P2-1X12 12" Ported Loaded Enclosure, 400 Watts Rms, - 1-Ohm Final, H 15.1” X W 19.1” X D 16.4”.

1x Rockford Fosgate P500X1BD Mono Amplifier - 150x1 @ 4-Ohm, 300x1 @ 2-Ohm, 500x1 @ 1-Ohm (P500X1BD)

Rockford Fosgate Punch 500 Watt Class-bd Mono Amplifier

The Punch P500X1bd is a mono amplifier capable of 500 Watts into a 1-Ohm load. The Class-BD technology produces bass more efficiently over traditional amps, and its frequency response allows it to be optimized for subwoofers.

With its super efficient Class-bd circuit topology, the P500X1bd will drop some serious BASS! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.

• High level input capable with Auto Turn-On circuit
• Features C.L.E.A.N. Set-up
• Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
• RCA pass-thru outputs
• 12dB/octave Butterworth crossover
• On-board Punch EQ with +18dB boost @ 45Hz
• Muted turn on
• Stealth top mounted control panel
• Cast aluminum heatsink
• Short circuit protection
• Over current protection
• Infrasonic filter
• 1 Year Warranty

General Specifications

CEA-2006 Compliant

CEA-2006 Power Rating
150W x 1 @ 4Ω
≤1.0% THD+N

Cta-2006 Compliant

Number of Channels

1

Total Power
(Sum of Rated Power)

500 Watts

Rated Power
(RMS Continuous Power)

150 Watts x 1 @ 4-Ohm
300 Watts x 1 @ 2-Ohm
500 Watts x 1 @ 1-Ohm

Dynamic Power
(PVC/PowerCube®)

224 Watts x 1 @ 4-Ohm
410 Watts x 1 @ 2-Ohm
787 Watts x 1 @ 1-Ohm

Bridgeable

No

Frequency Response

20Hz to 250Hz +/- 1.0dB

Input Sensitivity

150 mV - 12 V

Circuit Topology Class

Class BD

Efficiency (average)

86% @ 4-Ohm

Total Harmonic Distortion (THD+Noise)

4-Ohm: <1.0%
2-Ohm: <1.0%
1-Ohm: <1.0%

Signal Input

Hi/Low level: 1 RCA pair

Signal Output

Low level: 1 RCA pair

Tone Controls

Punch EQ2 Bass: 0dB to +18dB @ 45Hz

Crossover Controls

Low-Pass (LP): 50-250Hz @ 12dB/octave Butterworth
Infrasonic Filter (IF): 28Hz @ 12dB/Octave
All-Pass (AP): No

Remote Controls

Optional Punch Level Control (PLC2) Ready

Visual Indicators

Power/Protect/Thermal LED
Input Clip LED³
Output Clip LED^1,2,3

LED Color Legend:
¹BLUE: <0.5% THD
²VIOLET: 1% THD
³RED: 10%+ THD

Power Wire Gauge

4 AWG

Power Input Connector

Captive C-Clamp

Speaker Wire Gauge

8 AWG to 18 AWG

Speaker Output Connector

Captive C-Clamp

Cooling

Convection

Heatsink

Operating Voltage

9 - 16 VDC

Recommended Fuse
(not included)

80 A

Average Current Draw (13.8V Music)

35 A

Max. Current Draw (13.8V Sinewave)

70 A

Suggested Alternator

75 A

Dimensional Diagram

Dimensions (H x W x D)

2.38 x 7.76 x 11.03 (in)
6.05 x 19.71 x 28.02 (cm)

Shipping Weight

10.8 Lbs. (4.89 Kg.)

1x Rockford Fosgate P2-1X12 12" Ported Loaded Enclosure, 400 Watts Rms, - 1-Ohm Final, H 15.1” X W 19.1” X D 16.4” (P2-1X12)

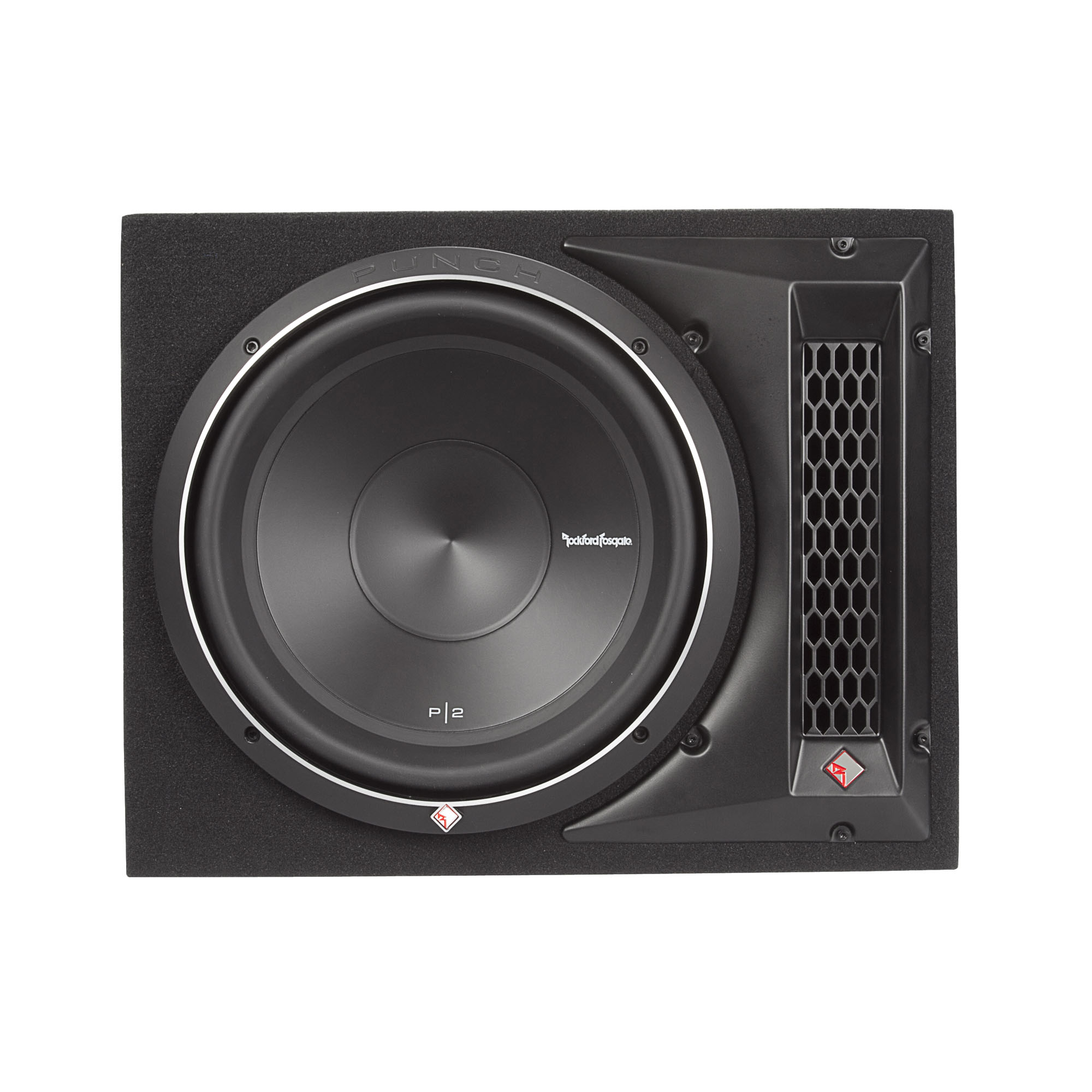

Rockford Fosgate Punch Single P2 12" Loaded Enclosure

The P2-1X12 is a single P2 12” vented enclosure with 400 Watts RMS power handling wired to a 1-Ohm load. The enclosure is constructed with 5/8” MDF, covered in high density carpet, and features quick release compression terminals.

The most convenient way to get low frequency bass in your system is to drop-in a Punch Loaded enclosure. We're not talking junk in the trunk, we're talking the same genuine Punch woofers available separately. Punch Loaded enclosures are constructed with durable 5/8" MDF and tuned by our computer aided design software. P2 Loaded Enclosures feature similar tonal performance as P1 models, but with more power handling capacity.

• Constructed with 5/8" MDF
• Proprietary high-flow, low-noise port
• High current binding posts
• 1 Year Warranty

Specifications

Woofer Quantity

1

Speaker Connector

Up to 10 AWG compression terminals

Dimensions
Box (H x W x D)
Wedge (H x W x D1 x D2)

15.125" x 19.125" x 15.75"
(38.4cm x 48.6cm x 40cm)

Shipping Weight

49.6 Lbs. (22.49 kg)

Woofer Size

12"

Woofer Series

Punch P2 (P2D2-12)

Nominal Impedance (ea)

1-Ohm
Internally wired to create a 1-Ohm amplifier load

Power Handling (Watts RMS)

400 Watts RMS
800 Watts Max

Enclosure Type

Vented

Enclosure Material

5/8" MDF (Medium Density Fiberboard)

CEA-2031 Compliant

Extra Information

Brand:

Rockford Fosgate

Weight:

61.20 LBS

RMS Wattage Per Speaker:

500

UPC:

199730949045

Bundle:

Yes

Feature 1:

This bundle includes a Rockford Fosgate P500X1BD Mono Amplifier and a P2-1X12 12" Ported Loaded Enclosure, delivering powerful sound with 500 Watts and 400 Watts RMS respectively.

Feature 2:

The P500X1BD Mono Amplifier features Class-BD technology for efficient bass production, ensuring optimal performance for subwoofers.

Feature 3:

The P2-1X12 Enclosure is constructed with durable 5/8" MDF and features a high-flow, low-noise port for superior sound quality.

Feature 4:

Enjoy easy installation with the P500X1BD's high level input capability and Auto Turn-On circuit, making setup a breeze.

Feature 5:

The P2-1X12 Enclosure's quick release compression terminals and high current binding posts provide secure and reliable connections.

Condition:

NEW

Weight:

61.2000 lbs
