Description
Included in this kit
This bundle includes a Rockford Fosgate P600X4 4 Channel Amplifier - 75x4 @ 4-Ohm, 150x4 @ 2-Ohm, 300x2 @ 4-Ohm Bridged, a Rockford Fosgate T1675-S 6.75” 2-Way System- 100 Watts Rms, 200 Watts Peak, Grilles Included, and a Rockford Fosgate T1675 6.75" Coaxial Speakers - 75W RMS, 150W Peak, Grilles.
1x Rockford Fosgate P600X4 4 Channel Amplifier - 75x4 @ 4-Ohm, 150x4 @ 2-Ohm, 300x2 @ 4-Ohm Bridged (P600X4)

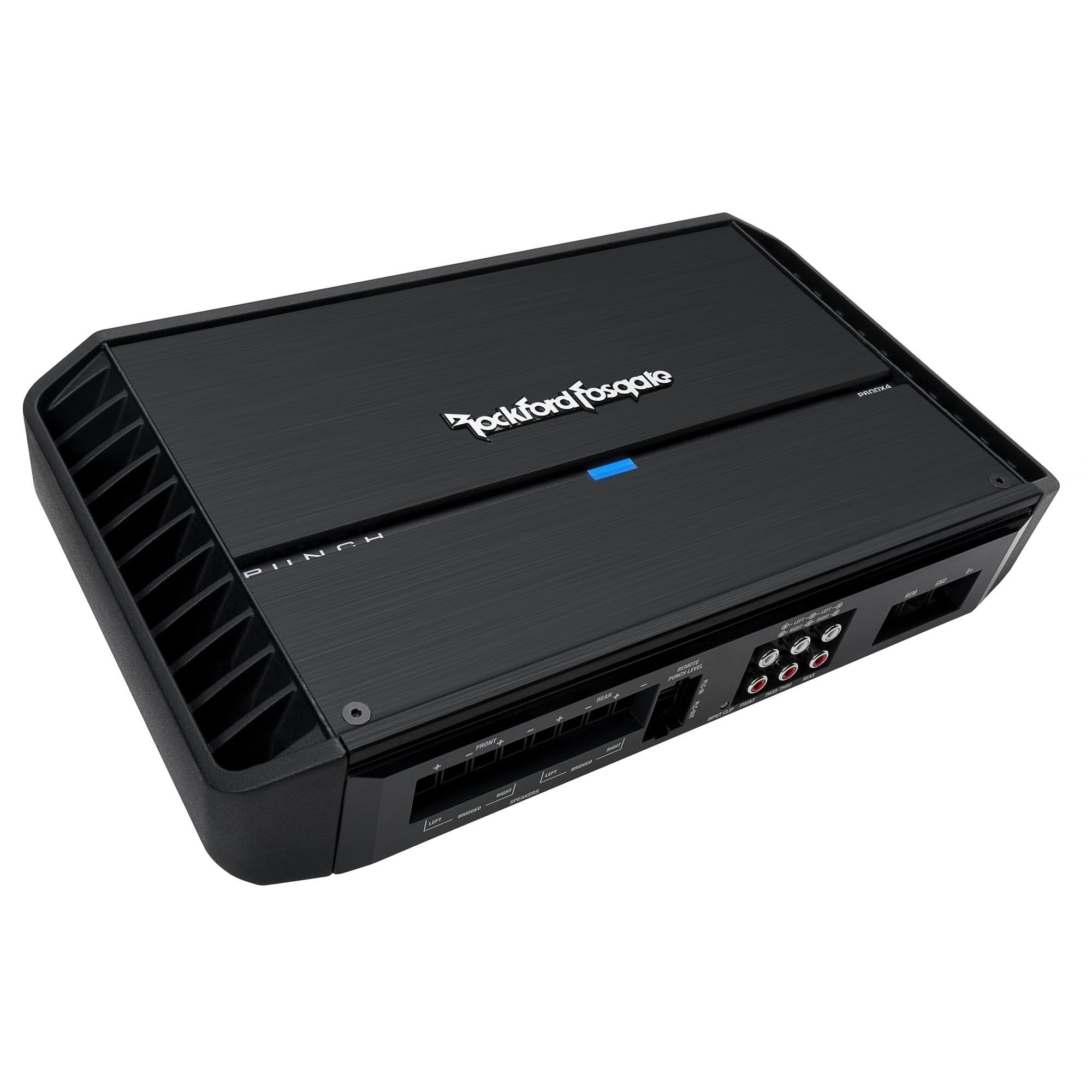

Rockford Fosgate Punch 600 Watt 4-Channel Amplifier
The Punch P600X4 is a 4-channel amplifier producing 150 Watts into all four channels at 2-Ohm. The P600X4 is perfect for a 4-way full-range system or a 3-way system having a front stage with subwoofers on the rear channels.
The Punch P600X4 multi-channel amplifier is versatile to power any audio system configuration. In addition to 4-channel stereo mode, you can bridge both channels to create a high power 2-channel amp, or run stereo speakers on the front with subwoofers on the rear in 3-channel mode. The variable HP/LP crossover and built-in Punch EQ allows for precise tuning of Bass frequencies and the Pass-Thru RCA jacks provide flexibility as your system grows and keeping Y-adapters to a minimum.
- High level input capable with Auto Turn-On circuit
- RCA pass-thru outputs
- Features C.L.E.A.N. Set-up
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- 12dB/octave Butterworth crossover
- On-board Punch EQ with +18dB boost @ 45Hz
- Muted turn on
- Stealth top mounted control panel
- Cast aluminum heatsink
- Short circuit protection
- Over current protection
- 1 Year Warranty
General Specifications
CEA-2006 Compliant
CEA-2006 Power Rating75W x 4 @ 4Ω
≤1.0% THD+N
Cta-2006 Compliant
Number of Channels
4
Total Power
(Sum of Rated Power)
(Sum of Rated Power)
600 Watts
Rated Power
(RMS Continuous Power)
(RMS Continuous Power)
75 Watts x 4 @ 4-Ohm
150 Watts x 4 @ 2-Ohm
300 Watts x 2 @ 4-Ohm Bridged
150 Watts x 4 @ 2-Ohm
300 Watts x 2 @ 4-Ohm Bridged
Dynamic Power
(PVC/PowerCube®)
(PVC/PowerCube®)
129 Watts x 4 @ 4-Ohms 0° Res
211 Watts x 4 @ 2-Ohms 0° Res
211 Watts x 4 @ 2-Ohms 0° Res
Bridgeable
Yes
Frequency Response
20Hz to 20kHz +/- 1.0dB
Input Sensitivity
150 mV - 12 V
Circuit Topology Class
Class A/B
Efficiency (average)
68% @ 4-Ohm
Total Harmonic Distortion (THD+Noise)
4-Ohm: <1.0%
2-Ohm: <1.0%
2-Ohm: <1.0%
Signal Input
Hi/Low level: 2 RCA pair
Signal Output
Low level: 1 RCA pair
Tone Controls
Front Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
Front Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz
Rear Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
Rear Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz
Function depends upon LP/AP/HP switch position
Front Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz
Rear Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
Rear Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz
Function depends upon LP/AP/HP switch position
Crossover Controls
Front/Rear High-Pass (HP): 50Hz-250Hz @ 12dB/octave Butterworth
Front/Rear Low-Pass (HP): 50Hz-250Hz 12dB/octave Butterworth
All-Pass: Yes
Front/Rear Low-Pass (HP): 50Hz-250Hz 12dB/octave Butterworth
All-Pass: Yes
Remote Controls
Optional Punch Level Control (PLC2) Ready
Visual Indicators
Power/Protect/Thermal LED
Input Clip LED3
Output Clip LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Input Clip LED3
Output Clip LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Power Wire Gauge
4 AWG
Power Input Connector
Captive C-Clamp
Speaker Wire Gauge
8 AWG to 18 AWG
Speaker Output Connector
Captive C-Clamp
Cooling
Convection
Heatsink
Operating Voltage
9 - 16 VDC
Recommended Fuse
(not included)
(not included)
100 A
Average Current Draw (13.8V Music)
45 A
Max. Current Draw (13.8V Sinewave)
90 A
Suggested Alternator
75 A
Dimensional Diagram
Dimensions (H x W x D)
2.38 x 7.76 x 13.28 (in)
6.05 x 19.71 x 33.73 (cm)
6.05 x 19.71 x 33.73 (cm)
Shipping Weight
12.8 Lbs. (5.80 Kg.)
1x Rockford Fosgate T1675-S 6.75” 2-Way System- 100 Watts Rms, 200 Watts Peak, Grilles Included (T1675-S)
Rockford Fosgate Power 6.75" Series Component System - Pair
The T1675-S is a 6.75" 2-way component system with 1" fabric dome tweeters and is rated at 80 watts RMS. The system includes a pair of tweeters, two woofers with grilles, dedicated crossovers, and mounting hardware.
Car audio fanatics will love the Power series 6.75" component system. It features a Flex Fit basket for compatibility with various factory speaker mounting locations and dedicated crossovers.
- FlexFit basket design
- OEM adapter plate included
- Treated fabric dome neo-tweeter with integral suspension
- External audiophile grade component crossover
- 5% tolerance high quality poly-capacitors and air-core inductors
- 3 levels of tweeter attenuation
- On-axis/off-axis tweeter configuration
- Recessed tweeter mount uses standard 1-3/4" hole saw
- Butyl midrange rubber surround
- 1 Year Warranty
Specifications
Midrange Size
(Nominal Diameter)
(Nominal Diameter)
6.75"
Tweeter Size
(Nominal Diameter)
(Nominal Diameter)
1.0" (25.4 mm)
Tweeter Mounting Depth
0.50" (13 mm)
Frequency Response (Hz)
55Hz - 22kHz
Crossover
12dB/Octave
Grille/Trim Ring Included
Yes
Speaker Type
Component System
Midrange Mounting Depth
2.51" (64 mm)
Mounting Hardware
Yes
Shipping Weight
10.7 Lbs. (4.85 kg.)
CEA-2031 Compliant
Nominal Impedance (Ohms)
4-Ohm
Power Handling (RMS)
100 watts RMS
200 Watts MAX
200 Watts MAX
Sensitivity
(dB @ 1W/1M)
(dB @ 1W/1M)
89
1x Rockford Fosgate T1675 6.75" Coaxial Speakers - 75W RMS, 150W Peak, Grilles (T1675)
Rockford Fosgate Power 6.75" 2-Way Full-Range Speakers - Pair
The T1675 is a 6.75” 2-way full-range speaker rated at 75 Watts RMS designed as a high-powered OEM replacement. Speakers include grilles with adapter plates, integrated concealed crossovers and mounting hardware.
Get Power series sound quality in a drop-in speaker. These 6.75” 2-way full-range speakers inherent all the coolest features from - their big brother - the T1 component systems. Features include a pole-mounted tweeter, shallow mounting depth and integrated concealed crossovers. Be prepared, these are more than OEM replacement speakers, their sound quality has been perfected for true Rockford Fosgate fanatics!
- FlexFit basket design
- ICC (Integrated Concealed Crossover)
- OEM adapter plate included
- Aluminum dome tweeter with polyurethane suspension
- Carbon fiber & polypropylene injection molded cone
- Butyl midrange rubber surround
- 1 Year Warranty
Specifications
Nominal Impedance (Ohms)
4-Ohm
Speaker Type
2-Way Coax
Midrange Size
(Nominal Diameter)
(Nominal Diameter)
6.75"
Tweeter Size
(Nominal Diameter)
(Nominal Diameter)
1.1" (27.9 mm)
Frequency Response (Hz)
55Hz - 22kHz
Power Handling (RMS)
75 Watts RMS
150 Watts Max
150 Watts Max
Grille/Trim Ring Included
Yes
Midrange Mounting Depth
2.51" (64 mm)
Mounting Hardware
Yes
Includes (1) pair 5"x7" / 6"x9" adapter plates
Includes (1) pair 5"x7" / 6"x9" adapter plates
Shipping Weight
8.2 Lbs. (3.72 kg.)
CEA-2031 Compliant
Crossover
Built-in tweeter crossover
High-Pass (HP): 12dB/octave Butterworth
High-Pass (HP): 12dB/octave Butterworth
Sensitivity
(dB @ 1W/1M)
(dB @ 1W/1M)
89
