Description
Included in this kit
This bundle includes a Rockford Fosgate P1V2-4 4" 3-way coaxial with internal crossover 75 watts RMS, 150 watts peak, and a Rockford Punch V1 series 4" surface mount grilles.

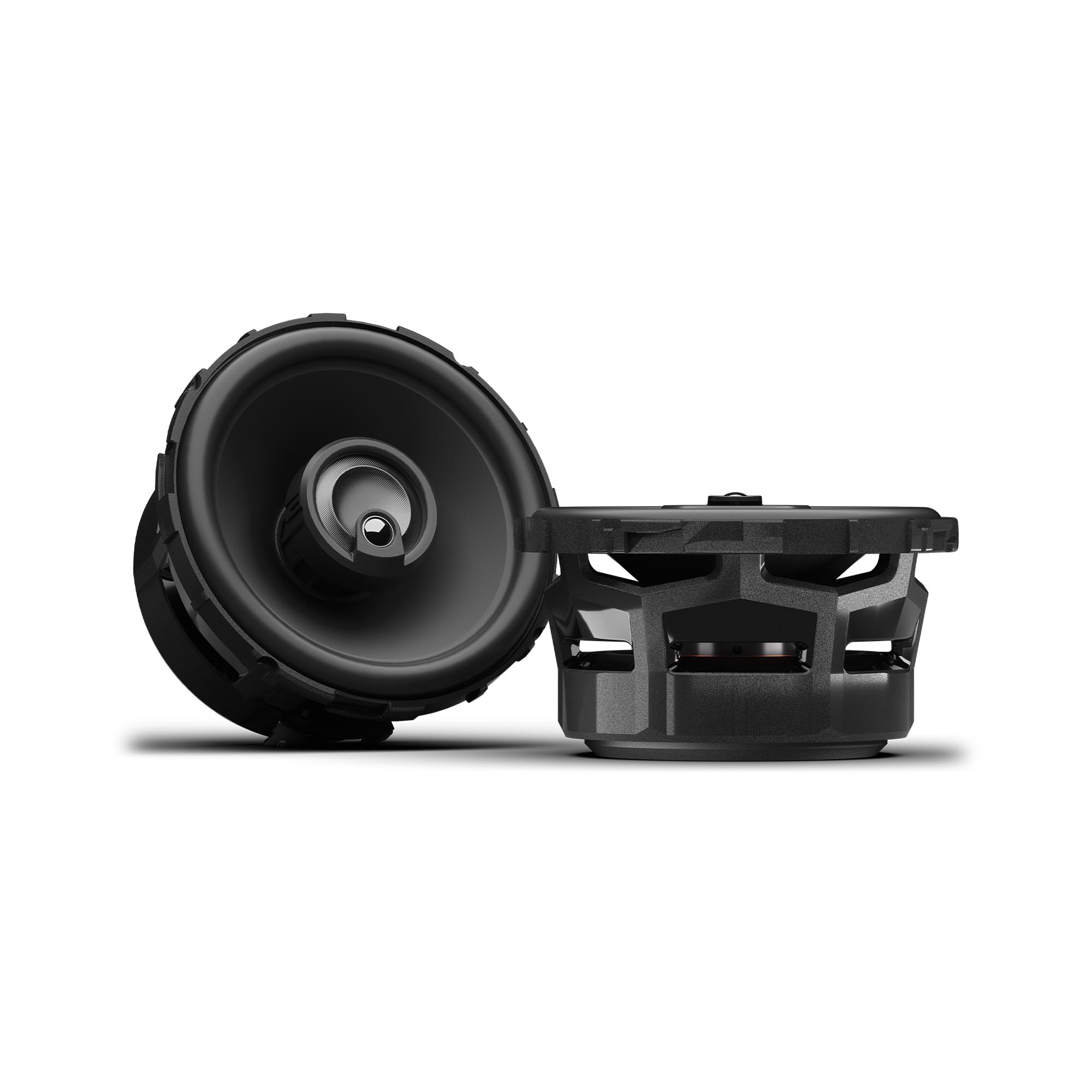

1x Rockford Fosgate P1V2-4 4" 3-way coaxial with internal crossover 75 watts RMS, 150 watts peak (P1V2-4)
Engineered to Fit. Built to Perform.
The P1 PUNCH speakers are simple, all-in-one upgrades for standard factory systems. The P1 are perfect for Basic OEM systems with single-speaker locations in doors or rear decks. Factory single cone drivers don’t have tweeters and replacing them with a 3-way coaxial will deliver a big leap in sound clarity and “punch”.
Kit Includes:
• (2) 4" Speakers
• (6) OEM Adaptors
• Installation Hardware
Specifications:
Speaker Type: Coaxial
Midrange Size (Nominal Diameter): 4"
Tweeter Size (Nominal Diameter): 3/4” (19 mm) Inverted Dome
Piezo Size (Nominal Diameter): 3/8” (9 mm) Co-Witnessed Convex
Nominal Impedance (Ohms): 4Ω
Frequency Response (Hz): 75Hz - 25kHz
Voice Coil Diameter (in/mm): 1" (25.4 mm)
CrossoverTweeter High-Pass: 9kHz @ 6 dB/Octave
Midrange Bass Blocker: 1,200Hz @ 6 dB/Octave (33µF)
Fs (Hz): 100 Hz
Power Handling (Watts RMS): 75 Watts RMS/150 Watts Peak
Sensitivity (2.83V/1M): 88 dB
Sensitivity (dB @ 1W/1M): 85 dB
Cutout Diameter: 3.41" (86.5 mm)
Rear-Loading Depth (Twist-Lock Adaptor): 1.72" (43.8 mm)
Front-Loading Depth (Twist-Lock Adaptor): 1.99" (50.5 mm)
Front Side Clearance: 0.5" (12.7 mm)
Grille/Trim Ring Included: No
Removable Motor Cover: No
Included in the Box
(2) 4” 4Ω 3-Way Coaxial Speakers
(1) 4” Speaker Cutout Template
(2) 4” 4-Tab Twist-Lock Adaptors
(2) 4” 3-Tab Twist-Lock Adaptors
(2) 4” 3-Tab Wide Twist-Lock Adaptors
(2) 33µF Non-Polarized Cap (Bass-Blockers)
(8) Self-Tapping Phillips #8x32mm (Speaker)
(2) 18 AWG Red/Black Speaker Wire, 205 mm
(3) 18 AWG (–) Female Crimp Spade Conn. (.187”)
(3) 18 AWG (+) Female Crimp Spade Conn. (.250”)
(4) 18 AWG Crimp Butt Connectors
Mounting Hardware: Yes
1x Rockford Punch V1 series 4" surface mount grilles (GS-4)
Engineered to Fit. Built to Perform.
Our Surface Mount Grilles are installed directly onto the mounting surface, adding a decorative touch to the installation. They offer strong protection for the speakers and are easy to install thanks to their simple push-on design. These grilles are ideal for setups where grille height is not a limiting factor (sold in pairs.)
FEATURES AT A GLANCE
Surface mount design installs directly to the mounting surface
Aesthetically appealing with no visible screws or mounting hardware
Quick installation without the need for additional hardware
Ideal for setups where grille height is not a limiting factor
Durable materials protect speakers from foreign objects
Push-on design facilitates easy installation
Adds a decorative touch to installation
Can be painted to match any interior
Sold in pairs (2 each)
1 Year Warranty
Mounting Hardware: Yes
Grille/Trim Ring Included: Yes
Included in the Box
(2) Grille Mesh
(2) Grille Bezel
(8) #4 Self-Tap Pan Head, 30mm long, Steel
(1) Cutout Template
