Description
Included in this kit
This bundle includes a Sony XM-4ES Mobile ES 4-Channel Amplifier, and 2x Sony XS-160ES Mobile ES Series 6.5" 2-way Car Speakers.

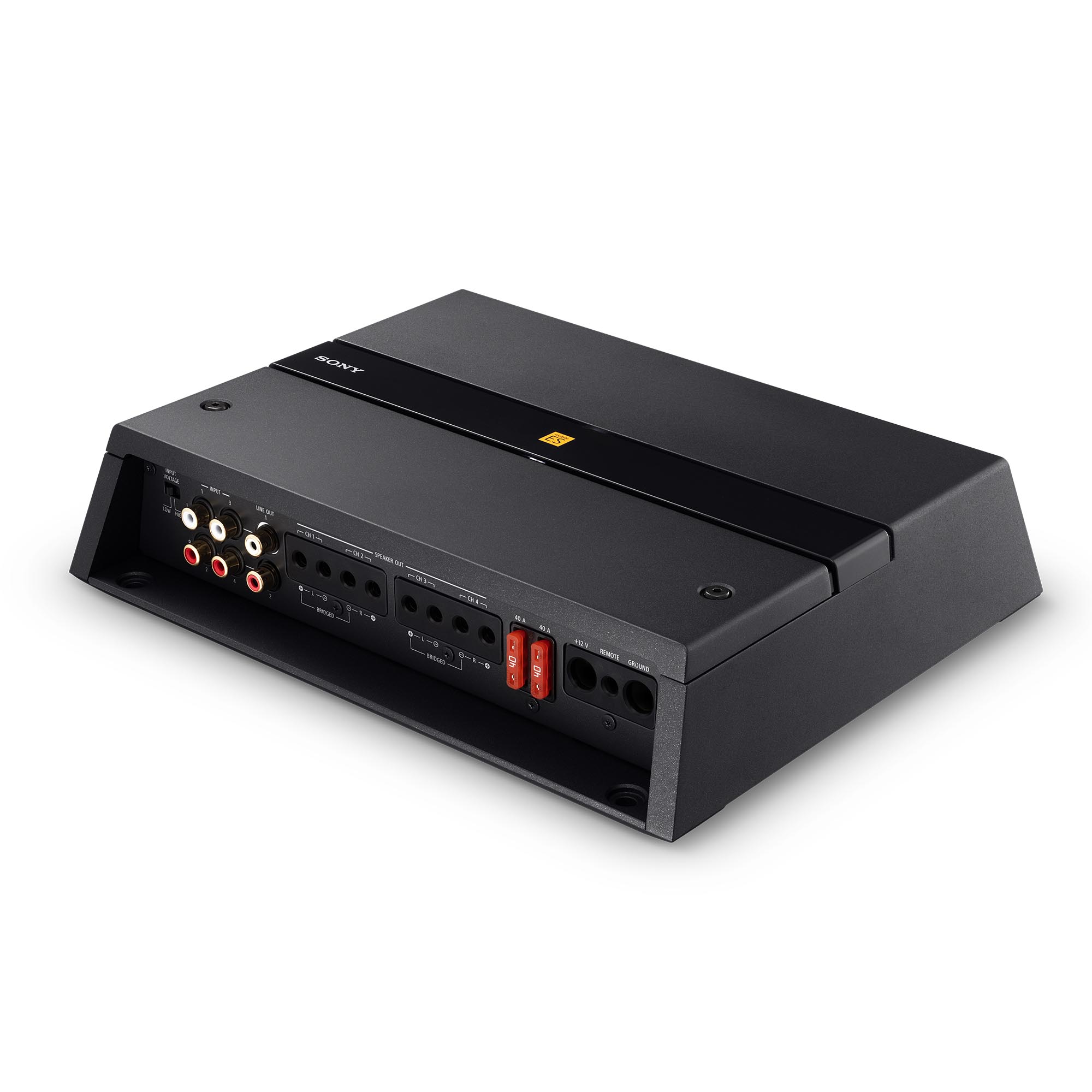

1x Sony XM-4ES Mobile ES 4-Channel Amplifier (XM-4ES)
100W x 4 RMS output power
Enjoy dynamic sound with an output power of 100W x 4 (330W x 2 bridged) RMS at 4 ohms / 165W x 4 RMS at 2 ohms. The highly efficient class-D amplifier provides a variety of speaker configurations to suit any car and impress any audio enthusiast.
Powerful sound with astonishing clarity
Sony’s expertise and long years of engineering experience with digital amplifiers has made it possible to realize a compact and powerful amplifier, with uncompromising sound quality.
Optimized power blocks
The power supply block is optimally designed for low-noise, highly efficient electric power transmission, where the DC converter with a toroidal core transformer is chosen for less electro-magnetic interference. To reproduce delicate ultra-high-frequency sound, each channel block and the class-D amplification are all isolated with their own ground circuitry, minimising any signal interference.
Select components for superior sound
The upgraded inductors with OFC wires are selected for lower internal resistance and improved sound character, while the high-capacity electrolytic capacitors contribute to precise and responsive bass.
Specifications: Amplifier
Channel Configuration: 4-ch/3-ch/2-ch
High Pass Filter: Variable (500–5 kHz)
Low Pass Filter: Variable (50–500 Hz)
Low-Pass Filter Slope: 12 dB/oct
High Pass Filter Slope: 12 dB/oct
CTA S/N: 77dB
Signal to Noise Ratio: 100dB
CTA Rated Output Power
4 ohms: 100 W x4
Details
Gold Plated Connectors: Yes
MOSFET: Yes (Power Supply)
Speaker Level Input: Yes
CTA Power output: 100 W x4
General Features
Frequency Response: 10 Hz–40 kHz
Tolerance: +0.5/-3 dB
Total Harmonic Distortion at 1 kHz (%): Less than 0.05%
Rated Output Power (14.4 V)
2 ohms: 165 W x4 at 1 kHz, 1% THD
4 ohms: 100 W x4 at 1 kHz, 1% THD
4 ohms — BTL (Bridge-Tied Load): 330 W x2 BTL at 1 kHz, 1% THD
Size & Weight
Dimensions (W x H x D): 10.63" x 2.36" x 8.46"
Weight: 6.39 lb

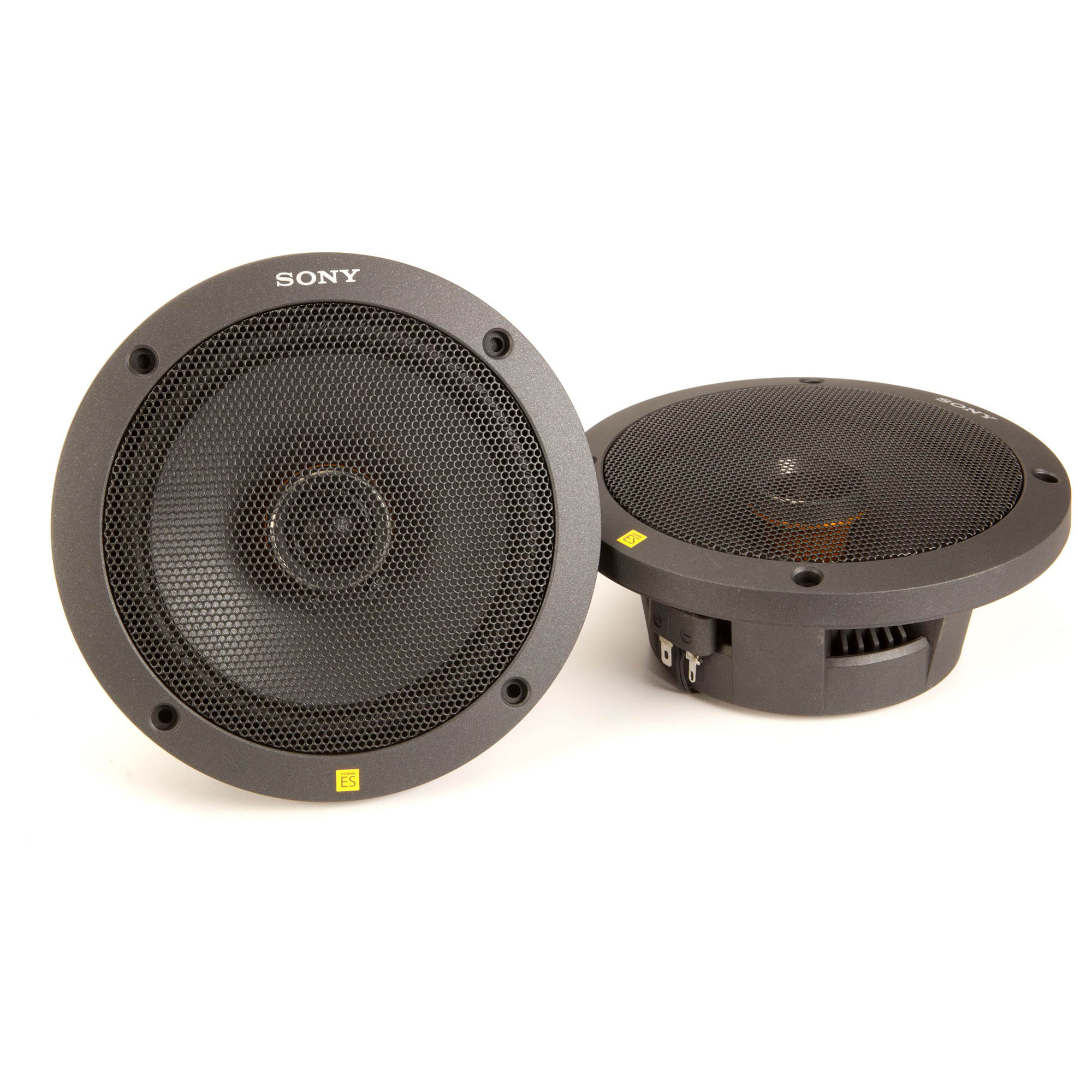

2x Sony XS-160ES Mobile ES Series 6.5" 2-way Car Speakers (XS-160ES)
Sony has a worldwide reputation for making great audio easy to access. So it's always exciting when they decide to to make a product that's focused on premium car audio, like their flagship XS-160ES 6..5" Speakers. If you're hungering for an audiophile-grade expereince in the car, these Hi-re Audio compatible speakers from Sony are a wonderful way to start.
Specialized Woofer -
Sony builds the woofer cones of these 6.5" 2-way speakers from a specialized, mica-reinforced cellular aramid fiber. Developed in-house, this lightweight, rigid material minmizes distortion and enhances overall low-frequency response. Sony's unique, notch-edge surround helps with responsiveness and shrugging off wear and tear over the life of the speaker.
Audiophile Tweeter -
The speaker's synthetic fabric dome tweeter delivers frequencies up to 40,000 Hz that, even though they are above the range of human hearing, reveal more texture and detail in your high-resolution audio files and add more realism and atmosphere to instruments and vocals.
General Features -
• Speaker Size: 6.5"
• Design: 2-Way
• Tweeter Design: 20mm Dome
• Impedance (Ohms): 4
• Tweeter Composition: Synthetic Fiber
• Woofer Composition: MRC Aramid Fiber
• Woofer Surround: Rubber
Specifications -
• Sensitivity (1W at 1 meter): 89
• Frequency Response: 45-50kHz
• Maximum RMS Wattage: 90W
• Peak Power Handling: 270W
