This bundle includes a Sony XM-4ES Mobile ES 4-Channel Amplifier, a Sony XS-163ES Mobile ES™ 6.1/2" (16cm) 3-Way Component Speakers, and a Sony XS-162ES Mobile ES Series 6.5" Component Speaker System.
1x Sony XM-4ES Mobile ES 4-Channel Amplifier (XM-4ES)
100W x 4 RMS output power
Enjoy dynamic sound with an output power of 100W x 4 (330W x 2 bridged) RMS at 4 ohms / 165W x 4 RMS at 2 ohms. The highly efficient class-D amplifier provides a variety of speaker configurations to suit any car and impress any audio enthusiast.
Powerful sound with astonishing clarity
Sony’s expertise and long years of engineering experience with digital amplifiers has made it possible to realize a compact and powerful amplifier, with uncompromising sound quality.
Optimized power blocks
The power supply block is optimally designed for low-noise, highly efficient electric power transmission, where the DC converter with a toroidal core transformer is chosen for less electro-magnetic interference. To reproduce delicate ultra-high-frequency sound, each channel block and the class-D amplification are all isolated with their own ground circuitry, minimising any signal interference.
Select components for superior sound
The upgraded inductors with OFC wires are selected for lower internal resistance and improved sound character, while the high-capacity electrolytic capacitors contribute to precise and responsive bass.
Specifications: Amplifier
Channel Configuration: 4-ch/3-ch/2-ch
High Pass Filter: Variable (500–5 kHz)
Low Pass Filter: Variable (50–500 Hz)
Low-Pass Filter Slope: 12 dB/oct
High Pass Filter Slope: 12 dB/oct
CTA S/N: 77dB
Signal to Noise Ratio: 100dB
CTA Rated Output Power
4 ohms: 100 W x4
Details
Gold Plated Connectors: Yes
MOSFET: Yes (Power Supply)
Speaker Level Input: Yes
CTA Power output: 100 W x4
General Features
Frequency Response: 10 Hz–40 kHz
Tolerance: +0.5/-3 dB
Total Harmonic Distortion at 1 kHz (%): Less than 0.05%
Rated Output Power (14.4 V)
2 ohms: 165 W x4 at 1 kHz, 1% THD
4 ohms: 100 W x4 at 1 kHz, 1% THD
4 ohms — BTL (Bridge-Tied Load): 330 W x2 BTL at 1 kHz, 1% THD
Size & Weight
Dimensions (W x H x D): 10.63" x 2.36" x 8.46"
Weight: 6.39 lb
1x Sony XS-163ES Mobile ES™ 6.1/2" (16cm) 3-Way Component Speakers (XS-163ES)
Bring new life to your in-car listening with the Mobile ES 3-way component speakers. Featuring a new 3 ½" (8cm) mid-range driver with Lightweight Rigid Cellular aramid fiber matrix diaphragm, they will give you wider sound stage and more depth to your music, for full-bodied vocals, detailed instrument textures.
Lightweight Rigid Cellular Aramid Fibre Matrix Diaphragm
The diaphragms for the woofer and mid-range driver are crafted from Sony’s unique Lightweight Rigid Cellular material, formerly known as mica reinforced cellular. The latest generation compound has been further optimized alongside mechanical driver improvements, to deliver an even wider frequency response and smoother, more natural sound characteristics.
Shallow mid-range driver
The newly-developed mid-range driver is driven via a compact but incredibly powerful neodymium magnet. The result is a shallower basket, designed to perform even in confined spaces and challenging installations.
Optimal formulation
Embedding in a unique matrix with aramid fibres suppresses diaphragm resonance and minimizes distortion, not only in the lows, but also in the mid and higher frequencies. The result is sound that is powerful at all frequencies and uncommonly clean, even at high volume.
Specifications:
General Features
Effective Frequency Range: 40–40,000 Hz
Impedance (ohms): 4
Output Sound Pressure: 89 dB ±2 dB SPL (1 W, 1 m)
Peak Power: 270 W
RMS Power: 90 W
Rated power: 60 W
Mid-range
Diameter: 3.5" (8 cm)
Mid-range Magnet Material: Neodymium
type: Cone
Size & Weight
Weight (Mid-Range): 7.05 oz
Weight (network box): 1.08 lb
Weight (tweeter): 2.12 oz
Weight (woofer): 33.51 oz
Speaker System
Configuration: Component, 2way
Size: 6.5" (16 cm)
Tweeter
Diameter: 1" (2.5 cm)
type: Soft Dome
Tweeter Diaphragm Material: Synthetic Fiber
Tweeter Magnet Material: Neodymium
Woofer
Surround Material: Rubber (Separated Notch)
Type: Cone
Woofer Magnet Material: Ferrite

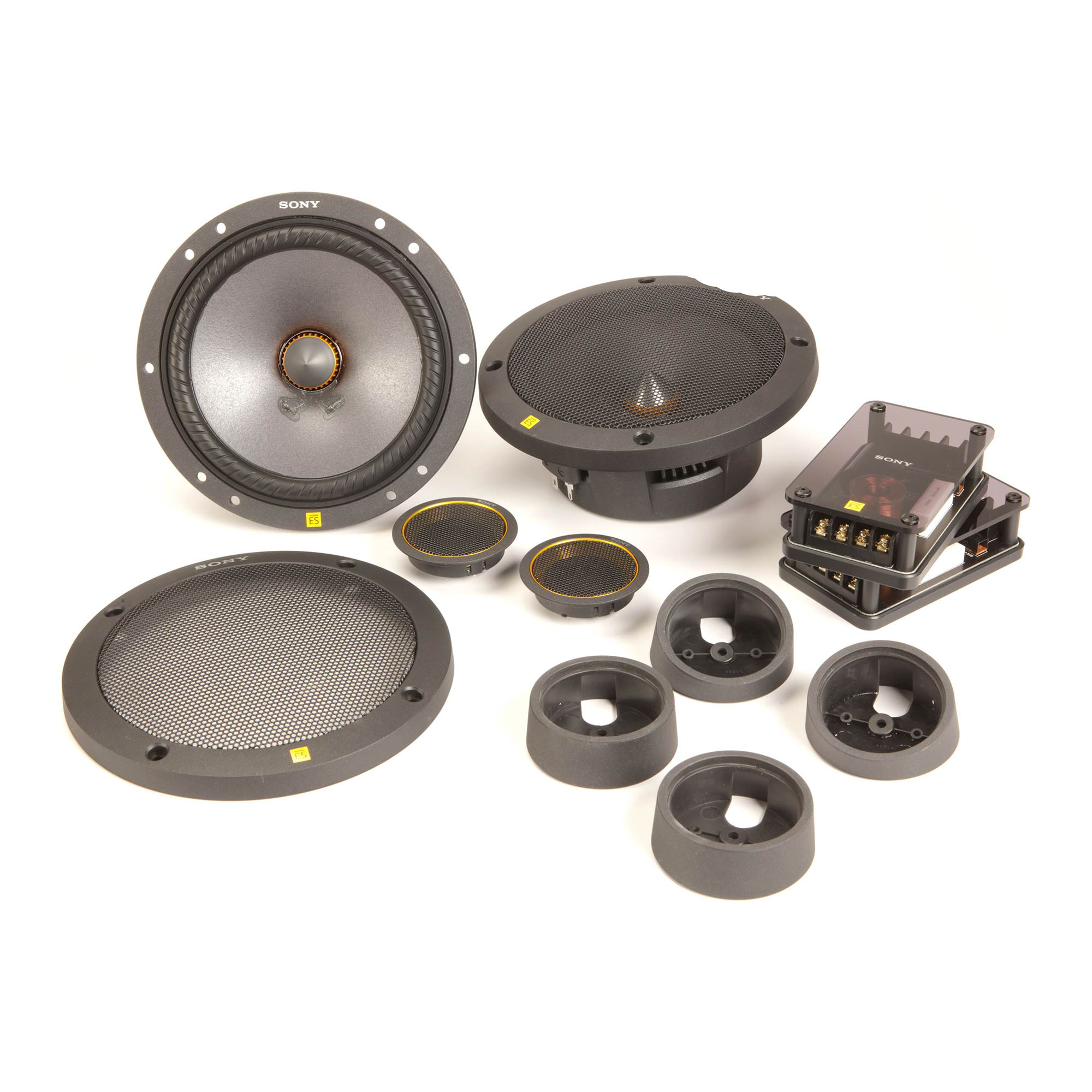

1x Sony XS-162ES Mobile ES Series 6.5" Component Speaker System (XS-162ES)
Sony has a worldwide reputation for making great audio easy to access. So it's always exciting when they decide to to make a product that's focused on premium car audio, like their flagship XS-160ES 6.5" Speakers. If you're hungering for an audiophile-grade expereince in the car, these Hi-re Audio compatible speakers from Sony are a wonderful way to start.
Specialized Woofer -
Sony builds the woofer cones of this 6.5" component speaker system from a specialized, mica-reinforced cellular aramid fiber. Developed in-house, this lightweight, rigid material minimizes distortionand enhances overall low frequency response. Sony's unique, notch-edge surround helps with responsiveness and shrugging off wear and tear over the life of the speaker.
Audiophile Tweeter -
The systems's synthetic fabric dome component tweeter delivers frequencies up to 40,000 Hz that, even though they are above the range of human hearing, reveal more texture and detail in your high-resolution audio files and add more realism and atmosphere to instruments and vocals.
The Sum of it's Parts -
Sony's meticulous approach to stamping out distortion wherever it might lurk continues with nearly every other facet ot this system. The structure of the woofer's five-beam frame helps the dispersion of unwanted resonance and the speaker's integrated dynamic air diffuser promotes essential cooling when the going gets hot. That means you can feed the Mobile ES Series component system plenty of power from an aftermarket amp and always count on immersive, natural sound.
General Features -
• Speaker Size: 6.5"
• Design: 2-way
• Tweeter Design: 1" Dome
• Impedance (ohms): 4
• Tweeter Composition: Synthetic Fabric
• Woofer Composition: MRC Aramid Fiber
• Woofer Surround: Rubber
Specifications -
• Sensitivity (1W at 1 meter): 89
• Frequency Response: 40-40kHz
• Maximum RMS Wattage: 270W
