Description
Included in this kit
This bundle includes a Sony XAV-9000ES Mobile ES 6.75‘’ Wireless High-Resolution Digital Auto Media Receiver, and a Sony XM-8ES Mobile ES 8-channel Power Amplifier.
1x Sony XAV-9000ES Mobile ES 6.75‘’ Wireless High-Resolution Digital Auto Media Receiver (XAV-9000ES)
Treat your dashboard and your senses
Enjoy pure detail in everything you listen to with the XAV-9000ES, our premium Mobile ES™ 2-DIN media receiver. A new 6.75 in (17.1 cm) capacitive HD touchscreen lets you customize audio and visuals easily, and a full suite of connectivity for your smartphone includes LDAC to wirelessly stream High-Resolution Audio with exceptional sound quality.
Flush surface HD display
A newly developed 6.75 inch (17.1 cm) bezel-less, high-definition display blends seamlessly with your dashboard and gives you intuitive control over music and communications for easier and safer use.
Premium quality audio and sound customization
Enjoy the subtle nuances of studio-quality sound with High-Resolution Audio. An industry-leading ESS digital-to-analogue converter and premium components, together with our innovative audio technologies, make sure you will always enjoy a high-quality sonic experience on the road.
Specifications
Smartphone Linkage
Voice Command (Smartphone Function) Activate: Yes (only CPAA)
Apple CarPlay: Yes (Wireless)
Android Auto : Yes (USB/Wireless)
General
Maximum output power (4ohms_1kHz_16V) (W): 55W
Speaker impedance (ohms): 4-8Ω
CTA2006 output power (W): 20W
CTA2006 S/N (dBA): 86dBA
Backup Memory: Yes
Clock: 12H
Beep initial: On
Steering Wheel Remote initial: Preset
Demo Mode: Yes
Display off mode: Yes
Dimmer: Yes
Dimmer Area: Display Monitor and Key
Dimmer Method: Auto/Manual select
Dimmer Adjust: Yes
Dimmer Adjust initial: 6
Color System: NTSC/PAL
Color System Auto switch: Yes
Wallpaper preset quantity: 4
Wallpaper Initial: Black
Wallpaper customization: Yes (Custom 2)
Parking Control: Yes
Speed pulse Control: Yes (for GPS)
Rear View Camera-In Marker Setting: Yes
Firmware upgradability: Yes (by USB flash drive or Smartphone USB tethering)
Accessibility: Closed Caption / TTS: No support
Power connector type: 16P
ANT connector type: JASO

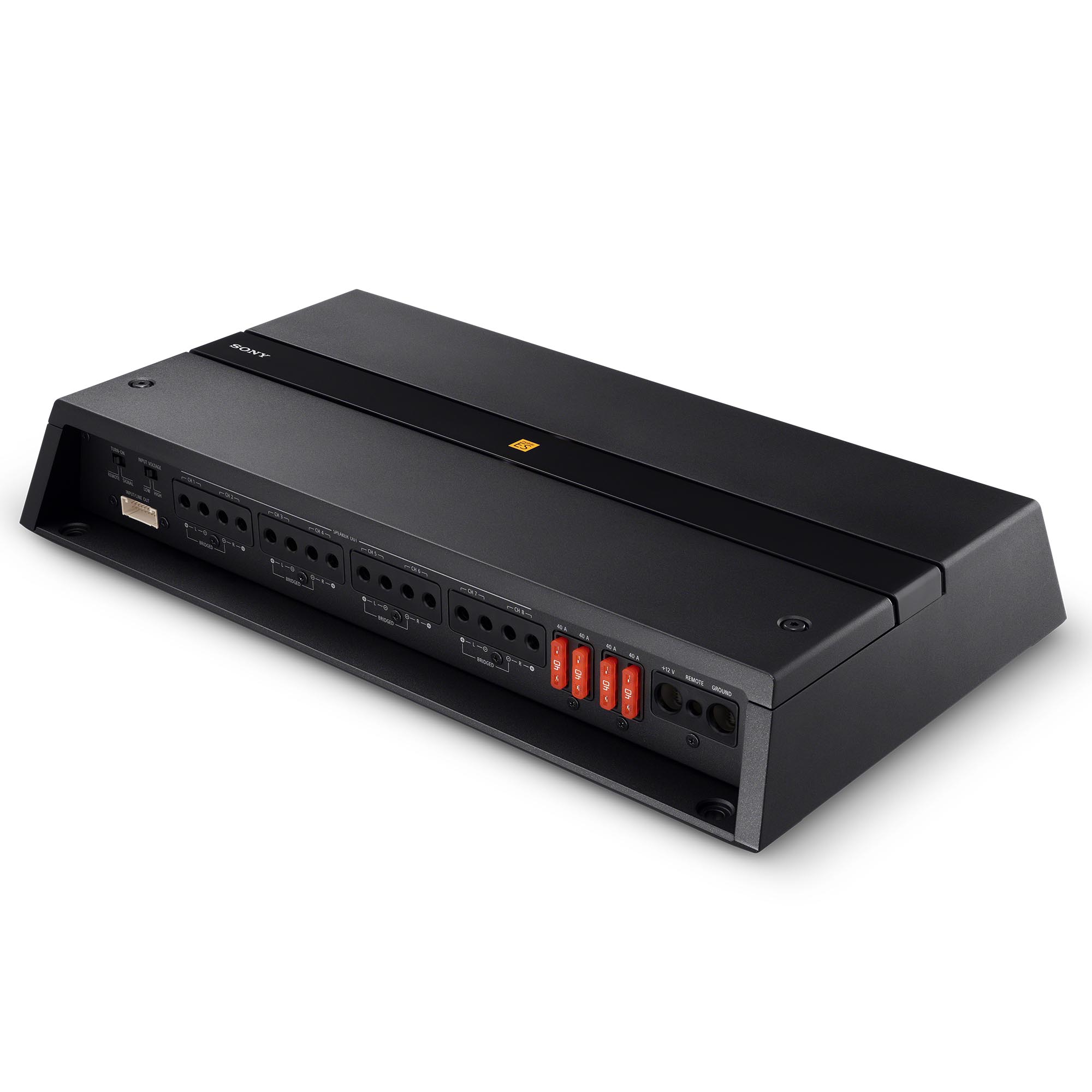

1x Sony XM-8ES Mobile ES 8-channel Power Amplifier (XM-8ES)
The XM-8ES 8-channel amplifier is engineered to enhance every track—including High-Resolution Audio files. A range of premium circuit components work together for ultimate efficiency and pitch-perfect sound reproduction, giving every road trip the soundtrack it deserves. Enjoy dynamic sound with an output power of 100W x 8 (330W x 4 bridged) RMS at 4 ohms/165W x 8 RMS at 2 ohms. The highly efficient class-D amplifier provides a variety of speaker configurations to suit any car and impress any audio enthusiast.
100W x 8 (330W x 4 bridged) RMS at 4 ohms/165W x 8 RMS at 2 ohms 165W x 8 RMS output power at 2 ohms High-Resolution Audio compatible Signal summing for seamless connection to factory audio and combined pre-outs Updated connection terminal/control panel design, and supplied bass remote
Amplifier
Channel Configuration: 8ch/7ch/6ch/5ch/4ch/3ch/2ch CTA S/N: 76dB or higher Series: Mobile ES Amplifier Class: D Filter: High Pass Filter: Variable(500-5kHz) Slope - High Pass Filter: 12dB/oct Low Pass Filter: Variable(50-500Hz) Slope - Low Pass Filter: 12dB/oct Output Power: CTA Rated At 4 ohm: 100W×8 at 1kHz,1% THD, CTA Rated At 4 ohm-Bridged: 330W×4 BTL at 1kHz,1% THD, CTA Rated At 2 ohm: 165W×8 at 1kHz,1% THD, Maximum (14.4 V) At 4 ohm: 1440W, Maximum (14.4 V) At 2 ohm: 2240W Frequency Response: 10Hz-40kHz Tolerance: +0.5/-3dB Signal to noise ratio (S = Rated output): 100dB Total harmonic distortion (1 kHz): Less than 0.05% Input - Speaker level input: Yes MOSFET - Output stage/Power supply: No/Yes Subsonic high pass filter: No Bass Boost: No Gold Plated Connectors: Yes Current drain (rated output power at 4 ohm): 70 A (4 ohms, 100Wx8) Weight (kg) approx.: 4.17 kg Dimensions (W x H x D in mm) approx.: 380mm x 60mm x 215mm Illumination: White/Red
