Description
Included in this kit
This bundle includes a Wavtech TP12G Grille Compatible with thinPRO12 Shallow Subwoofers, a Wavtech thinPRO12-2 750 Watt 12" Shallow Subwoofer 2 ohm, and a Wavtech LINK750.1PLUS 750 Watt Mono Amplifier.
1x Wavtech TP12G Grille Compatible with thinPRO12 Shallow Subwoofers - (TP12G)
12" Grille compatible with WavTech thinPro12 Shallow Subwoofers
1x Wavtech thinPRO12-2 750 Watt 12" Shallow Subwoofer 2 ohm - (thinPRO12-2)
The thinPRO12 has a mounting depth of just 3 inches, so it is really thin, but it does not perform like a shallow subwoofer. Our Patent Pending design allows for some big performance advantages. The dual mirrored NBR spiders and axial force transfer assembly achieve over 2-inches of peak to peak excursion.
The FEA optimized dual gap motor structure features a massive motor with double stacked strontium magnets. This maximizes flux density and control for an impressive 20mm of linear xmax. The honeycomb cone is made of a composite Nomex and glass fiber, making it incredibly rigid and very lightweight. The 5 inch voice coil, available in 2 or 4 ohm, provides a powerful moving force with 750W RMS power handling.
thinPRO12 Features
750 Watts RMS Power Handling
3 inch Mounting Depth
5 inch Voice Coil
4-Layer Winding on Vented Polymide Composite Former
Protective Grille (TP12G Sold Separately)
Honeycomb Nomex and Glass Fiber Cone
FEA Optimized Dual-Gap Motor Structure
Double-Roll NBR Surround
Mirrored Internal NBR Spiders
8AWG Push Terminals
Vented Cast Aluminum Frame
Dimensions: 11 1/8in (282mm) Standard 12 inch cutout
Specifications:
General
Nominal Size: 12"
Nominal Impedence: 2 Ohm
Power Handling: 750W RMS/ 2250W Peak
Recommended Power Range: 250W-750W
Frequency Response: Fs - 300Hz
Voice Coil Diameter: 127mm (5")
Electro-Mechanical Parameters
Fs: 25Hz
Re: 1.85 Ohms
Le: 2.48mH
QMS: 5.02
Qes: 0.55
Qts: 0.49
SPL/Sensitivity (1W/1m): 83dB
Xmax: 20mm (0.79")
Xmechp-p: 54mm (2.13")

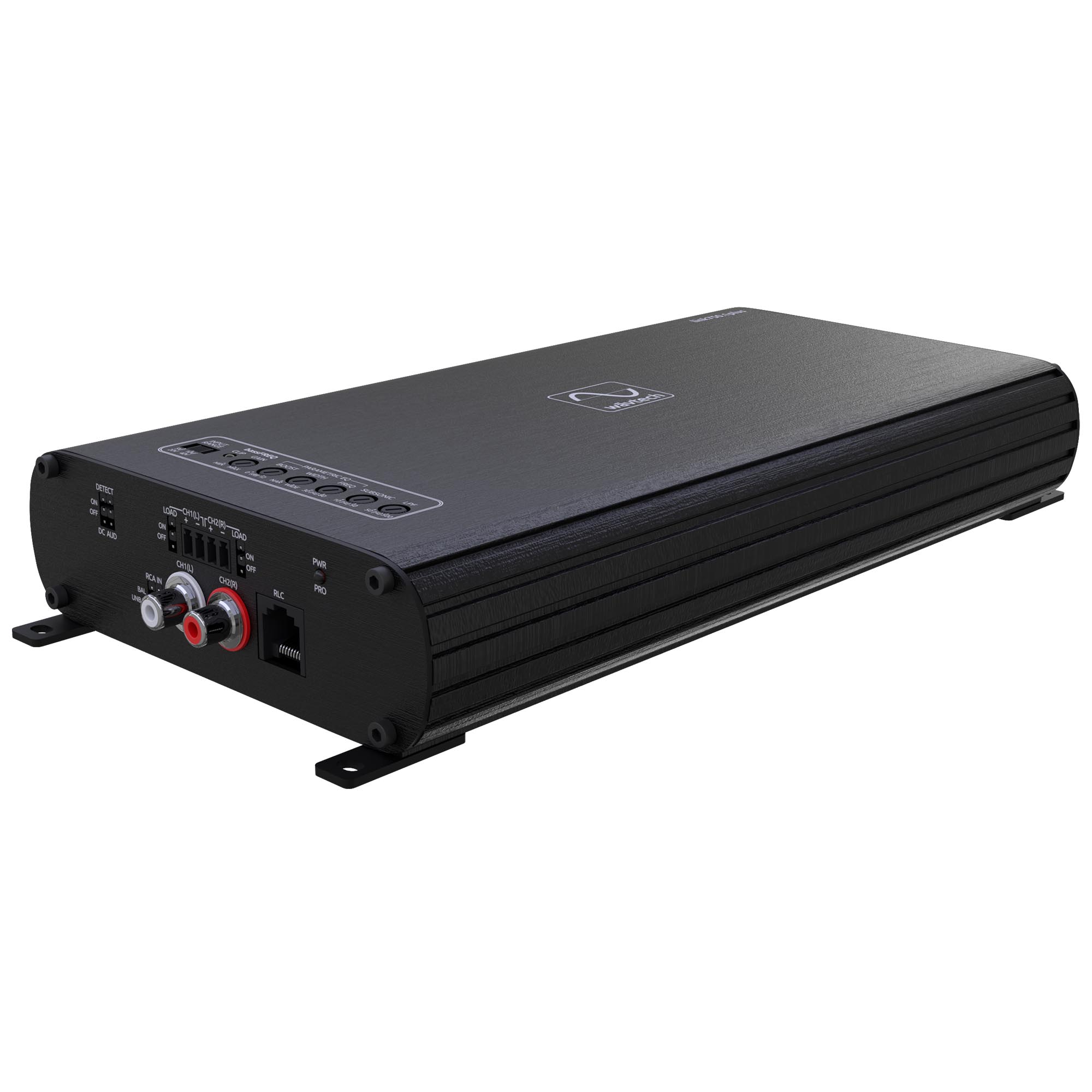

1x Wavtech LINK750.1PLUS 750 Watt Mono Amplifier - (Link750.1plus)
If your system requires a 1 ohm stable amplifier, but doesn’t need the power of link1500.1plus, the link750.1plus is the solution. Utilizing our proprietary Dual Rail Voltage Power Supply, the amp produces the same power output at either 2 or 1 ohm. During installation, select the impedance that matches your subwoofers using the 4/2 or 1 ohm switch and the amp does the rest.
The link750.1plus can handle up to 40V and has our adaptive loading technology for OEM systems. It is also compatible with OEM start/stop systems. The bassFREQ preamp has a 24dB per octave crossover, adjustable parametric EQ and 24dB per octave subsonic filter for the best subwoofer tuning possible. It is compatible with the optional linkRC remote control.
link750.1plus Features
750 Watt Mono Amplifier
400 watts x 1 @ 4 ohms
750 watts x 1 @ 2 ohms
750 watts x 1 @ 1 ohm
Small Footprint Only 10.25”x5.5”x1.65”
Dual Rail Voltage Power Supply
Fully Adjustable Parametric EQ
Variable Low-Pass Crossover (-24dB/oct)
Variable Subsonic Filter (-24dB/oct)
Remote Level Control (RLC) w/Optional linkRC
bassFREQ Bass Processor w/Parametic EQ
Active Thermal Management
Start/Stop System Compatible
Adaptive OEM Load Technology
40V Input Capability
Differential Balanced Inputs
Variable Gain Adjustment w/Clip LED
Auto Turn-On via DC-Offset or Audio Signal Detect
Locking Detachable Hi-Level Speaker Terminals
4 Gauge Power/Ground Terminals
Professional Grade Panel Mount RCA’s
Compact Aluminum Chassis w/Detachable Mounting tabs
link750.1plus Specifications
Input Sensitivity
SPK: 1-20Vrms, 2-40Vrms
RCA: 0.2V-5Vrms, 0.4V-10Vrms
Max Input Voltage (SPK): 40Vrms
Frequency Response: <10Hz to >500Hz (=0/-3dB)
THD+N: <1% at rated power
S/N: >78dBA (1W, 4Ω)
