Description
Included in this kit
This bundle includes a WiiM Amp Silver Streaming Amplifier | 60W/Ch at 8Ω | HDMI ARC | AirPlay 2 & Google Cast | Room Correction, and 4x Legrand HT5801 5000 Series 8" Rectangle In-Wall Speaker (Sold Individually).
1x WiiM Amp Silver Streaming Amplifier | 60W/Ch at 8Ω | HDMI ARC | AirPlay 2 & Google Cast | Room Correction (WiiM-Amp-Silver)
WiiM Amp Silver Streaming Amplifier | 60W/Ch at 8Ω | HDMI ARC | AirPlay 2 & Google Cast | Room Correction
A compact stereo streaming amplifier that adds app control, multiroom playback, room correction, and TV connectivity to passive speakers.
Overview
Built for the system
WiiM Amp combines network streaming and stereo amplification in one aluminum chassis, delivering 60 watts per channel into 8 ohms or 120 watts per channel into 4 ohms.
HDMI ARC, optical, and line inputs connect TV and music sources, while the managed subwoofer output makes it easy to build a fuller 2.1-channel system.
At a glance
Key product features
- Delivers 60W per channel at 8 ohms or 120W per channel at 4 ohms
- Streams hi-res audio up to 24-bit/192kHz with gapless playback
- HDMI ARC, optical, and line inputs connect TVs and music sources
- Room correction, 10-band graphic/parametric EQ, and 26 presets tailor sound
- AirPlay 2, Google Cast, Spotify Connect, TIDAL Connect, and Roon Ready support
Design and integration
Streaming, amplification, and TV audio in one component
An ESS Sabre DAC and TI TPA3255 amplifier support a 98dB signal-to-noise ratio and 0.0025% THD+N. Dual-band Wi-Fi, Ethernet, Bluetooth 5.1, the WiiM Home app, and the included voice remote provide flexible control.
Passive-speaker power
Stereo binding posts drive bookshelf, floor-standing, architectural, or outdoor speakers from a compact chassis.
Expandable bass
The subwoofer output includes bass management and a user-adjustable 30-350Hz crossover.
Living-room ready
HDMI ARC carries stereo PCM from a compatible TV for a straightforward music-and-video system.
| SKU | WiiM-Amp-Silver |
| Model Number | AMP001-Silver |
| Finish | Silver |
| Power Output | 60W/ch at 8Ω; 120W/ch at 4Ω |
| DAC / Amplifier | ESS Sabre DAC; TI TPA3255 amplifier |
| Signal-to-Noise Ratio | 98 dB |
| THD+N | 0.0025% (-92 dB) |
| Audio Inputs | HDMI ARC, optical, line |
| Audio Outputs | Stereo speaker terminals; managed subwoofer output |
| Home-Theater Formats | Stereo PCM; Dolby Digital and DTS are not supported |
| EQ | 10-band graphic EQ, 10-band parametric EQ, 26 presets, room correction |
| Network | Dual-band Wi-Fi; 10/100 Mbps Ethernet |
| Bluetooth | Bluetooth 5.1 with receiver and transmitter support |
| Streaming | AirPlay 2, Google Cast, Spotify Connect, TIDAL Connect, Qobuz Connect, Alexa Cast, DLNA, Roon Ready |
| Power Supply | 100-240V AC, 50/60Hz |
| Supplied Dimensions | 14.57 x 10.24 x 2.95 in (L x W x H) |
| Supplied Weight | 7.3 lb |
AirPlay receiver only: WiiM Amp can receive AirPlay streams but cannot transmit them to other AirPlay devices.

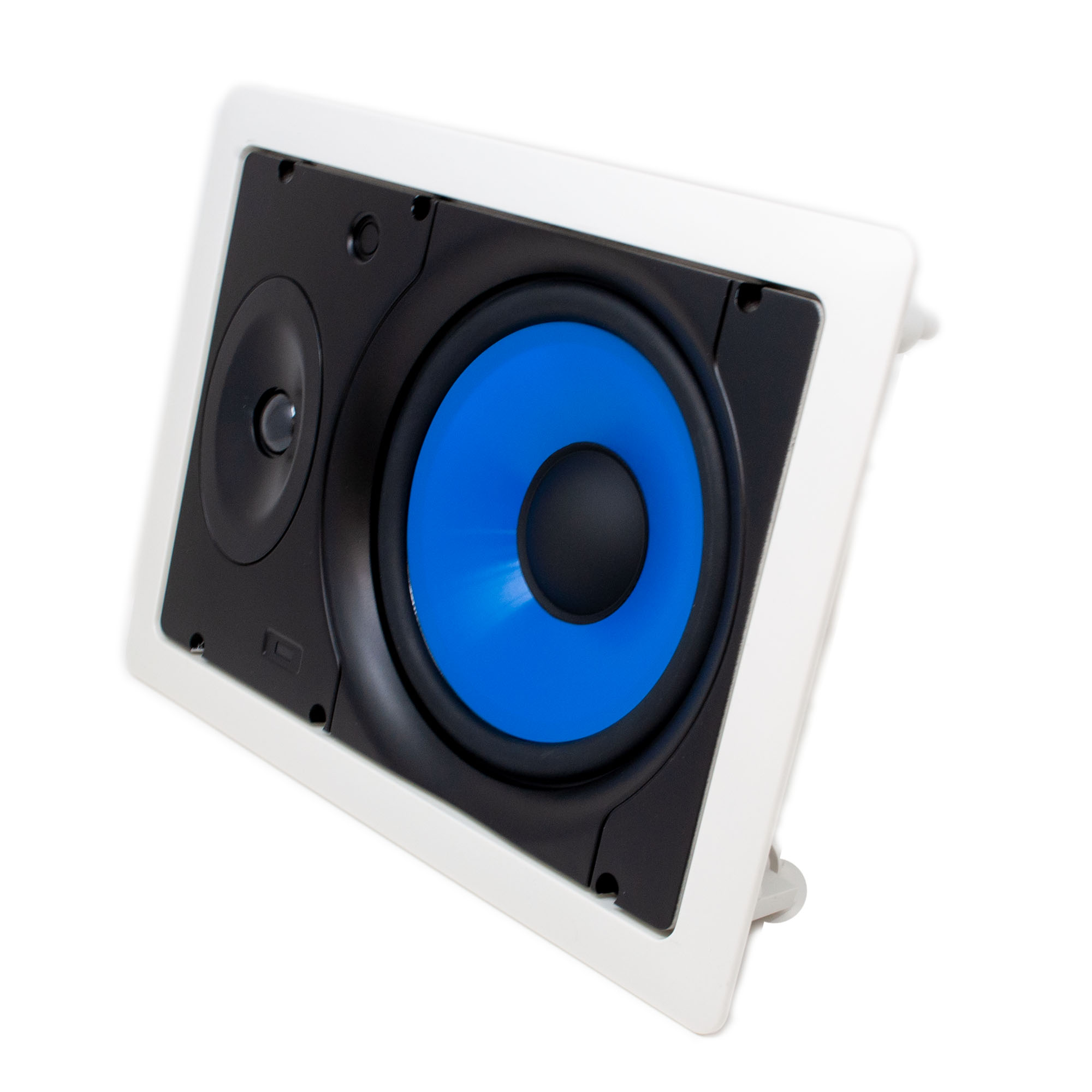

4x Legrand HT5801 5000 Series 8" Rectangle In-Wall Speaker (Sold Individually) (HT5801)
The 5000 Series Speakers were designed specifically for surround sound home theater applications, and answer the need for exceptional sound and higher power ratings in the home.
General Info -
• UPC Number: 804428026433
• Country Of Origin: China
• Product Line: On-Q
Additional Information -
• RoHS Conformant: Yes, this product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.
