Description
Included in this kit
This bundle includes a Cerwin-Vega XED3001D - XED 1-Channel / 300Wx1@2Ω RMS, and 2x Cerwin-Vega XED12V2 - XED 1000W Max 12" Svc 4Ω.

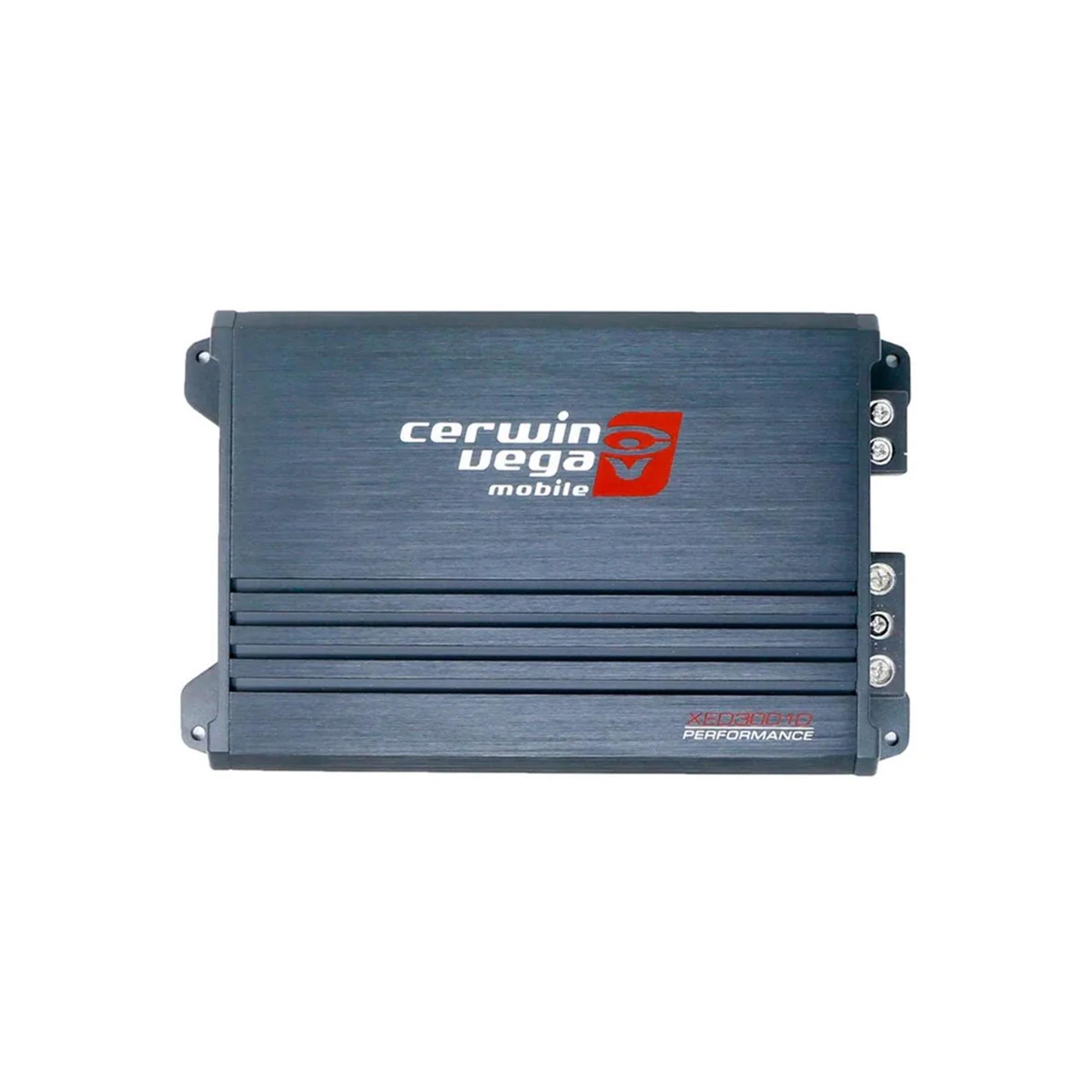

1x Cerwin-Vega XED3001D - XED 1-Channel / 300Wx1@2Ω RMS (XED3001D)
The Cerwin-Vega XED3001D is a mono Class-D amplifier designed for compact subwoofer systems requiring efficient power delivery in a small footprint. As part of the XED Series, this amplifier focuses on stable low-frequency output, space-efficient installation, and flexible system integration for modern car audio applications.
A Class-D output stage combined with a full PWM power supply allows the XED3001D to deliver consistent power while minimizing heat generation. The aluminum chassis supports effective thermal management, making the amplifier suitable for under-seat, side-panel, or factory mounting locations.
Onboard tuning features include a variable low-pass crossover and adjustable bass boost to accommodate different subwoofer and enclosure configurations. The amplifier supports both RCA low-level and speaker-level inputs, allowing compatibility with factory or aftermarket head units. A remote bass control is included for convenient adjustment from the listening position, and LED power and protection indicators provide clear system status feedback.
Technical Specifications
• Channels: 1 (Mono)
• RMS Power: 200W x 1 @ 4Ω / 300W x 1 @ 2Ω
• Frequency Response / Bandwidth: 10Hz–350Hz
• THD (100Hz @ 4Ω): ≤0.1%
• Signal-to-Noise Ratio: -85dBA (1W) / -101.1dBA (Full Power)
• Input Sensitivity: 250mV–6V (RCA) / 1.1V–20V (Speaker Level)
• Crossover: Variable Low-Pass (35Hz–250Hz)
• Bass Boost: 0–12dB
• Fuse Rating: 20A x 2 (Internal ATC)
• Operating Voltage: 10.0V–16.0V DC
• Dimensions (L x W x H): 6.3” x 4.7” x 1.8”
• Manufacturer Part Number: XED3001D

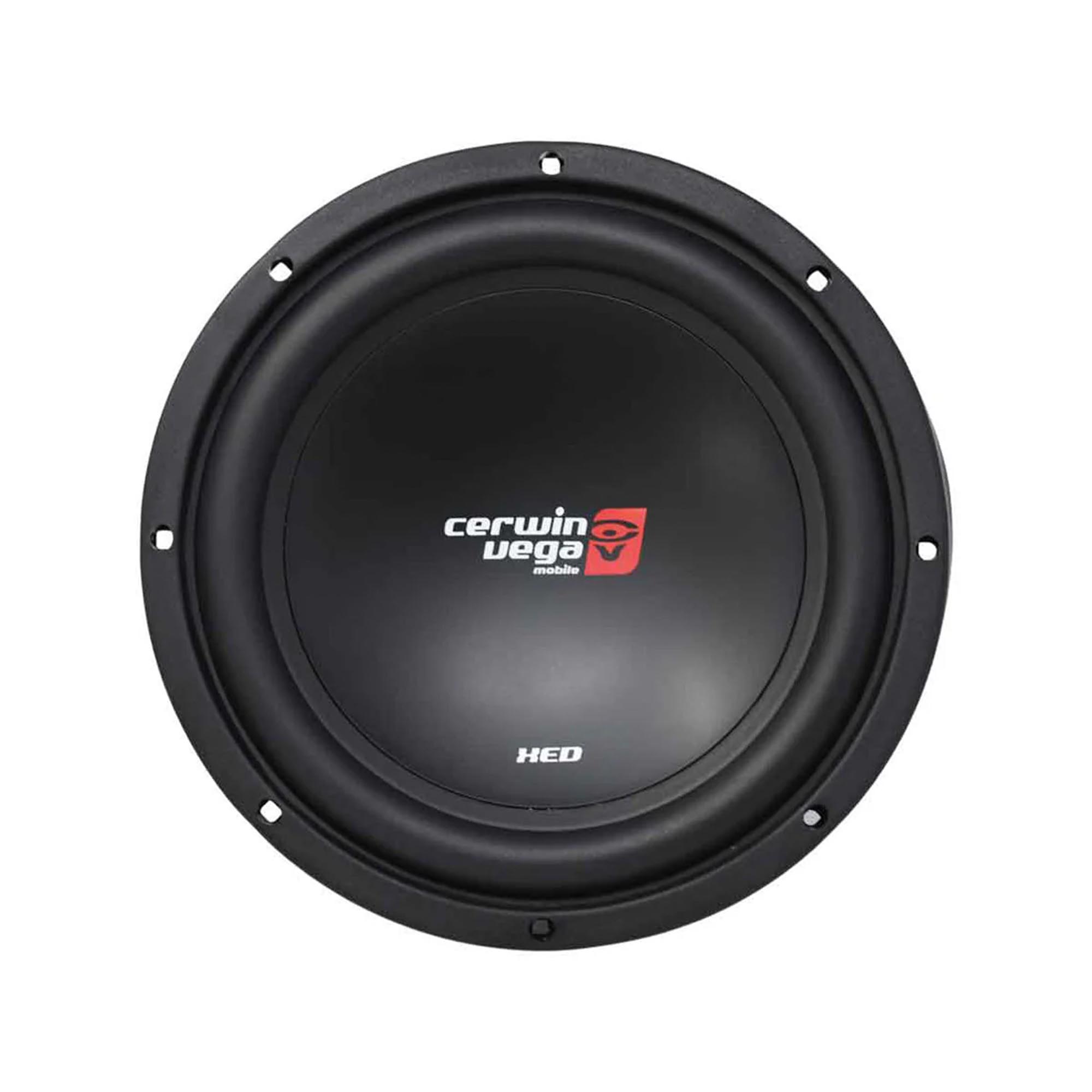

2x Cerwin-Vega XED12V2 - XED 1000W Max 12" Svc 4Ω (XED12V2)
The Cerwin-Vega XED12V2 is a 12-inch single voice coil subwoofer designed to deliver controlled low-frequency output in car audio systems. As part of the XED Series, this subwoofer focuses on durability, efficient power handling, and compatibility with a wide range of mono amplifiers.
A polypropylene cone paired with a treated foam surround supports stable cone movement and consistent bass response. The stamped steel basket provides structural support during operation, while the ferrite magnet motor structure is designed for reliable performance in daily-use and entry-level high-output applications.
With a single 4-ohm voice coil configuration, the XED12V2 allows for straightforward wiring and amplifier matching. Its mounting dimensions support installation in sealed or vented enclosures where space, efficiency, and reliability are important considerations.
Technical Specifications
• Speaker Type: Subwoofer
• Speaker Size: 12 inches
• Voice Coil Configuration: Single Voice Coil (SVC)
• Impedance: 4 Ohms
• RMS / Max Power Handling: 150W / 1000W
• Sensitivity (1W/1m): 85.5 dB
• Cone Material: Polypropylene
• Surround Material: Treated Foam
• Basket Material: Stamped Steel
• Magnet Type: Ferrite (Ceramic)
• Voice Coil Diameter: 2 inches
• Xmax: 17.8 mm
• Vas: 103.2 L
• Mounting Diameter: 10.82 inches (275mm)
