Description
Included in this kit
This bundle includes a Cerwin-Vega CVP1400.4 CVP Performance 1400w Max 4-ch Small Chassis Amplifier 90WX4@4Ω RMS / 140WX4@2Ω RMS, a Cerwin-Vega V652 - 6.5" Coaxial Speakers 2-Ohm Version 120Wrms/360Wmax, a Cerwin-Vega V692 - 6X9" Coaxial Speakers 2-Ohm Version 140Wrms/420Wmax, and a Cerwin Vega CAK42 4 Gauge OFC Amp Kit – 100% Oxygen-Free Copper Amplifier Wiring Kit with RCA Cable, Fuse Holder & Power Wire – Up to 1500W RMS.
1x Cerwin-Vega CVP1400.4 CVP Performance 1400w Max 4-ch Small Chassis Amplifier 90WX4@4Ω RMS / 140WX4@2Ω RMS (CVP1400.4)

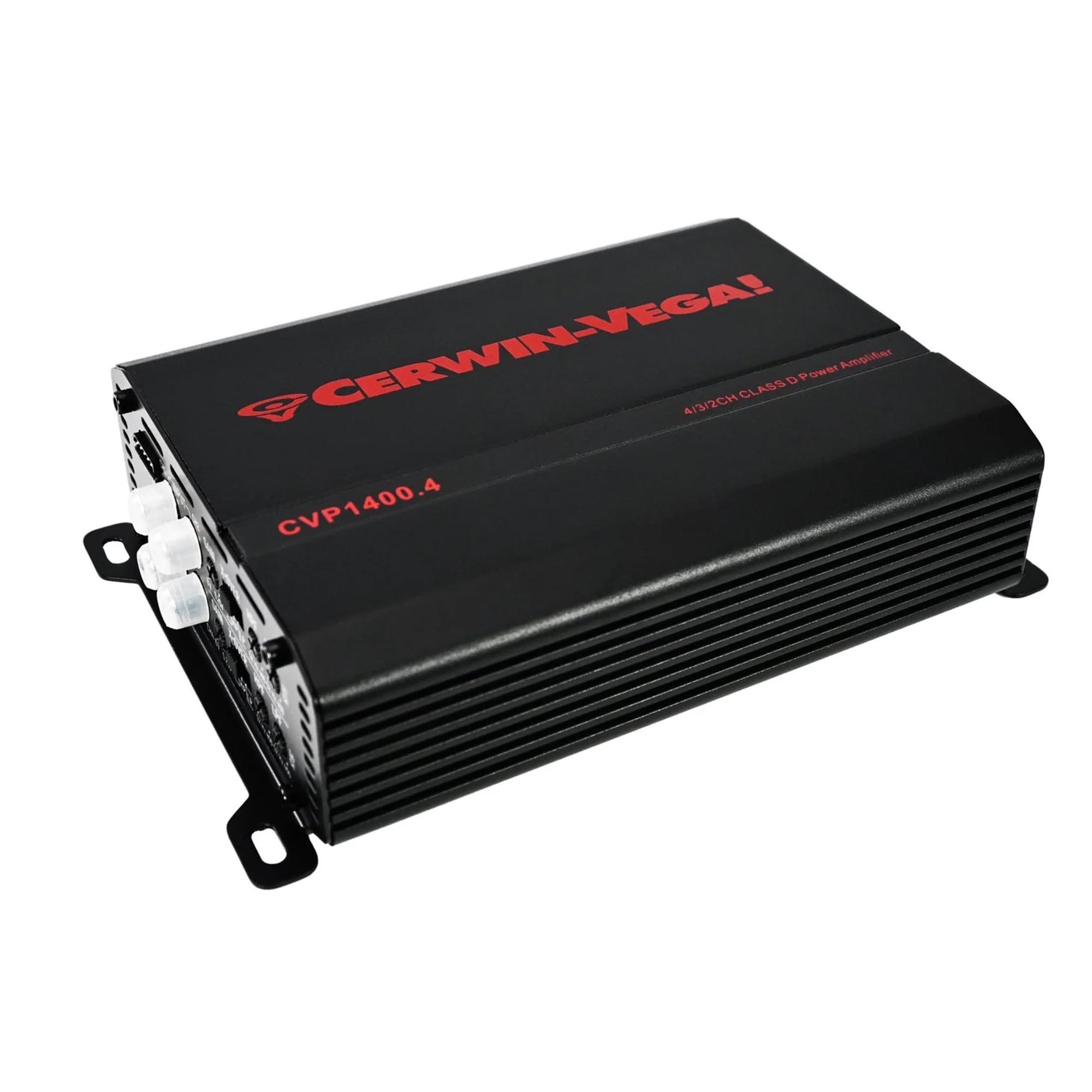

Cerwin-Vega CVP1400.4 CVP Performance 4-Channel Class D Amplifier
The Cerwin-Vega CVP1400.4 is a compact 4-channel Class D amplifier engineered to deliver clean, efficient power for factory or aftermarket audio systems. Designed as part of the CVP Performance Series, it provides strong output in a space-saving chassis ideal for modern vehicles.
With versatile input options, adjustable crossovers, and comprehensive protection circuitry, the CVP1400.4 offers flexible system integration and dependable performance for daily drivers and custom builds alike.
Power & Performance
| RMS Power @ 4Ω | 80W x 4 |
| RMS Power @ 2Ω | 140W x 4 |
| RMS Power Bridged @ 4Ω | 290W x 2 |
| Frequency Response (±3dB) | 10Hz – 30kHz |
| Signal-to-Noise Ratio | ≥90dB |
| Channel Separation | >60dB |
| Input Sensitivity | 250mV – 6V |
Crossover & Control Features
- Adjustable High-Pass Filter: 52Hz – 400Hz (-6dB)
- Adjustable Low-Pass Filter: 52Hz – 400Hz (-12dB)
- High-Level Inputs with Auto Turn-On (4V – 8V)
- Power Protection Indicator
Construction & Protection
- Class D Amplifier Topology
- Full MOSFET DC-DC PWM Power Supply
- Double-Sided 2-Layer PC Board
- SMD Technology
- Short Circuit Protection
- Low Impedance Protection
- Reverse Polarity Protection
- Overheating Protection
- Fuse Rating: 30A x 2
Dimensions
| Chassis Dimensions (L x W x H) | 7.28" x 4.92" x 1.93" (185mm x 125mm x 49mm) |
1x Cerwin-Vega V652 - 6.5" Coaxial Speakers 2-Ohm Version 120Wrms/360Wmax (V652)
Take your car audio system to the next level with the Cerwin Vega V652, a 6.5" coaxial speaker with a 2Ω impedance, designed for maximum power efficiency and superior sound clarity. As part of the high-performance Vega Series, the V652 is built to deliver deep bass, rich mids, and crisp highs, giving you the ultimate in-car audio experience. Whether you're upgrading your stock system or creating a high-power custom setup, the V652 ensures powerful, distortion-free performance at any volume.
Optimized for Maximum Power & Clarity
The V652 is engineered with a hybrid carbon fiber-polypropylene cone, delivering highly responsive, accurate sound reproduction. With a Santoprene™ rubber surround, this speaker offers enhanced excursion, ensuring clean, distortion-free bass and smooth midrange frequencies. The 2Ω impedance allows for increased power output, making it ideal for high-performance audio systems.
Vega Series Features
Hybrid Carbon Fiber / Polypropylene Cone – Produces precise, dynamic, and detailed audio.
Santoprene™ Rubber Surround – Enhances bass response and ensures long-lasting durability.
Dynamically Balanced Silk Dome Tweeter – Delivers crisp, clear highs with neodymium magnet efficiency.
Integrated Crossover with Tweeter Protection – Maintains smooth frequency transitions and prevents distortion.
Strontium Ferrite Woofer Magnet – Enhances low-end response for deeper, more powerful bass.
Powder-Coated, Rigid Stamped Steel Basket – Reduces vibration and ensures stable performance.
2Ω Impedance – Optimized for maximum power handling and efficiency.
Sold in Pairs – Perfect for full-system upgrades and balanced stereo imaging.
Specifications
Power: 120W RMS/360W MAX
Frequency Response: 89Hz-20KHz
Sensitivity (1W/1M): 88dB
Nominal Impedance: 2Ω
Free Air Resonance (FO): 95Hz
Overall Diameter: 6.26" (159mm)
Cut-Out Diameter: 4.88" (124mm)
Mounting Depth: 1.79" (45.5mm)
1x Cerwin-Vega V692 - 6X9" Coaxial Speakers 2-Ohm Version 140Wrms/420Wmax (V692)
Maximize your audio performance with the Cerwin Vega V692, a 6" x 9" coaxial speaker with a 2Ω impedance, designed for those seeking powerful sound, high efficiency, and exceptional clarity. As part of the premium Vega Series, the V692 delivers deep bass, rich mids, and crisp highs, making it the perfect upgrade for any sound system. With its 2Ω impedance, this speaker ensures increased power handling and efficiency, bringing you an immersive audio experience without compromise.
Optimized for Power & Precision
Built with a hybrid carbon fiber-polypropylene cone, the V692 guarantees accurate, responsive sound across the entire frequency range. The Santoprene™ rubber surround enhances excursion, ensuring distortion-free bass and clear, vibrant mids. Designed for maximum power handling, the 2Ω impedance increases efficiency, allowing you to push more power to the speakers for a louder, more dynamic listening experience.
Vega Series Features
Hybrid Carbon Fiber / Polypropylene Cone – Provides dynamic, precise, and accurate sound reproduction.
Santoprene™ Rubber Surround – Enhances durability and allows greater excursion for deeper bass.
Dynamically Balanced Silk Dome Tweeter – Delivers crisp, clear highs with the efficiency of a neodymium magnet.
Integrated Crossover with Tweeter Protection – Ensures smooth transitions between frequencies and prevents distortion.
Strontium Ferrite Woofer Magnet – Powers deep bass and enhances low-end response.
Powder-Coated, Rigid Stamped Steel Basket – Reduces unwanted vibrations for cleaner, clearer sound.
2Ω Impedance – Optimized for increased power handling and efficiency.
Sold in Pairs – Ideal for stereo imaging and full-system upgrades.
Designed with Cerwin Vega’s legendary engineering, the V692 offers high-powered, crystal-clear sound with maximum efficiency. Upgrade to the Vega Series today and hear the difference with unmatched performance and precision!
1x Cerwin Vega CAK42 4 Gauge OFC Amp Kit – 100% Oxygen-Free Copper Amplifier Wiring Kit with RCA Cable, Fuse Holder & Power Wire – Up to 1500W RMS (CAK42)
Designed Specifically for Car Audio System up to 1200W. 4 Gauge 2-Channel Amplifier Connection Kits. 17ft, 4 Gauge Matte Red Power Wire with ring terminated. 3ft, 4 Gauge Matte Black Ground Wire with ring terminated. 17ft, 18 Gauge Remote Turn-on wire. 20ft, 16 Gauge Speaker Wire. 17ft, 2-Ch. Vega series RCA interconnect. AGU fuse holder with 100A fuse. All Hardware included. OFC. US Spec.
Specifications
4 Gauge 2-Channel Amplifier Connection Kits
17ft. 4 Gauge Matte Red Power Wire with ring terminated
3ft. 4 Gauge Matte Black Ground Wire with ring terminated
17ft. 18 Gauge remote Turn-on wire
20ft. 16 Gauge Speaker Wire
17ft. 2-Ch. Vega series RCA interconnect
ANL fuse holder with 100A fuse
All Hardware Include
OFC
